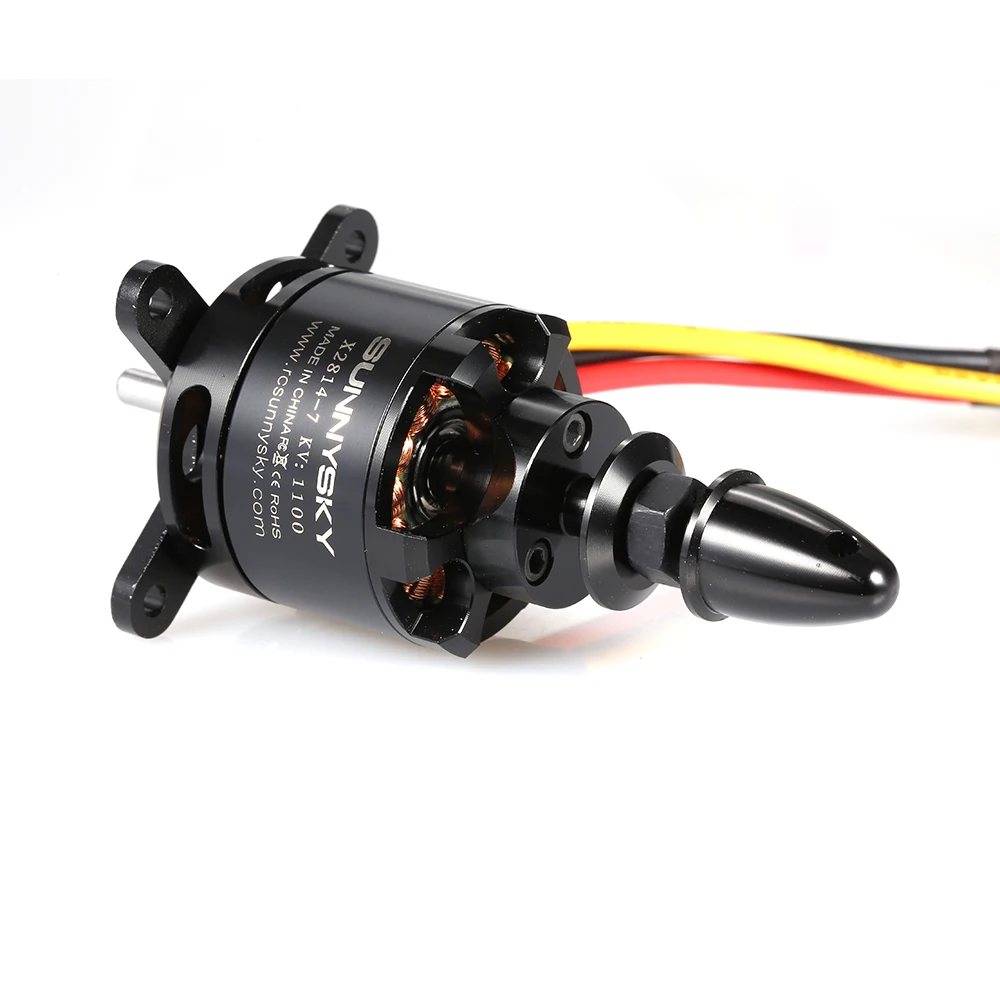

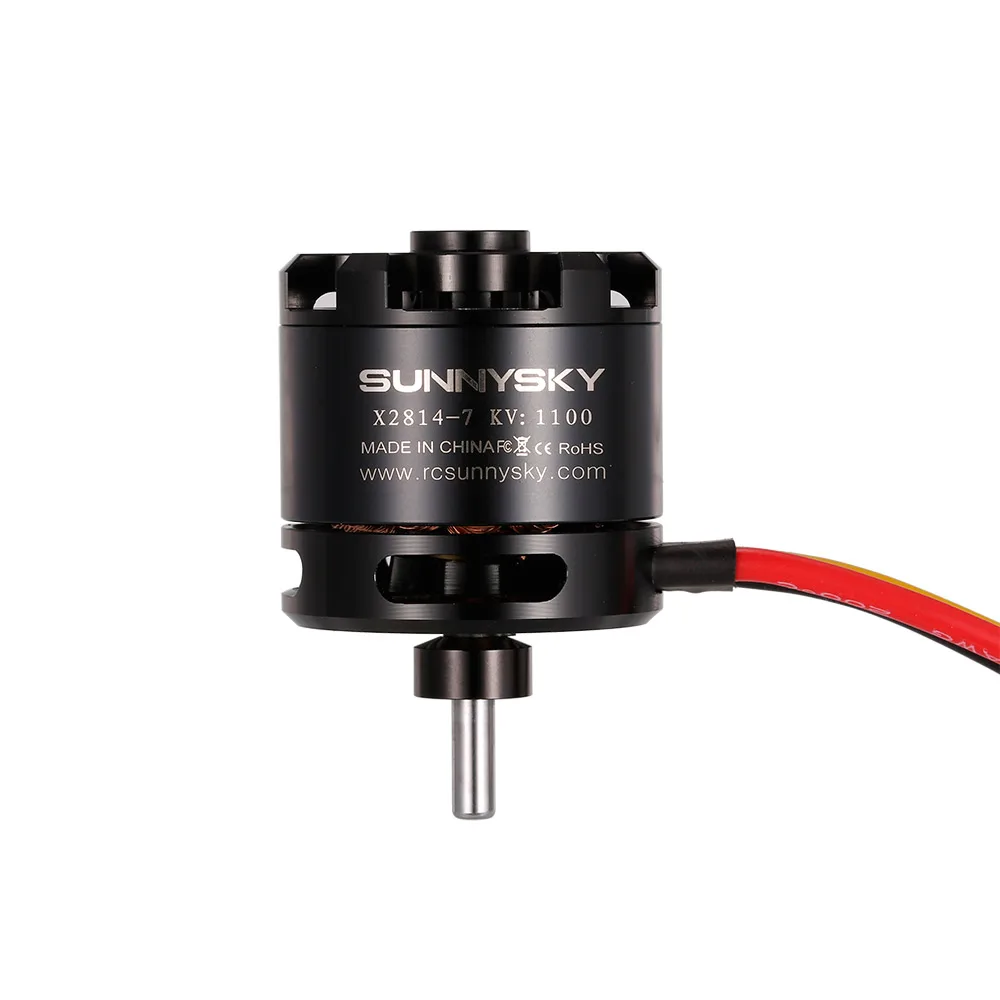

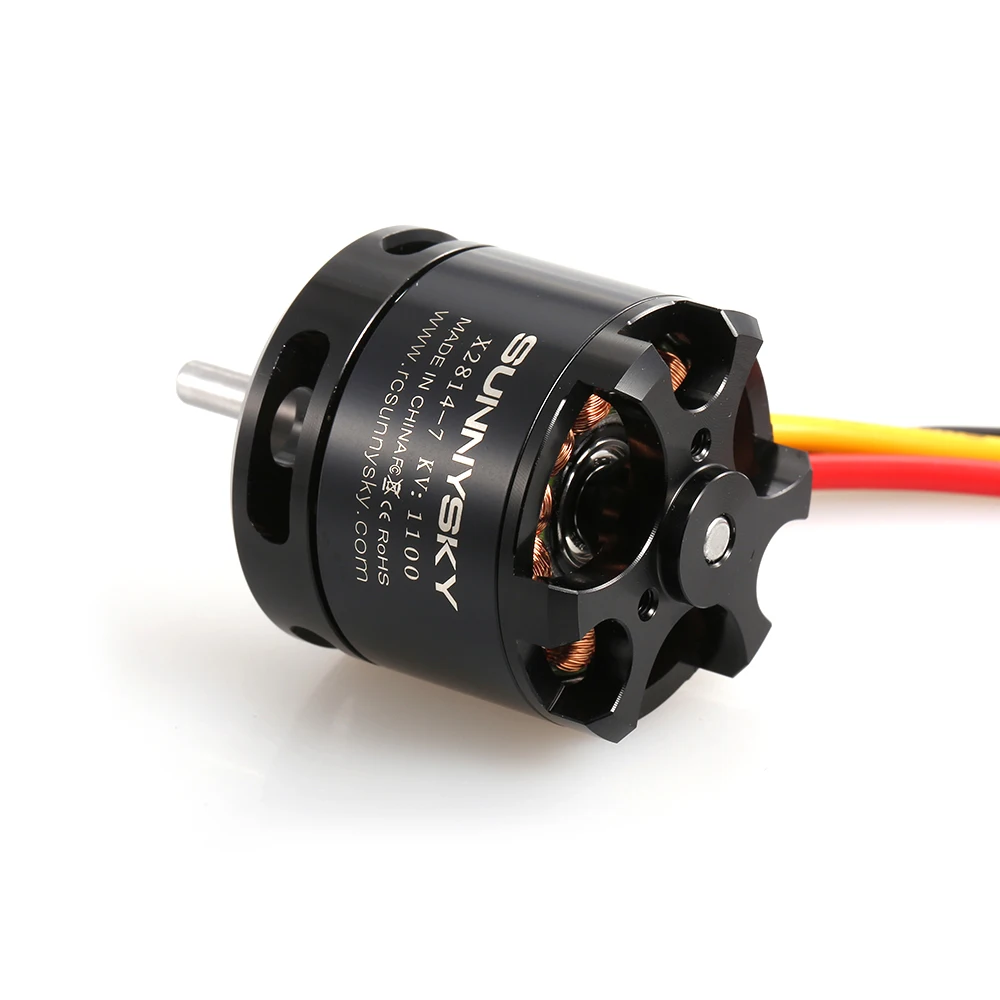

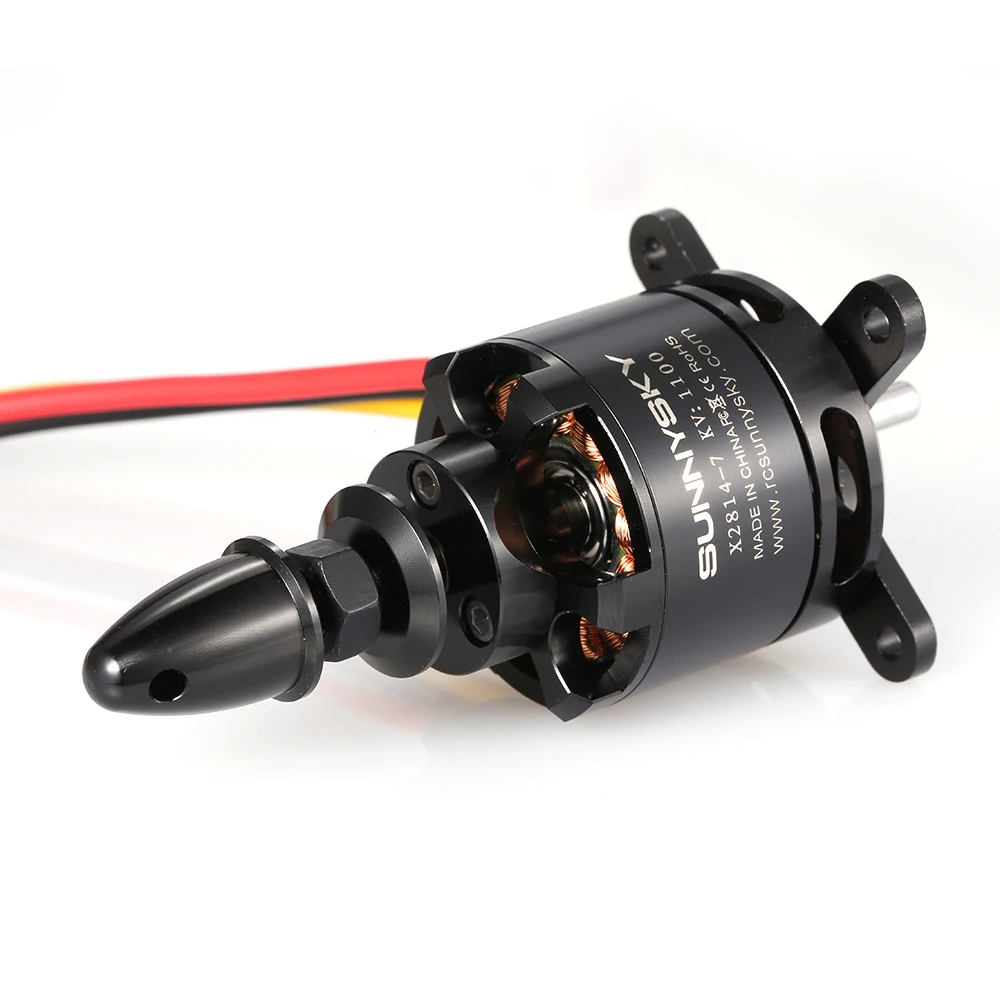

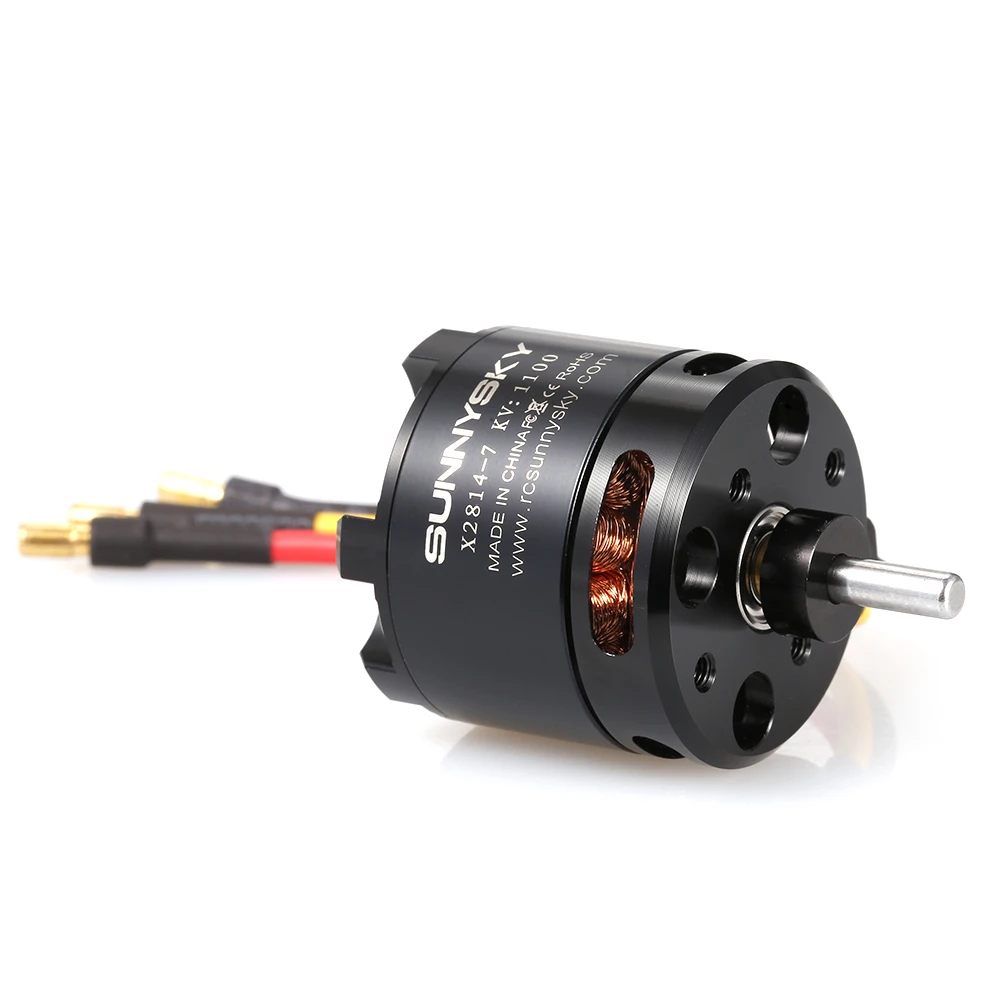

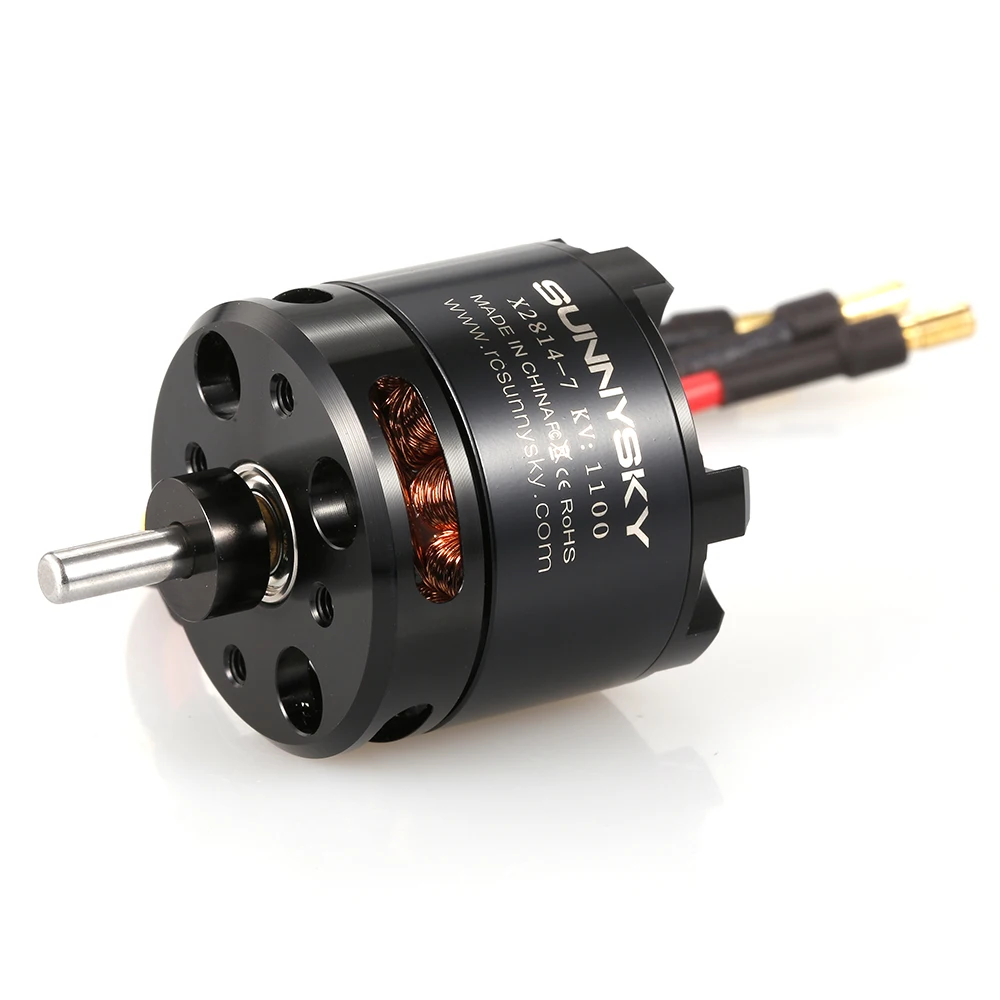

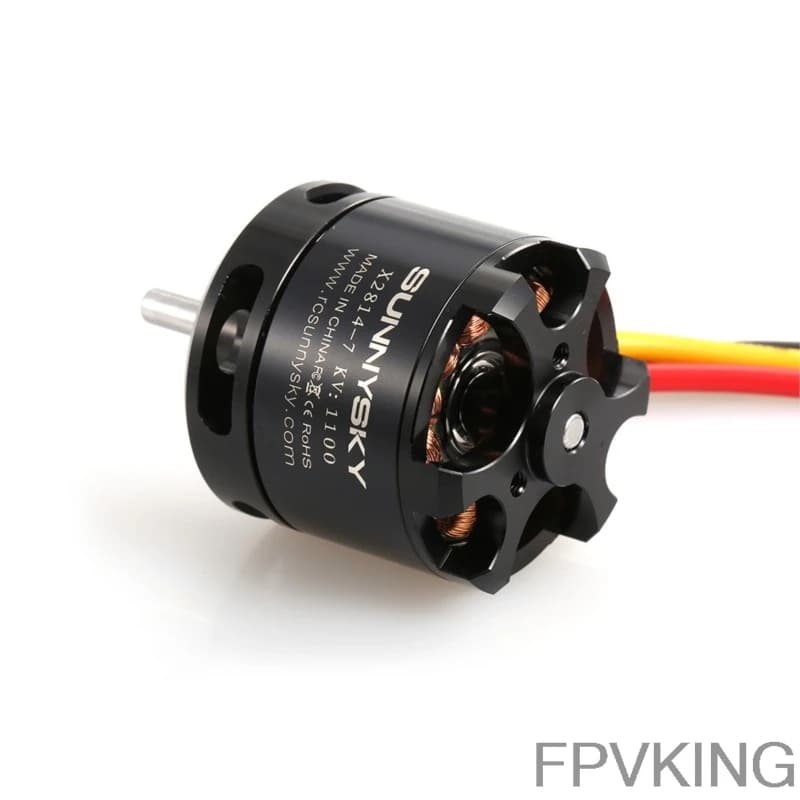

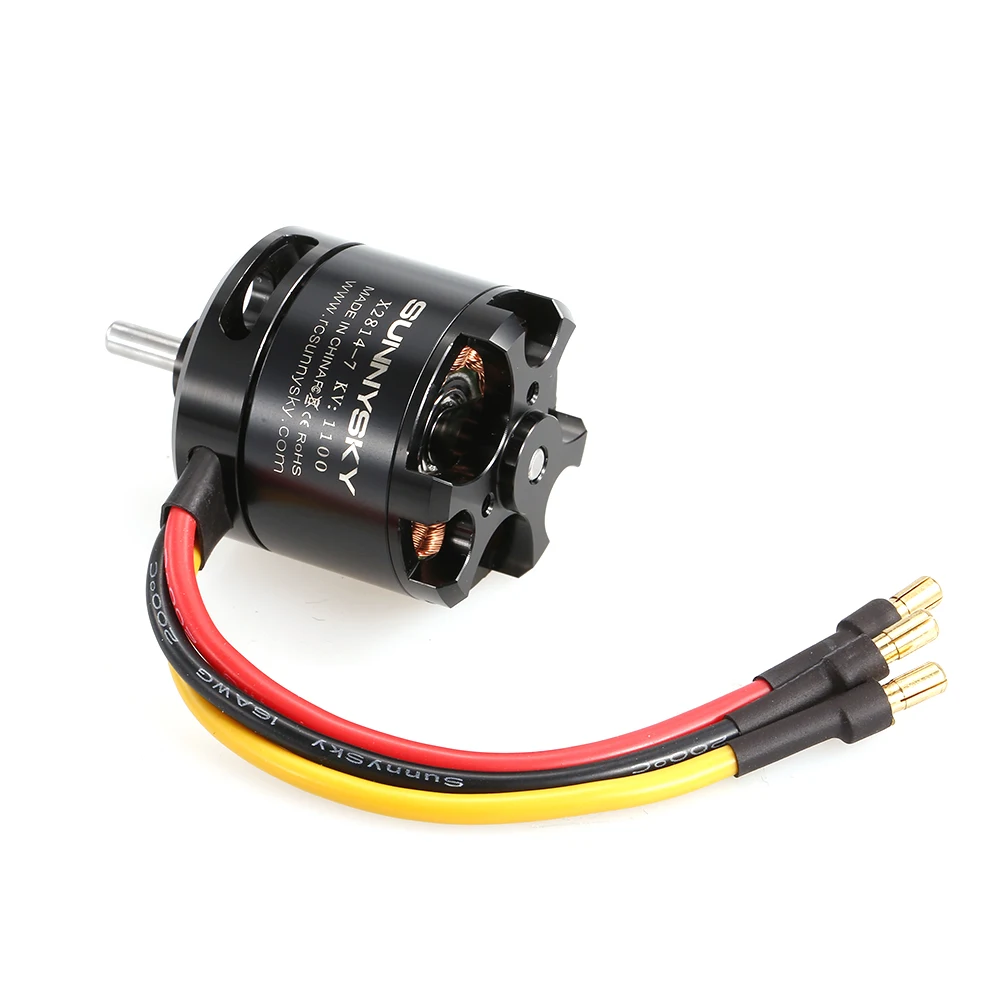

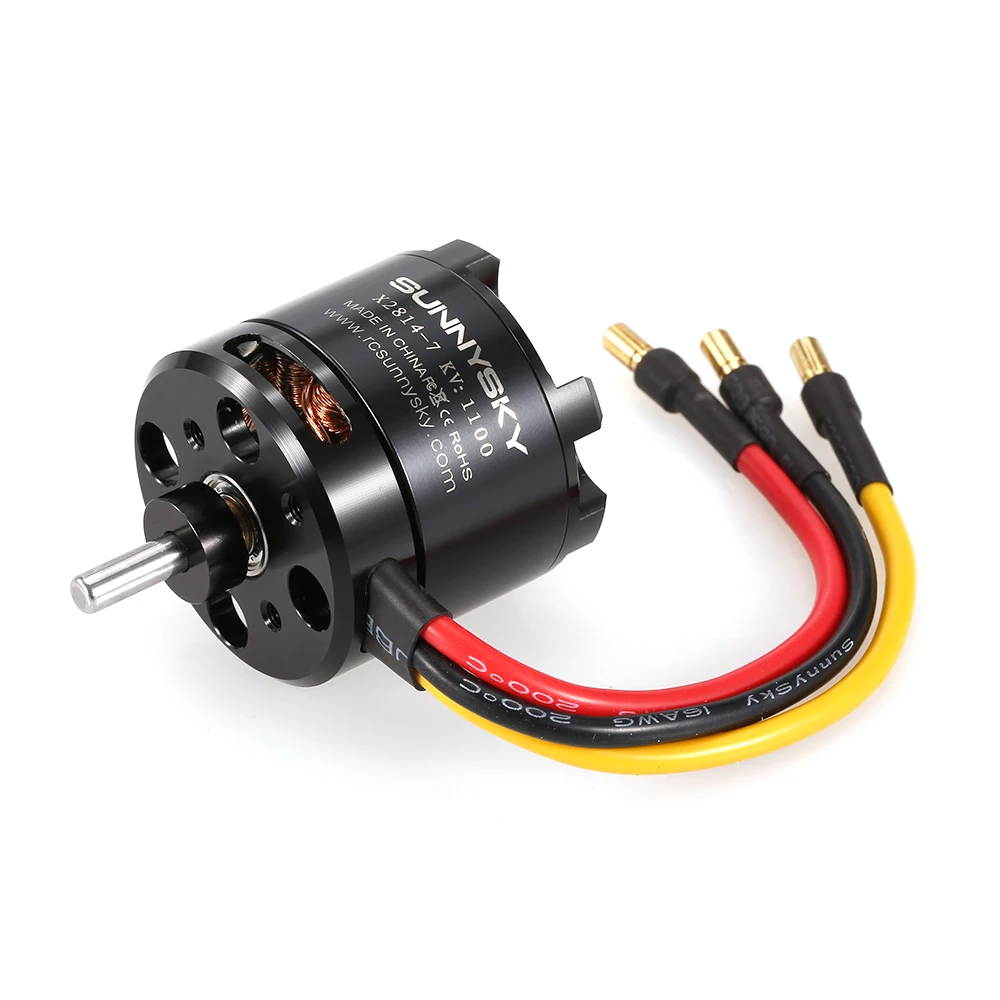

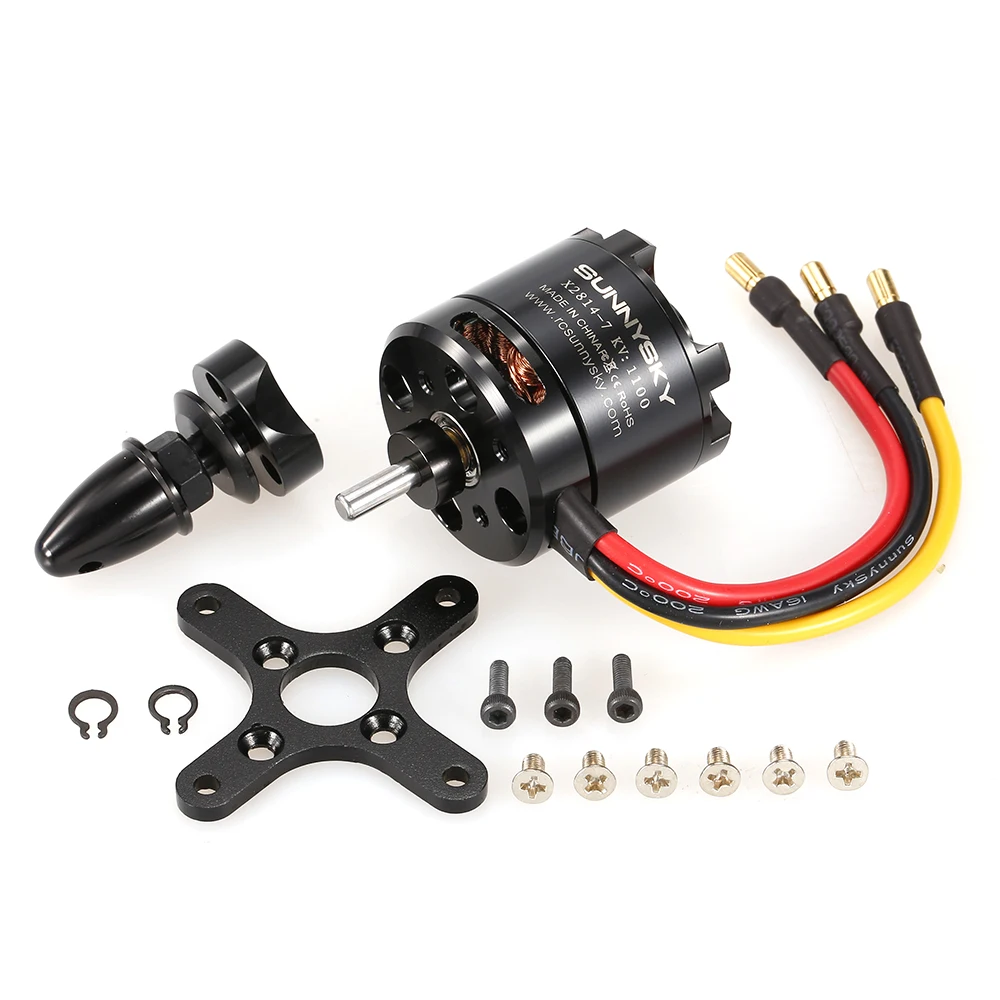

SunnySky 2814 X2814 900KV KV1100 KV1250 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone
Description
SunnySky 2814 X2814 900KV KV1100 KV1250 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone ============================================================ SunnySky 2814 X2814 900KV 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone RC Motor X2820 920KV 3-5S Brushless Motor Specifications: Model: X2820 KV (rpm/min): 920KV Stator diameter: 28mm Stator thickness: 20mm No. of stator arms: 12 No. of rotor poles: 14 No-load current: 1.1A Motor resistance: 28mΩ Max continuous current: 52A/30S Max continuous power: 750W Rotor diameter: 35mm Shaft diameter: 5mm Body length: 42mm Overall shaft length: 61mm Max Lipo cell: 3-5S Recommended ESC: 60A Recommended propeller: APC13*6.5, APC12*8, APC12*6, APC11*5.5, APC11*8, APC11*7 Motor weight: About 146g/pcs Package list: 2 * Motor TECHNICAL SPECIFICATIONS • Model: X2820 AVAILABLE OPTIONS 2PCS KV900 2PCS KV1100 2PCS KV1250 China Mainland PRODUCT INFORMATION Brand: SunnySky Category: Brushless Motor Wholesale Price: US $70.58 ————————————————————————————————————————
Product Details
SunnySky 2814 X2814 900KV 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone RC Motor
X2820 920KV 3-5S Brushless Motor
Specifications:
Model: X2820
KV (rpm/min): 920KV
Stator diameter: 28mm
Stator thickness: 20mm
No. of stator arms: 12
No. of rotor poles: 14
No-load current: 1.1A
Motor resistance: 28mΩ
Max continuous current: 52A/30S
Max continuous power: 750W
Rotor diameter: 35mm
Shaft diameter: 5mm
Body length: 42mm
Overall shaft length: 61mm
Max Lipo cell: 3-5S
Recommended ESC: 60A
Recommended propeller: APC13*6.5, APC12*8, APC12*6, APC11*5.5, APC11*8, APC11*7
Motor weight: About 146g/pcs
Package list:
2 * Motor
