Description

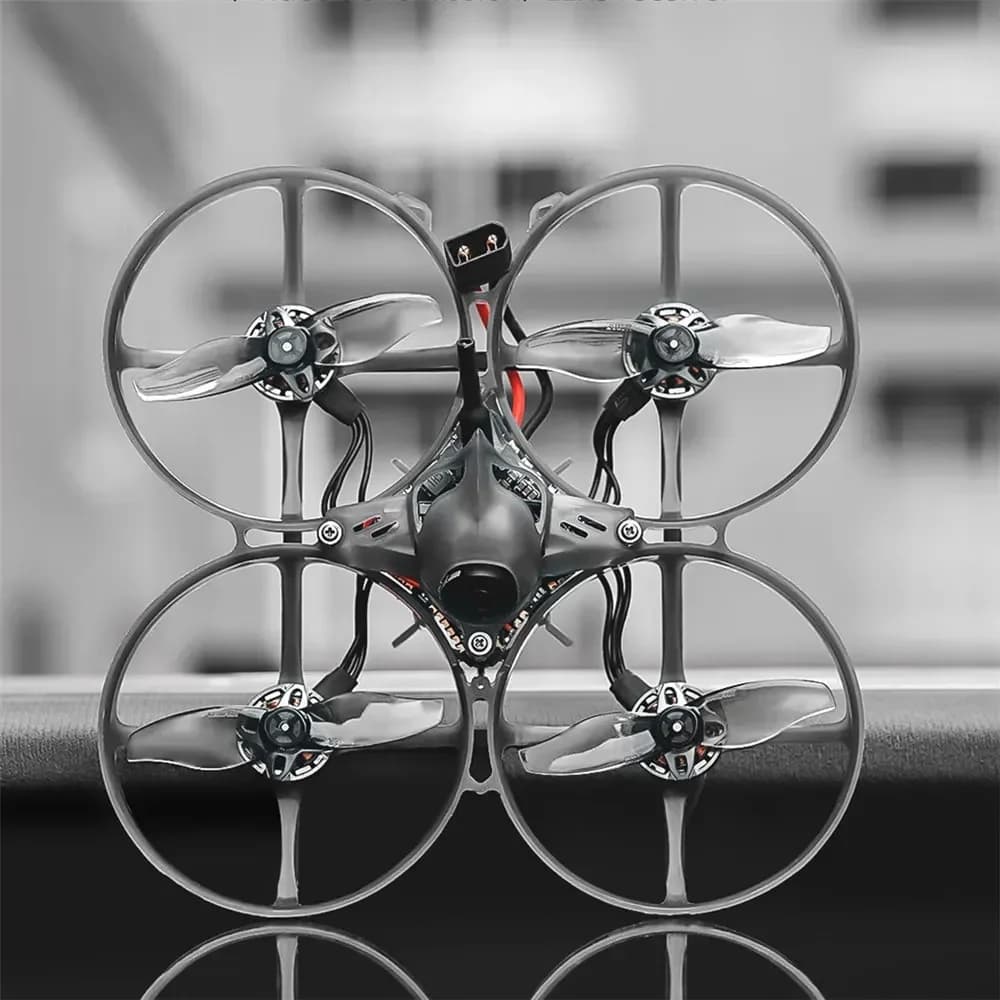

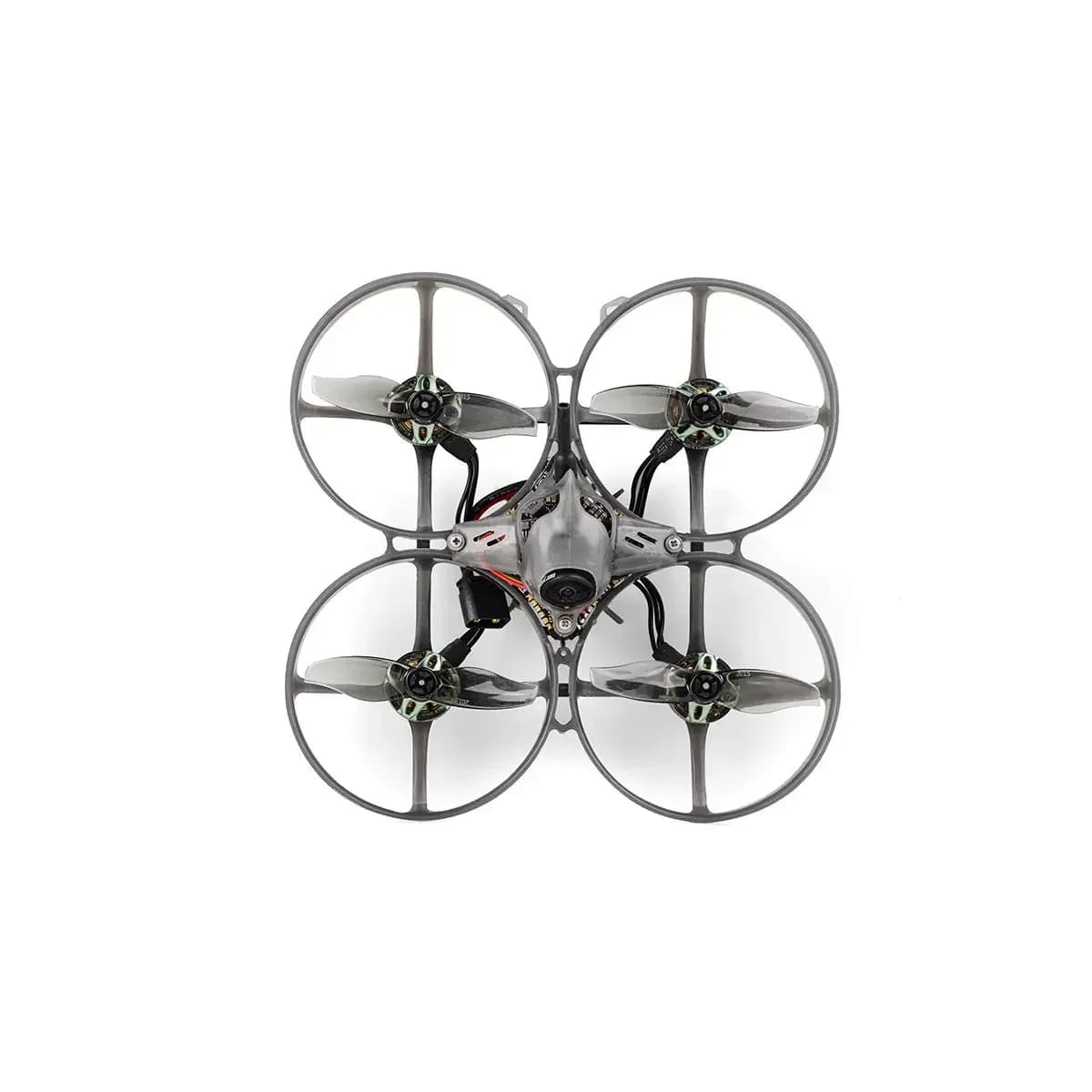

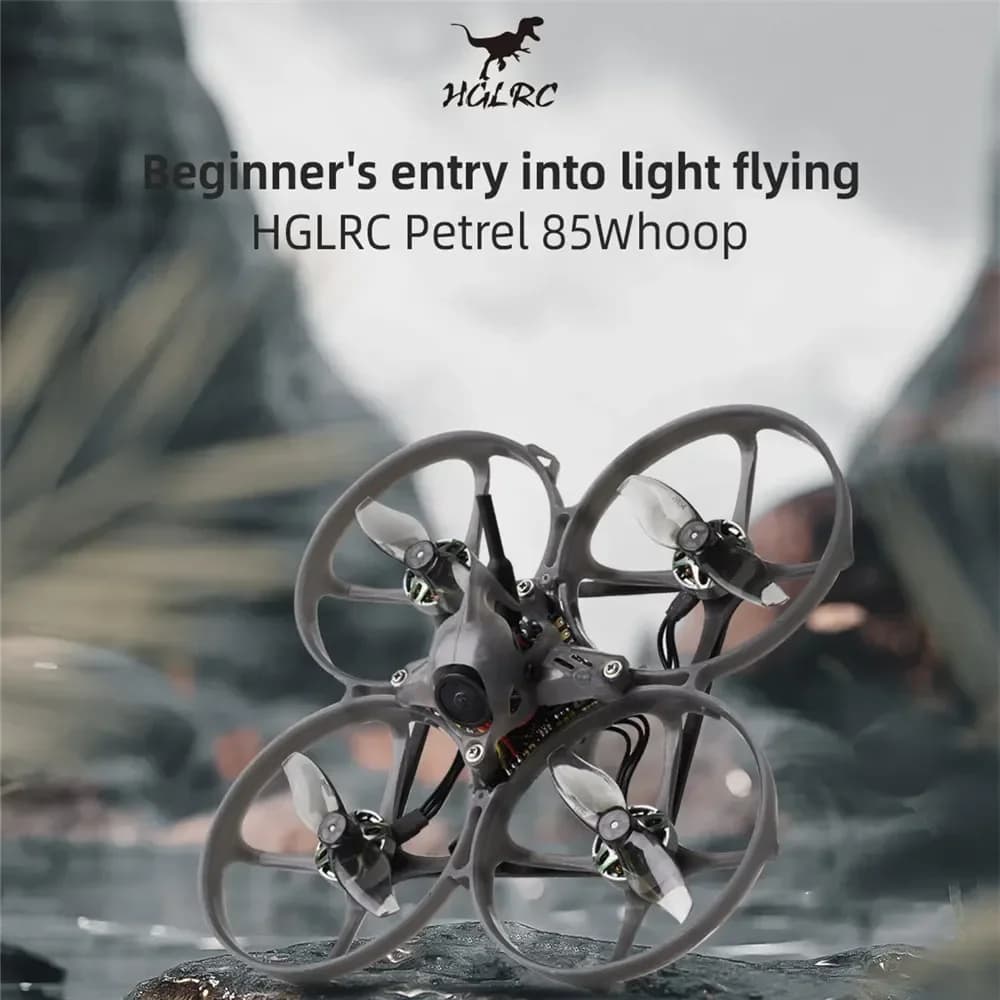

HGLRC Petrel 85Whoop is a four-axis 2S brushless motor indoor FPV beginning drone, suitable for indoor or outdoor light flying,
New SPECTER 10A 5-in-1 integrated flight control which integrated 4-way ESC,flight control,image transmission and ELRS receiver
With RunCam nano4 lens, the picture is clear and sharp:
Onboard 400mw analog video transmission, up to 48CH, stable and efficient;
The drone is equipped with a new 1202.5-11000kv brushless motor as standard, with strong power, and it is equipped with Gemfan 1610 two-blade propeller for silky flight;
Lightweight, It is about 50g, single battery lasts about 5 minutes;
In-line motor, more convenient without welding;
Onboard SPl ELRS3.0 receiver (optional), built-in antenna, external tbs receiver, customized miniature T-shaped antenna, reducing weight;
Recommended use: 2S: 450mAh-550mAh high-voltage battery, the drone battery plug is XT30 plug
Note: SPI receiver does not support D (D250, D500), F (F500, F1000), Full Res (100Hz Full Res, 333Hz Full Res), if you use ELRS TX modul, if you can't get the frequency up, please set the Tx modul PacketRate option to 50HZ-500HZ, and you cannot set the mode starting with D/F
Drone parameters:
Frame: Petrel 85Whoop frame
Flight controller: SPECTER 10A AIO MCU: STM32F411 GYRO: ICM42688
Built-in receiver: SPI ExpressLRS2.4G
Built-in image transmission:0-RCE-25-100-400mW (adjustable)
Onboard ESC: continuous current: 10A peak current: 13A (10s)
ESC protocol: Dshot600, Oneshot, Multishot;
ESC firmware: Z_H_30/(Bluejay)
Flight control firmware: HGLRCF411SX1280 V2
Flight control input voltage: 1S-2S 3.7v-7.4v (Lipo)
Mounting hole: 25.5X25.5mm.M2
Motor: SPECTER 1202.5-11000kv motor
Propeller: Gemfan2015 two-blade propeller
ELRS version weight: 48±1g
TBS version weight: 50±1g

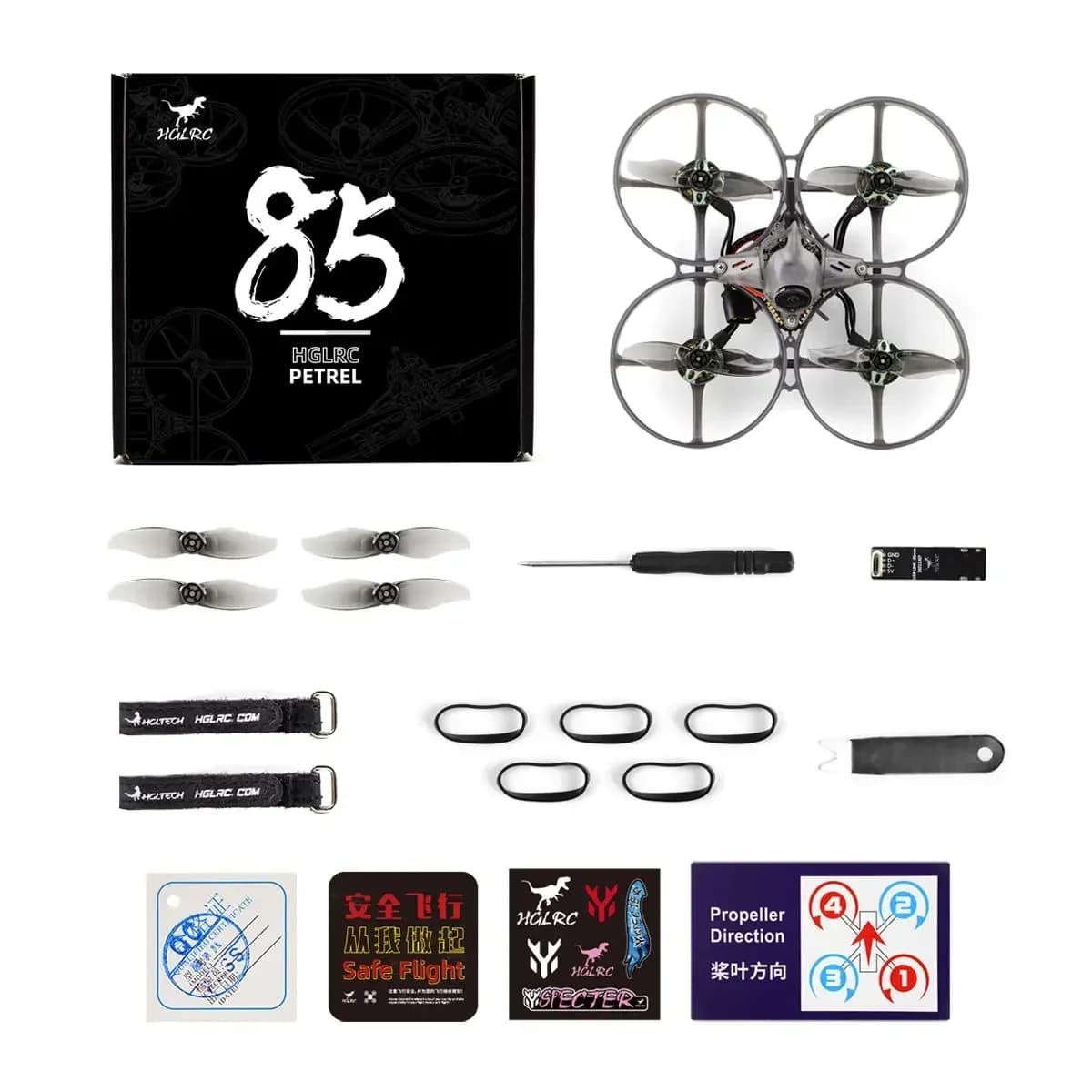

Shipping list:
1x Petrel 85Whoop drone
8x Gemfan2015 two-bladed propellers
1x (accessory pack)
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | Petrel 85Whoop |
| For Vehicle Type | Helicopters |
| RC Parts & Accs | Motor Components |
| Material | Composite Material |
| Brand Name | HGLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
HGLRC Petrel 85Whoop is a four-axis 2S brushless motor indoor FPV beginning drone, suitable for indoor or outdoor light flying,
New SPECTER 10A 5-in-1 integrated flight control which integrated 4-way ESC,flight control,image transmission and ELRS receiver
With RunCam nano4 lens, the picture is clear and sharp:
Onboard 400mw analog video transmission, up to 48CH, stable and efficient;
The drone is equipped with a new 1202.5-11000kv brushless motor as standard, with strong power, and it is equipped with Gemfan 1610 two-blade propeller for silky flight;
Lightweight, It is about 50g, single battery lasts about 5 minutes;
In-line motor, more convenient without welding;
Onboard SPl ELRS3.0 receiver (optional), built-in antenna, external tbs receiver, customized miniature T-shaped antenna, reducing weight;
Recommended use: 2S: 450mAh-550mAh high-voltage battery, the drone battery plug is XT30 plug
Note: SPI receiver does not support D (D250, D500), F (F500, F1000), Full Res (100Hz Full Res, 333Hz Full Res), if you use ELRS TX modul, if you can't get the frequency up, please set the Tx modul PacketRate option to 50HZ-500HZ, and you cannot set the mode starting with D/F
Drone parameters:
Frame: Petrel 85Whoop frame
Flight controller: SPECTER 10A AIO MCU: STM32F411 GYRO: ICM42688
Built-in receiver: SPI ExpressLRS2.4G
Built-in image transmission:0-RCE-25-100-400mW (adjustable)
Onboard ESC: continuous current: 10A peak current: 13A (10s)
ESC protocol: Dshot600, Oneshot, Multishot;
ESC firmware: Z_H_30/(Bluejay)
Flight control firmware: HGLRCF411SX1280 V2
Flight control input voltage: 1S-2S 3.7v-7.4v (Lipo)
Mounting hole: 25.5X25.5mm.M2
Motor: SPECTER 1202.5-11000kv motor
Propeller: Gemfan2015 two-blade propeller
ELRS version weight: 48±1g
TBS version weight: 50±1g
Shipping list:
1x Petrel 85Whoop drone
8x Gemfan2015 two-bladed propellers
1x (accessory pack)
