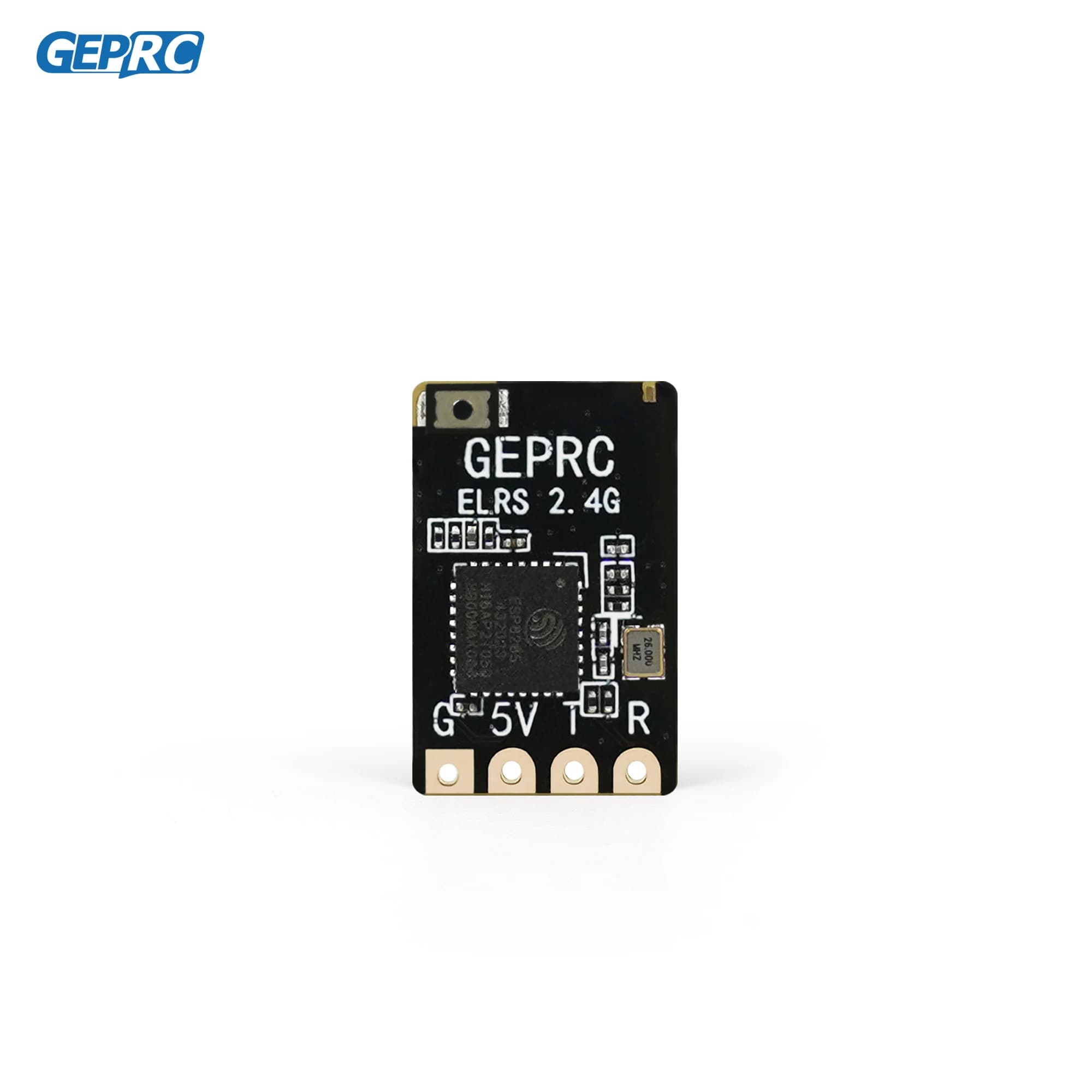

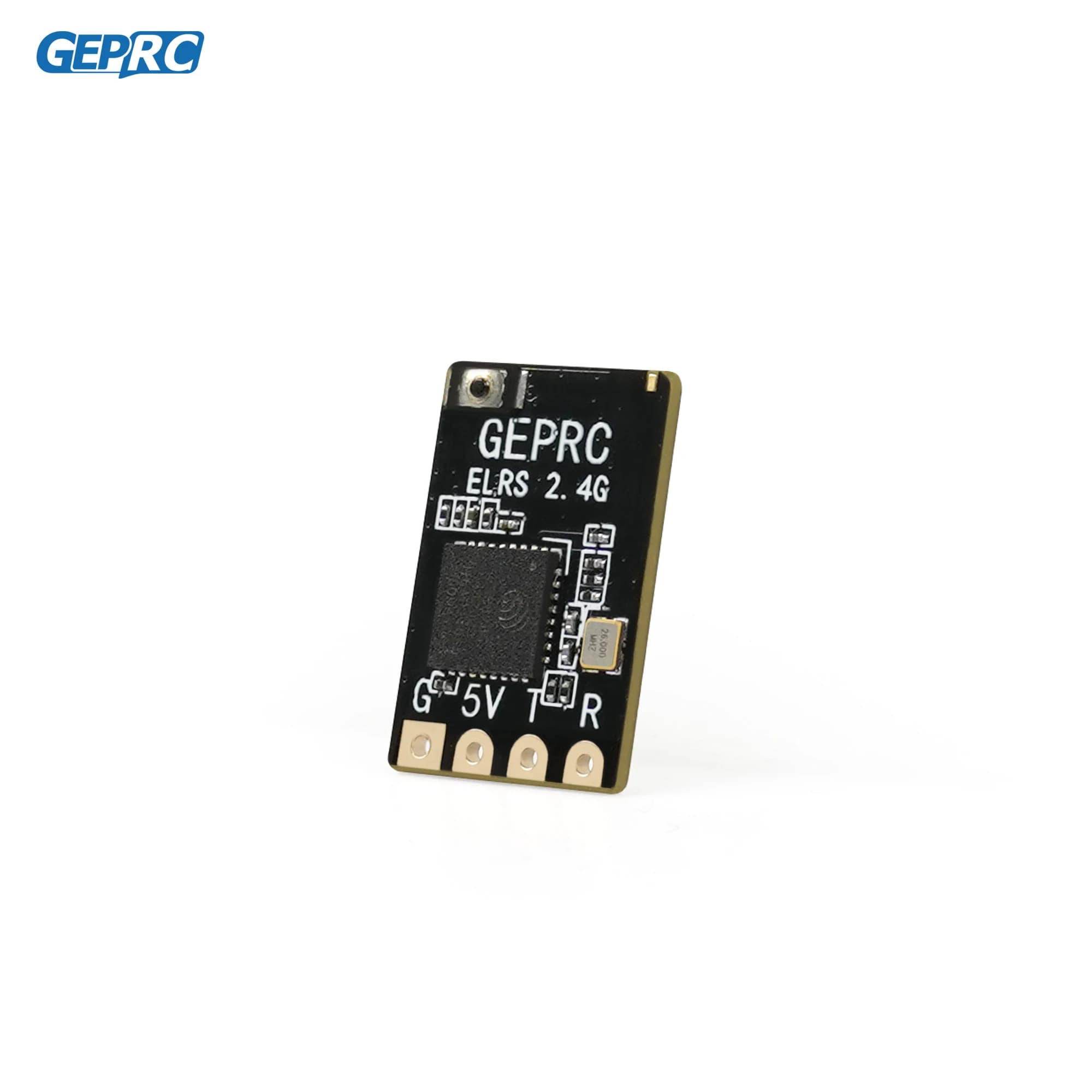

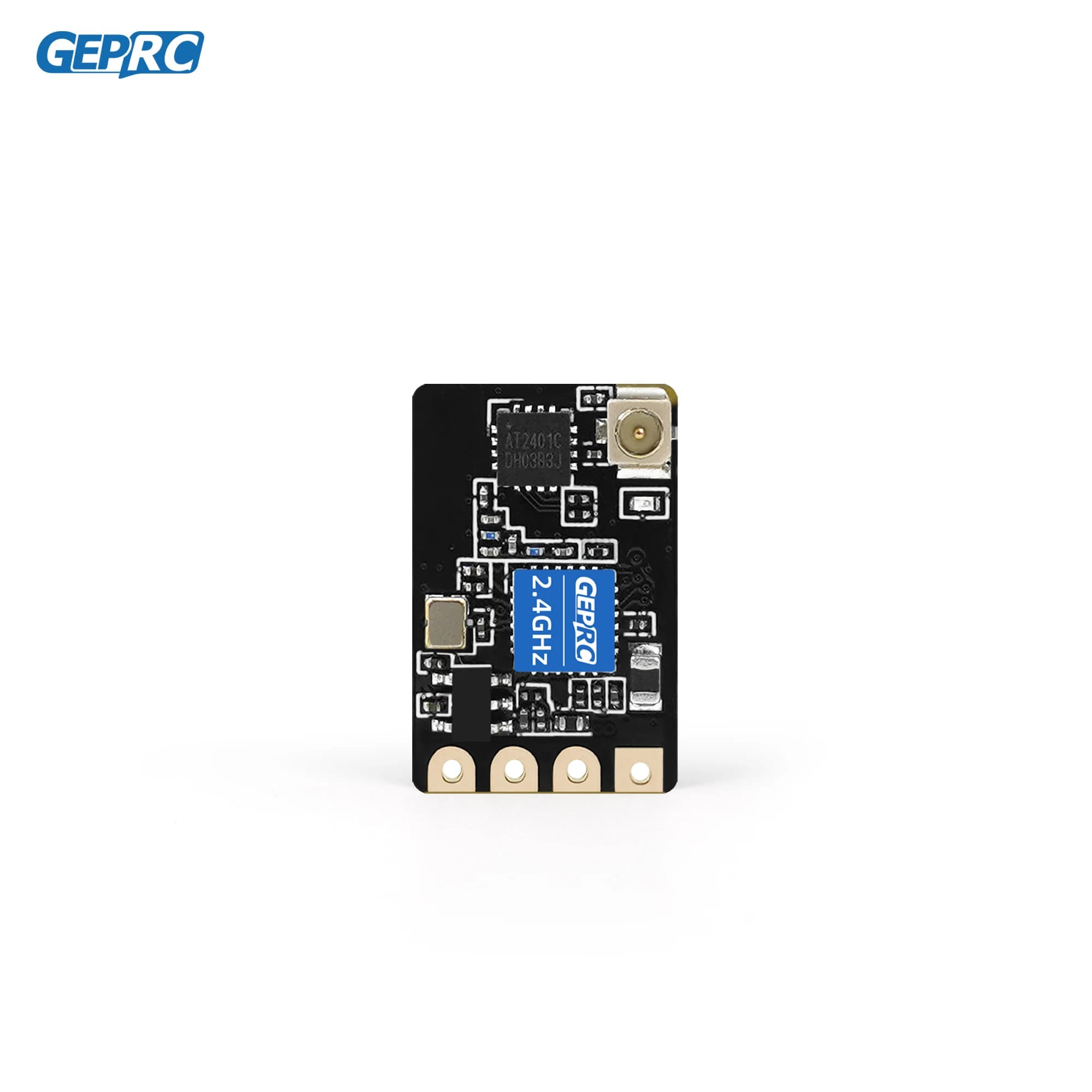

GEPRC ELRS Nano 2.4G PA100 Receiver ExpressLRS 2.4G 100mW Accessory Parts Base Quadcopter FPV Freestyle RC Racing Drone
156 orders (reference)
Description
GEPRC ELRS Nano 2.4G PA100 Receiver ExpressLRS 2.4G 100mW Accessory Parts Base Quadcopter FPV Freestyle RC Racing Drone ============================================================ Summary GEPRC ELRS Nano 2.4G PA100 Receiver is a new generation of 2.4G receiver system based on ExpressLRS open source project.ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price. The ELRS Nano 2.4G PA100 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes;Integrated PA+LNA,the telemetry power is up to 100mW; Built-in WIFI antenna, firmware upgrade operation through WIFI. Feature 17x11mm Small size 0.7g weight WIFI Upgrade firmware ELRS open source project, remote control Maximum refresh rate of 1000Hz The use of temperature-compensated crystal oscillator (TXCO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control Built-in PA + LNA, up to 100mW telemetry power Specifications Size: 17x11mm Weight: 0.7g (RX only) Chips: ESP8285, SX1281 Crystal Oscillator: TCXO Frequency Band: 2.4GHz ISM Refresh Rate: 25Hz-1000Hz Input Voltage: 5V Antenna Connector: ipex1 TLM Power: 100mW Firmware：GEPRC Nano 2.4GHz PA100 RX Includes 1 x ELRS Nano 2.4G PA100 Receiver 1 x Antenna 1 x Heat shrink tube 4 x Silicone cable 1 x Pin (4pin) 1 x Instruction manual TECHNICAL SPECIFICATIONS • Size: 17x11mm • Weight: 0.7g (RX only) • Firmware：GEPRC Nano 2.4GHz PA100 RX AVAILABLE OPTIONS Black Gray PRODUCT INFORMATION Brand: GEPRC Category: Radio Receiver Wholesale Price: US $16.42 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | GEPRC ELRS Nano 2.4G PA100 Receiver |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | RECEIVERS |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | Antennas |
| Material | Metal |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Summary
GEPRC ELRS Nano 2.4G PA100 Receiver is a new generation of 2.4G receiver system based on ExpressLRS open source project.ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.
The ELRS Nano 2.4G PA100 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes;Integrated PA+LNA,the telemetry power is up to 100mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.
Feature
17x11mm Small size
0.7g weight
WIFI Upgrade firmware
ELRS open source project, remote control
Maximum refresh rate of 1000Hz
The use of temperature-compensated crystal oscillator (TXCO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
Built-in PA + LNA, up to 100mW telemetry power
Specifications

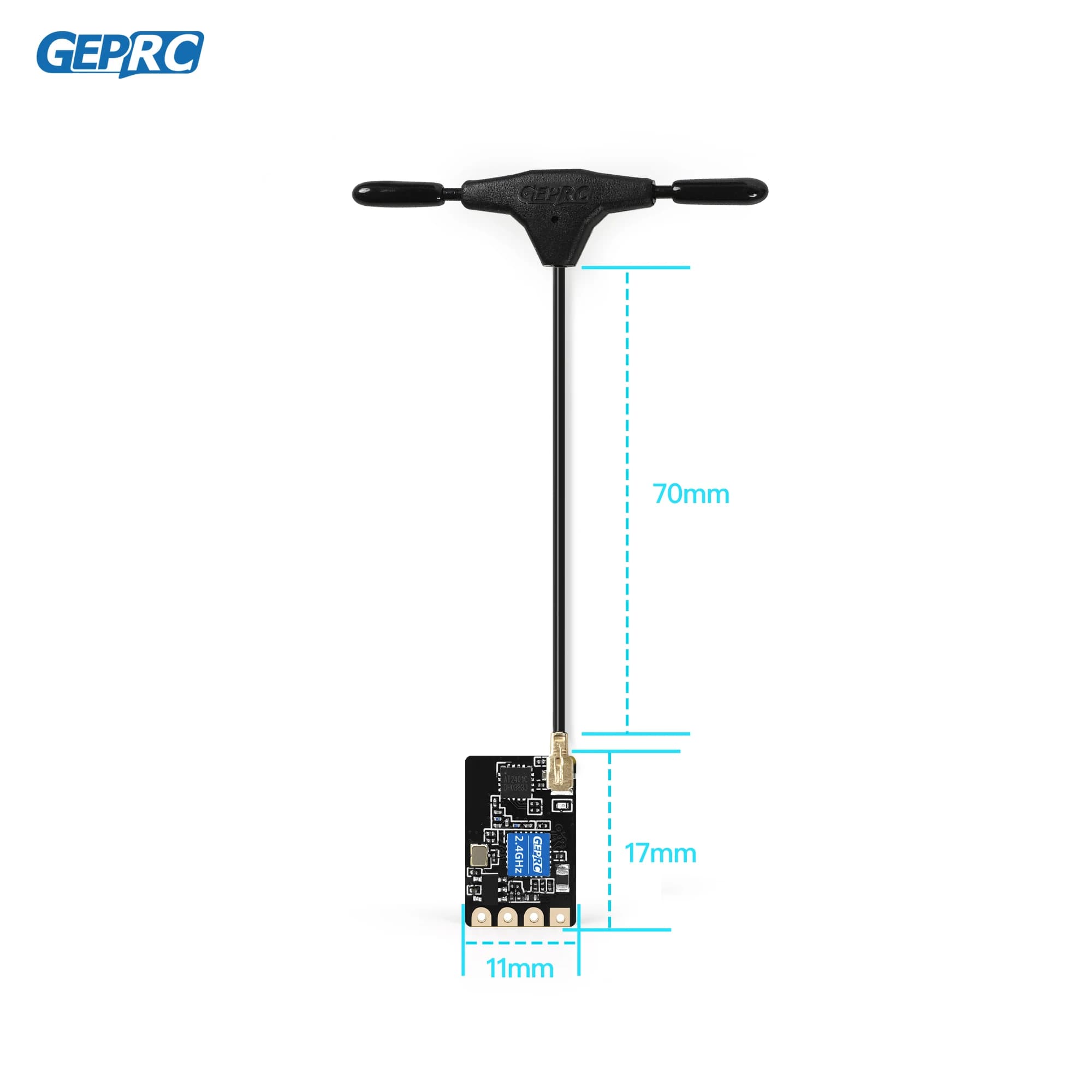

Size: 17x11mm

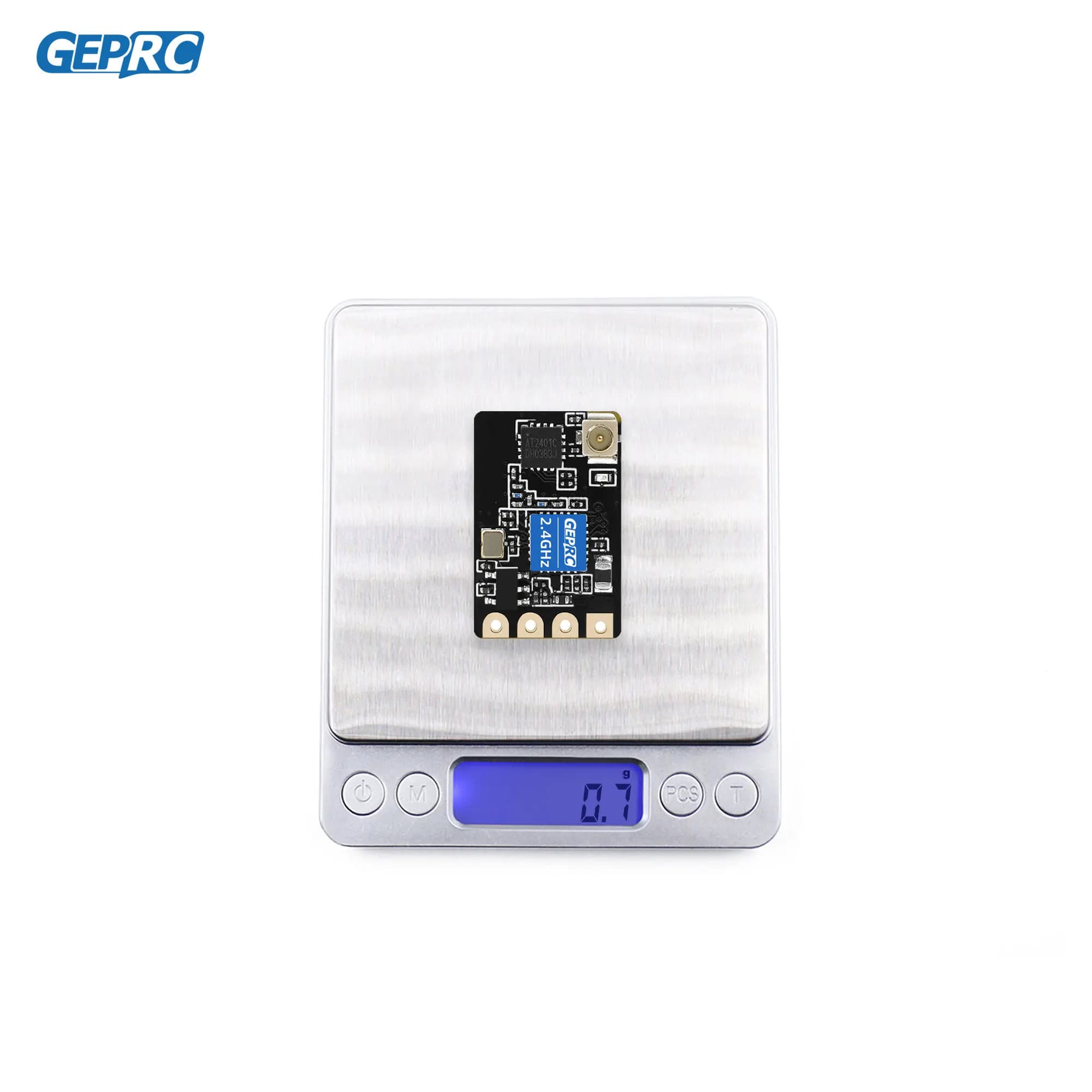

Weight: 0.7g (RX only)
Chips: ESP8285, SX1281
Crystal Oscillator: TCXO
Frequency Band: 2.4GHz ISM
Refresh Rate: 25Hz-1000Hz
Input Voltage: 5V
Antenna Connector: ipex1
TLM Power: 100mW
Firmware：GEPRC Nano 2.4GHz PA100 RX
Includes
1 x ELRS Nano 2.4G PA100 Receiver
1 x Antenna
1 x Heat shrink tube
4 x Silicone cable
1 x Pin (4pin)
1 x Instruction manual
