FOXEER Pagoda Pro 5,8 ГГц FPV антенна SMA/ RP-SMA UFL MMCX Stecker Niedriger стоячая волна для RC FPV Racing Drone Quadcopter
From US $20.25 - 20.74
Est. US $20.25 - 20.74 / unit (1-9 pcs)
$19 @ 10+ pcs$18 @ 100+ pcs
Description
FOXEER Pagoda Pro 5.8GHz RHCP Omnidirectional Circular Polarized Antenna
Вариант
Выбранная ценаUSD 14.74
Specifications
| Option | Values |
|---|---|
| Weight |
|
| Connector |
|
| Gain |
|
Product Details
FOXEER Pagoda Pro 5.8GHz RHCP Omnidirectional Circular Polarized Antenna
Specification:
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Gain : 2dBi
Radiation efficiency: 95%
Polarization: RHCP

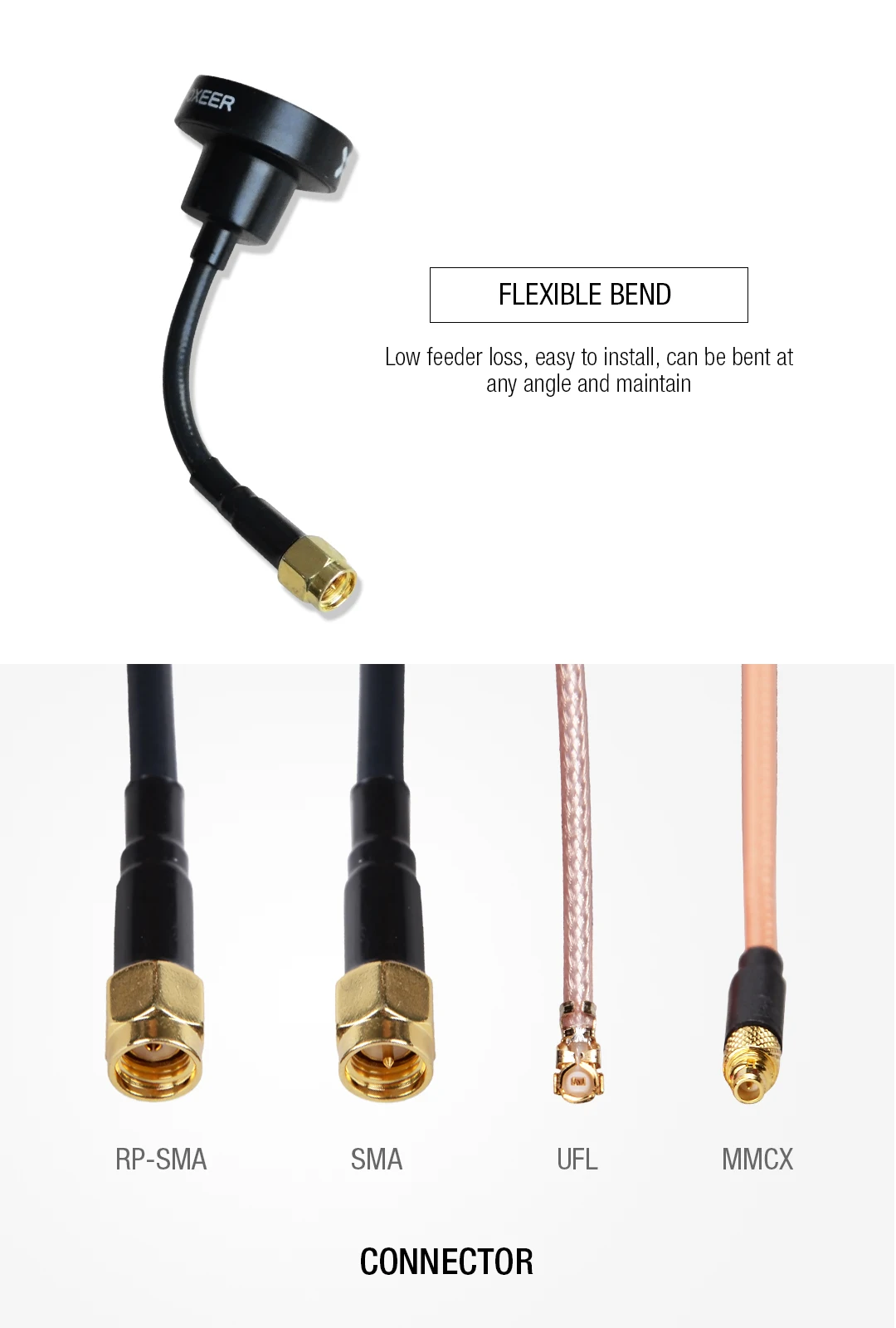

Connector:SMA/ RPSMA for optional
Weight: 11.5g
Package included:
1 x Foxeer Pagoda Pro Antenna Black
