Description
FOXEER Reaper Extreme 5.8G 2.5W 80CH FPV 4.9G~6G VTX 25mW 200mW 500mW 1.5W 2.5WAdjustable 2-8S 20X20mm for RC Model $46.56$120.6 -61%3 soldNew shoppers save $74.04Early bird deal, only 2 leftSee previewSimilar items ============================================================ The Foxeer Reaper Extreme 2.5W VTX is one of the highest power output VTX's on the market that are still reasonably sized for our FPV quads. It is a great choice for the Long Range guys or for those who need high power VTX to fly in video power demanding locations. Specifications: Input Voltage: 9~36V Output Voltage: 5V Channels: 80CH Power Output: 25mW/200mW/500mW/1.5W/2.5W Pit:Double click to enter Weight: 13g Mounting Pattern: 20*20mm M2 2.8mm depth Size: 36*27.5*8mm Power Consumption: 1.2A/9V Package includes: 1 x VTX 1 x Silicon Cable VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region. PIT On/Off: Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off. If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over. TECHNICAL SPECIFICATIONS • Weight: 13g • Size: 36*27.5*8mm • Package includes: AVAILABLE OPTIONS 20mm Black Gray Blue Red PRODUCT INFORMATION Brand: Foxeer Category: FPV Drone Wholesale Price: US $46.56 ————————————————————————————————————————
Product Details

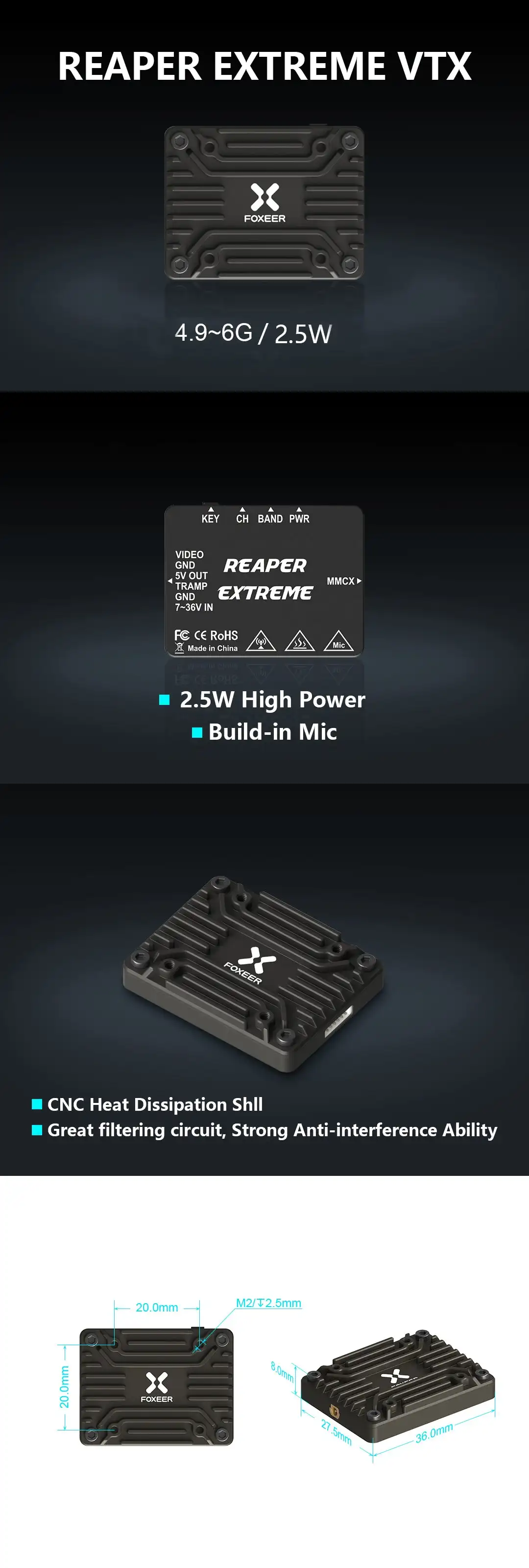

The Foxeer Reaper Extreme 2.5W VTX is one of the highest power output VTX's on the market that are still reasonably sized for our FPV quads. It is a great choice for the Long Range guys or for those who need high power VTX to fly in video power demanding locations.
Specifications:
Input Voltage: 9~36V
Output Voltage: 5V

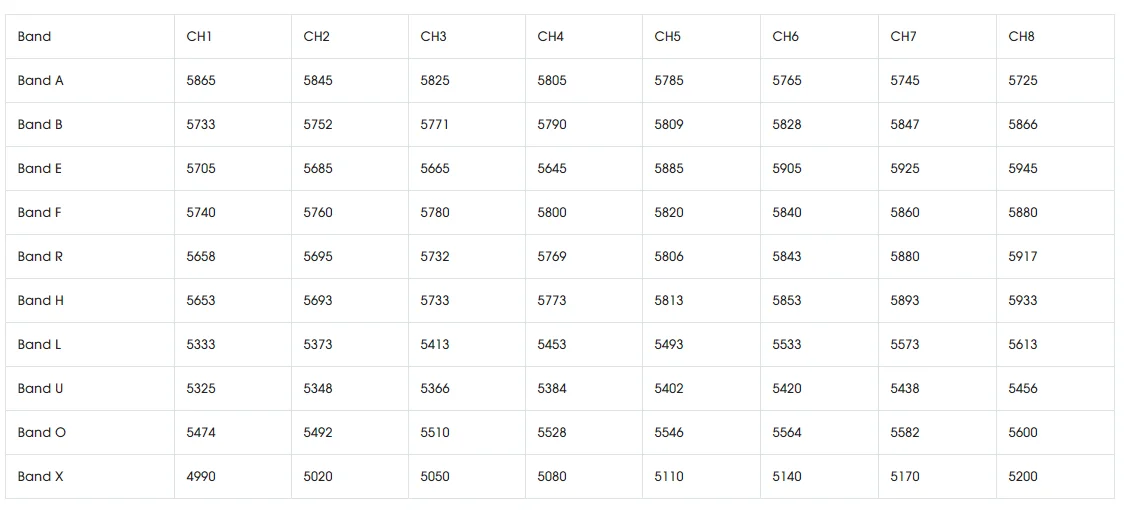

Channels: 80CH
Power Output: 25mW/200mW/500mW/1.5W/2.5W
Pit:Double click to enter
Weight: 13g
Mounting Pattern: 20*20mm M2 2.8mm depth
Size: 36*27.5*8mm
Power Consumption: 1.2A/9V
Package includes:
1 x VTX
1 x Silicon Cable
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
PIT On/Off:
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
Note:
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
