RunCam Phoenix 2 Nano Freestyle FPV камера 1000TVL CMOS с переключаемым видеовыходом PAL/NTSC для дрона-квадрокоптера - image 1 of 6
1 / 6

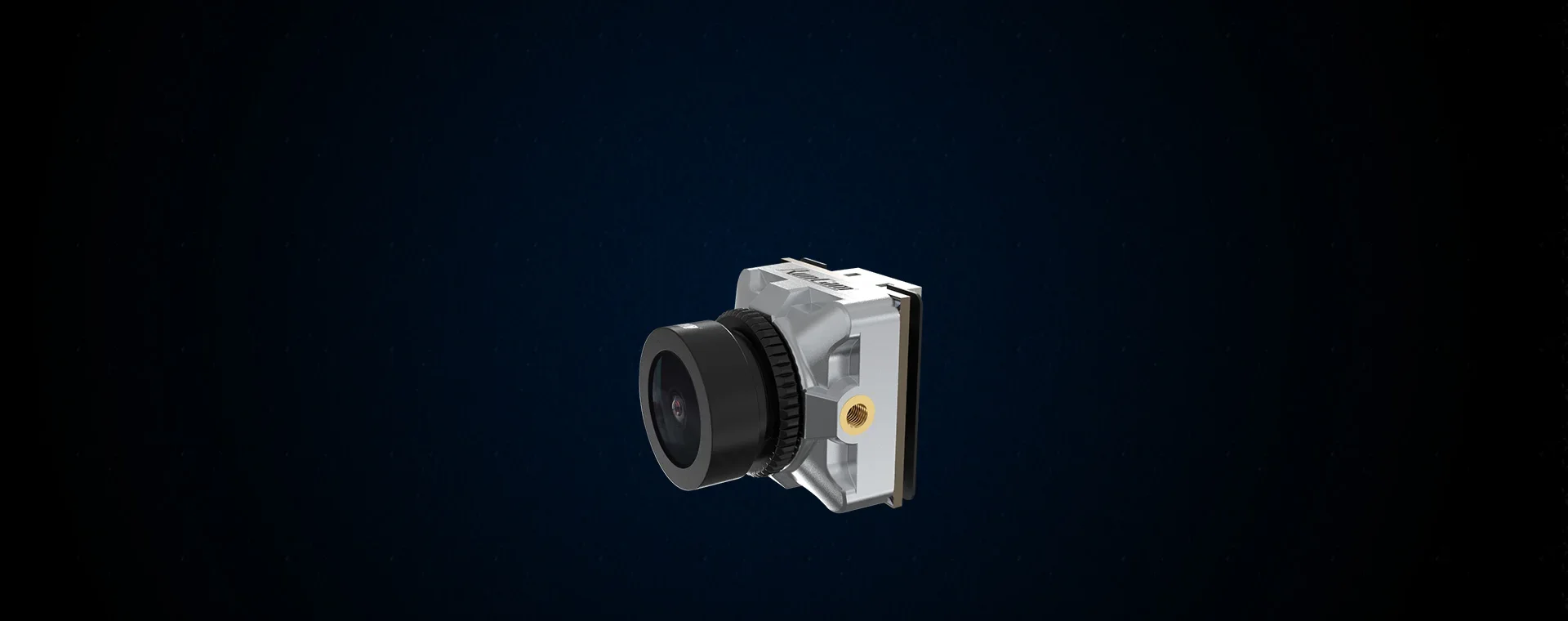

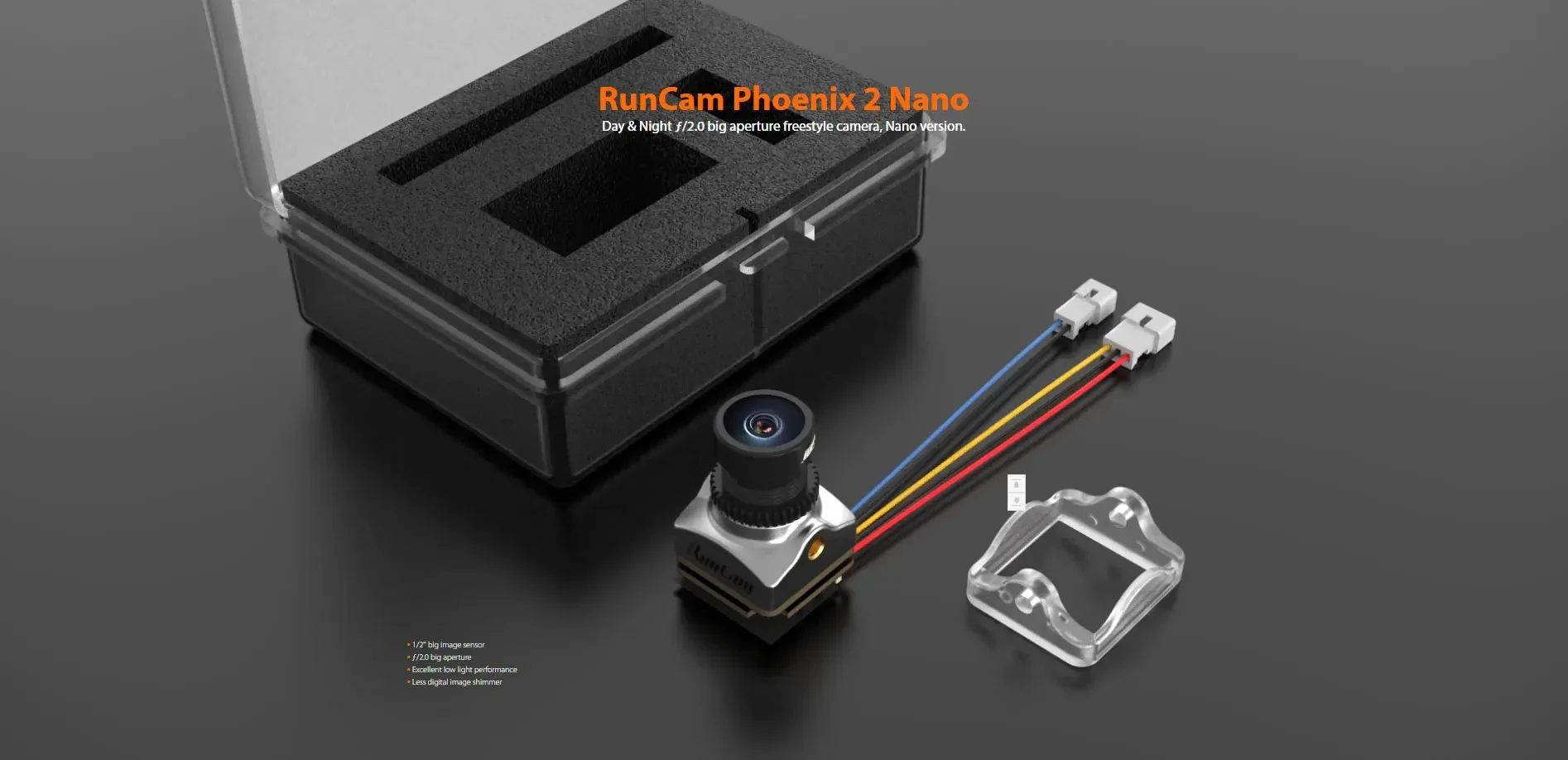

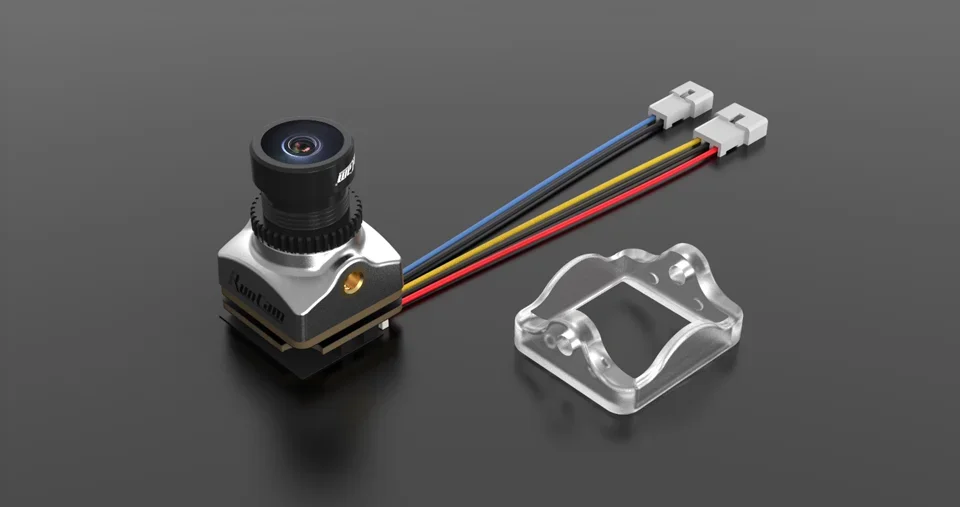

RunCam Phoenix 2 Nano Freestyle FPV камера 1000TVL CMOS с переключаемым видеовыходом PAL/NTSC для дрона-квадрокоптера

RunCam

From US $43.27 - 46.10
Est. US $43.27 - 46.10 / unit (1-9 pcs)
$40 @ 10+ pcs$38 @ 100+ pcs

Description

Package

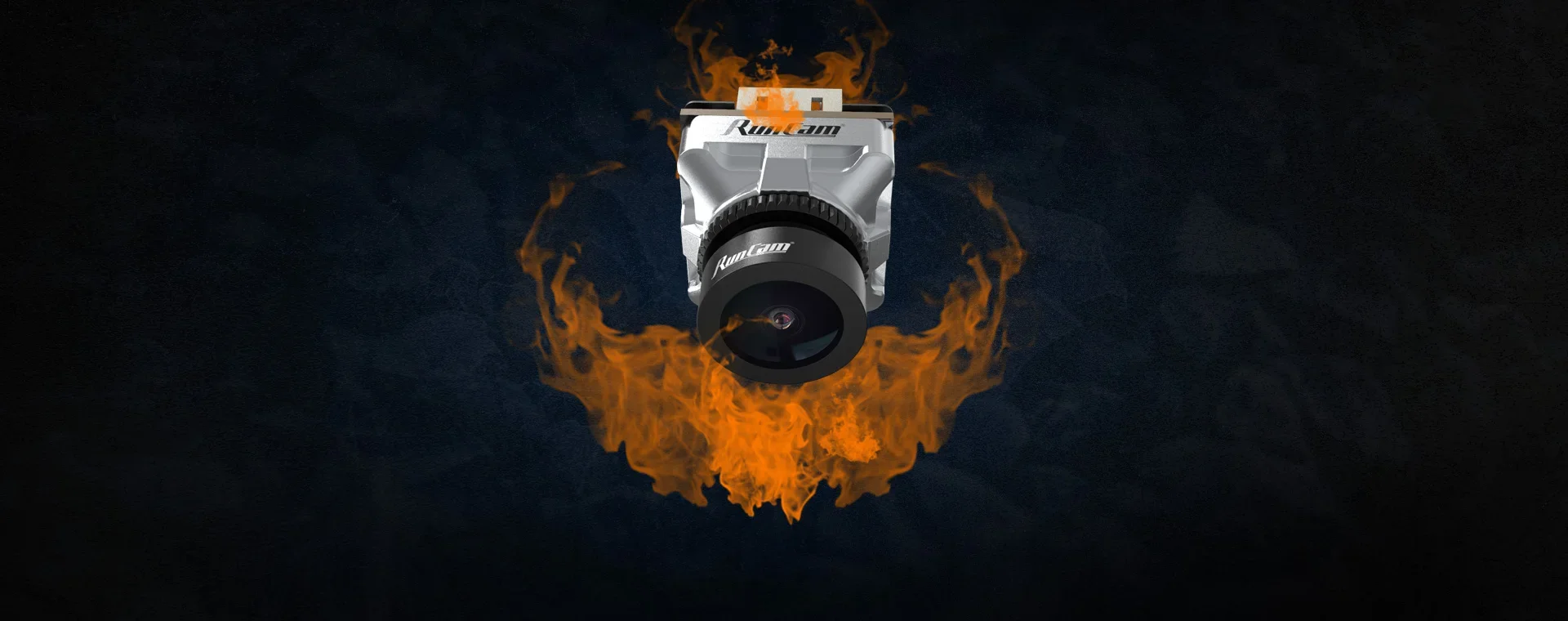

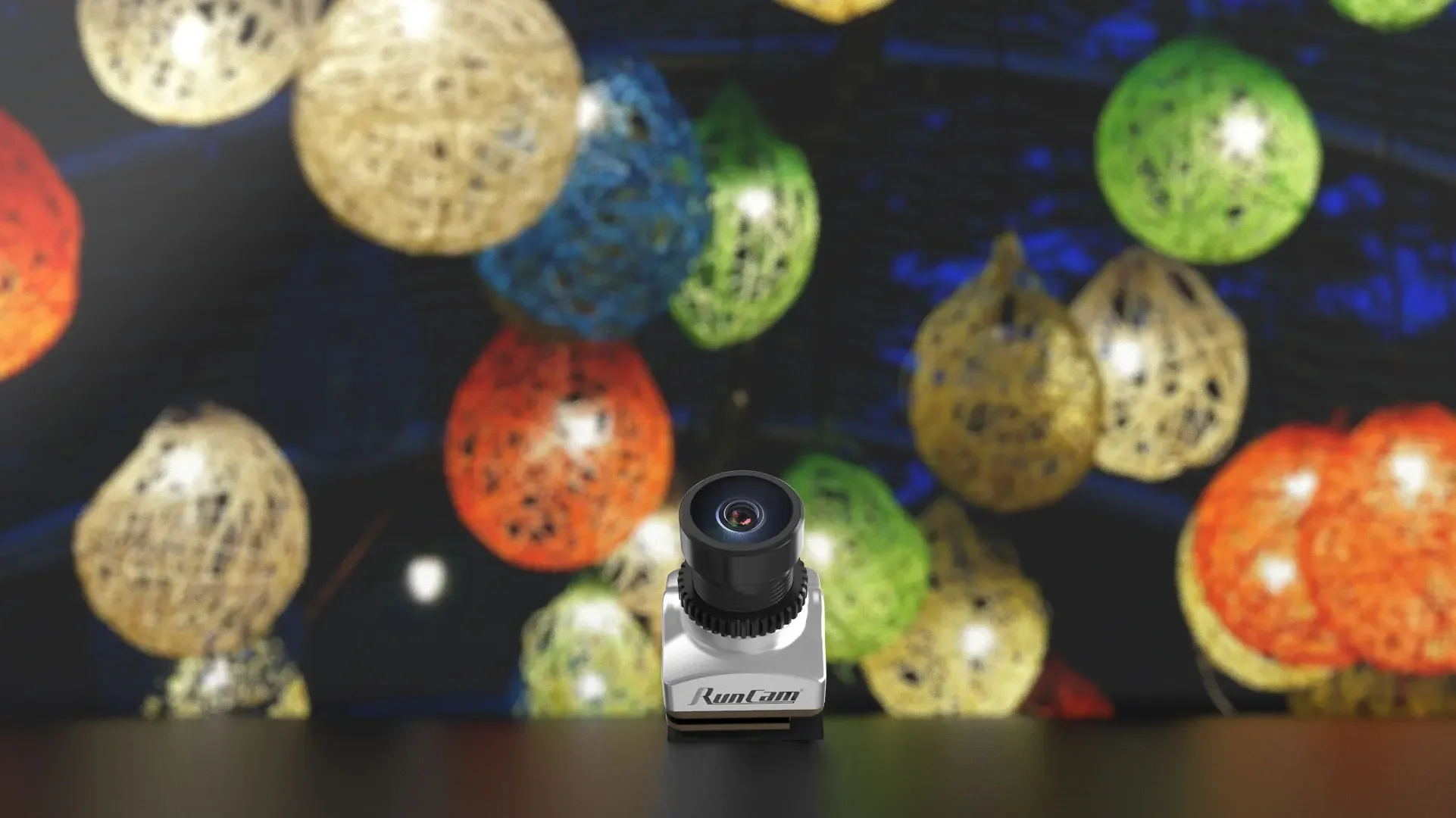

Rich but natural color.

With the same CPU and 1/2'' high-performance image sensor as the RunCam Phoenix 2,

the RunCam Phoenix 2 Nano produces vivid high-resolution pictures.

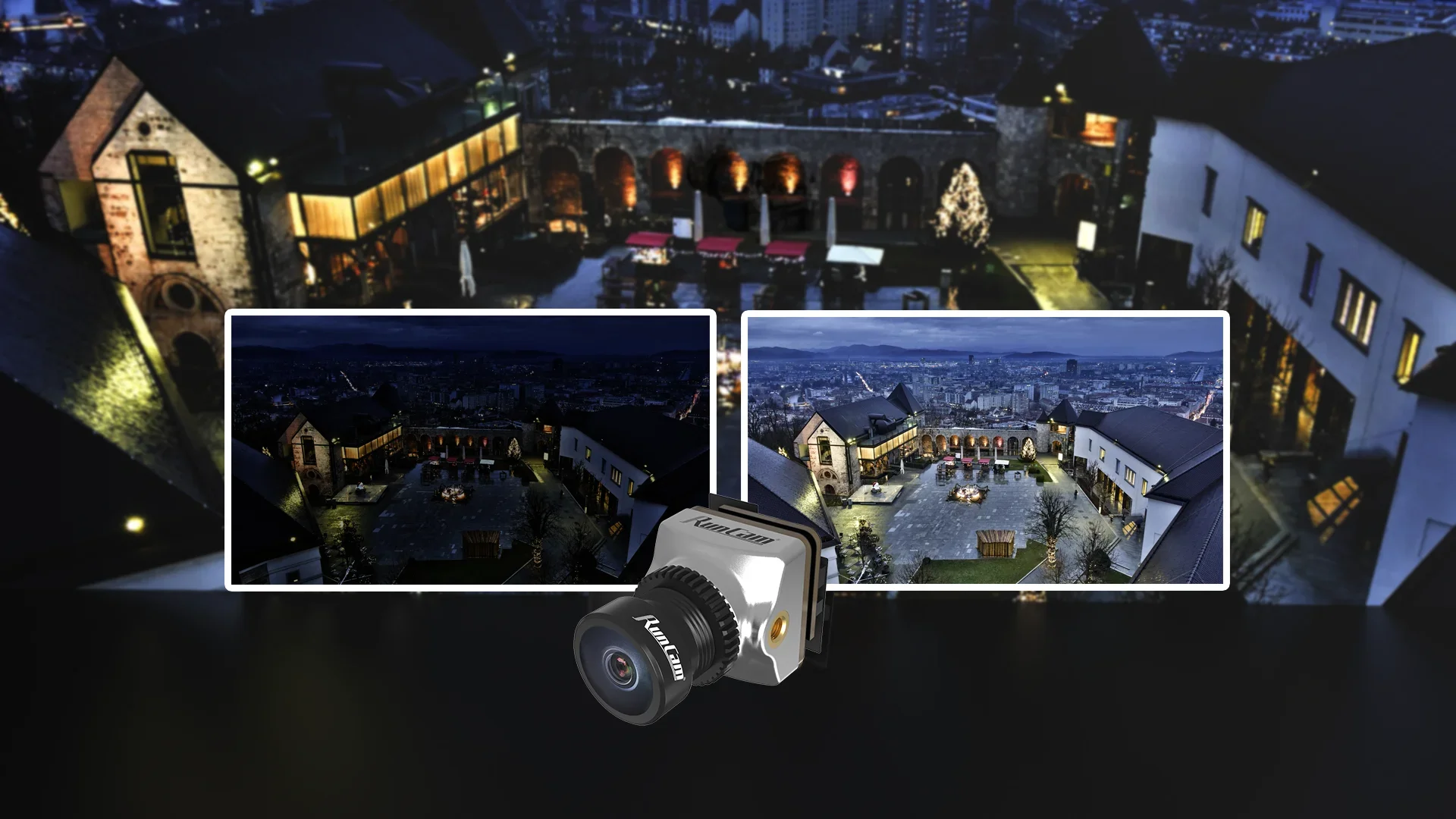

Excellent low light performance.

Thanks to the 1/2'' super global WDR image sensor and the ƒ/2.0 big aperture 7G glass lens,

the Phoenix 2 Nano's low light performance is even better than the RunCam Eagle.

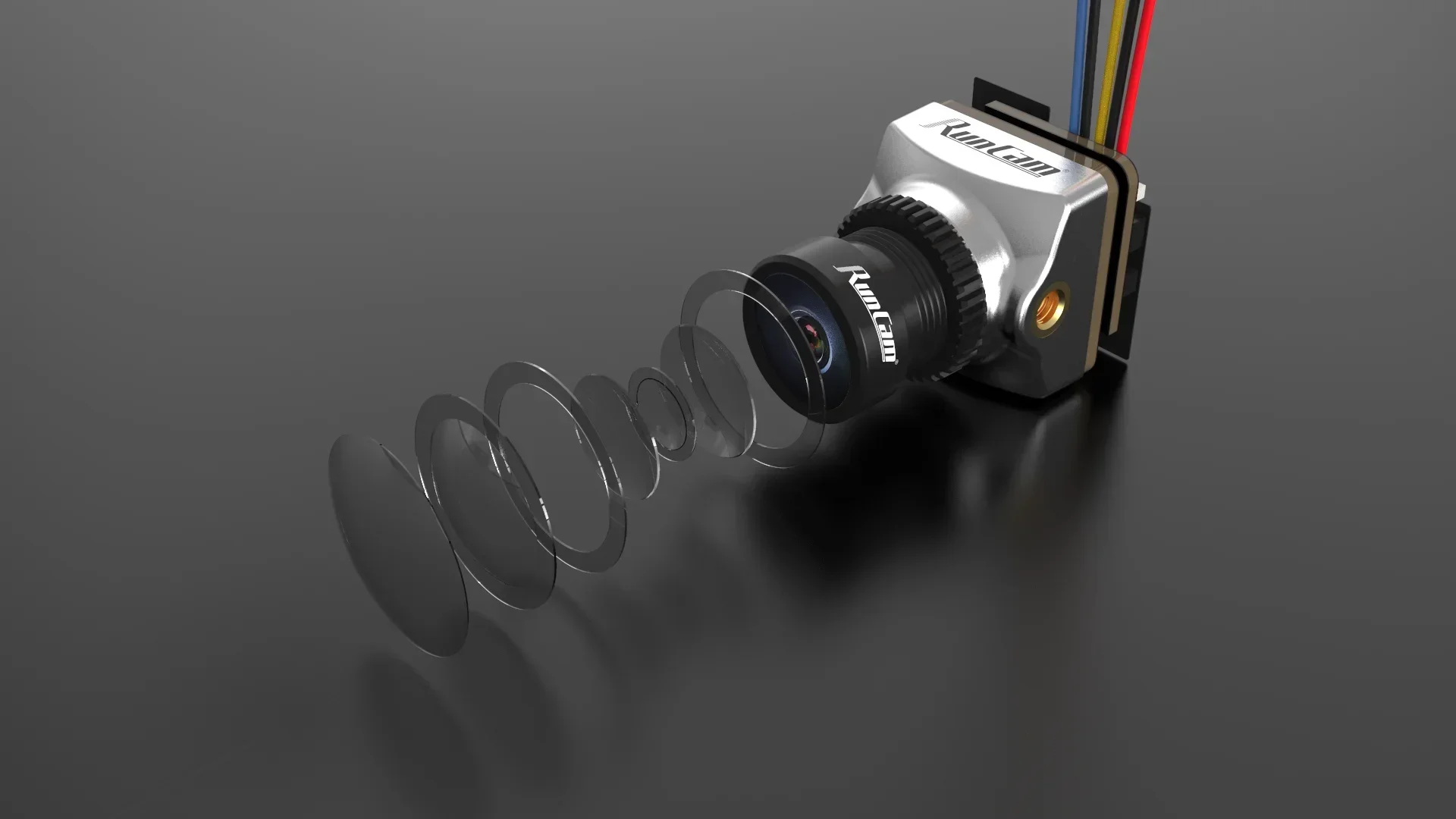

7G ƒ/2.0 big aperture glass lens. Less red lens flare.

The customized high-quality 7 layers of glass lens has a ƒ/2.0 aperture which brings

less red lens flare and less purple fringing effect. These lenses are

also used on the RunCam Split Nano3.

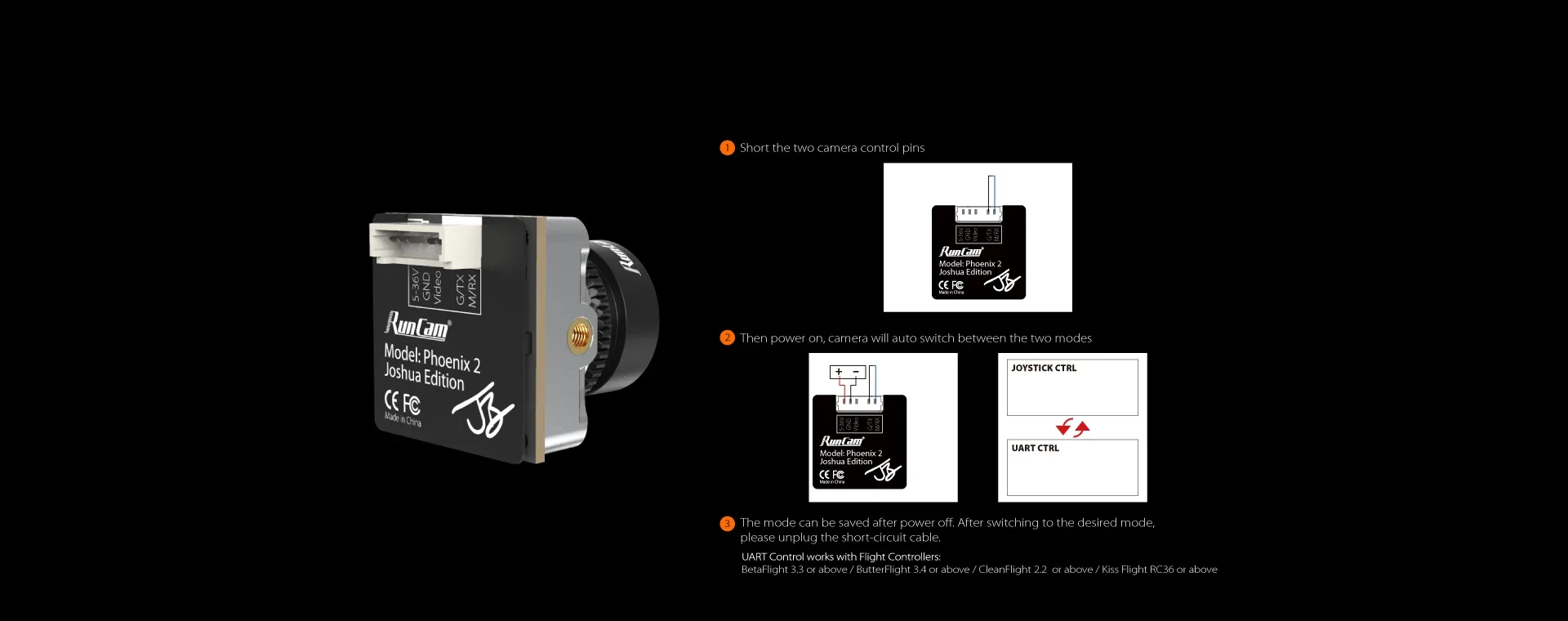

Joshua Edition UART Control Version.

The top left corner of the screen will shortly display the current control mode.

The default is Joystick control mode.

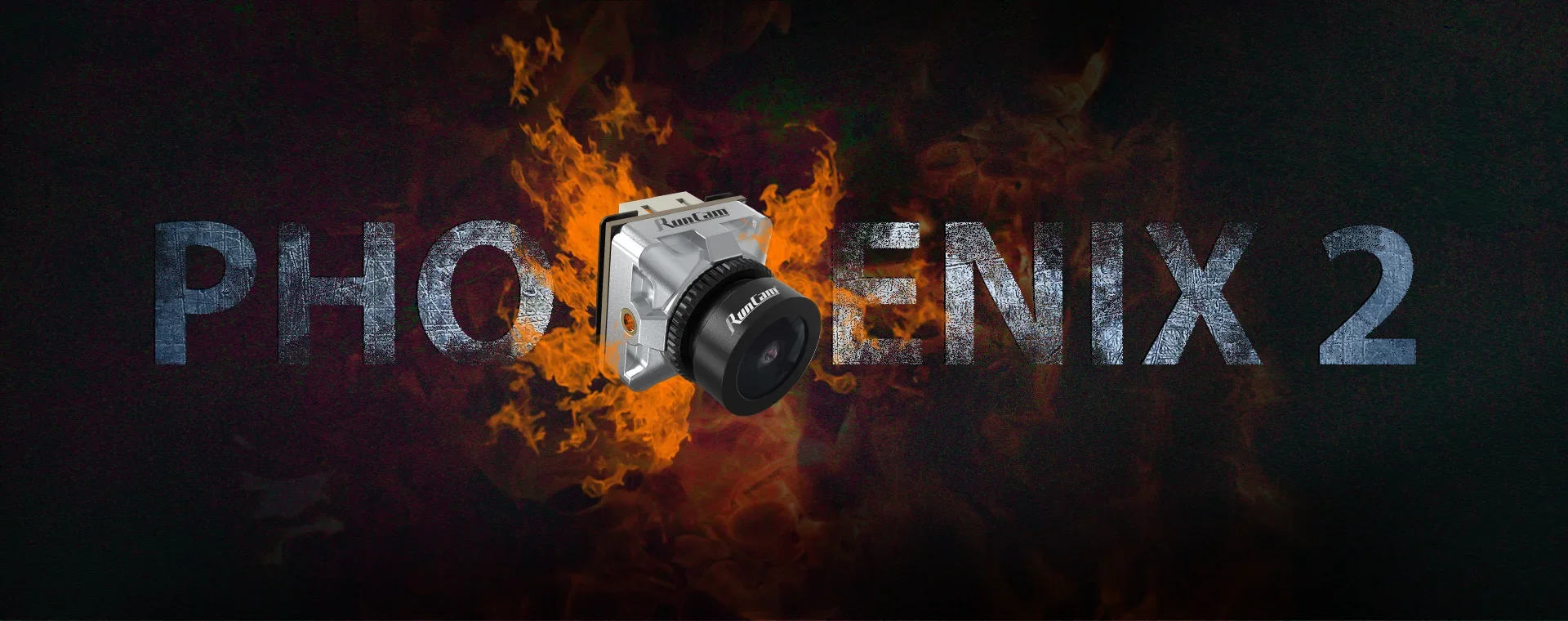

RunCam Phoenix 2

Day&Night ƒ/2.0 big aperture freestyle camera.

  • 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer

Rich yet natural color.

With upgraded CPU and upgraded 1/2'' high-performance image sensor,

the RunCam Phoenix 2 produces vivid high-resolution pictures.

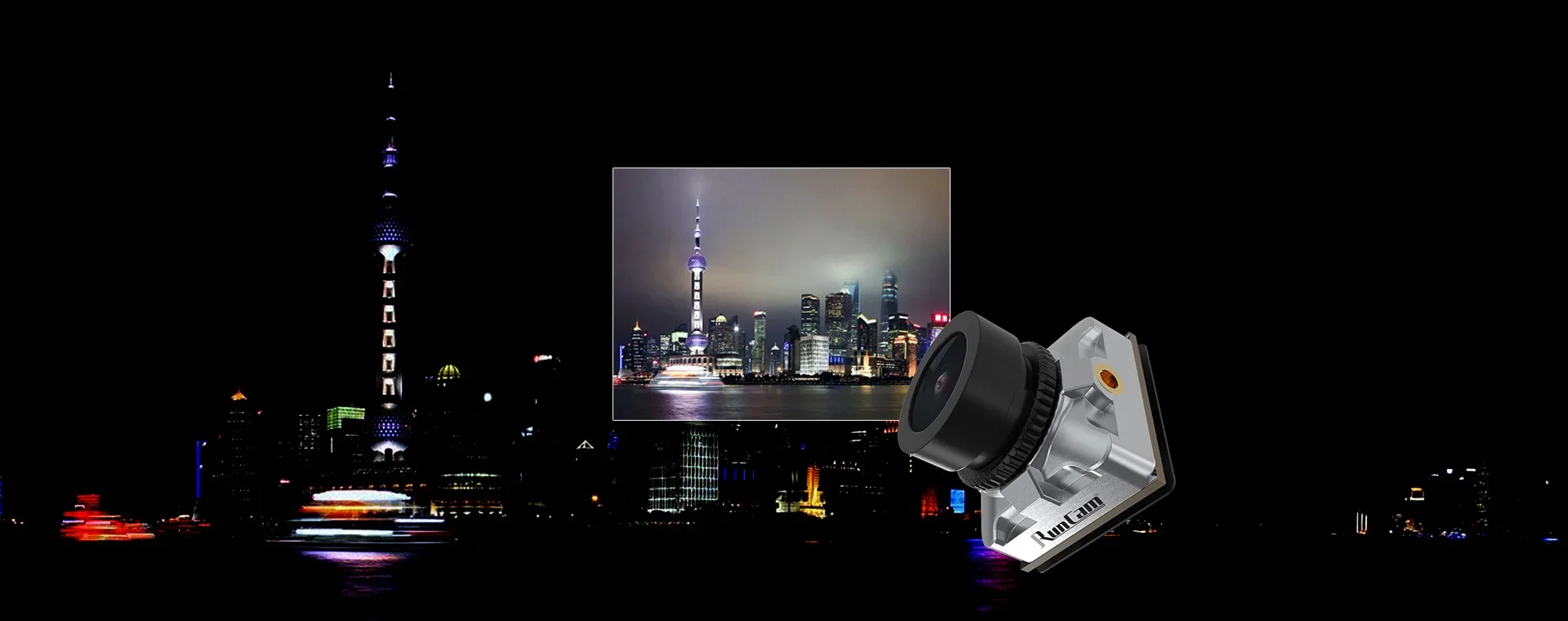

Thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light

performance is even better than the RunCam Eagle.

ƒ/2.0 big aperture lens. Less red lens flare.

The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings

less red lens flare and less purple fringing effect.

Low latency.

This camera is on the same latency level of the RunCam Eagle

and is wonderful for freestyle flying!

the RunCam Phoenix 2 Nano produces vivid high-resolution picture

Share this product
Вариант
Выбранная ценаUSD 35.52

Specifications

OptionValues
4
  • 3 / 16:9 switchable
2.1mm (M12) FOV155° (4
  • 3)

Product Details

Specifications

Product Name

RunCam Phoenix 2 Nano

Image Sensor

1/2" CMOS Sensor

Horizontal Resolution

1000TVL

Lens

2.1mm(M8)FOV155° (4:3)

Screen Format

4:3 / 16:9 switchable

Mirror/Flip

Available

Signal System

PAL / NTSC Switchable

S/N Ratio

>50dB (AGC OFF)

Electronic Shutter Speed

Auto

Auto Gain Control (AGC)

Auto

Min. Illumination

0.001Lux@1.2F

WDR

Global WDR

Day/Night

Color/BW/EXT/Auto

Menu Control

Cable Control

Power

DC 5-36V

Current

190mA@5V/80mA@12V

Housing Material

ABS

Net Weight

5g

Dimensions

14mm*14mm*22mm

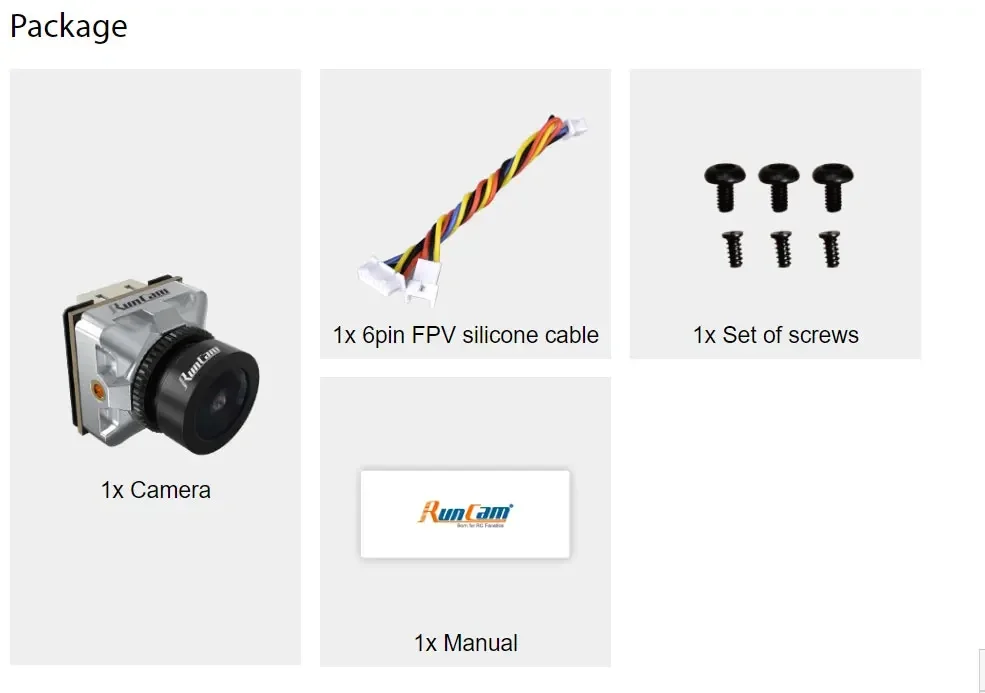

Package

Specifications

Product Name

RunCam Phoenix 2

Image Sensor

1/2" CMOS Sensor

Horizontal Resolution

1000TVL

Lens

2.1mm (M12) FOV155° (4:3)

Screen Format

4:3 / 16:9 switchable

Mirror/Flip

Available

Signal System

PAL / NTSC Switchable

S/N Ratio

>50dB (AGC OFF)

Electronic Shutter Speed

Auto

Auto Gain Control (AGC)

Auto

Min. Illumination

0.001Lux@1.2F

WDR

Global WDR

Day/Night

Color/BW/EXT/Auto

Menu Control

Cable Control

Power

DC 5-36V

Current

200mA@5V

85mA@12V

Housing Material

ABS

Net Weight

9g

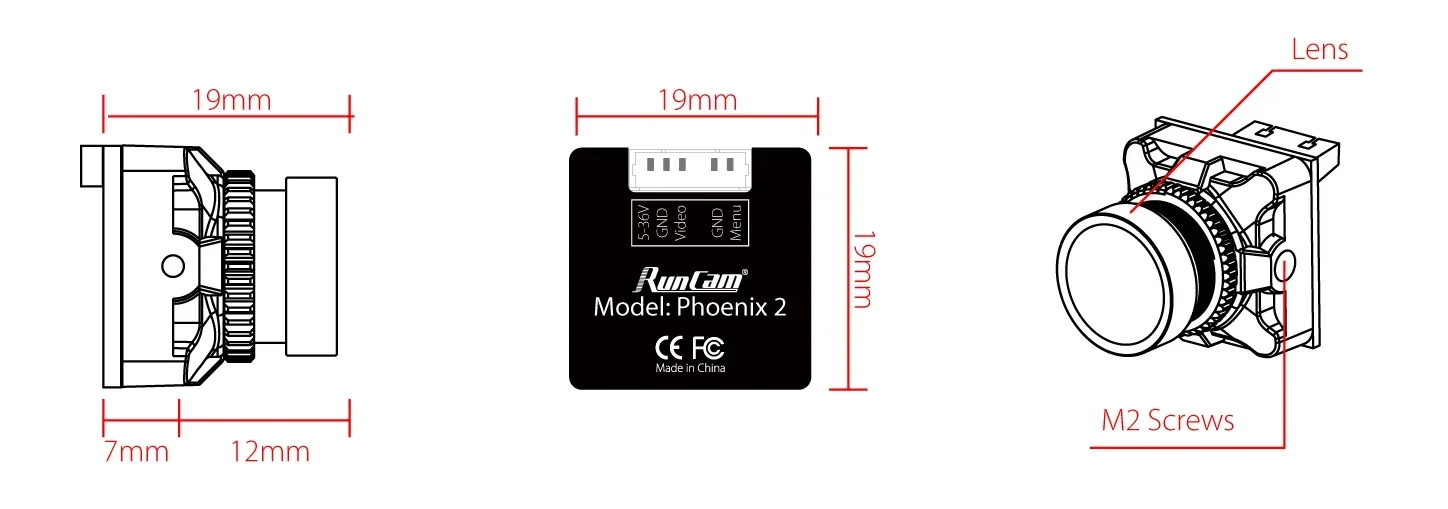

Dimensions

19mm*19mm*19mm

Dimensions

Package


Rich but natural color.

With the same CPU and 1/2'' high-performance image sensor as the RunCam Phoenix 2,
the RunCam Phoenix 2 Nano produces vivid high-resolution pictures.


Excellent low light performance.
Thanks to the 1/2'' super global WDR image sensor and the ƒ/2.0 big aperture 7G glass lens,
the Phoenix 2 Nano's low light performance is even better than the RunCam Eagle.

7G ƒ/2.0 big aperture glass lens. Less red lens flare.
The customized high-quality 7 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect. These lenses are
also used on the RunCam Split Nano3.



Joshua Edition UART Control Version.
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.

RunCam Phoenix 2
Day&Night ƒ/2.0 big aperture freestyle camera.
· 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer

Rich yet natural color.
With upgraded CPU and upgraded 1/2'' high-performance image sensor,
the RunCam Phoenix 2 produces vivid high-resolution pictures.

Excellent low light performance.
Thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light
performance is even better than the RunCam Eagle.

ƒ/2.0 big aperture lens. Less red lens flare.
The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect.

Low latency.
This camera is on the same latency level of the RunCam Eagle
and is wonderful for freestyle flying!

With the same CPU and 1/2'' high-performance image sensor as the RunCam Phoenix 2,
the RunCam Phoenix 2 Nano produces vivid high-resolution picture
