Комплект Caddx Walksnail Avatar HD V2 или комплект Pro (две антенны) с Gyroflow+ и 32 ГБ — для сборок с FPV​

Camera

Model

Avatar HD Pro Camera

Image Sensor

1/1.8-Inch Sony Starvis Ⅱ Sensor

Resolution

1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;

Ratio

16/9; 4/3

Lens

8Mp

FOV

160°

Aperture

F1.6

Shutter

Rolling shutter

Min.Illumination

0.00001Lux

Weight

9.5g

Dimensions

19*19*24mm

Coaxial Cable

140mm

Avatar V2 camera

1/3.2-Inch 4Mp 4:3sensor

1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;

4:3 native /16:9

2.1mm

F2.0

0.001Lux

7.2g

19*19*22mm

Gyroflow

Only 32G VTX Supported

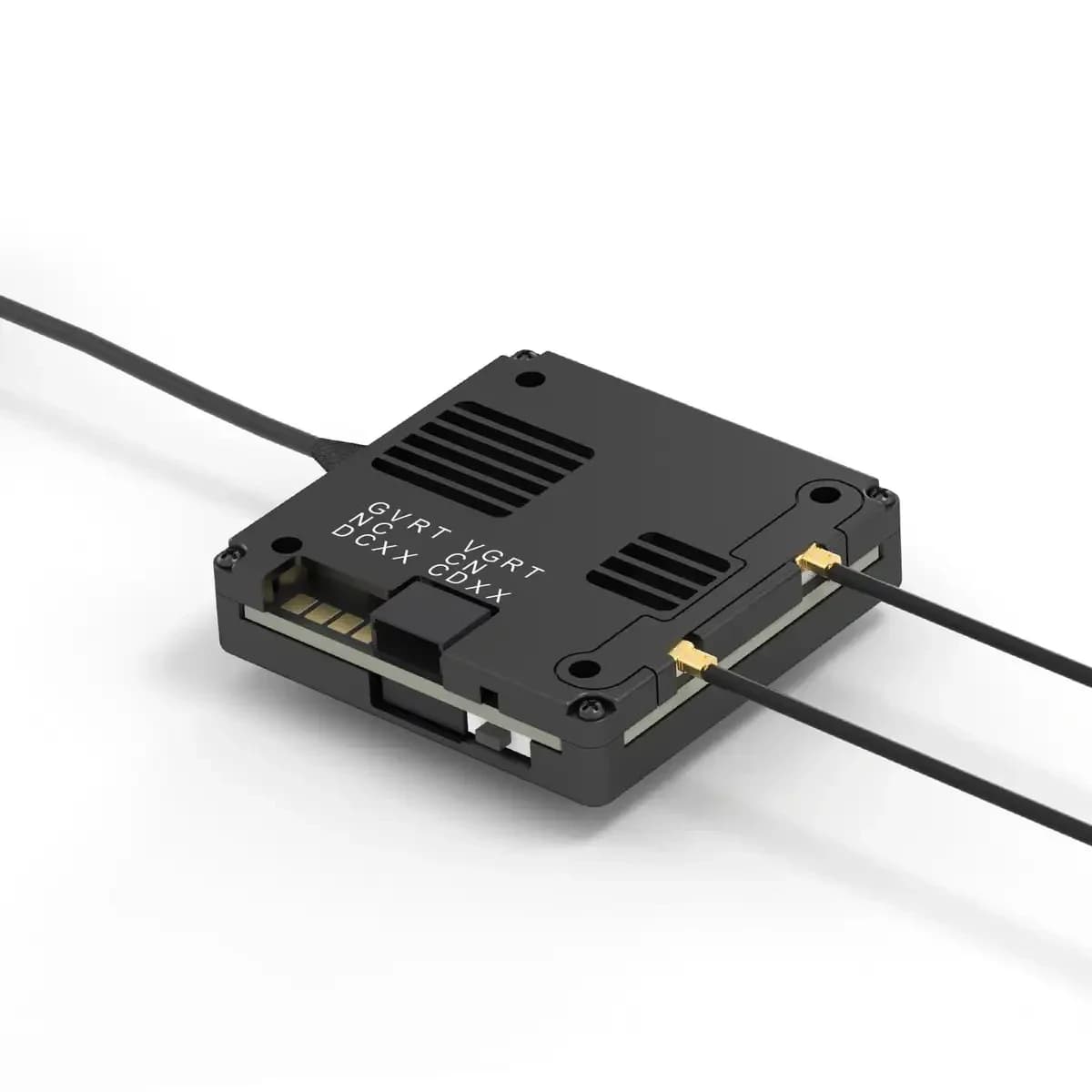

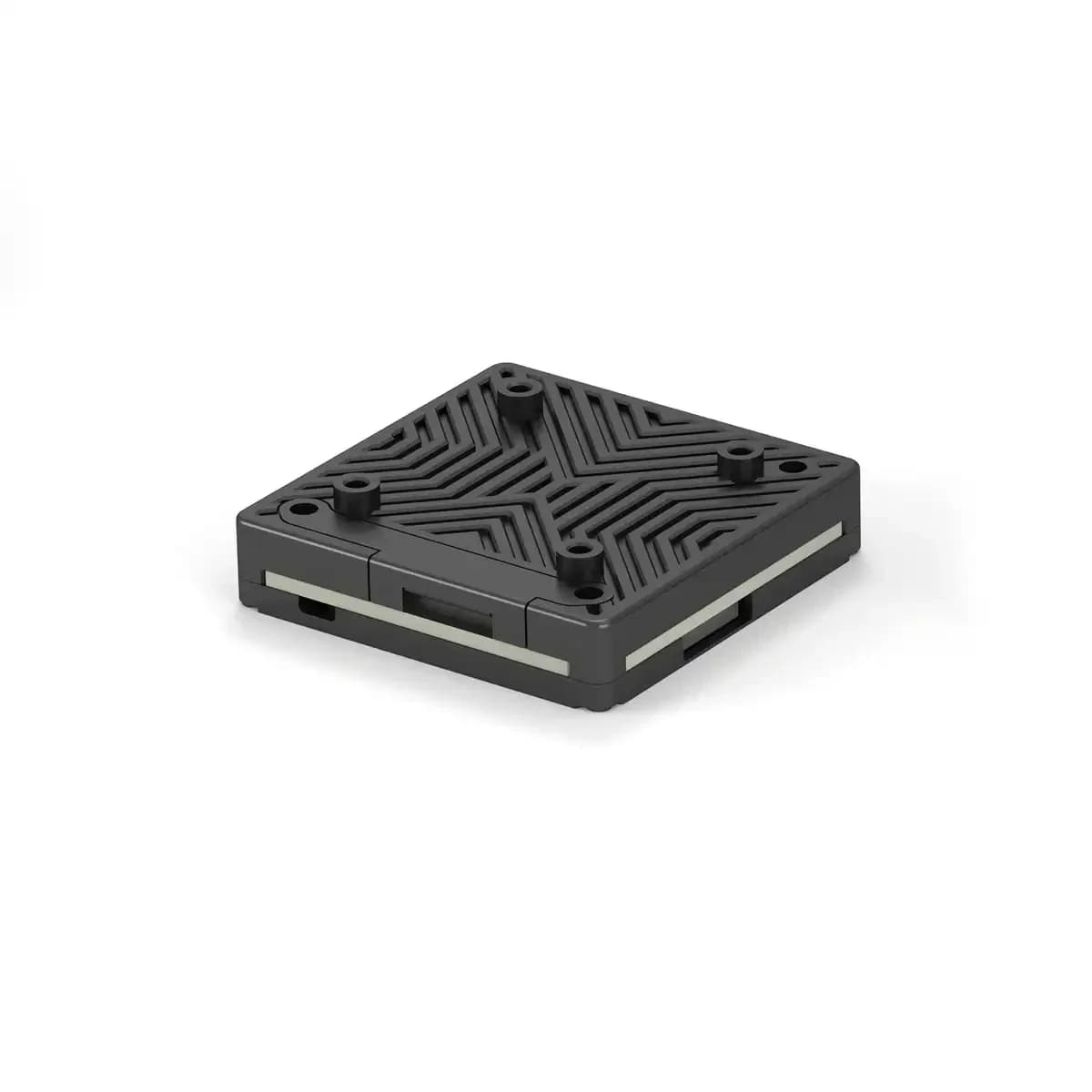

VTX

Avatar V2 module(Dual Antenna)

Communication Frequency

5.725-5.850GHz

Transmitter Power (EIRP)

FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm

1/O Interface

JST1.0*4(Power in)JST0.8*6(USB)

Mounting Holes

25.5*25.5mm; 20*20mm

33.5*33.5*10.5mm

Storage

32G

Recording

1080p/720p

15.4g

Operating Temperature

-20-40℃

Channels

8

Wide Power Input

6V-25.2V

Supported FC System

Betaflight; Inav; Fettec; ArduPilot; Kiss

OSD

Canvas mode

Latency

Average delay 22ms

Antenna

2(IPEX)

Avatar V2 antenna

Polarization

LHCP

Bandwidth

5600MHz-6000MHz

Gain

1.9dBi

VSWR

≤1.5

Input Impedance

50Ω

Interface

IPEX-1

Size

R15 X 45mm (without cable)

2g

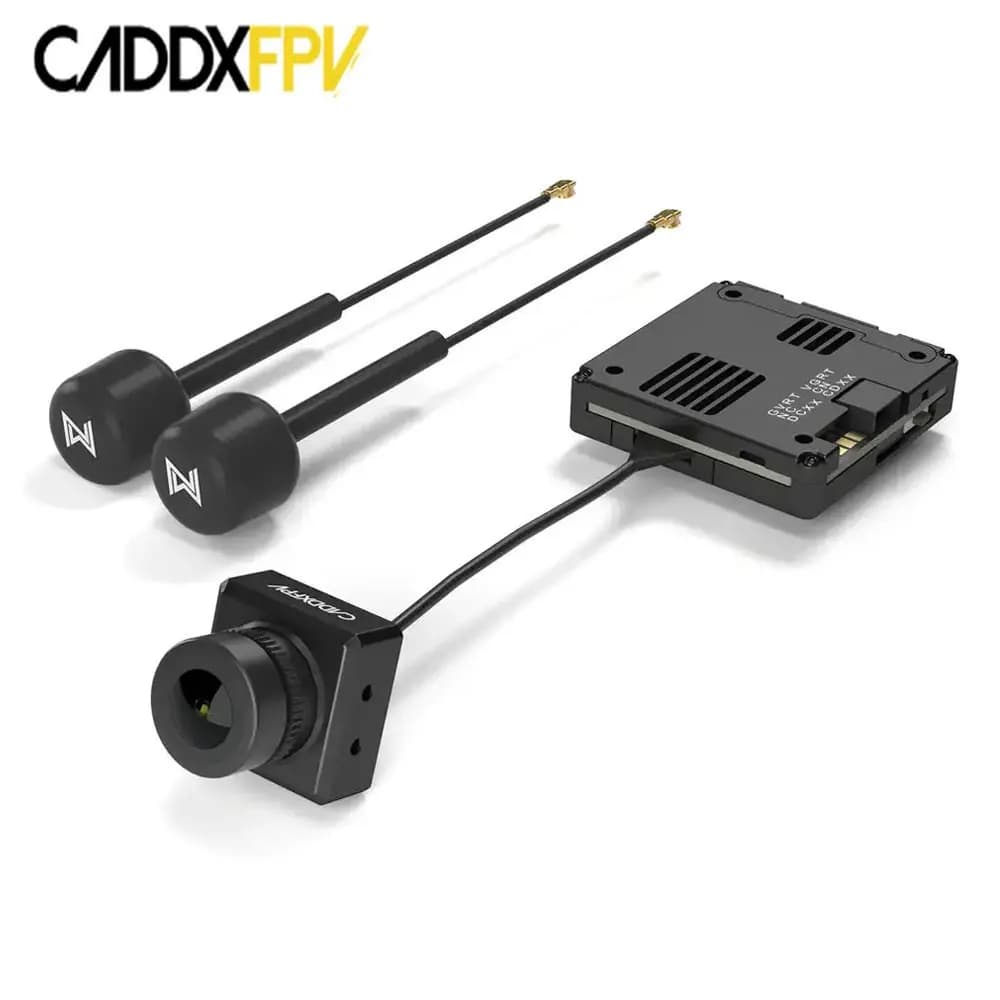

Walksnail Avatar HD Kit V2 (Dual Antennas Version)

Features

Dual antennas

Compatible 4K

1080P 120fps compatibility

22ms low latency

Ranging Mode

4KM range

Light weight design

FOV160°

Built-in 32G storage,

Support Gyroflow

The only native 4:3 high-definition sensor in the FPV industry

Bullet Points for Walksnail Avatar HD Kit V2 (Dual Antennas)

The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency.

Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.

The camera ( 32G VTX KIT) supports Gyroflow, take you a smooth and stable video quality.

The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.

Updated the design of PCB board and shell, improved the quality of VTX, more durable.

Optimized the installation place of the antenna, so as to better protect the VTX.

The position of the frequency binding button has been changed to make the frequency binding operation more convenient.

A spare pad is added to provide two power connection modes.

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability . Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.

Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.

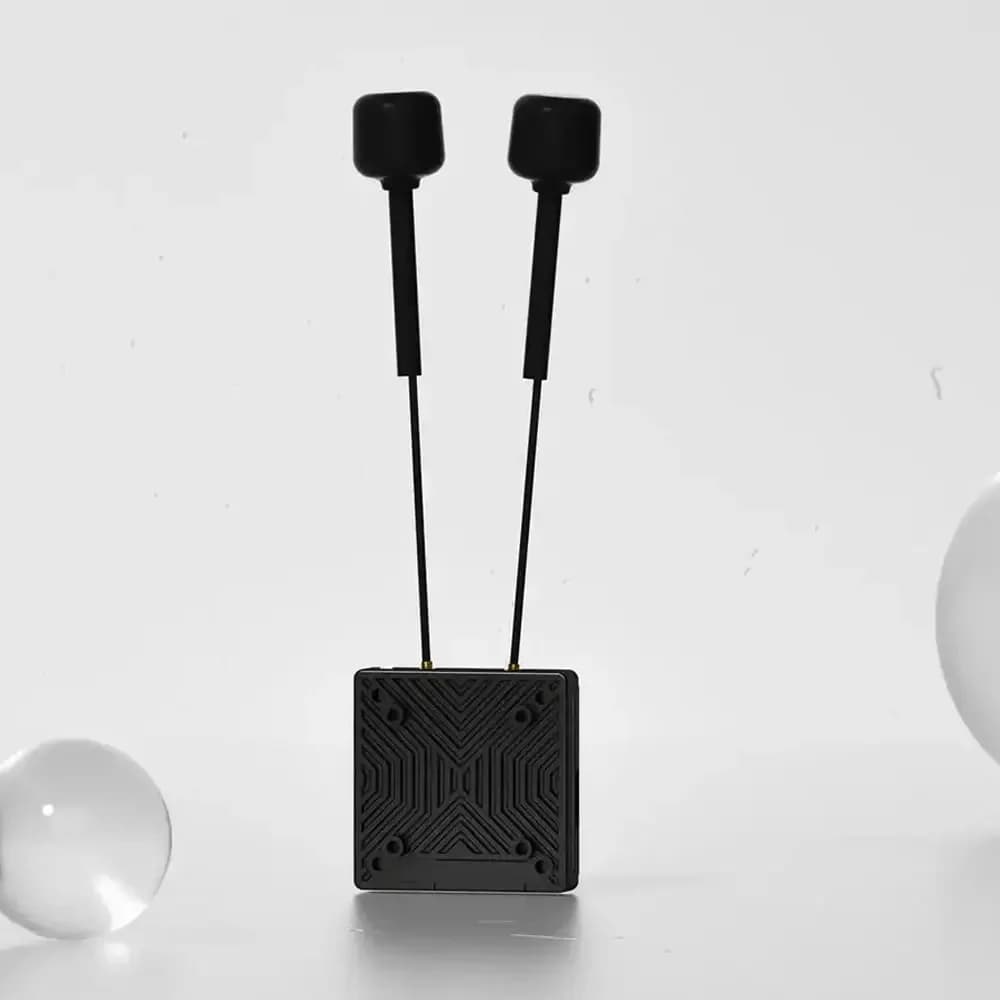

Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

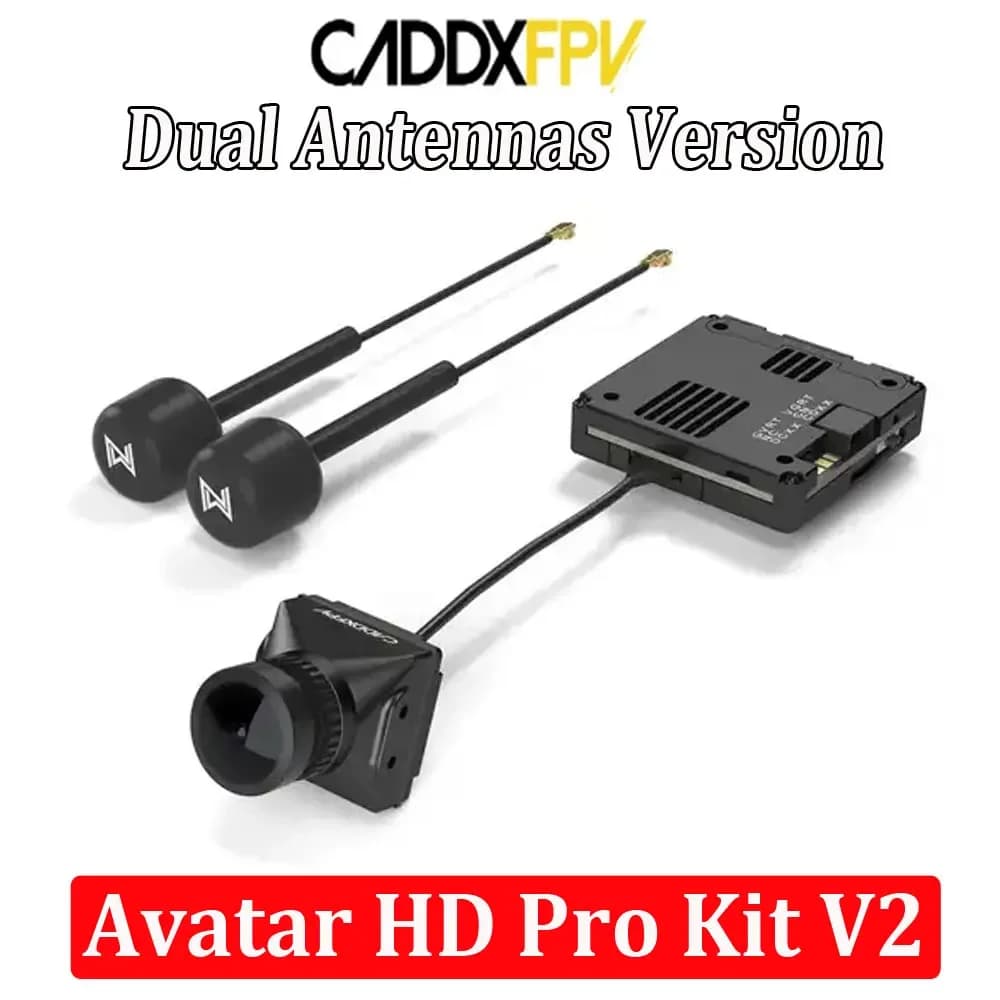

Walksnail Avatar HD Pro kit (Dual Antennas Version)

features:

Dual Antennas

4km range

Built-in 32G storage

High frame starlight

Sony Starvis Ⅱ Technology

Bullet Points for Avatar HD Pro kit (Dual Antennas)

The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency. Support 1080P/60FPS, 720P/120FPS.

Featuring a 1/1.8 inch Sony StarvisⅡ sensor, this camera delivers excellent night vision that's just as clear as day.

The camera supports Gyroflow, take you smooth and stable video quality.

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

The Avatar VTX comes with 32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.

It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
