Камера CADDXFPV Infra V2, аналоговая версия, 1500TVL, угол обзора 131,6°, камера 4:3, черно-белый датчик передачи изображения для FPV-дрона
Description
Product Introduction
Installation Direction
ConnectionThe main features of the Infra V2 black&white night vision simulation camera are as follows:*During installation, please ensure this side is facing upwards to prevent the image from being
upside down.Reduced Size and Dimensions:Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as
Infra V1, making installation easier;
Adopting a higher-grade AI processing chip to reduce the size of the processor module, resulting
in a thinner and lighter device.AI Image Enhancement Camera:Equipped with the new generation Infra V2 AI night vision enhancement algorithm, improving image
clarity by over 30% in low-light environments;
Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing
overexposure/underexposure in backlit scenes and preserving full image details.
Features：
●New V2 AI Image Enhancement
●High Resolution
●Black and White Sensor
●Reduced Size and Dimensions
Bullet Points:
- Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.
- Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing overexposure/underexposure in backlit scenes and preserving full image details. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
- Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.
- The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.
- Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.
- Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.
Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 1 working days.
Q: Does this include VTX?
A: Does not include VTX, only Camera +AI Box, AI image enhancement improves image quality.
Packing list:
3PIN Power Cable
X1
Quick Guide
M2*5*0.5mm Gasket
X4
M2*4 Screws
M2*5 Screws
M2*6 Screws
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Category |
|
| Wholesale Price |
|
Product Details
Installation Direction
ConnectionThe main features of the Infra V2 black&white night vision simulation camera are as follows:*During installation, please ensure this side is facing upwards to prevent the image from being
upside down.Reduced Size and Dimensions:Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as
Infra V1, making installation easier;
Adopting a higher-grade AI processing chip to reduce the size of the processor module, resulting
in a thinner and lighter device.AI Image Enhancement Camera:Equipped with the new generation Infra V2 AI night vision enhancement algorithm, improving image
clarity by over 30% in low-light environments;
Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing
overexposure/underexposure in backlit scenes and preserving full image details.
Features：
●New V2 AI Image Enhancement | ●High Resolution |
●Black and White Sensor | ●Reduced Size and Dimensions |
Bullet Points:
1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.
2. Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing overexposure/underexposure in backlit scenes and preserving full image details. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
3. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.
4.The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.
5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.
6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.
Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 1 working days.
Q: Does this include VTX?
A: Does not include VTX, only Camera +AI Box, AI image enhancement improves image quality.

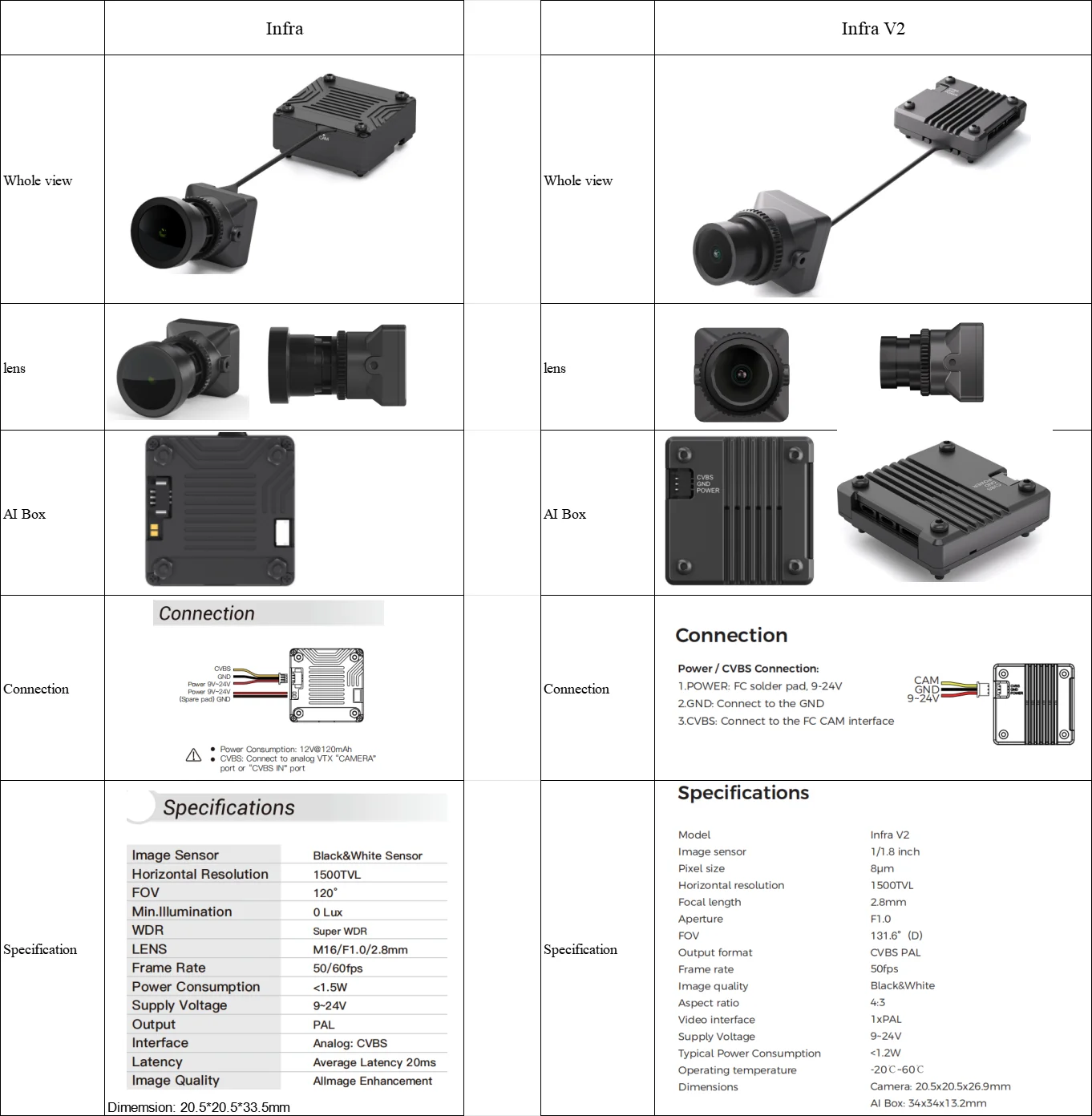

Specification
Model | CADDX Infra V2 Camera |
lmage sensor | Black&White Sensor |
Horizontal Resolution | 1500TVL |
FOV | 131° |
Ratio | 4:3 |
Min.lllumination | 0 Lux |
WDR | Super WDR |
LENS | M16/F1.0/2.8mm |
Frame Rate | 50fps |
Power Consumption | <1.2W |
Supply Voltage | 9V~24V |
Output | PAL |
Analog Interface | CVBS |
Latency | Average Latency 20ms |
lmage Quality | Allmage Enhancement |
Packing list: | |
3PIN Power Cable | X1 |
Quick Guide | X1 |
M2*5*0.5mm Gasket | X4 |
M2*4 Screws | X4 |
M2*5 Screws | X4 |
M2*6 Screws | X4 |
