XL10 V6, 10 дюймов, 420 мм, колесная база, сверхдлинный комплект карбоновой рамы HD True-X для воздушного блока O3, детали для дрона CADDX Vista HD VTX iFlight
Description

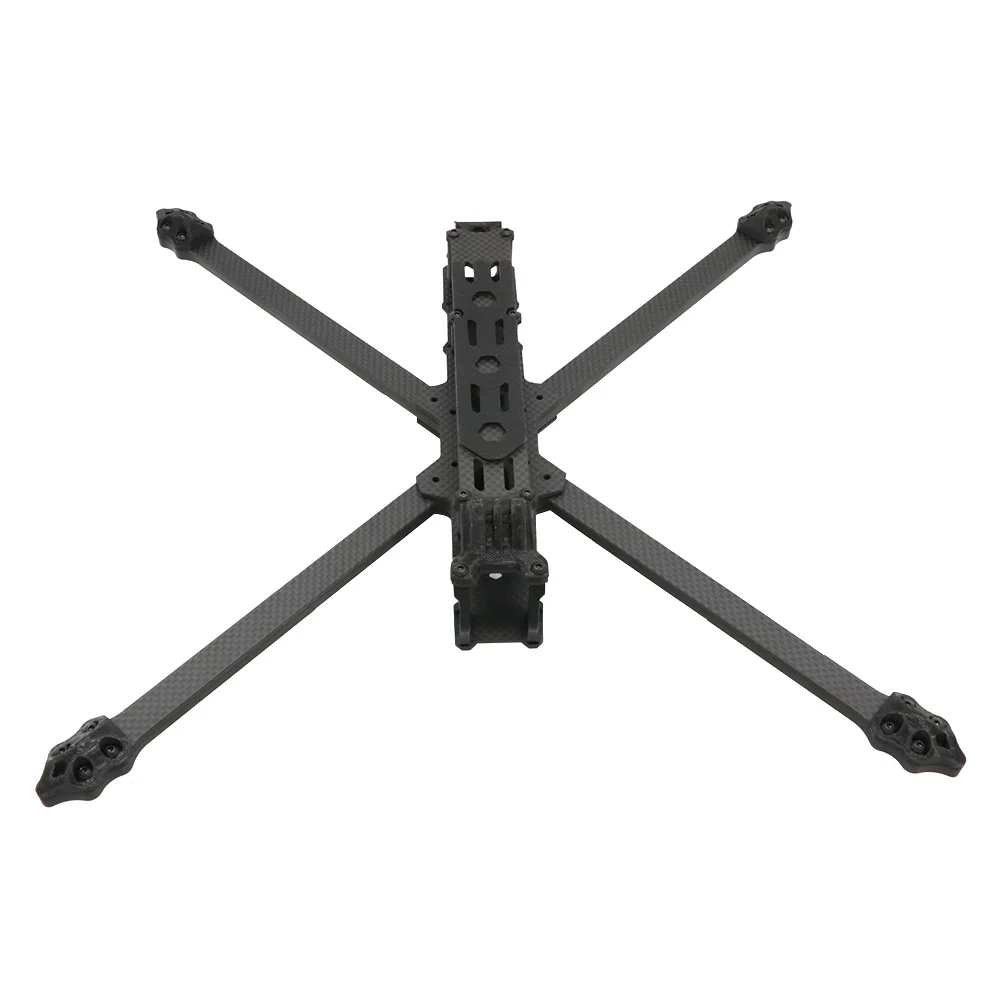

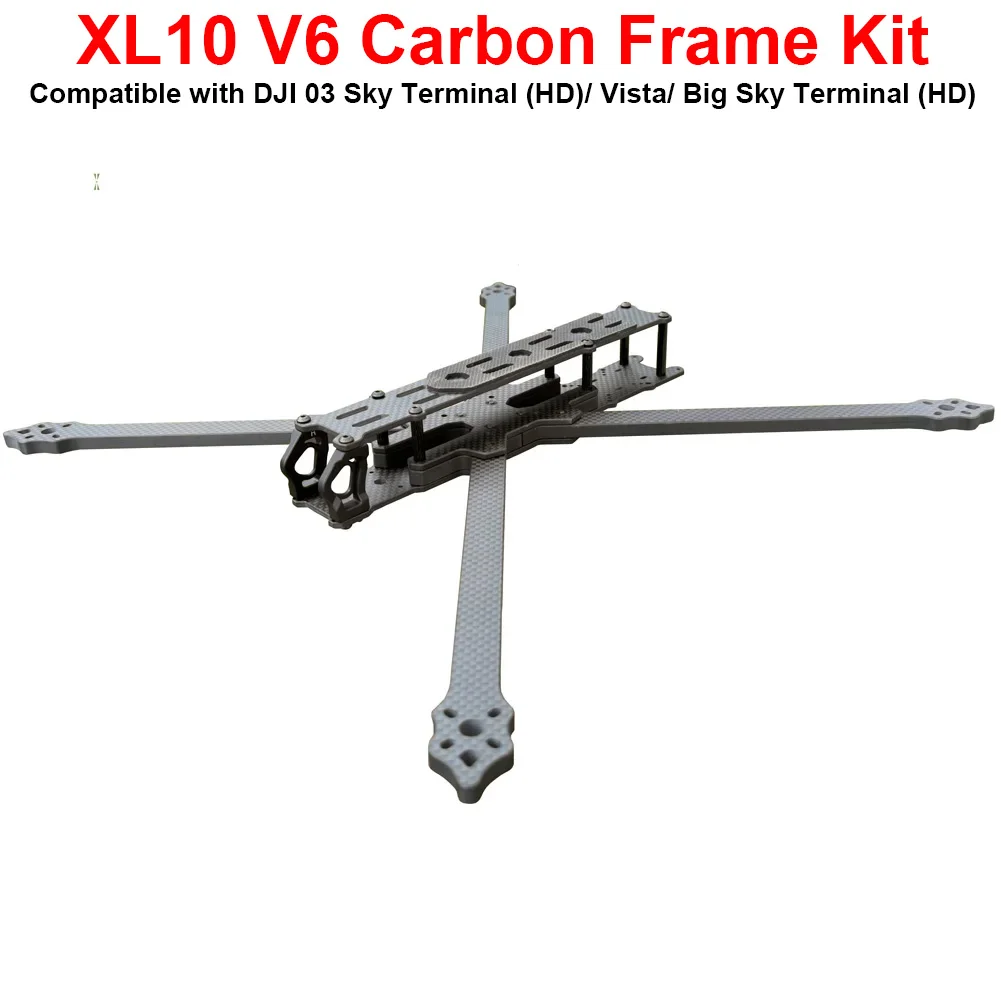

XL10 V6 10 inch frame kit is specially for D JI O3 Air Unit system and Caddx Digital FPV system.
The main advantages of the XL series V6 are in the flight performance, and the stronger and thick arms. The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.
Features:
- Comaptibel with D JI O3 Air Unit/ CADDX Vista/BLITZ Whoop 1.6W VTX;
- Full 3K Carbon Fiber airframe,the material is light and strong,hardness and toughness;
- Popular True-X configuration,the flight is flexible and durable;
- The Max. payload can achieve 1.5-2.5kg using iflight Xing2 3110 motor;
- Equipped with Gopro5/6/7/8/9/10/11,DJI Action,Sony ZV E10 camera;
- 7MM arm,the drone is more stable and tough;
- 360° TPU protection and Antenna mounts;

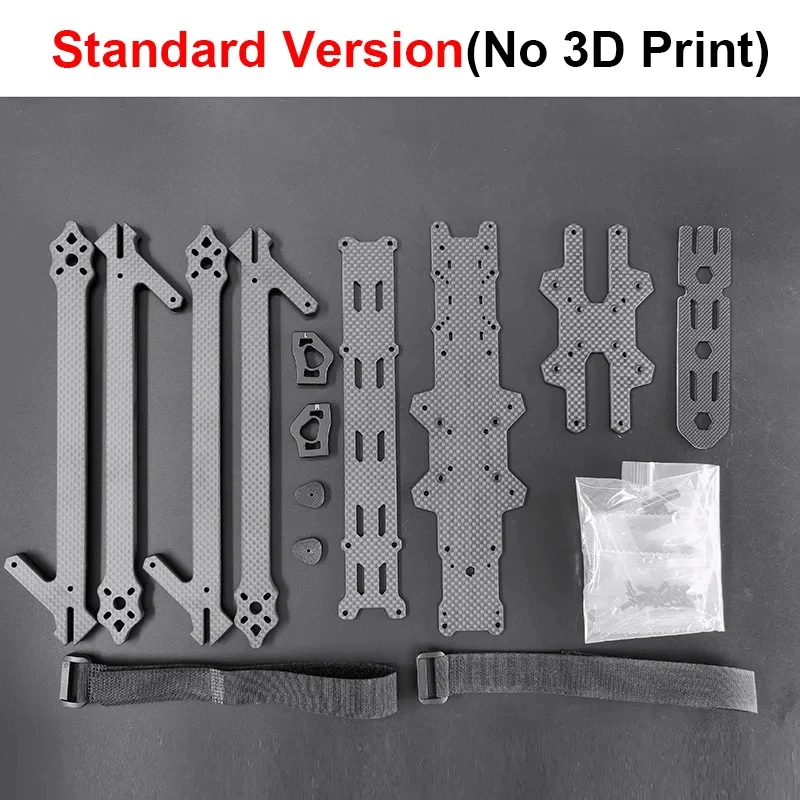

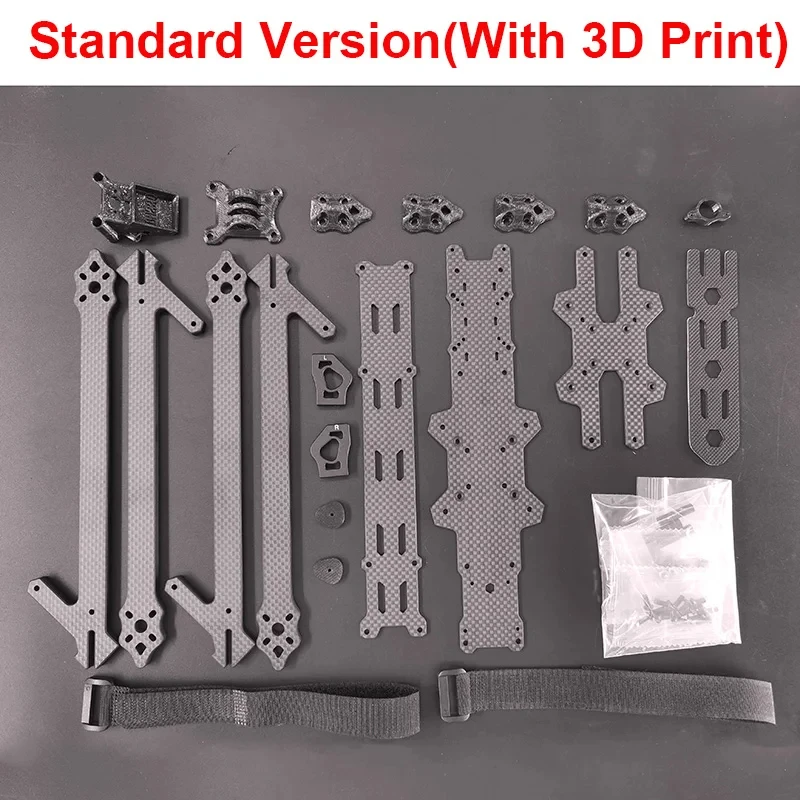

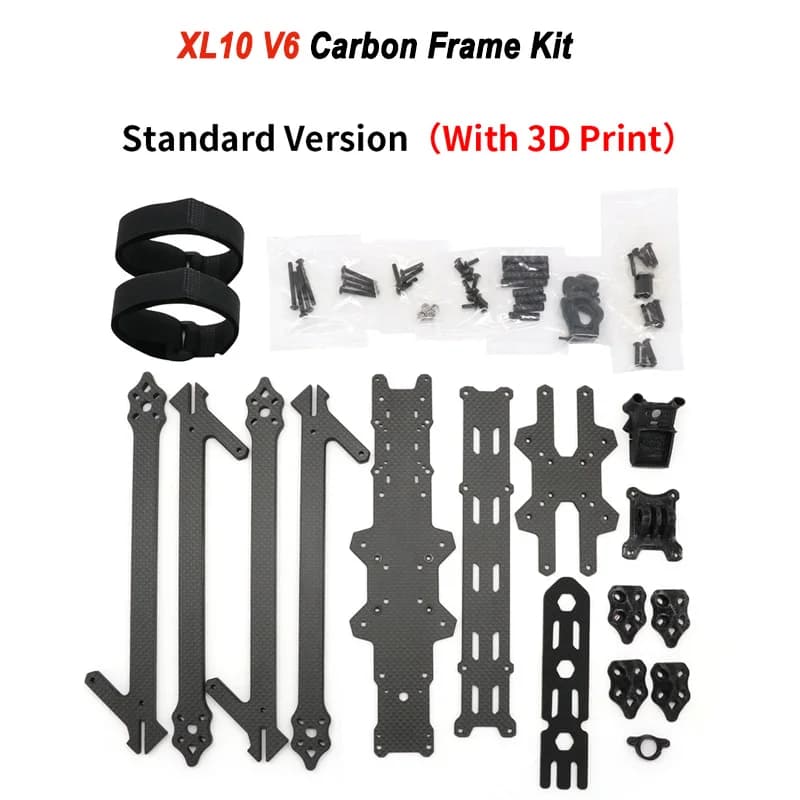

Packing List:
1x XL10 V6 Frame
1x Screw Bag
1x Battery anti-slip mat
2x Battery straps (the color will be shipped randomly)
Specifications
| Option | Values |
|---|---|
| Model |
|
| Product Name |
|
| Wheelbase |
|
| Frame Dimension |
|
| Arm Thickness |
|
| Bottom Plate Thickness |
|
| Top Plate Thickness |
|
| Upper Plate Thickness |
|
| Motor Mounting |
|
| VTX Mounting |
|
| Weight |
|
Product Details
XL10 V6 10 inch frame kit is specially for D JI O3 Air Unit system and Caddx Digital FPV system.
The main advantages of the XL series V6 are in the flight performance, and the stronger and thick arms. The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.
Features:
1.Comaptibel with D JI O3 Air Unit/ CADDX Vista/BLITZ Whoop 1.6W VTX;
2. Full 3K Carbon Fiber airframe,the material is light and strong,hardness and toughness;
3.Popular True-X configuration,the flight is flexible and durable;
4.The Max. payload can achieve 1.5-2.5kg using iflight Xing2 3110 motor;
5.Equipped with Gopro5/6/7/8/9/10/11,DJI Action,Sony ZV E10 camera;
6.7MM arm,the drone is more stable and tough;
7.360° TPU protection and Antenna mounts;
Specifications:
Model: XL10 V6
Product Name:420mm Wheelbase 10 inch Frame Kit
Wheelbase: 420mm

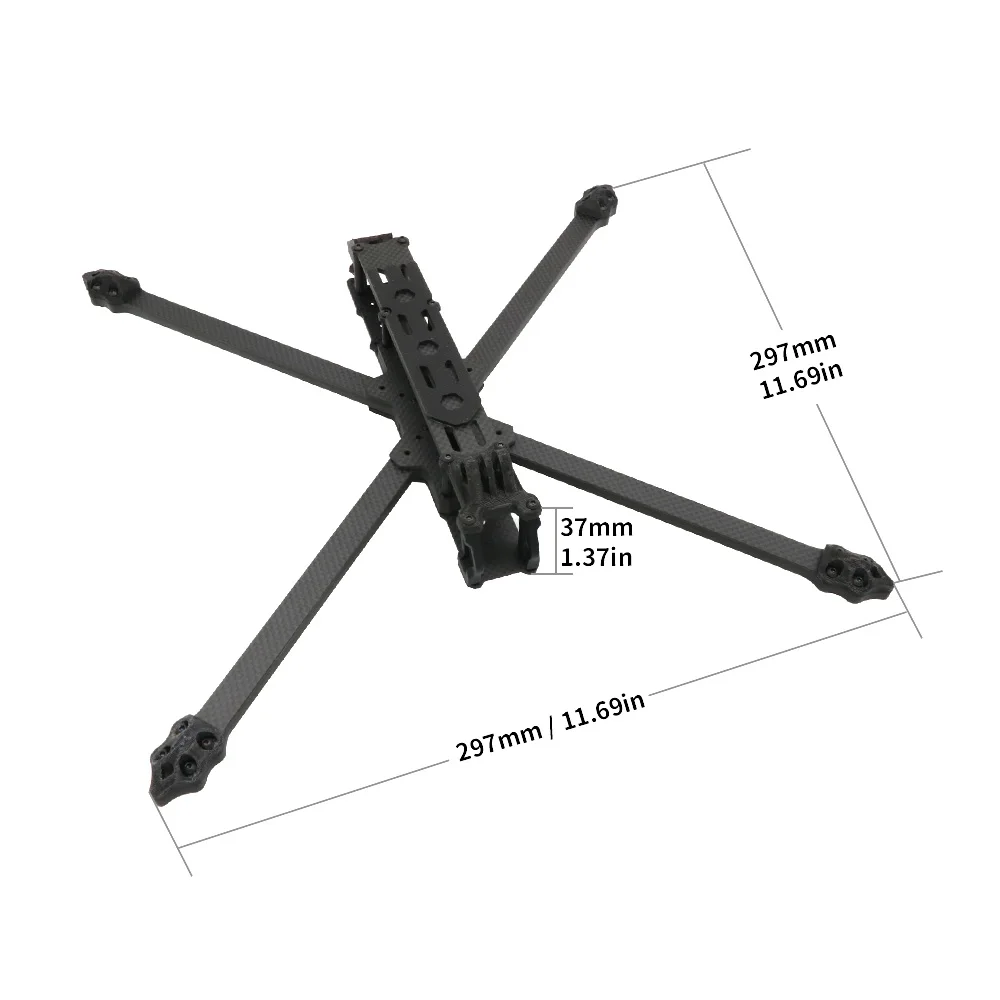

Frame Dimension:297x297x35mm( LxWxH)
Arm Thickness: 7mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Upper Plate Thickness: 3mm
Motor Mounting:16x16mm/19x19mm
VTX Mounting:20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm
Weight: 345±5 grams
Packing List:
1x XL10 V6 Frame
1x Screw Bag
1x Battery anti-slip mat
2x Battery straps (the color will be shipped randomly)
