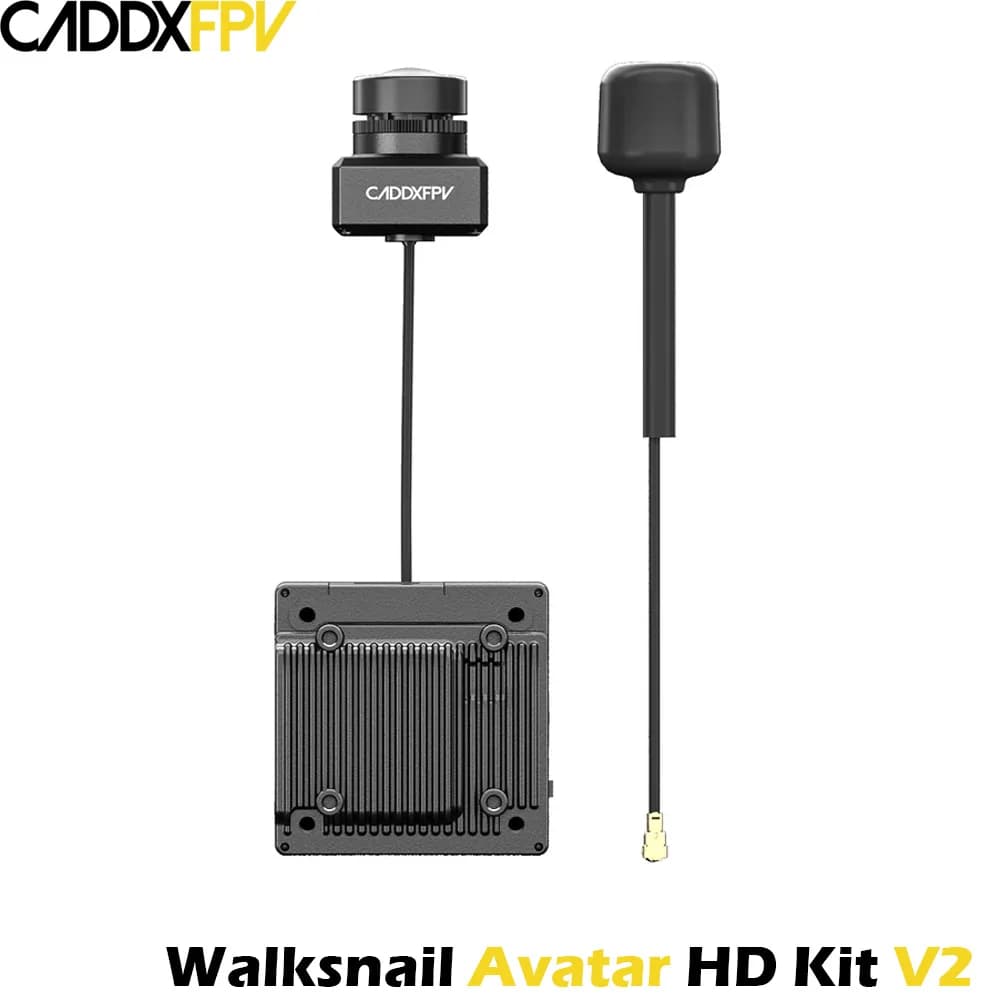

Caddx Walksnail Avatar HD Kit V2 1080P HD 160° FOV Camera 8G / 32G (With Gyroflow) Built-in Storage VTX for FPV Drone

Description

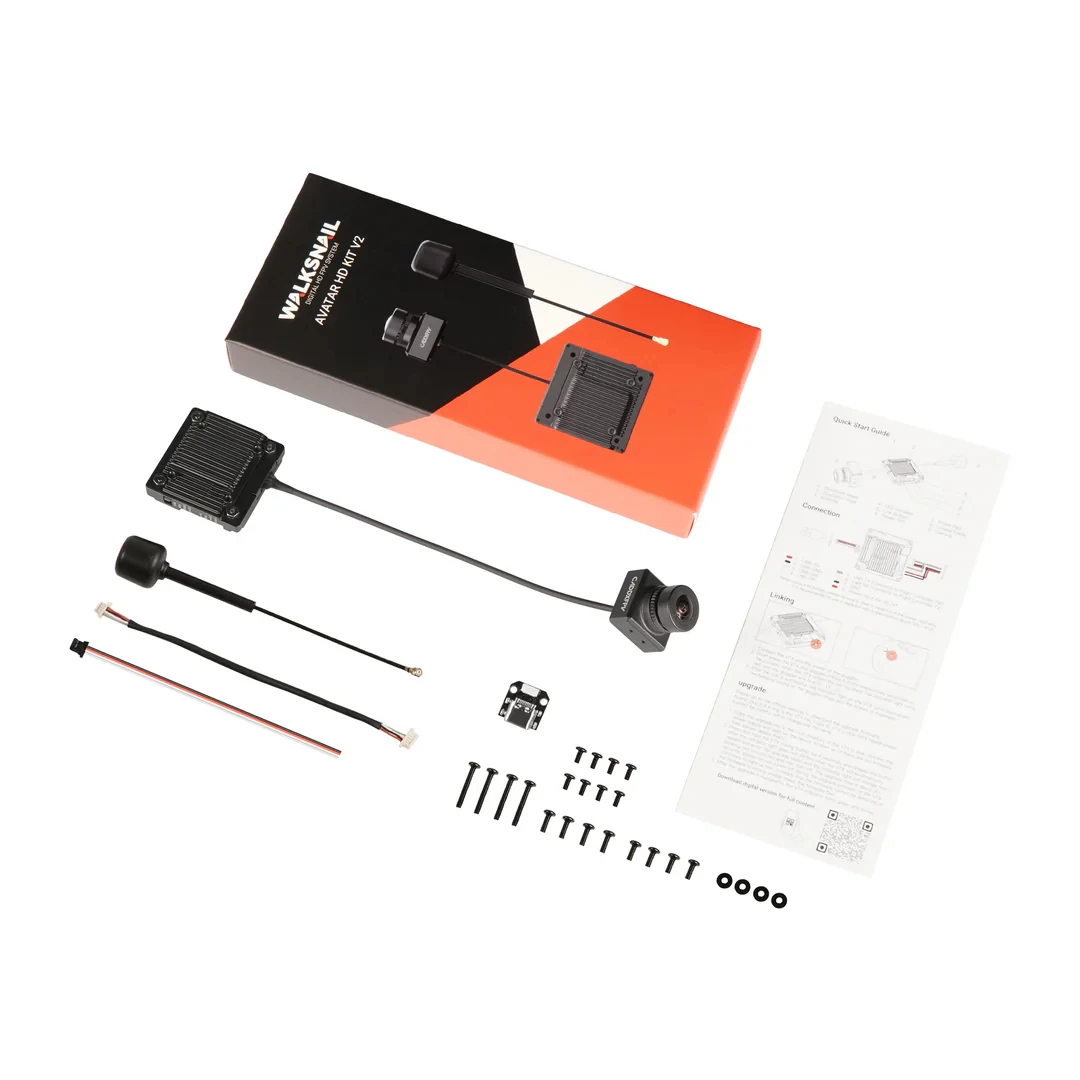

Caddx Walksnail Avatar HD Kit V2 1080P HD 160 FOV Camera 8G / 32G (With Gyroflow) Built-in Storage VTX for FPV Drone ============================================================ Specification Camera Avatar V2 camera Image Sensor 1/3.2-Inch 4Mp 4:3sensor Resolution 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility; 4:3 native /16:9 Aperture Shutter Rolling shutter Min.Illumination 0.001Lux Weight Dimensions 19*19*22mm Coaxial Cable Gyroflow Only 32G VTX Supported Avatar V2 module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm 1/O Interface JST1.0*4(Power in)JST0.8*6(USB) Mounting Holes 25.5*25.5mm; 20*20mm Dimensions 33.5*33.5*10.5mm Storage 8G/32G Recording 1080p/720p Weight Operating Temperature -20-40℃ Channels Wide Power Input 6V-25.2V Supported FC System Betaflight; Inav; Fettec; ArduPilot; Kiss Canvas mode Latency Average delay 22ms Antenna 1(IPEX) Avatar V2 antenna Polarization Bandwidth 5600MHz-6000MHz 1.9dBi Input Impedance Interface IPEX-1 R15 X 45mm （without cable） Weight Packing List USB transfer extension cable 4 Pin silicone cable M2*4mm screws M2*5mm screws M2*6mm screws M2*14mm screws M2*5*0.5mm gasket Bullet Point for Camera 2K pixel, 120fps, 4:3 native sensor Support Gyroflow 1080P HD FPV F/2.0 Large Aperture 160° wide-angle FOV Bullet Point for VTX Add another 20*20mm mounting holes Add 8/32g built-in storage option Updated the design of PCB board and outer shell A spare pad is added to provide two power connection modes Optimized antenna base design and frequency button position for greater convenience Bullet Point for Avatar HD kit V2 Features 1080P 120fps compatibility 22ms low latency Ranging Mode 4KM range Light weight design FOV160° Built-in 8G/32G storage, Support Gyroflow GPS anti-jamming 6V-25.2V The only native 4:3 high-definition sensor in the FPV industry The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well. The camera ( 32G VTX KIT) supports Gyroflow, take you a smooth and stable video quality. In addition to the original 25mm x 25mm mounting holes, the kit now added 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models. Updated the design of PCB board and shell, improved the quality of VTX, more durable. Optimized the installation place of the antenna, so as to better protect the VTX. The position of the frequency binding button has been changed to make the frequency binding operation more convenient. A spare pad is added to provide two power connection modes. New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology. The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times. Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate. The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable. HD 1080p OLED Dual Micro Displays The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience. The goggles have the featu
