Skyzone 5.8GHZ 48Channel RD40 Raceband Dual Diversity Receiver For Rc racing drone Quadcopter With A/V and Power Cables VS RC832

Description

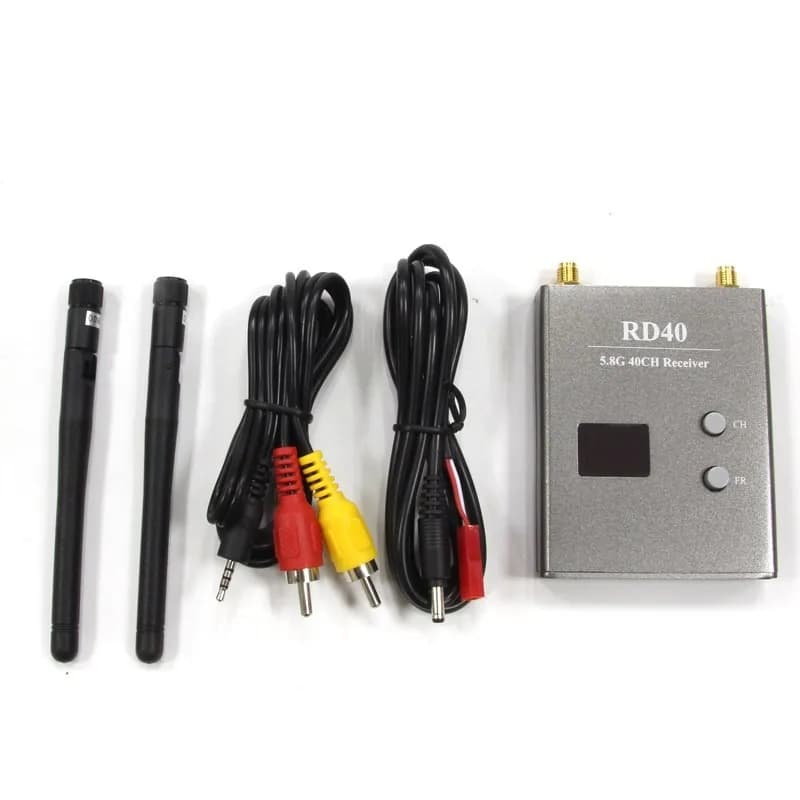

Skyzone 5.8GHZ 48Channel RD40 Raceband Dual Diversity Receiver For Rc racing drone Quadcopter With A/V and Power Cables VS RC832 ============================================================ Skyzone 5.8GHZ 48 Channel RD40 Raceband Dual Diversity Receiver With A/V and Power Cables For Rc racing drone VS RC832 Package Included: 1 x RD40 Receiver 1 x AV Cable 1 x Power Cable 2 x Antenna Description: Brand Name: Skyzone Item Name: RD40 Diversity Receiver Frequency: ISM 5.8GHz 40CH Connector: RP-SMA Sensitivity: -90dBm Power Supply Voltage: DC 7-24V Current: 280mA RF Input Matching: 50ohm Video Output Level: 1.0Vp_p 75Ω Audio Output Level: 1.0Vp_p 10KΩ Dimension: 80 x 65 x 15mm Weight: 100g Features: 40 channels, 5 frequency b,and wireless receiving. Two buttons for channel and b,and exchange individually. Two number display, timely locate the current receiving frequency and b,and When power on, storage memory shows channel and frequency of the last time. Two-way video and audio signal output ( video: PAL, NTSC,CECAM ; Audio: 6.5MHz) Wide dynamic power supply ( 7-24v) Two-way high senstivity receivers, make your signals more stable. With specific indicator shows the current working state Frequency: CH and FR form FR1 or (A): 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M FR2 or (B): 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M FR3 or (E): 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M FR4 or (F): 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M FR5 or (R): 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M Function: 1.Channel control and LED display. When power on,press CH, RX1 and RX2 channel Change, and shows on CH-LED display. So Channel and digi-display loop from 1-8. 2.Frenquency control and LED display When power on,press FR, RX1 and RX2 frenquency Change, and shows on FR-LED display. So Frenquency and digi-display loop from 1-5. TECHNICAL SPECIFICATIONS • Dimension: 80 x 65 x 15mm • Weight: 100g • Current: 280mA • Frequency: ISM 5.8GHz 40CH • Frequency: CH and FR form • Connector: RP-SMA AVAILABLE OPTIONS China Mainland PRODUCT INFORMATION Brand: Skyzone Category: FPV Drone Wholesale Price: US $70.10 ————————————————————————————————————————
