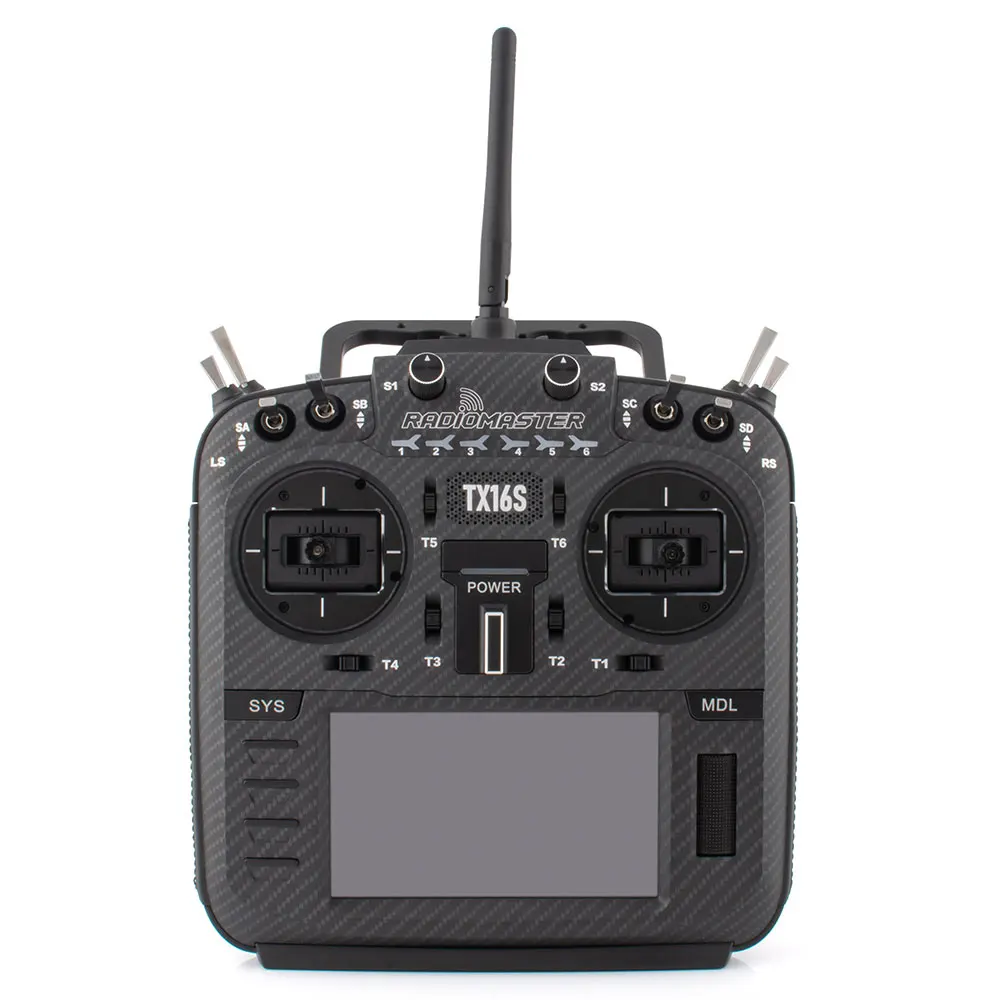

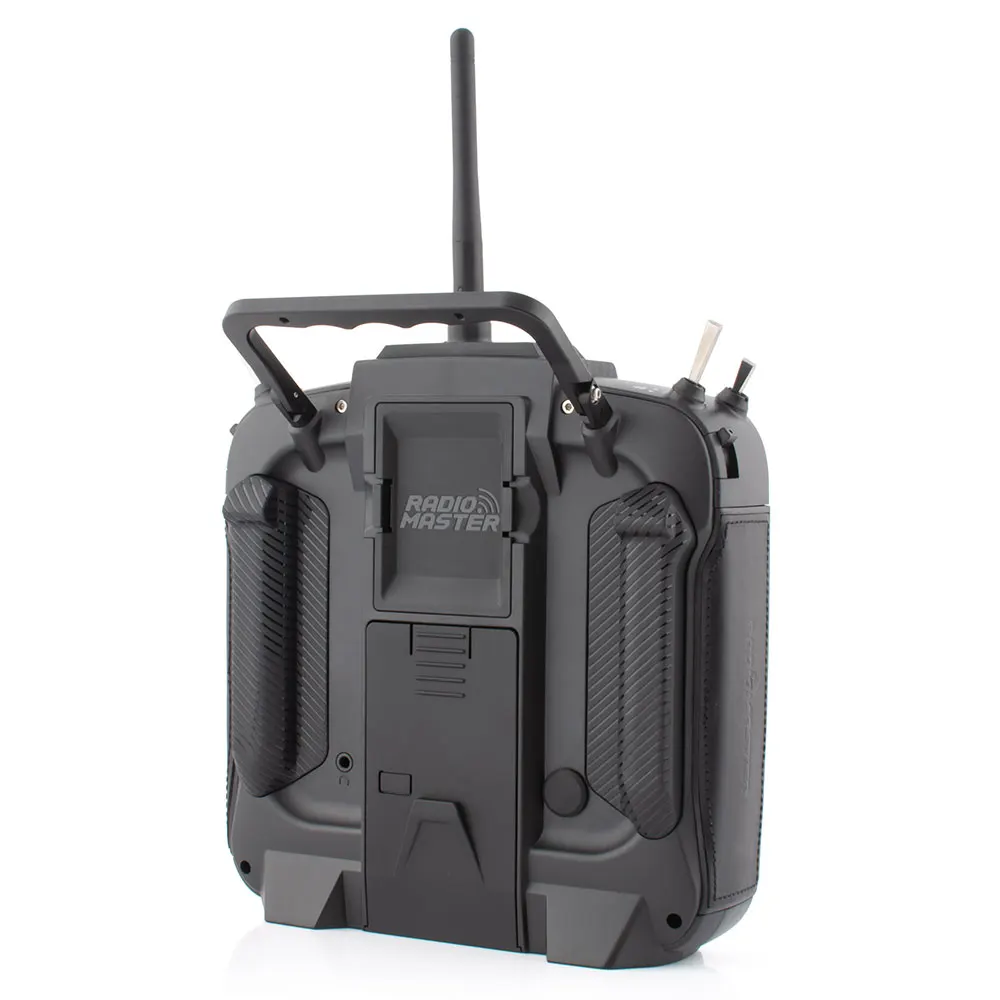

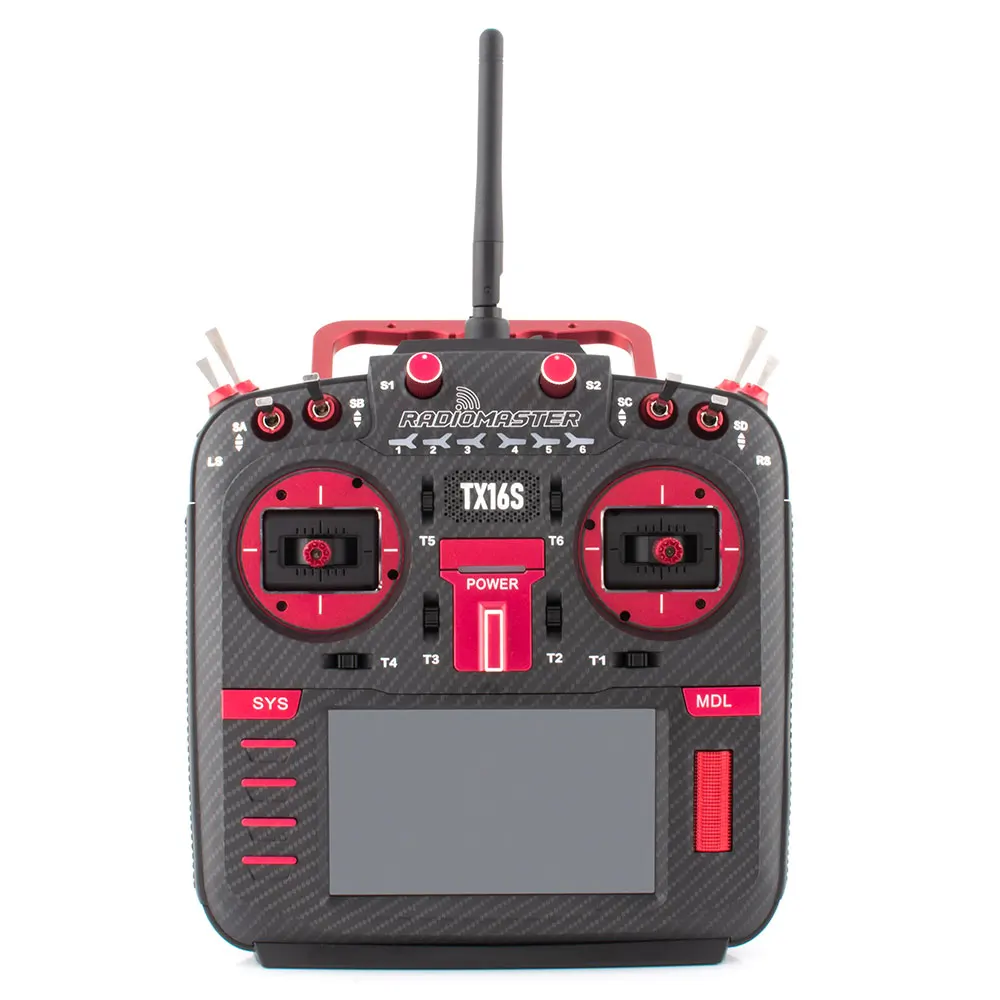

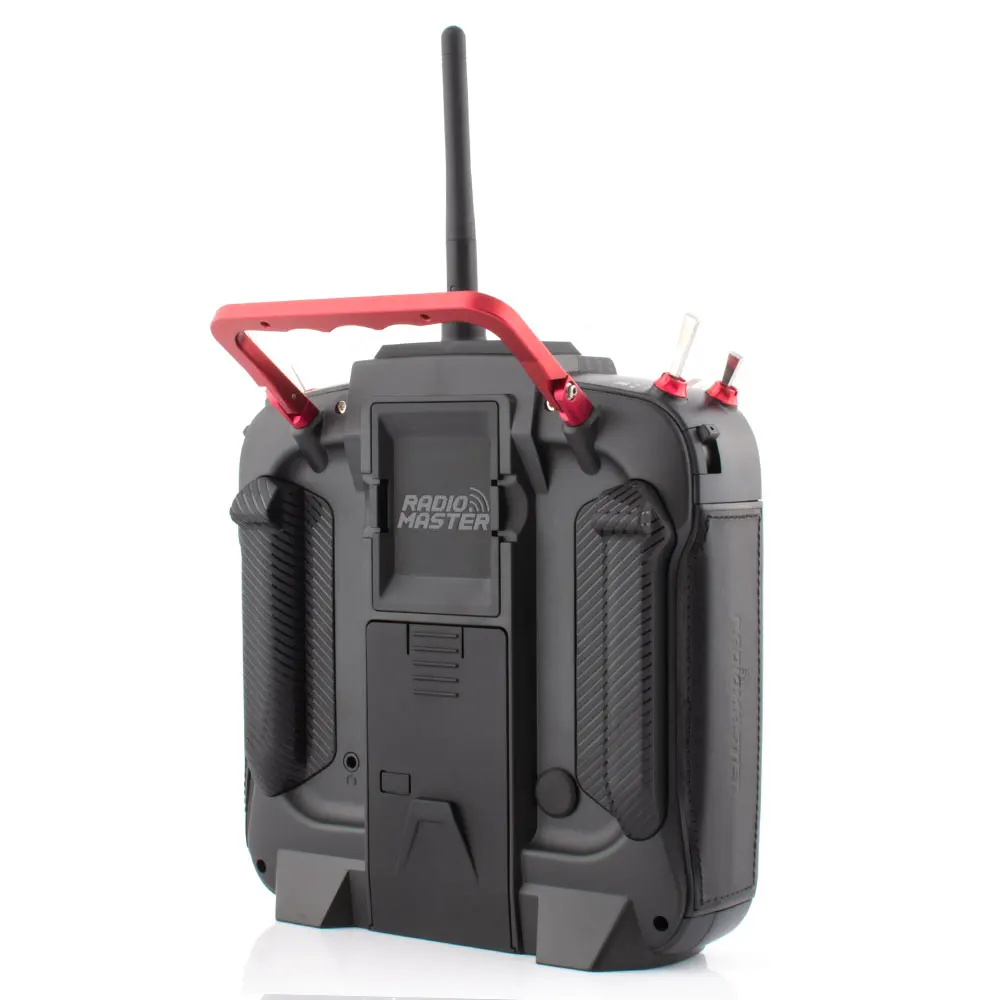

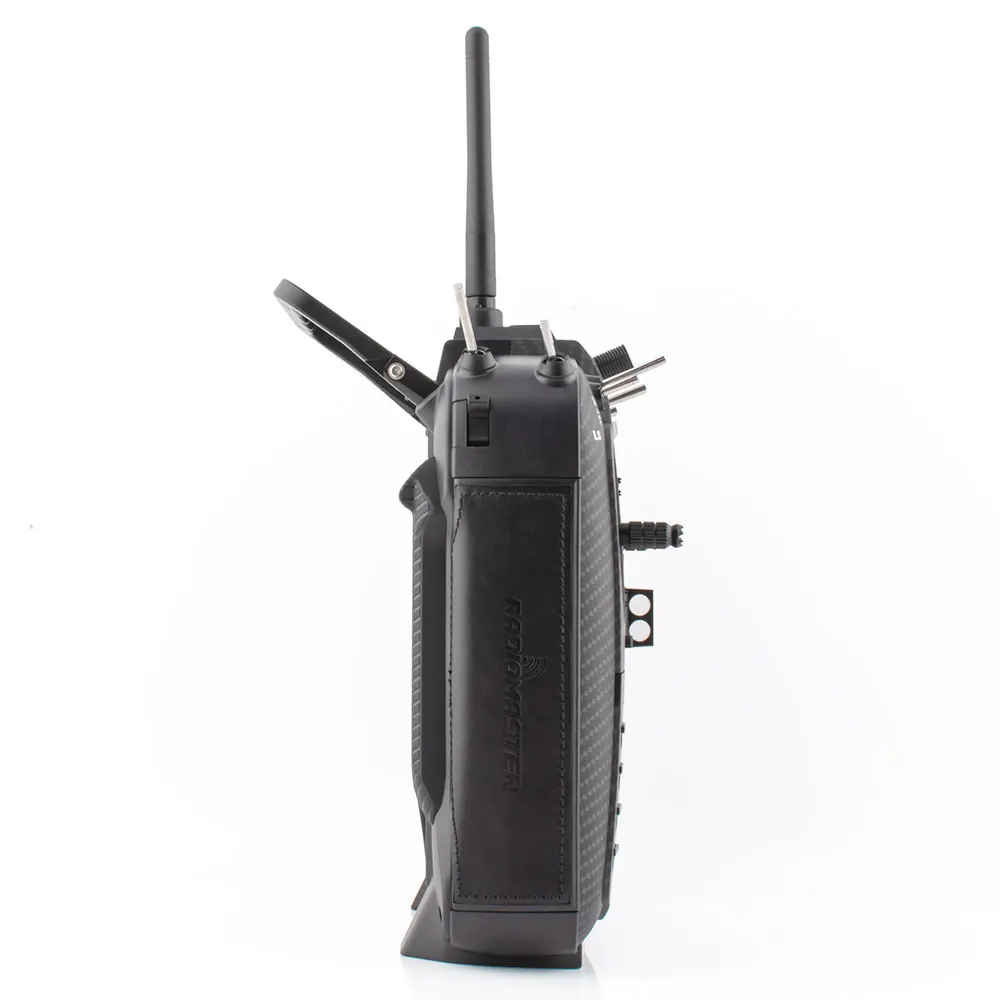

RadioMaster TX16S MKII MAX Radio Control System ExpressLRS Multi-protocol 4in1
Description
RadioMaster TX16S MKII MAX Radio Control System ExpressLRS Multi-protocol 4in1 ============================================================ Notes: ★ 4in1 (standard) Version supports all MPM protocols ★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant) ★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX ★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output) Size:287x129x184mm Weight:750g(without battery) Transmission frequency: 2.400GHz-2.480GHzTransmitter Module: Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401) Option 2: lnternal ELRS(SX1280) Transmitting power: Antenna gain: 2db (transmit power adjustable)working current: 400mA Working voltage:6.6-8.4v firmware:EdgeTX Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS) Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a resolutionof 480* 272 Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia Option2:AG01 CNC Hall sensor Module Bay: JR compatible module bay Upgrade method: Supports USB-C online / SD card offline upgrade IMPROVEMENTS -lmproved internal circuity and optimized power supply. -New charge circuitry with integrated reverse-polarity protection. -Optimized Charge IC, better balancing and uSB-C charge urrent,management. -Rear mounted audio jack provides headphone output -V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01) -Optional high/low rear grips included for improved ergonomics. --lmproved S1/S2 knobs with clear centre-detents. -lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery cover for improved battery access. -Retooled body shell with improved fit and finish. -Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods -lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions. MAX units feature carbon look face plates and CNC finishing components and buttons. TECHNICAL SPECIFICATIONS • Size:287x129x184mm • Weight:750g(without battery) • firmware:EdgeTX AVAILABLE OPTIONS ELRS Mode 2 FCC-Red ELRS Mode 2 LBT-Red ELRS Mode 2 FCC-Bk ELRS Mode 2 LBT-Bk 4IN1 Mode 2 FCC-Rd 4IN1 Mode 2 LBT-Rd 4IN1 Mode 2 FCC-Bk 4IN1 Mode 2 LBT-Bk ELRS M2 FCC 6200-BK ELRS M2 LBT 6200-BK 4IN1 M2 FCC 6200-RD 4IN1 M2 LBT 6200-RD ELRS M2 FCC 18650-Rd ELRS M2 LBT 18650-Rd 4IN1 M2 FCC 18650-BK PRODUCT INFORMATION Brand: RadioMaster Category: FPV Drone Wholesale Price: US $288.79 ————————————————————————————————————————
Product Details
Notes:
★ 4in1 (standard) Version supports all MPM protocols
★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW
(Max power is hardware dependnant)
★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Size:287x129x184mm
Weight:750g(without battery)
Transmission frequency: 2.400GHz-2.480GHzTransmitter
Module:
Option 1: Internal
4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: lnternal ELRS(SX1280)
Transmitting power:
Antenna gain: 2db (transmit power adjustable)working current: 400mA
Working voltage:6.6-8.4v
firmware:EdgeTX
Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS)
Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour
touch display with a resolutionof 480* 272
Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia
Option2:AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-lmproved internal circuity and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized Charge IC, better balancing and uSB-C charge urrent,management.
-Rear mounted audio jack provides headphone output
-V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)
-Optional high/low rear grips included for improved ergonomics.
--lmproved S1/S2 knobs with clear centre-detents.
-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery
cover for improved battery access.
-Retooled body shell with improved fit and finish.
-Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods
-lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
