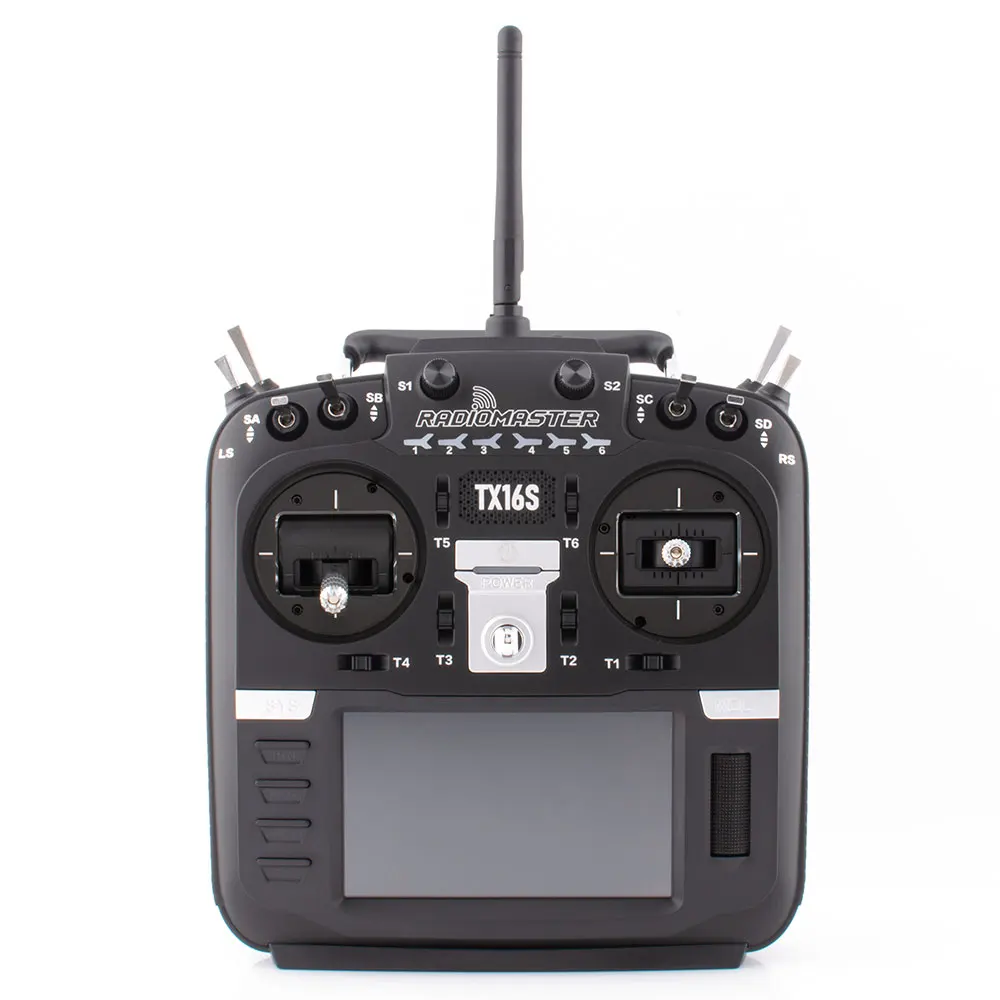

RadioMaster TX16S MKII V4.0 16CH 2.4G Hall Gimbals ELRS 4in1 Transmitter Remote Control 2025
Description
RadioMaster TX16S MKII V4.0 16CH 2.4G Hall Gimbals ELRS 4in1 Transmitter Remote Control 2025 ============================================================ Notes: ★ 4in1 (standard) Version supports all MPM protocols ★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant) ★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX ★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output) Size:287x129x184mm Weight:750g(without battery) Transmission frequency: 2.400GHz-2.480GHzTransmitter Module: Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401) Option 2: lnternal ELRS(SX1280) Working voltage:6.6-8.4v firmware:EdgeTX Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS) Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a resolutionof 480* 272 Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia Option2:AG01 CNC Hall sensor Module Bay: JR compatible module bay Upgrade method: Supports USB-C online / SD card offline upgrade IMPROVEMENTS -lmproved internal circuity and optimized power supply. -New charge circuitry with integrated reverse-polarity protection. -Optimized Charge IC, better balancing and uSB-C charge urrent,management. -Rear mounted audio jack provides headphone output -V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01) -Optional high/low rear grips included for improved ergonomics. --lmproved S1/S2 knobs with clear centre-detents. -lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery cover for improved battery access. -Retooled body shell with improved fit and finish. -Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods -lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions. MAX units feature carbon look face plates and CNC finishing components and buttons. TECHNICAL SPECIFICATIONS • Size:287x129x184mm • Weight:750g(without battery) • firmware:EdgeTX AVAILABLE OPTIONS ELRS Mode 2 FCC ELRS M2 With 6200mah ELRS Mode 2 LBT 4IN1 M2 FCC 4IN1 M2 With 6200mah 4IN1 M2 LBT PRODUCT INFORMATION Brand: RadioMaster Category: FPV Drone Wholesale Price: US $275.64 ————————————————————————————————————————
Product Details
Notes:
★ 4in1 (standard) Version supports all MPM protocols
★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW
(Max power is hardware dependnant)
★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

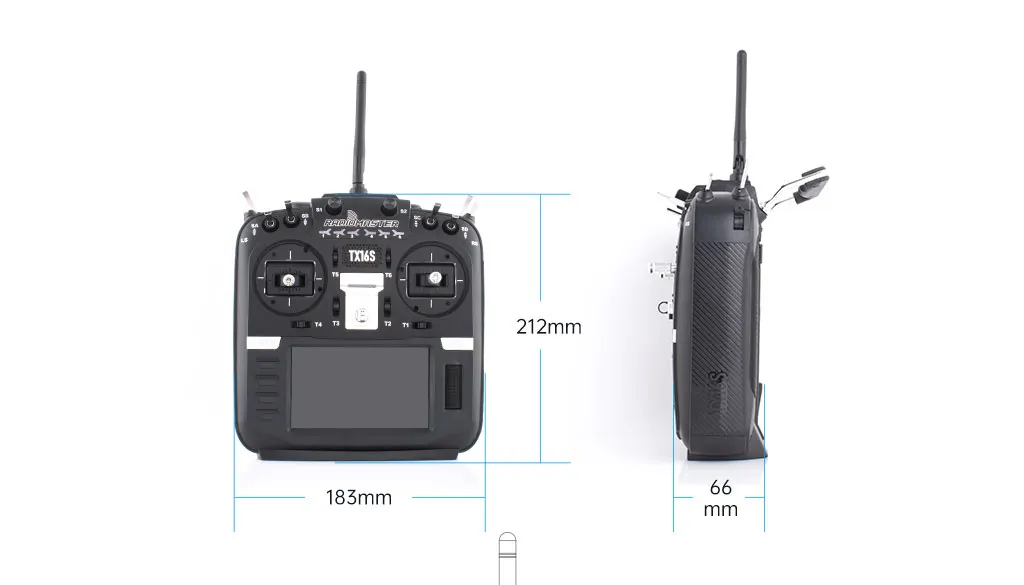

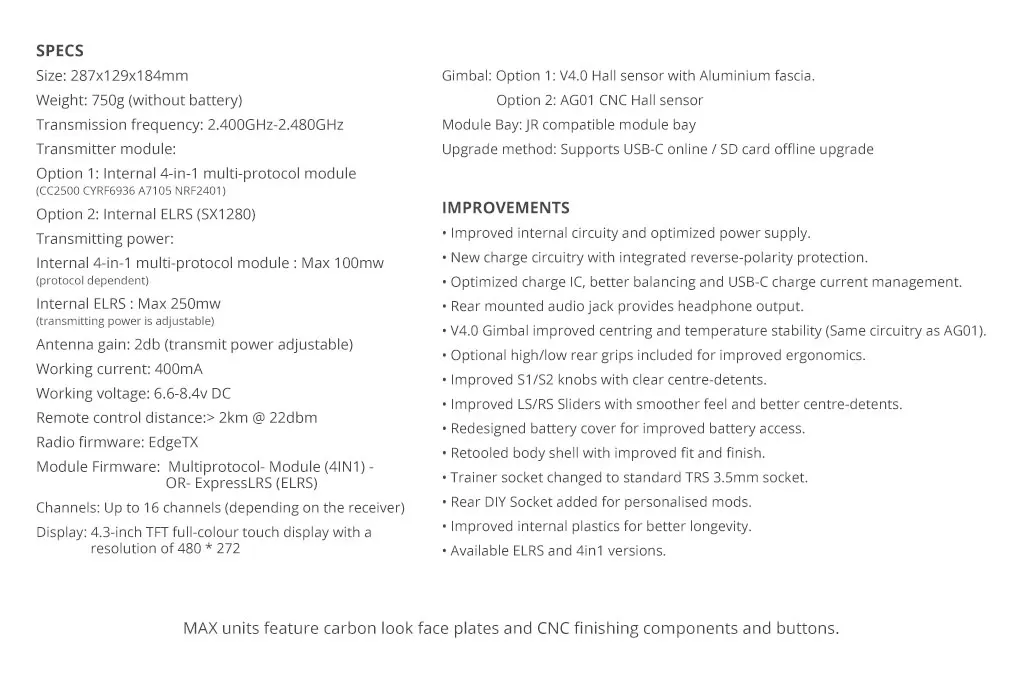

Size:287x129x184mm
Weight:750g(without battery)
Transmission frequency: 2.400GHz-2.480GHzTransmitter
Module:
Option 1: Internal
4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: lnternal ELRS(SX1280)
Working voltage:6.6-8.4v
firmware:EdgeTX
Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS)
Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour
touch display with a resolutionof 480* 272

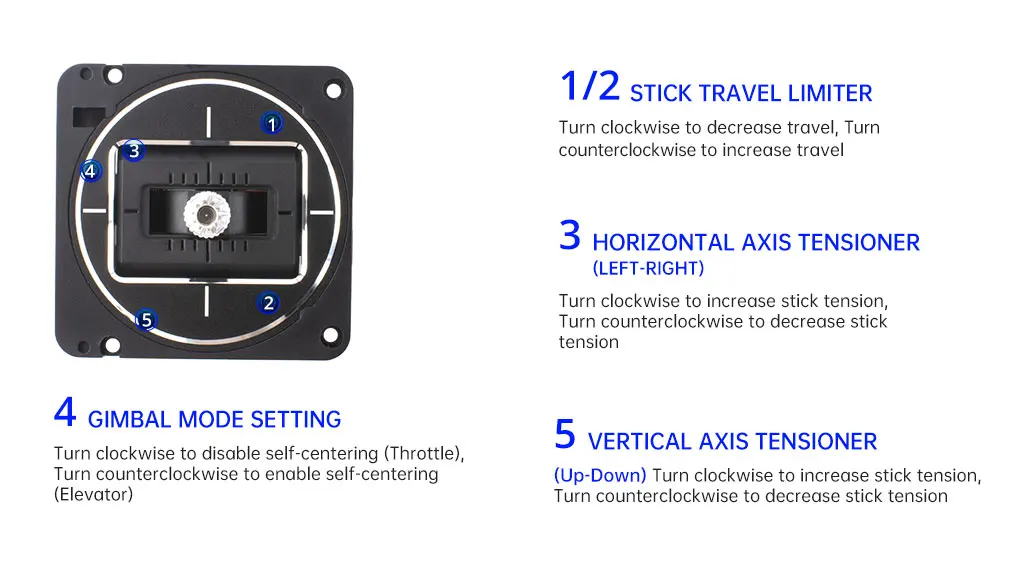

Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia
Option2:AG01 CNC Hall sensor

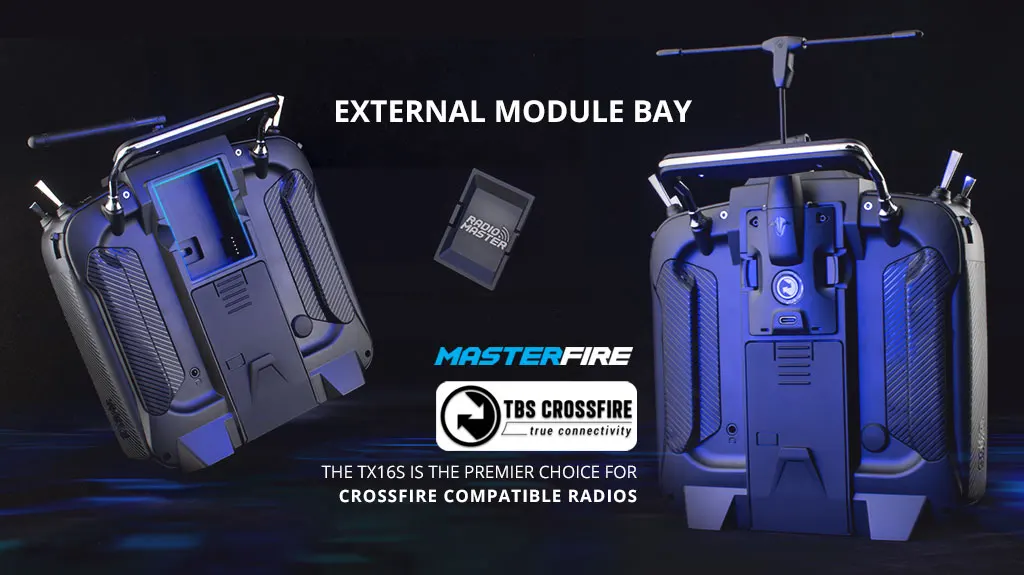

Module Bay: JR compatible module bay

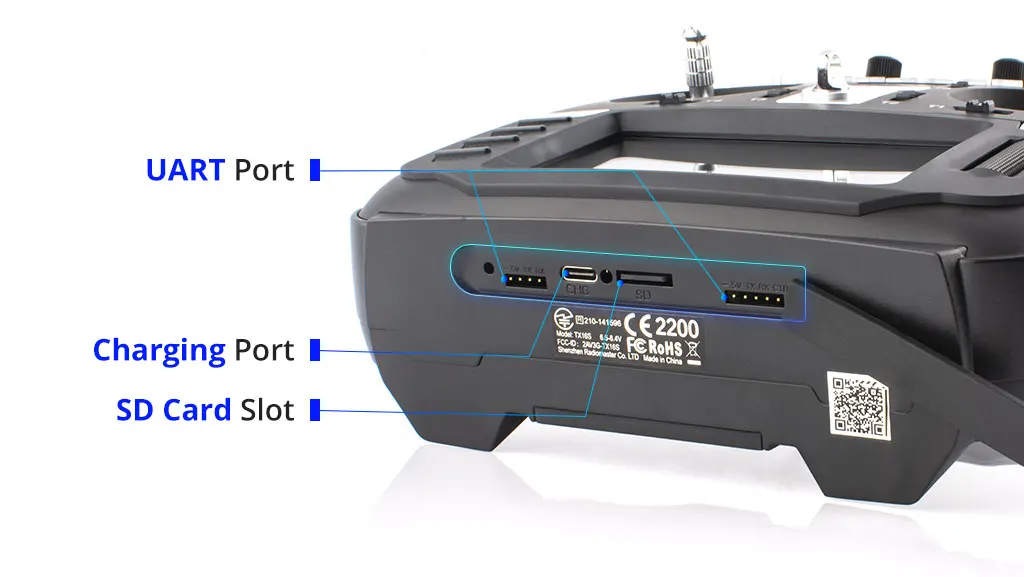

Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-lmproved internal circuity and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized Charge IC, better balancing and uSB-C charge urrent,management.

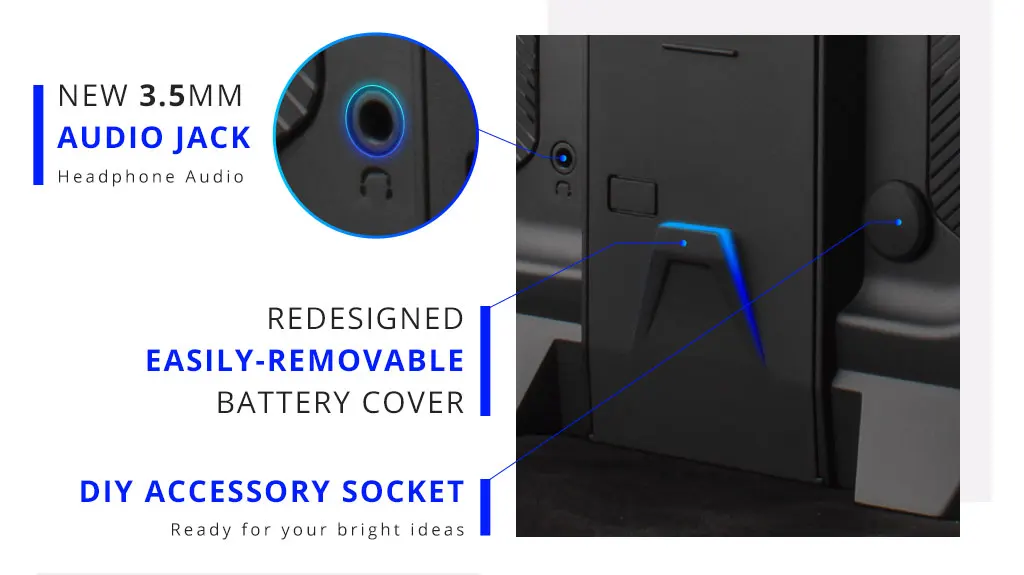

-Rear mounted audio jack provides headphone output

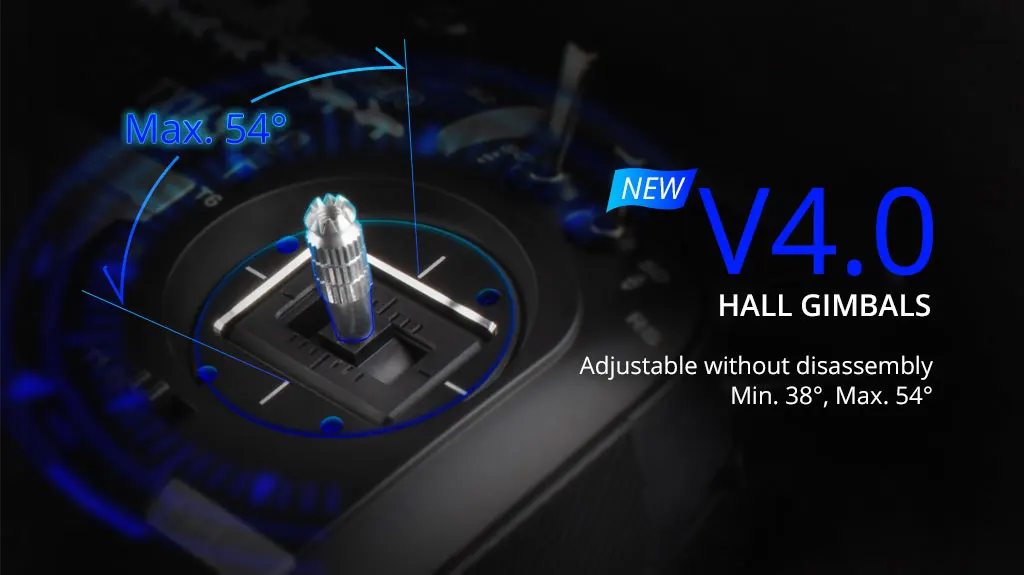

-V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)

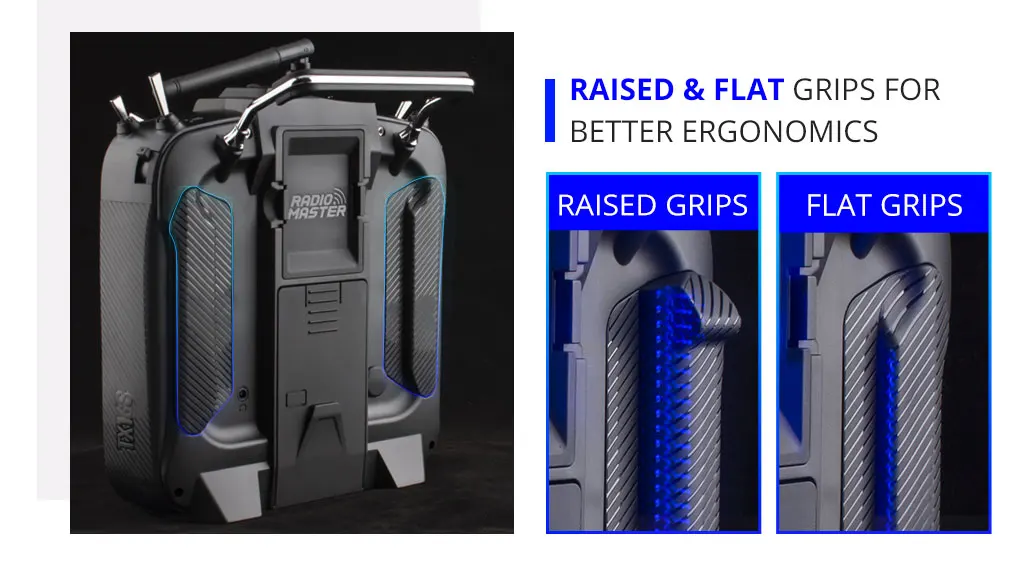

-Optional high/low rear grips included for improved ergonomics.

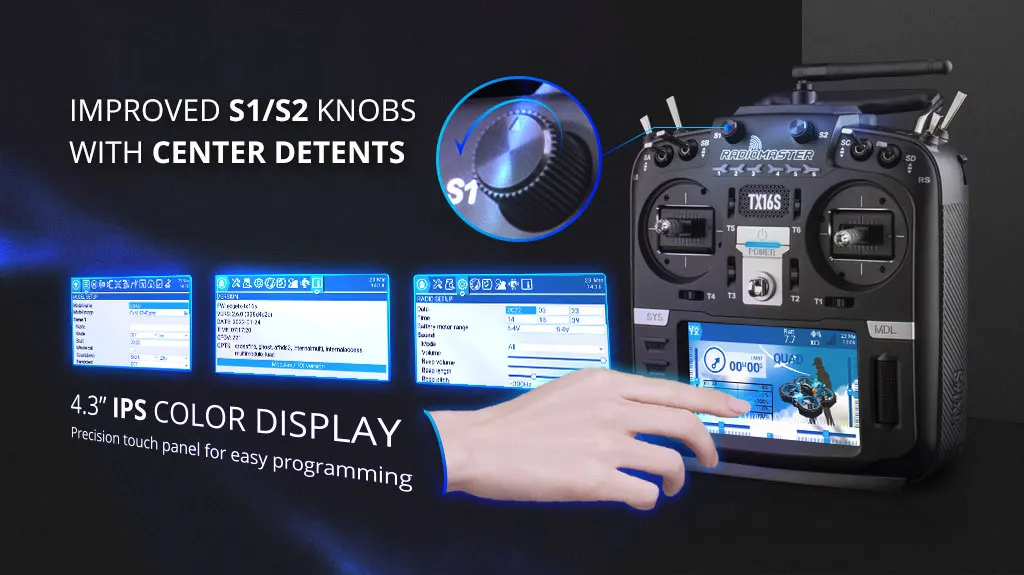

--lmproved S1/S2 knobs with clear centre-detents.

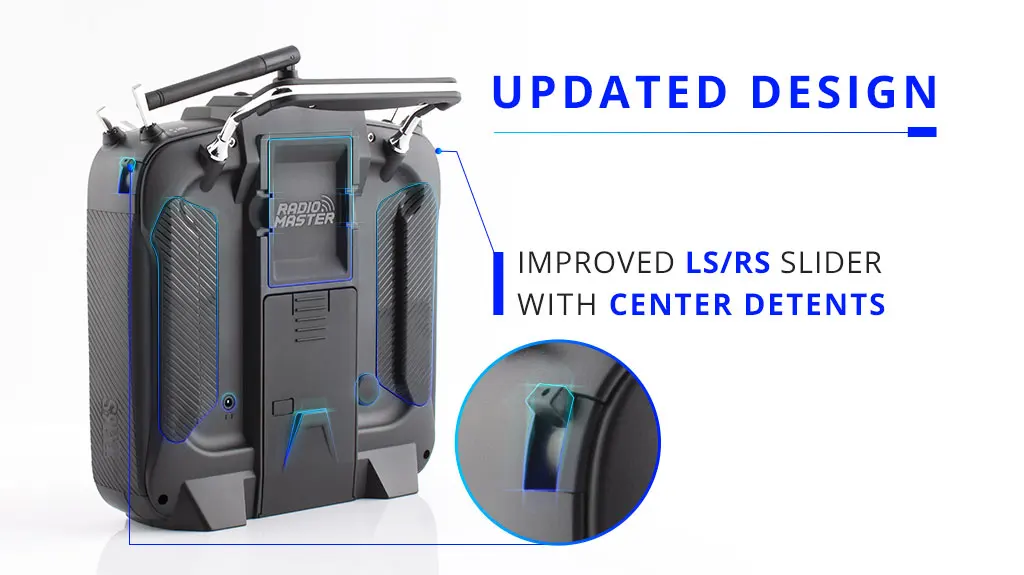

-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery
cover for improved battery access.
-Retooled body shell with improved fit and finish.

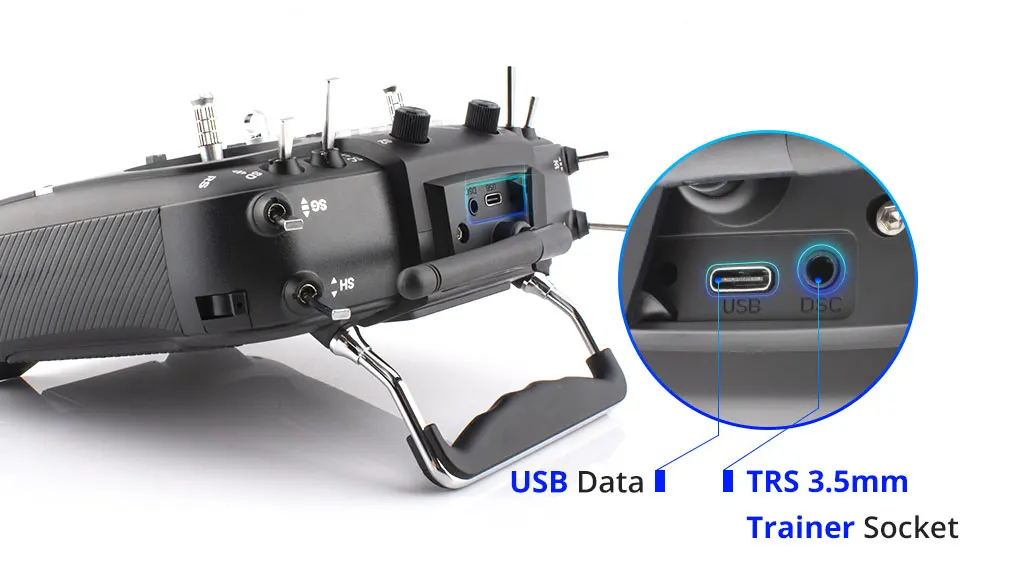

-Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods
-lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
