GEPRC TAKER H743 BT 8Bit 80A STACK 80A 4IN1 ESC Dual Gyro 512MB Черный ящик Анализ данных Запись полета Барометр Гоночный FPV Дрон

Summary

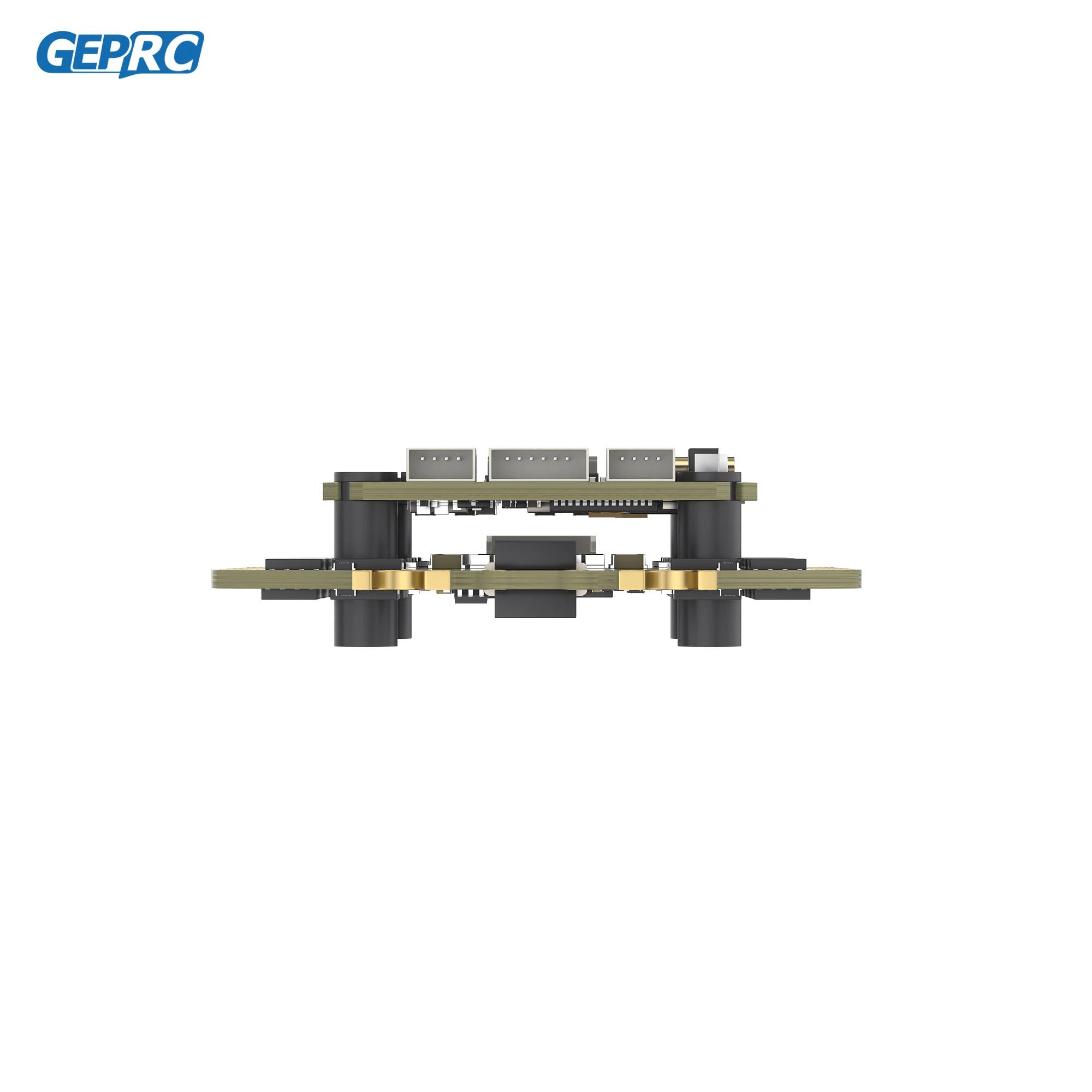

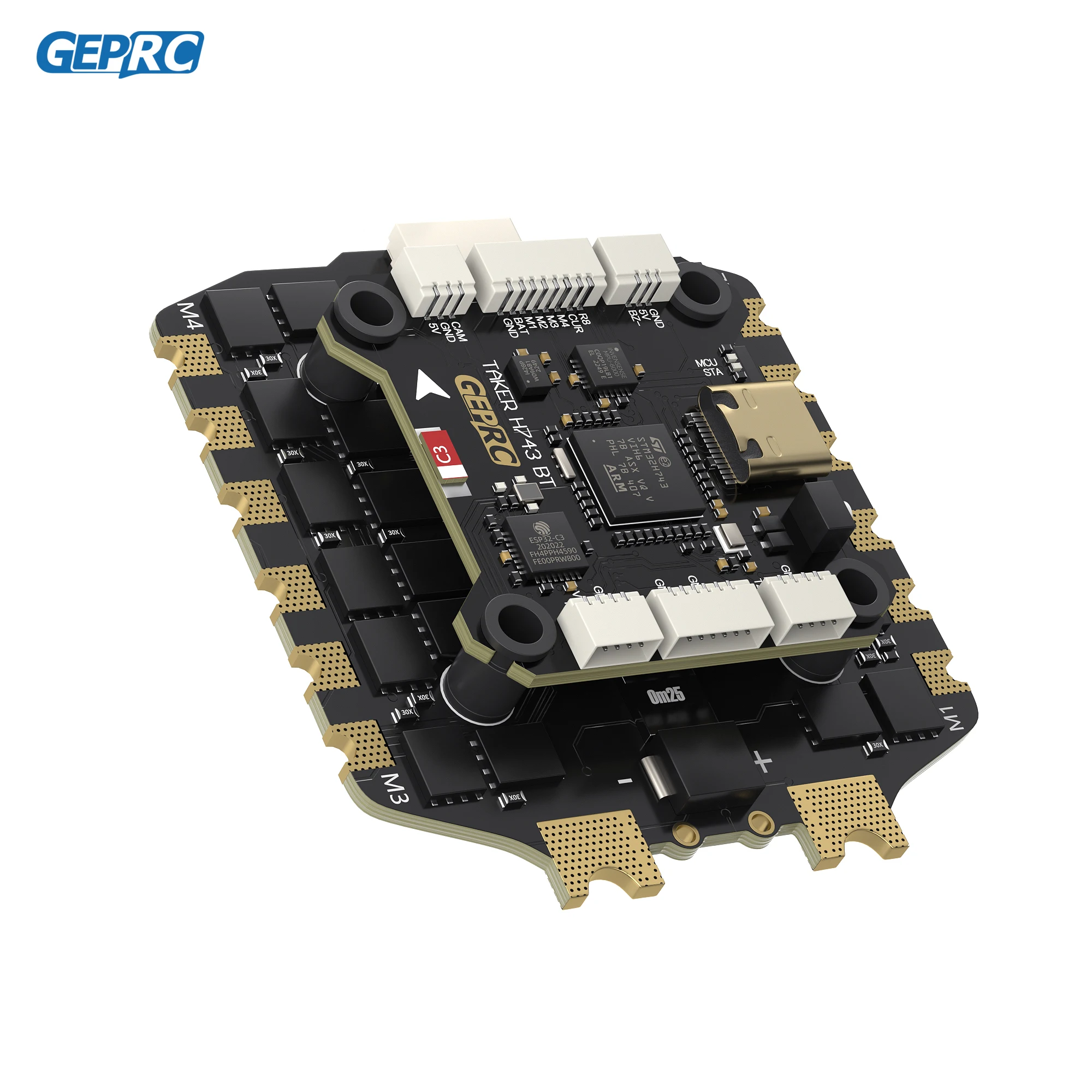

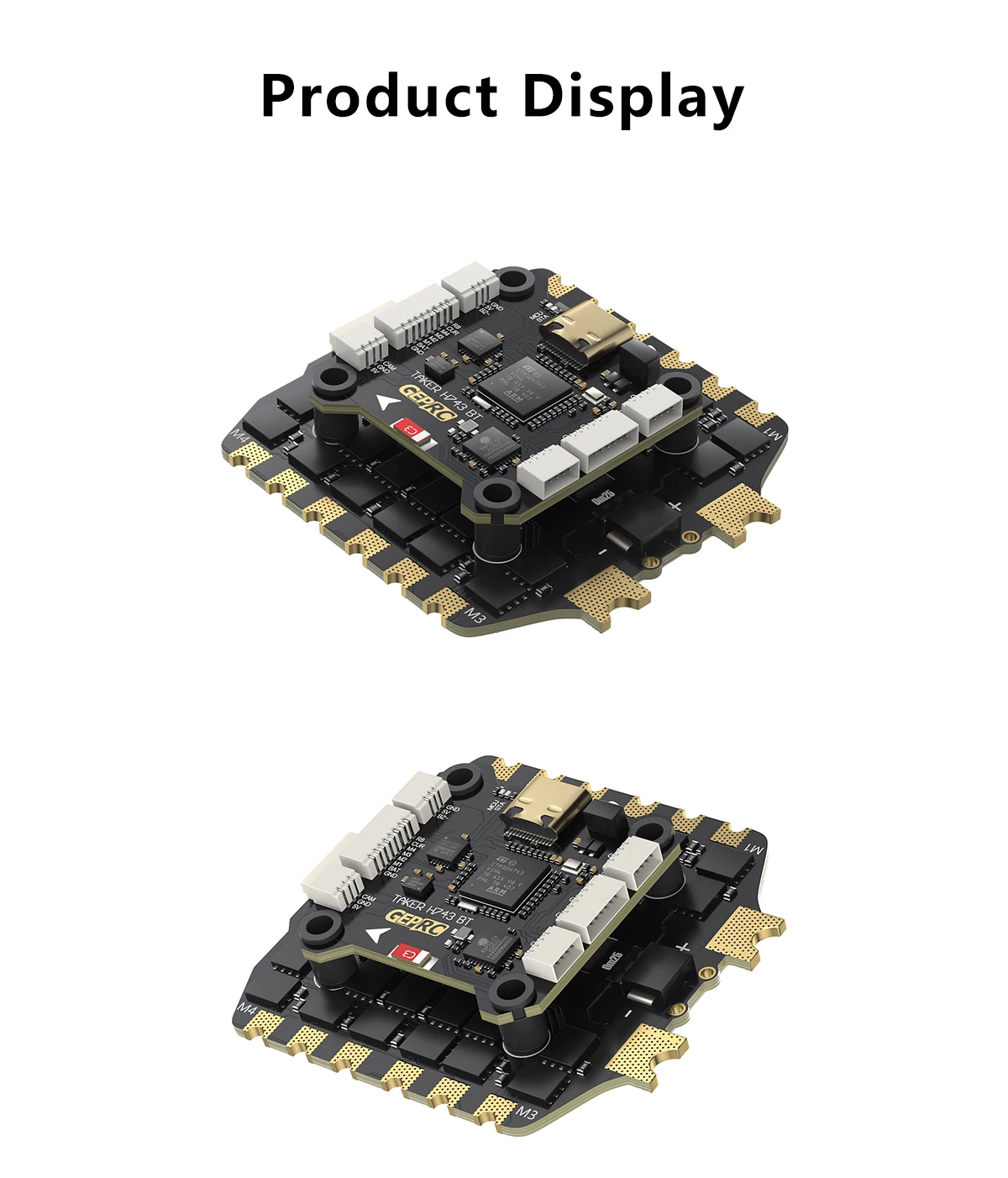

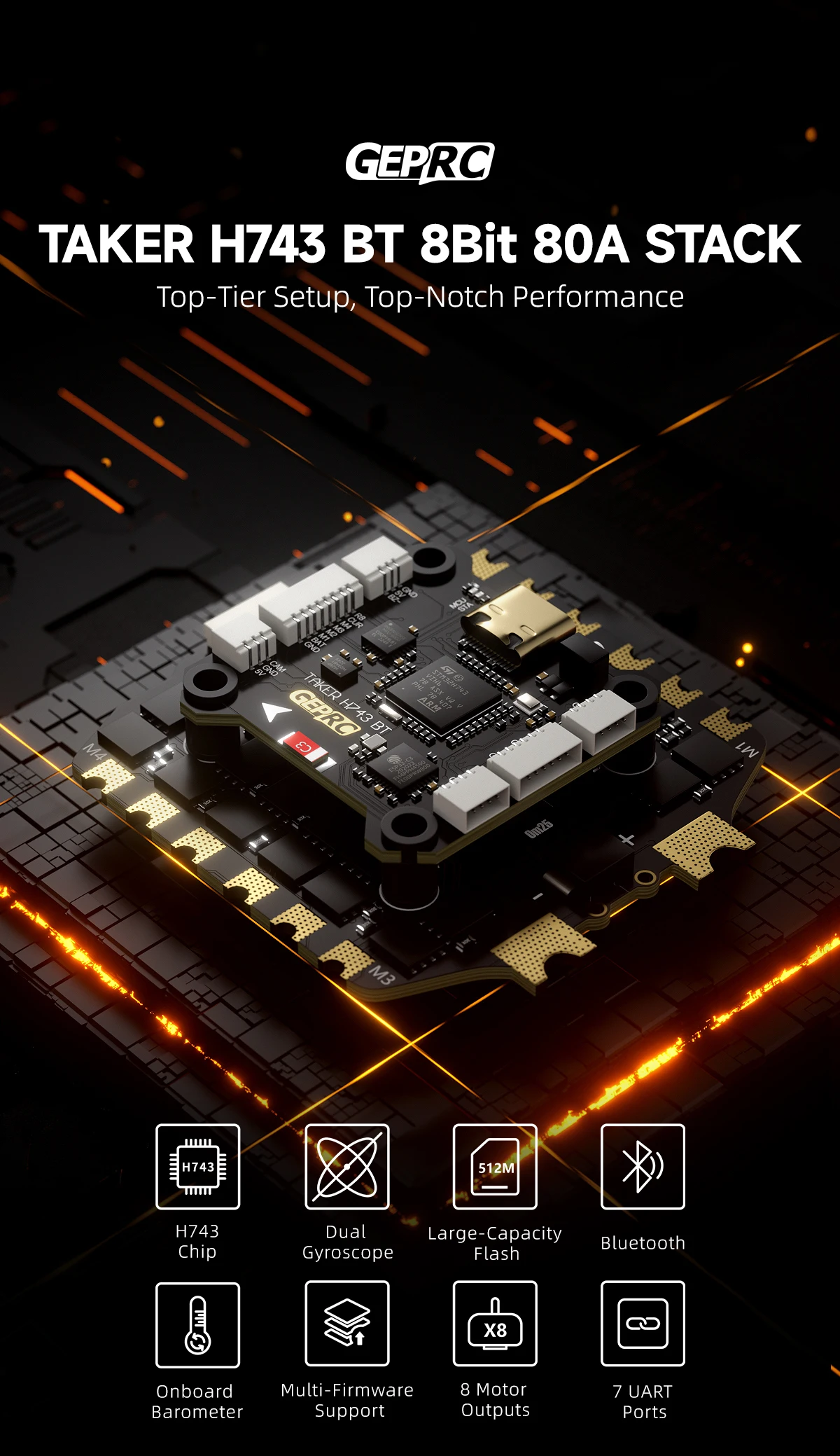

  TAKER H743 BT 8Bit 80A STACK is the latest Stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H80_BLS 80A 4IN1 ESC, it delivers an exceptionally smooth flight experience.

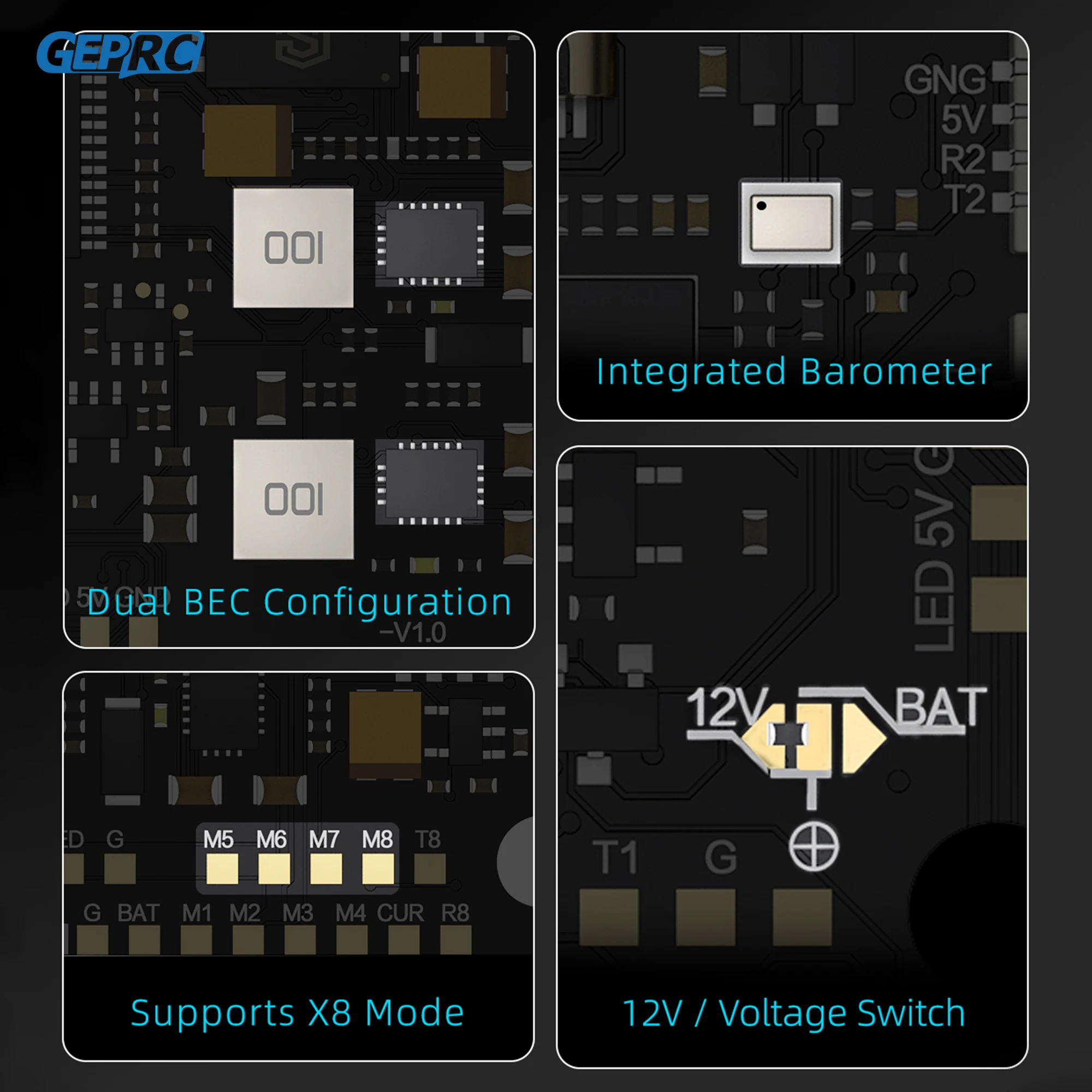

Features

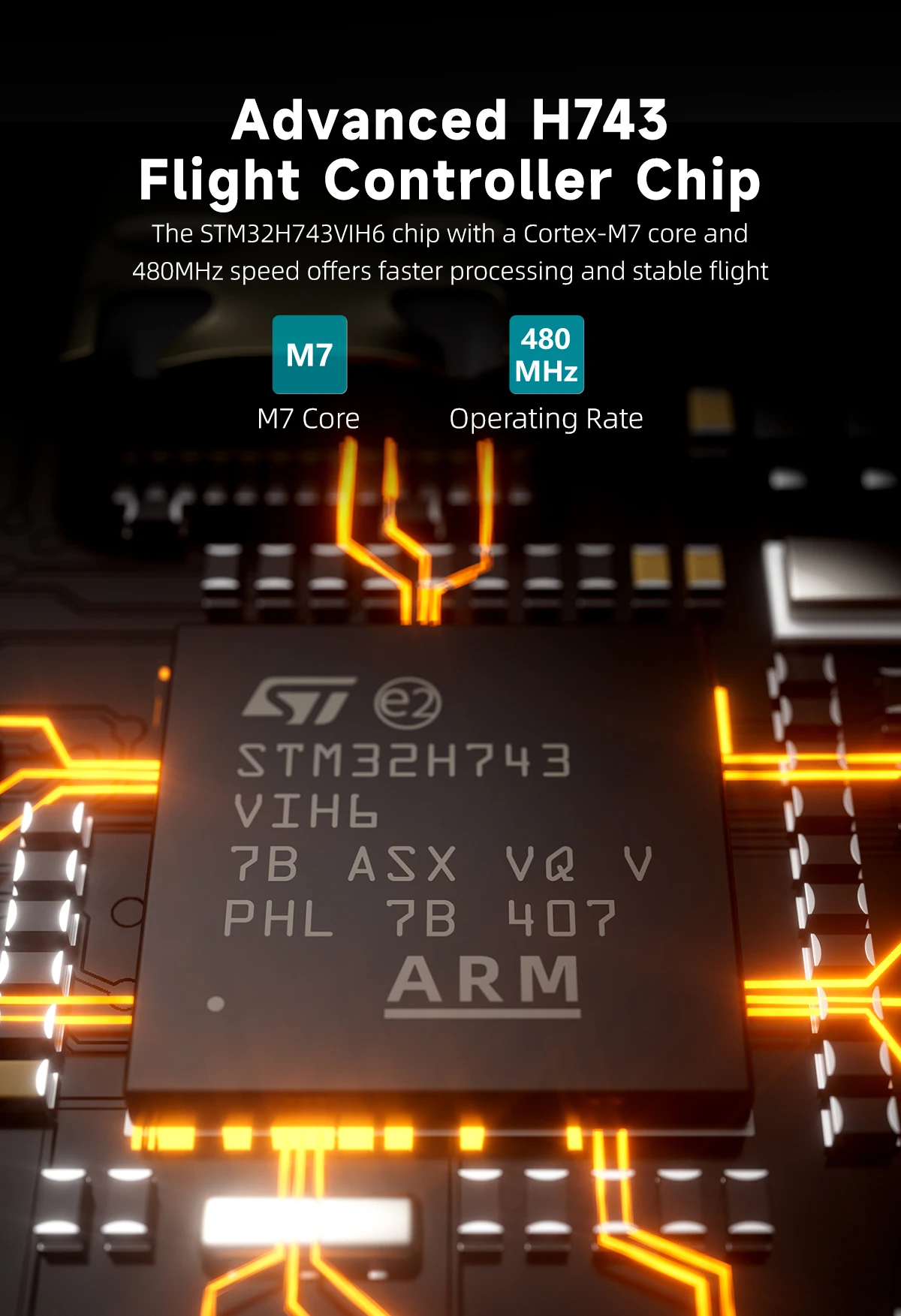

1. Adopts the high-performance STM32H743 as the main controller

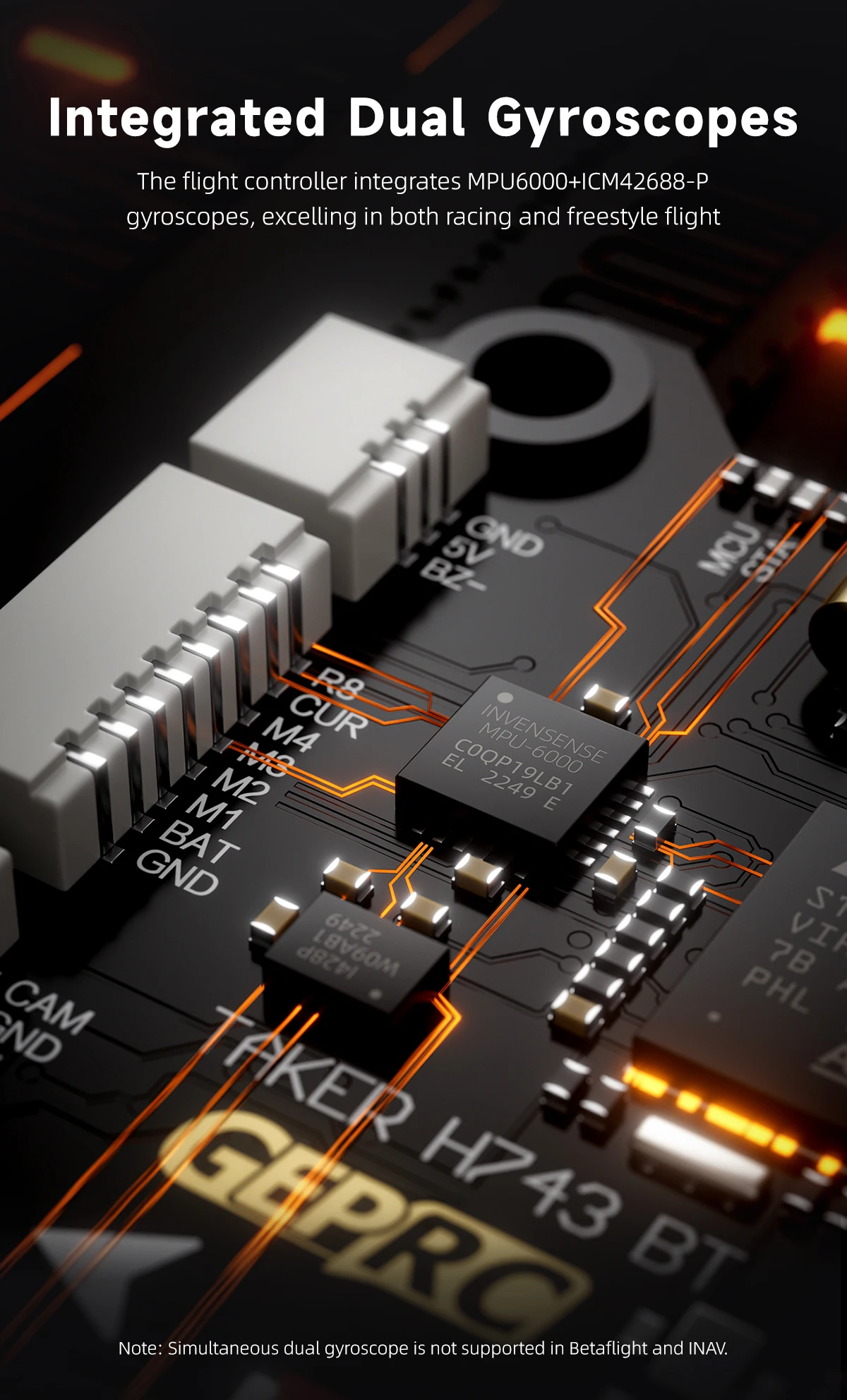

2. Equipped with MPU6000 and 42688-P dual gyroscopes
3. 512MB high-capacity black box storage

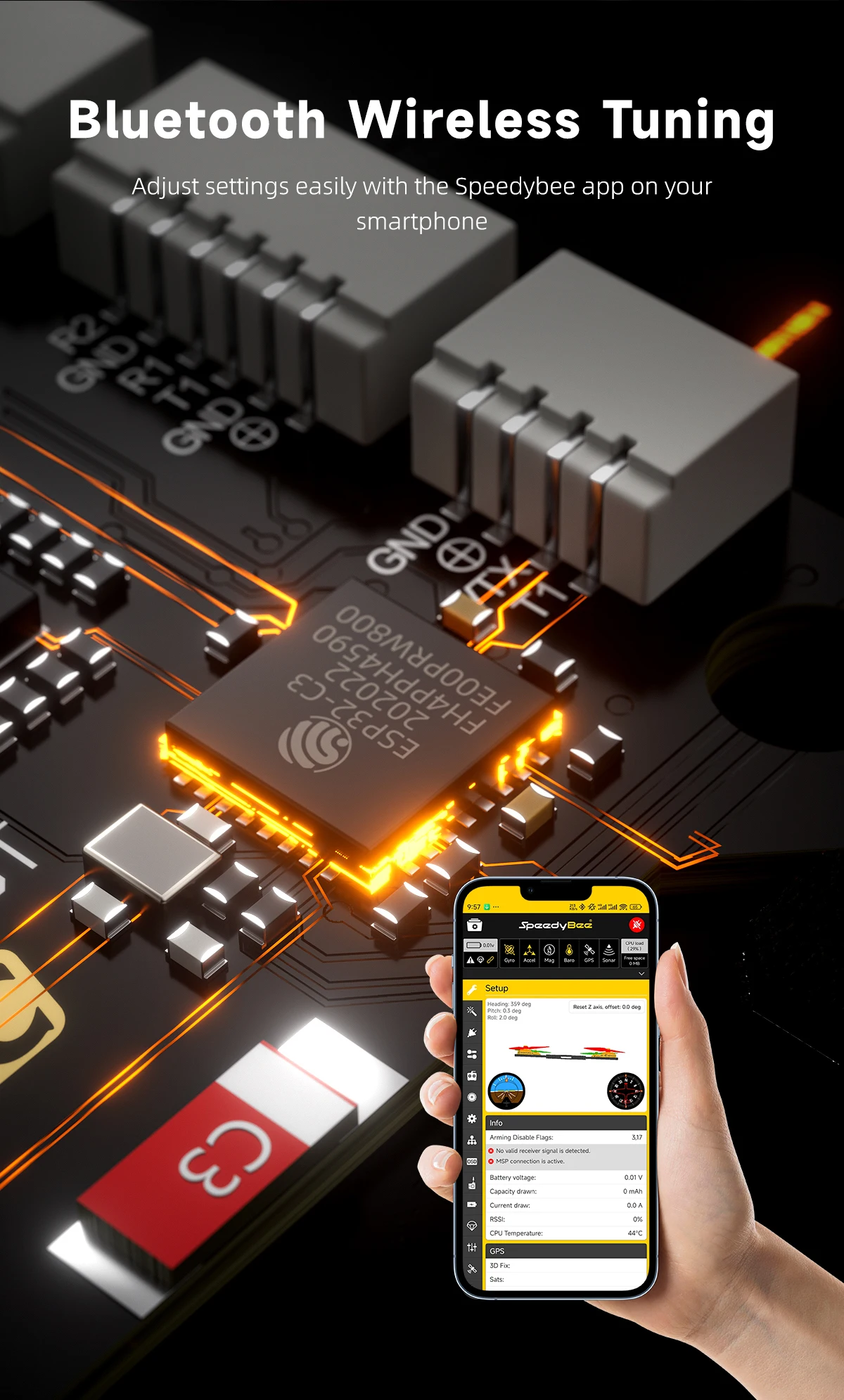

4. Bluetooth parameter tuning

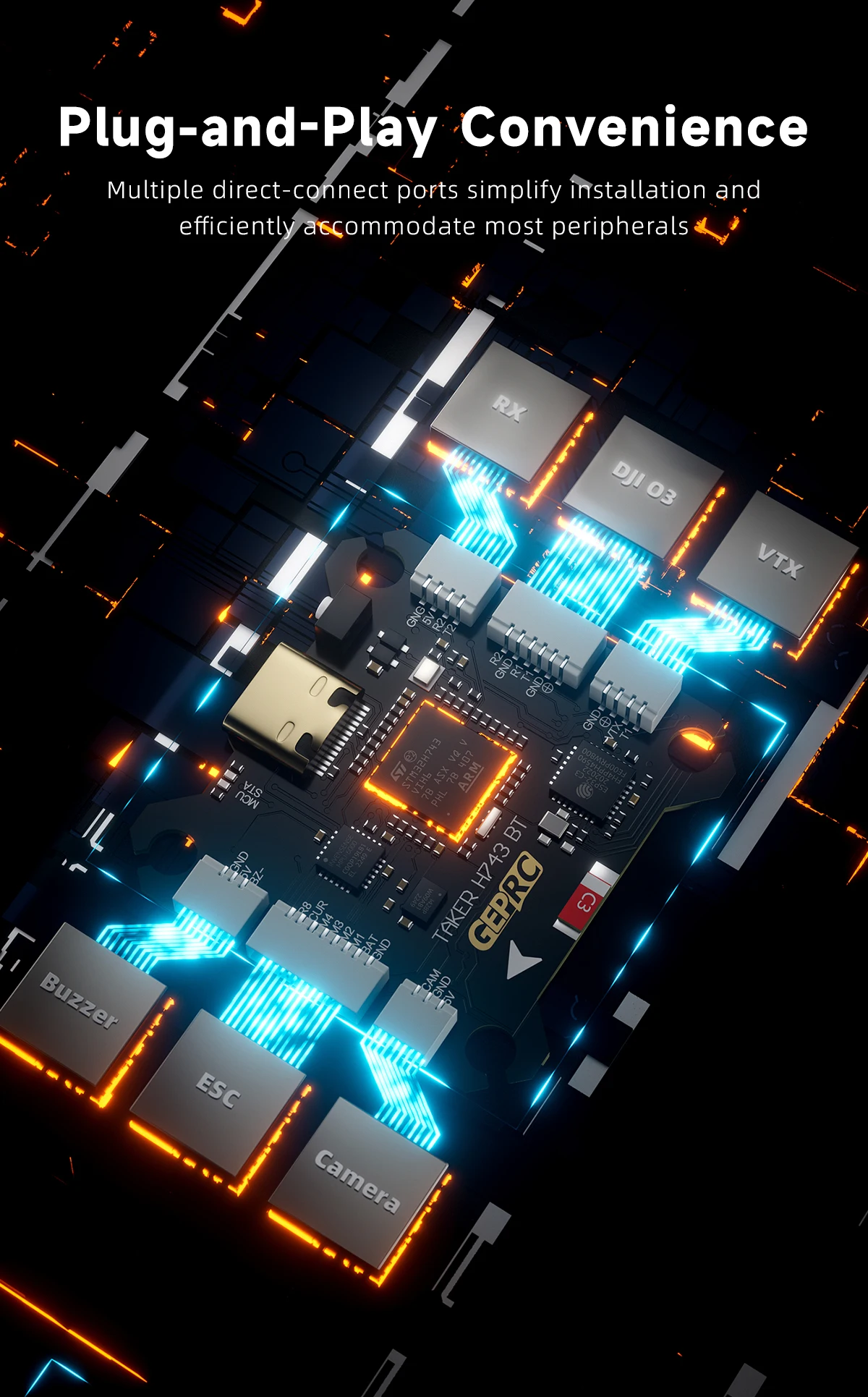

5.Plug-and-play, no soldering required
6. Integrated barometer
7.Features 7 UART ports

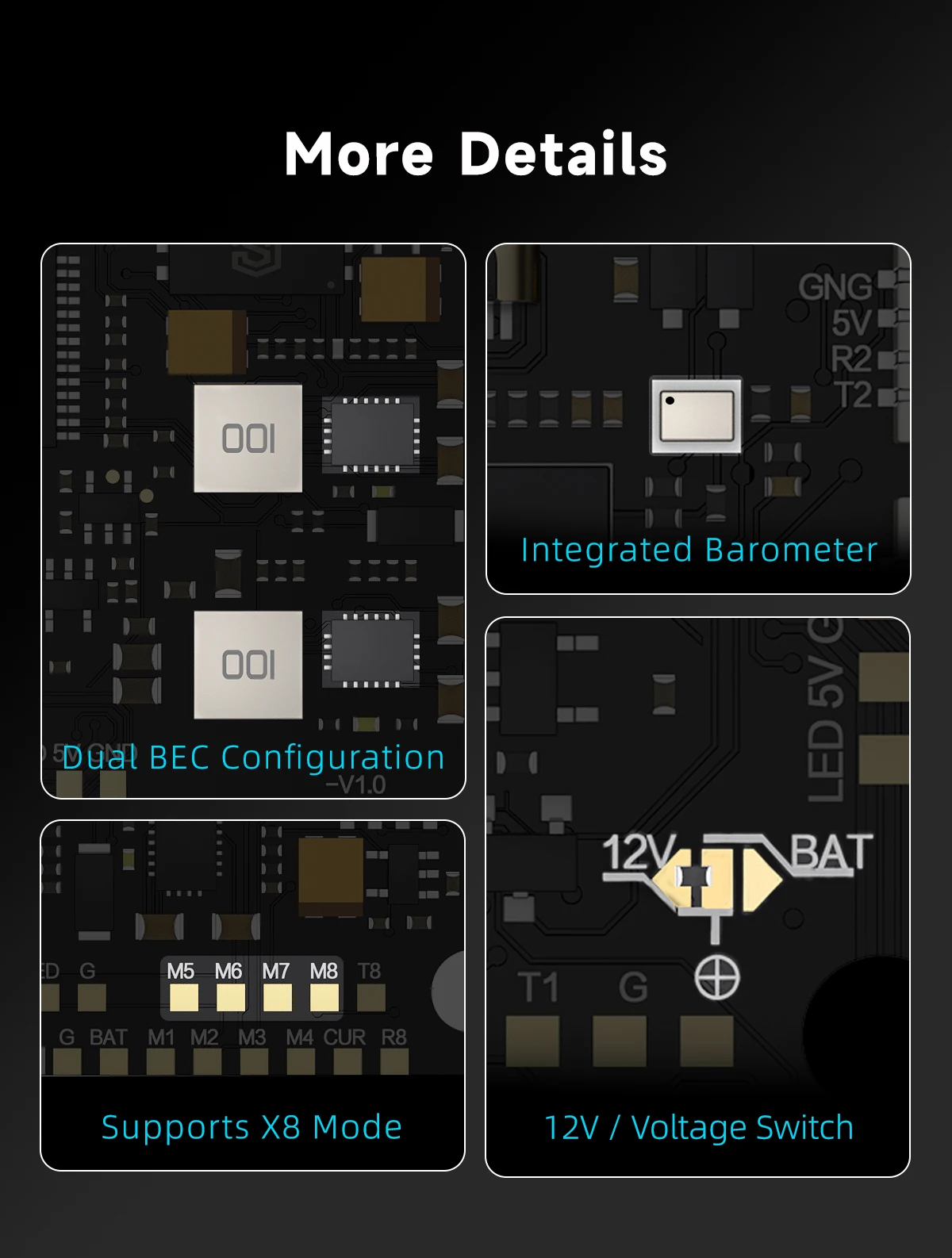

8. Independent BEC with 12V@2.5A and 5V@3A outputs
9. Supports multiple firmware options
10. Equipped with the TAKER H80_BLS 80A 4IN1 ESC for a smooth flight experience

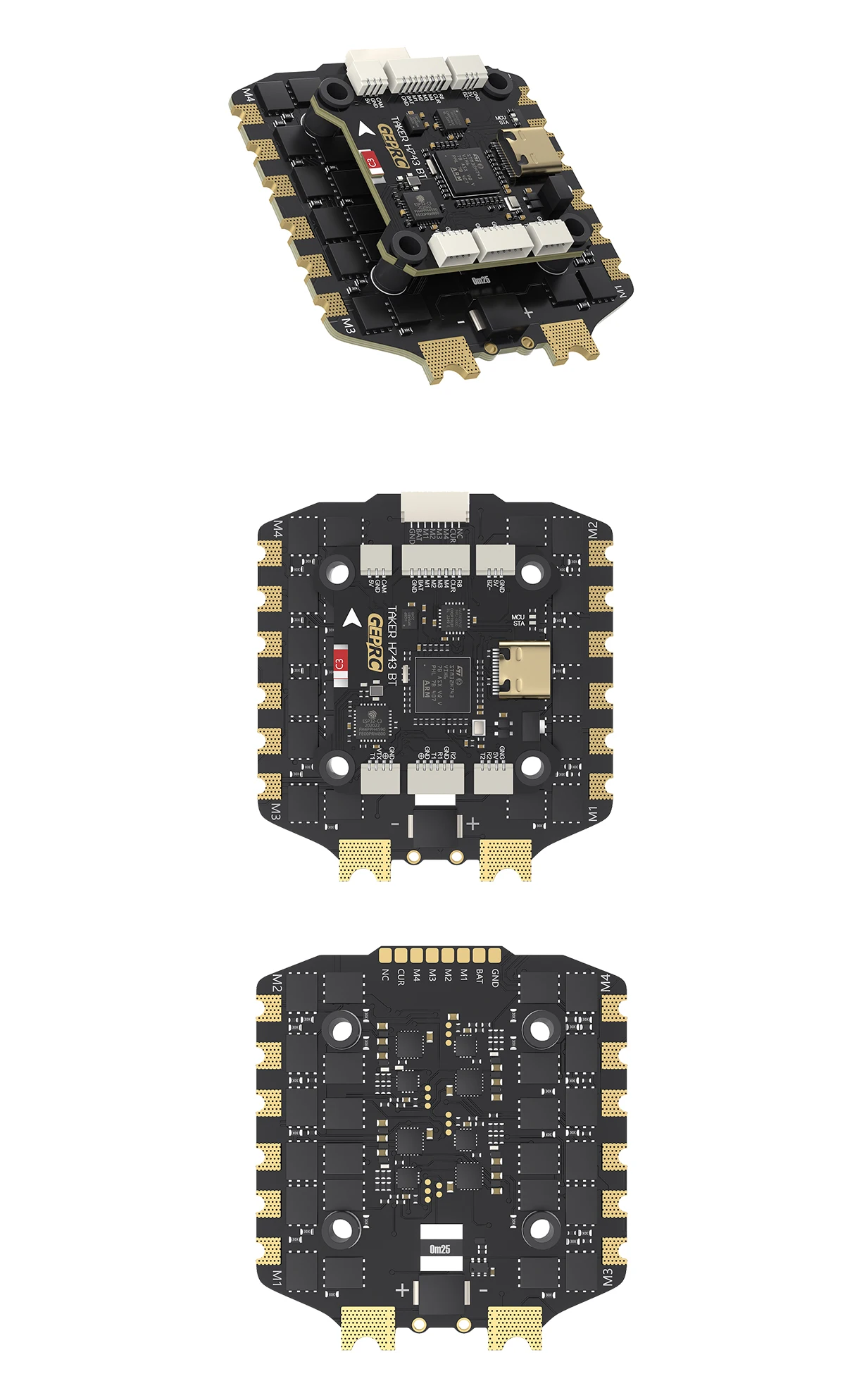

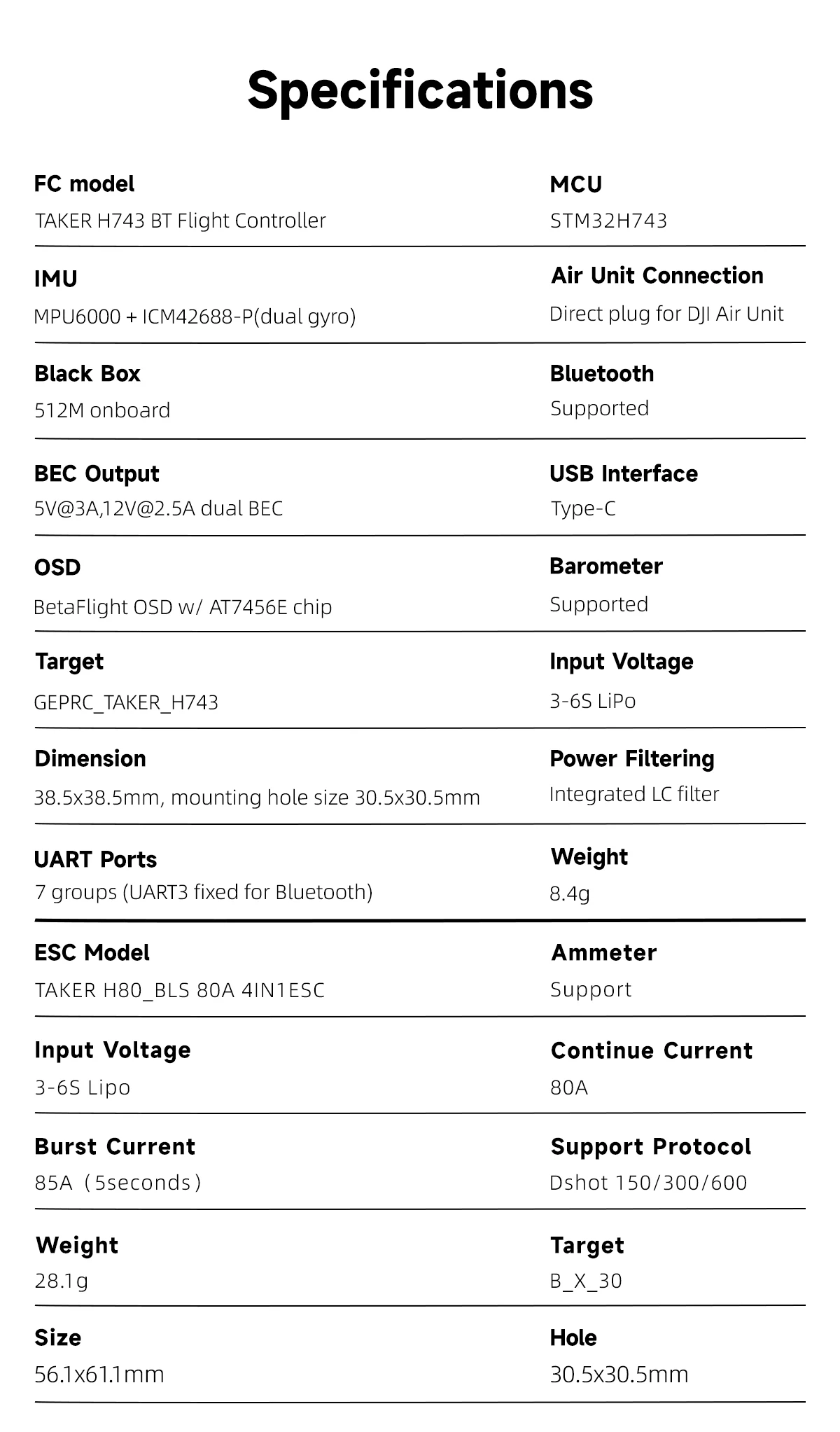

Specifications--TAKER H743 BT 8Bit 80A STACK

• FC model: TAKER H743 BT Flight Controller

• MCU: STM32H743

• IMU: MPU6000 + ICM42688-P(dual gyro)

• Air Unit Connection: direct plug for D JI Air Unit

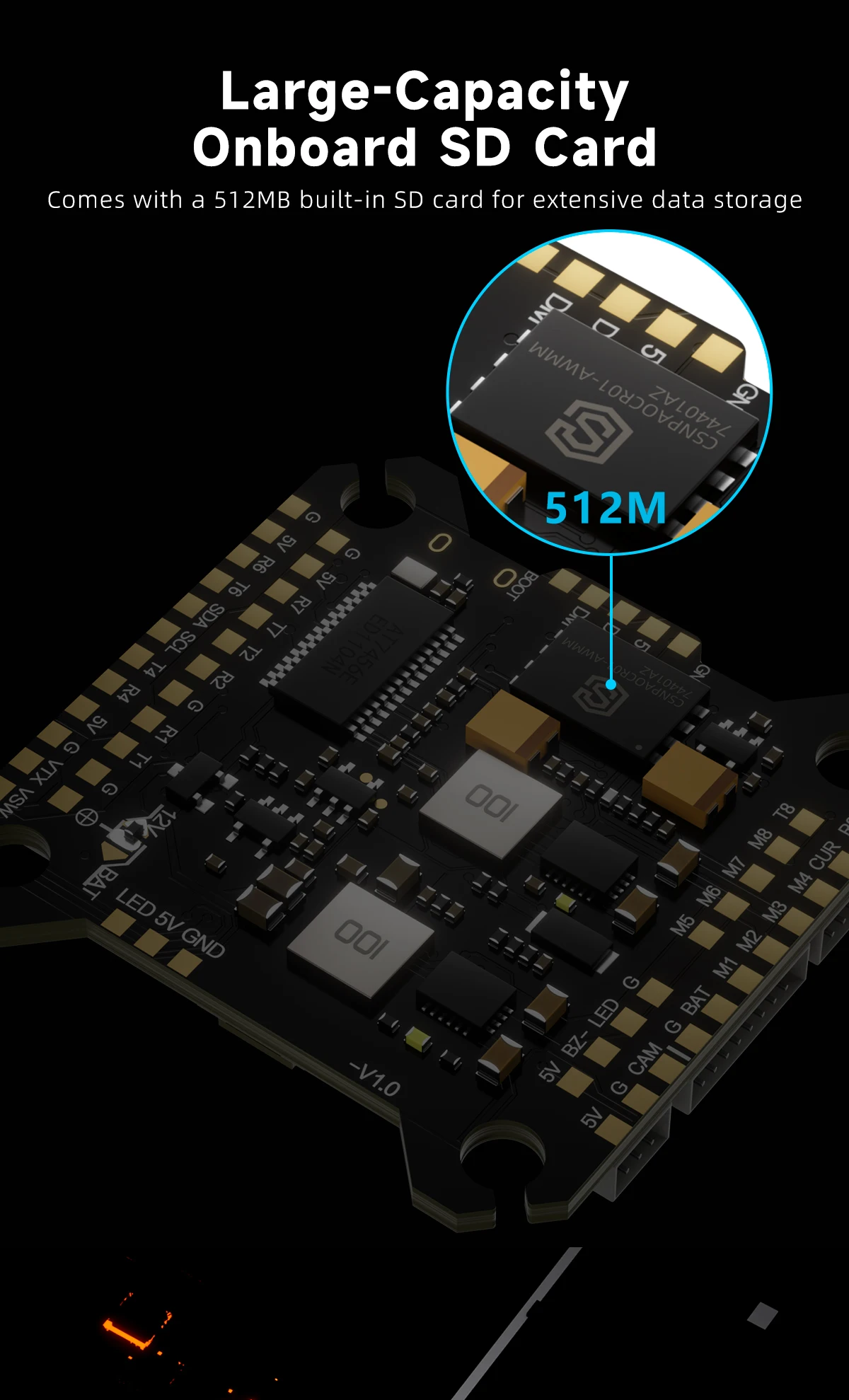

• Black Box: 512M onboard

• Bluetooth: Supported

• Barometer: Supported

• USB Interface: Type-C

• OSD: BetaFlight OSD w/ AT7456E chip

• BEC Output: 5V@3A,12V@2.5A dual BEC

• Target: GEPRC_TAKER_H743

• Dimension: 38.5x38.5mm, mounting hole size 30.5x30.5mm

• Input Voltage: 3-6S LiPo

• UART Ports: 7 groups (UART3 fixed for Bluetooth)

• Power Filtering: Integrated LC filter

• Weight: 8.4g

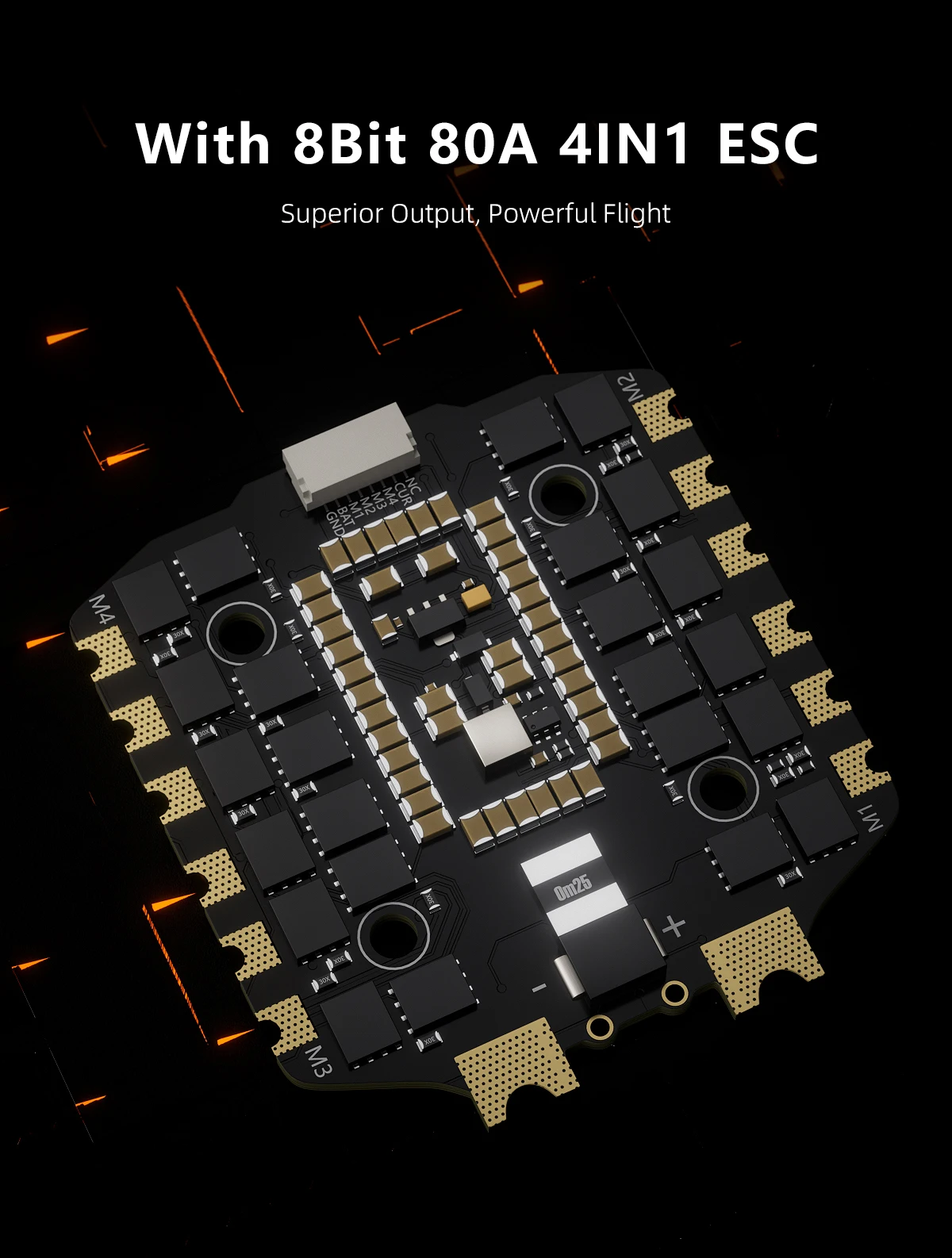

• ESC Model: TAKER H80_BLS 80A 4IN1 ESC

• Input Voltage: 3-6S Lipo

• Ammeter: Support

• Continue Current：80A

• Burst Current：85A（5 seconds）

• Support Protocol: Dshot 150/300/600

• Size：56.3*61.1mm，hole30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.

• Weight: 28.1g

• Target: B_X_30

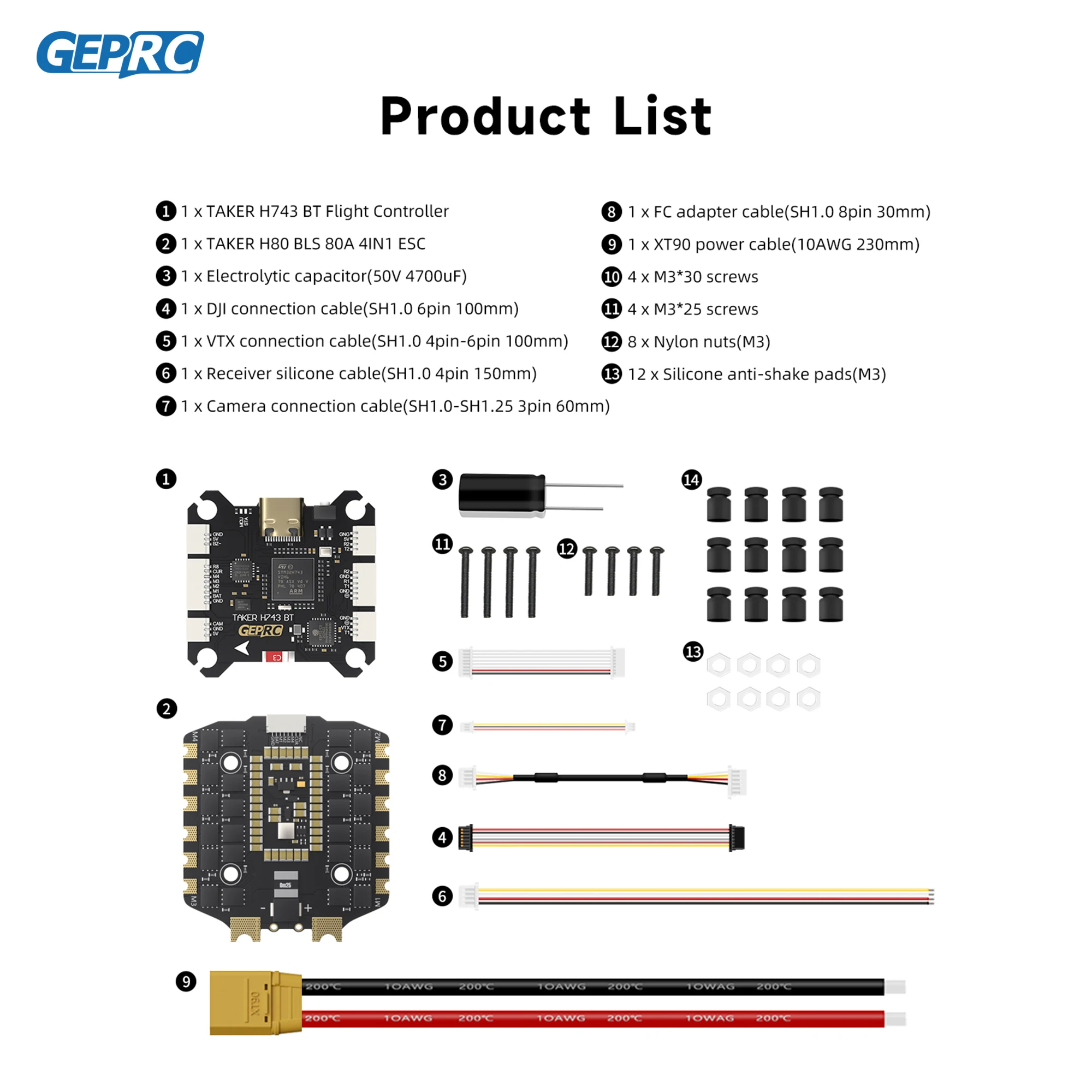

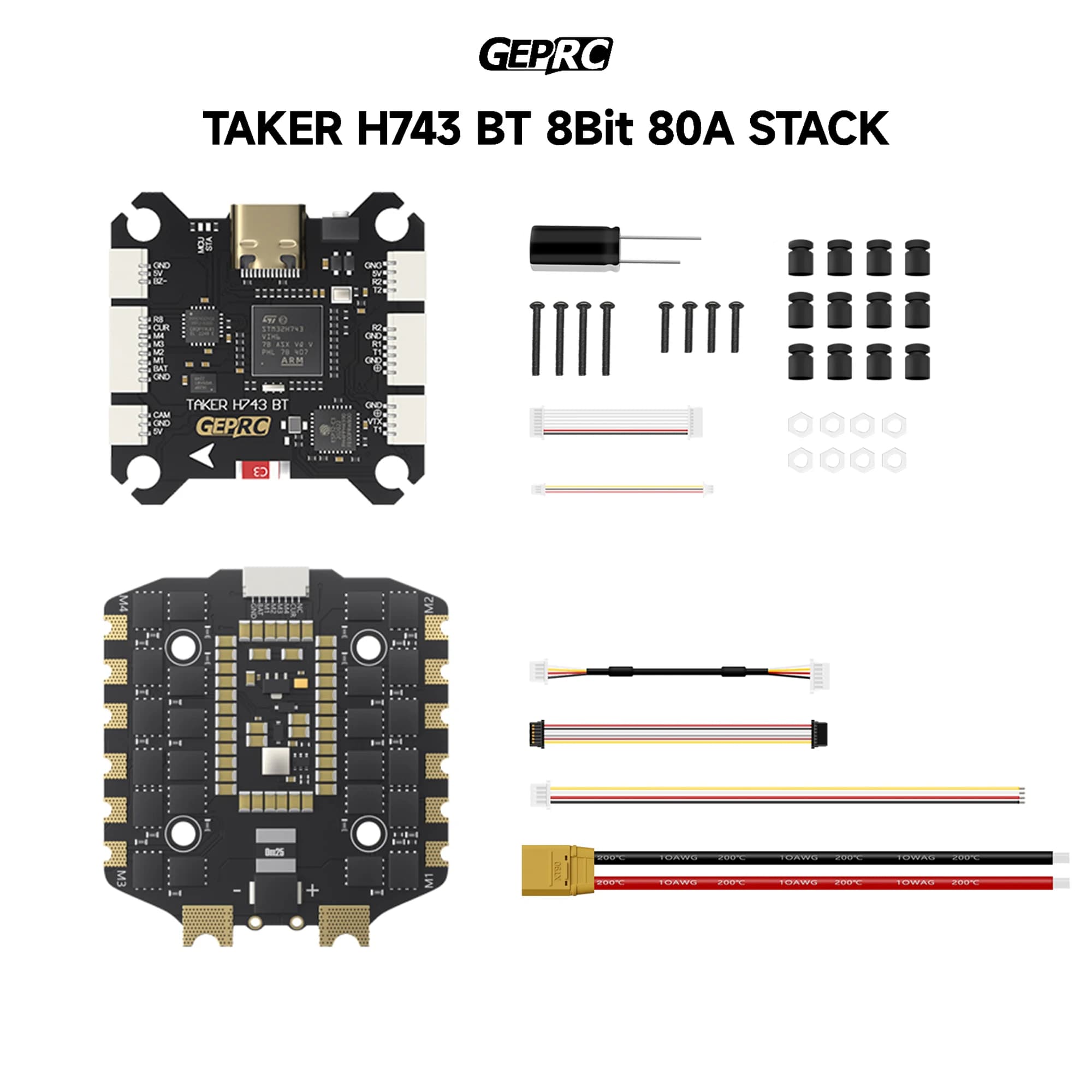

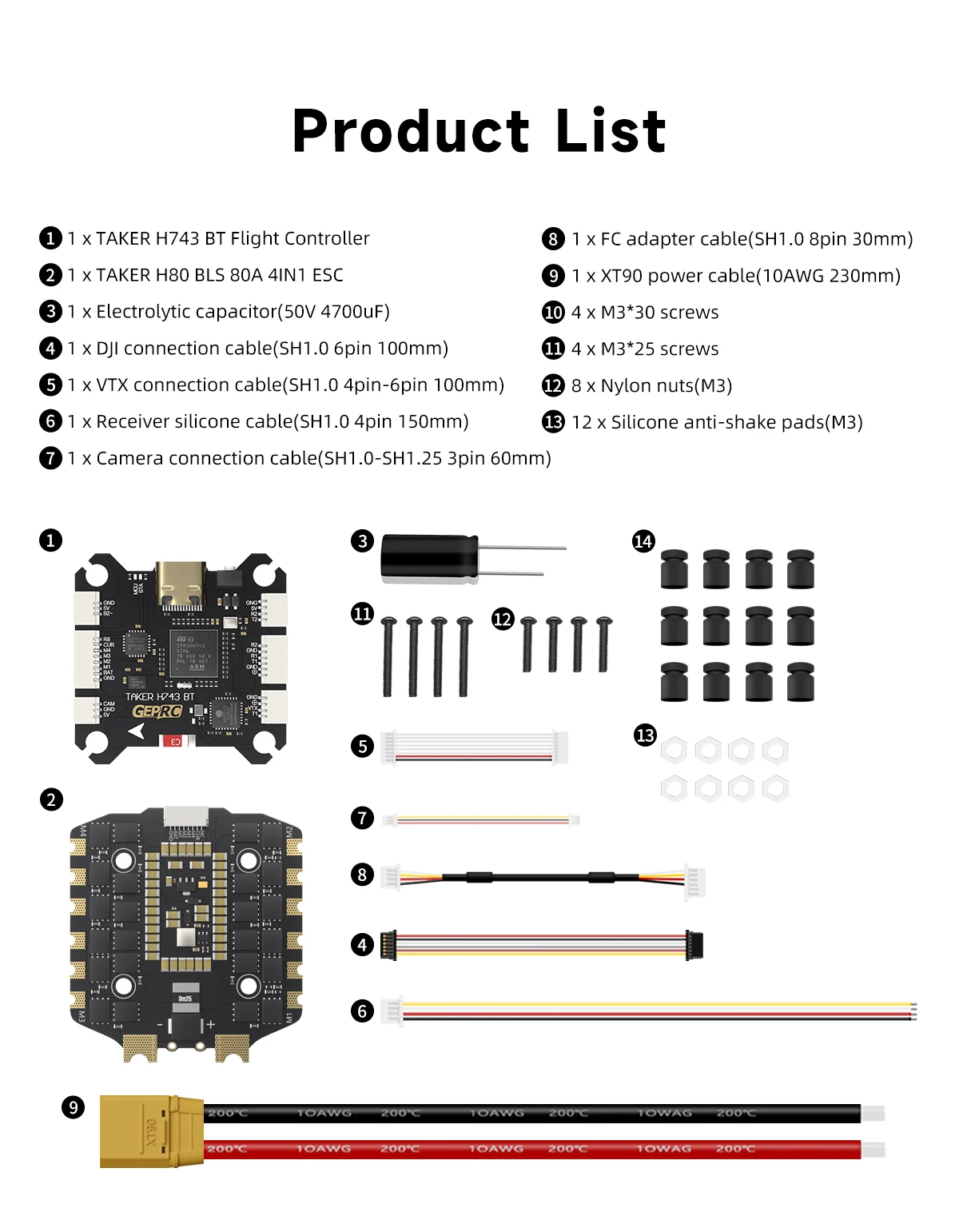

Includes

1 x TAKER H743 BT Flight Controller
1 x TAKER H80_BLS 80A 4IN1 ESC
1 x Electrolytic capacitor(50V 4700uF)
1 x D JI connection cable(SH1.0 6pin 100mm)
1 x FC adapter cable(SH1.0 8pin 30mm)
1 x Receiver silicone cable(SH1.0 4pin 150mm)
1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
1 x VTX connection cable(SH1.0 4pin-6pin 100mm)
1 x XT90 power cable(10AWG 230mm)
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts(M3)
12 x Silicone anti-shake pads(M3)
