GEPRC SPEEDX2 1102 10000KV Двигатель ESC 12A Бесщеточный двигатель Черный с мини-1,6-2 дюйма RC FPV Гоночный дрон Аксессуары для мультикоптеров
Description
Features
The appearance is matte black with bright edges, which is exquisite and beautiful.
Use high-quality bearings with high precision and durability.
Three-hole screw base, light weight.
Suitable for 1.6-inch-2-inch lightweight models.
Specifications
| Option | Values |
|---|---|
| Model |
|
| Max Watt |
|
| Peak current |
|
| Interphase resistance |
|
| Magnet |
|
| Bearing type |
|
| Configuration |
|
| Dimension |
|
| Shaft Diameter |
|
| Shaft Protruding Length |
|
| Mounting holes |
|
| Lead |
|
| ESC |
|
| Input Volts |
|
| Winding |
|
| Weight |
|
| Suitable for |
|
Product Details
Features
The appearance is matte black with bright edges, which is exquisite and beautiful.
Use high-quality bearings with high precision and durability.
Three-hole screw base, light weight.
Suitable for 1.6-inch-2-inch lightweight models.

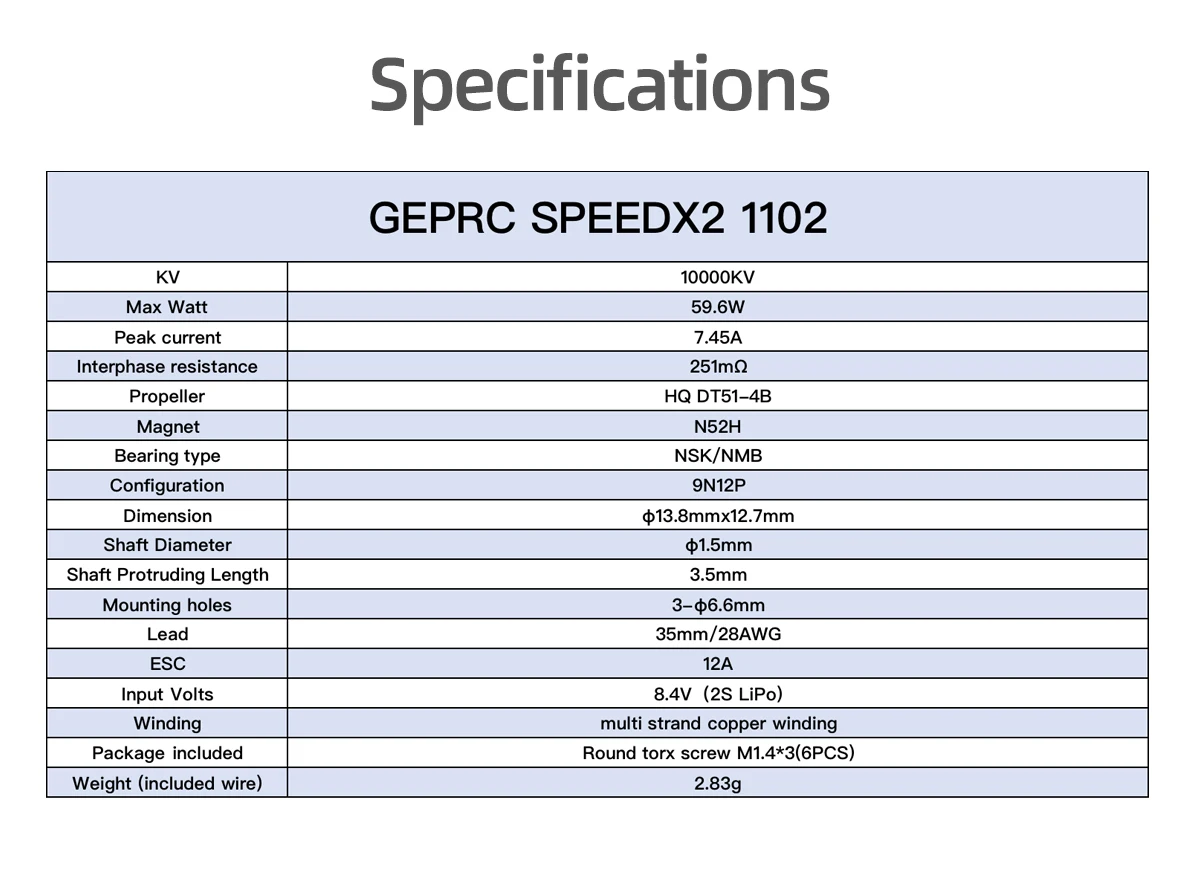

Specifications
Model: SPEEDX2 1102 10000KV Motor
Max Watt: 59.6W
Peak current: 7.45A
Interphase resistance: 251mΩ
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P

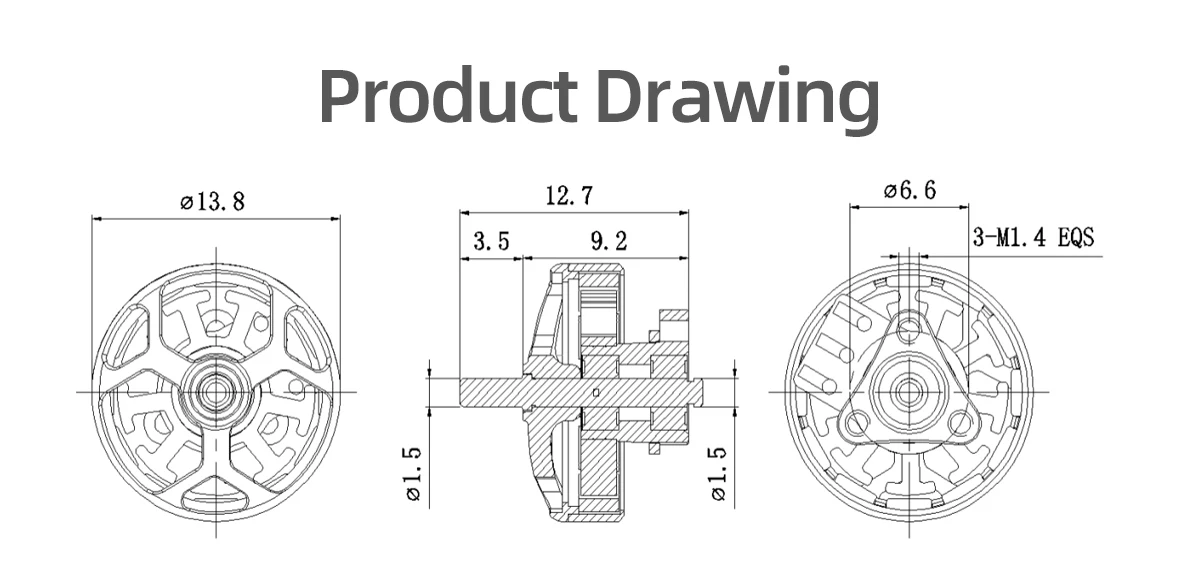

Dimension: φ13.8mmx12.7mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 3.5mm
Mounting holes: 3-φ6.6mm
Lead: 35mm/28AWG
ESC:12A
Input Volts: 8.4V（2S LiPo)
Winding: multi strand copper winding
Weight: 2.83g (included wire)
Suitable for:1.6 inch -2 inch lightweight models
Includes
1 x SPEEDX2 1102 motor
6 x M1.4*3 Round torx screw
