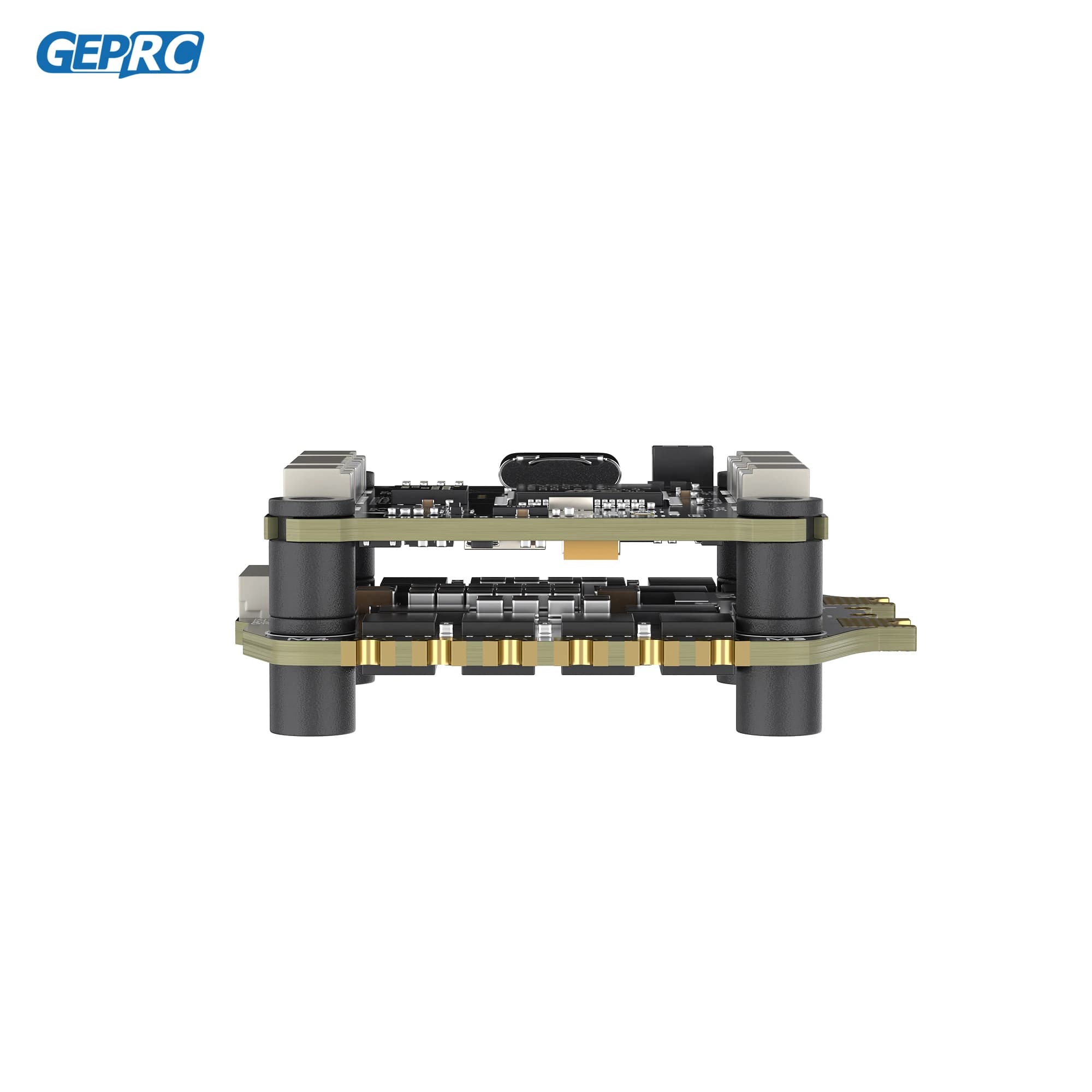

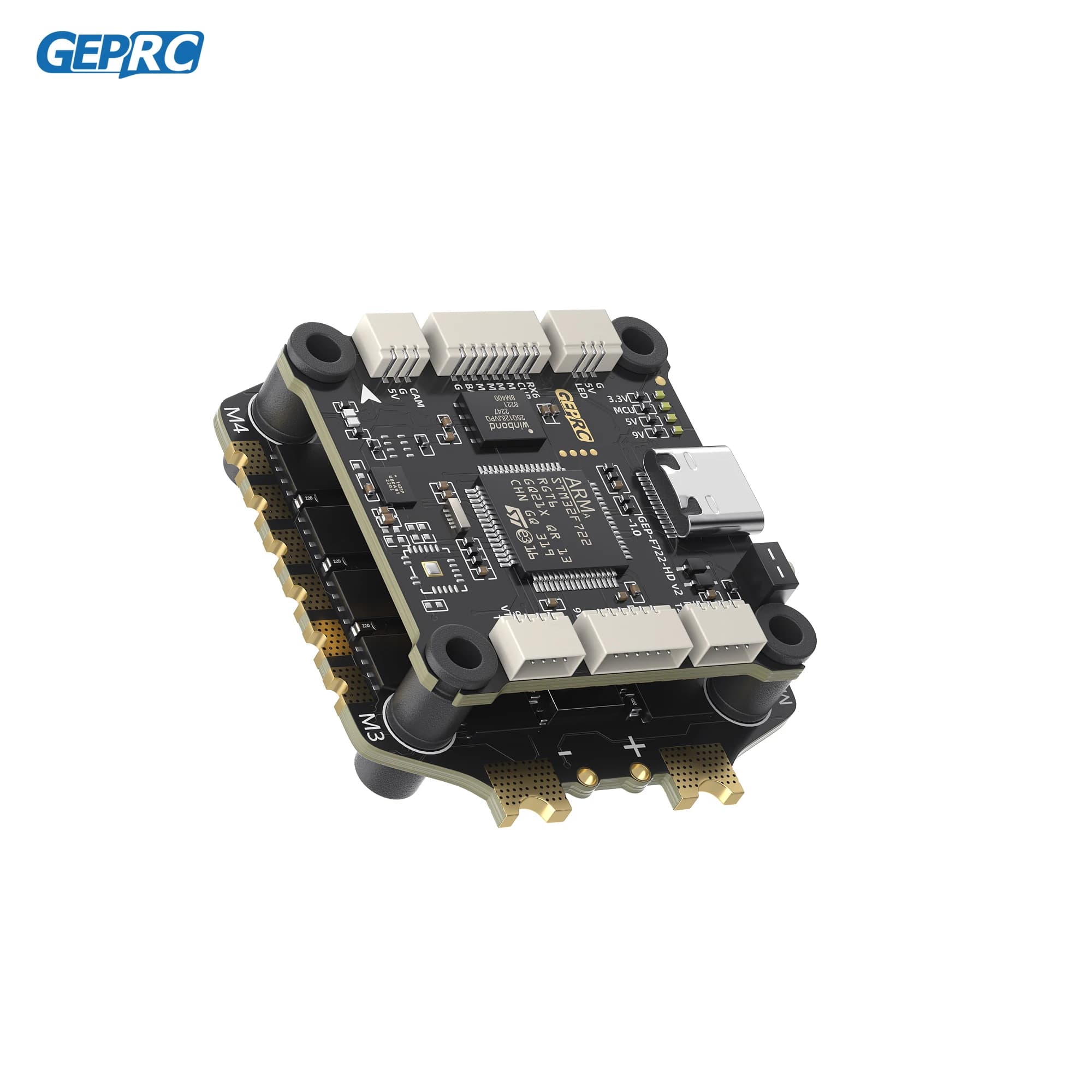

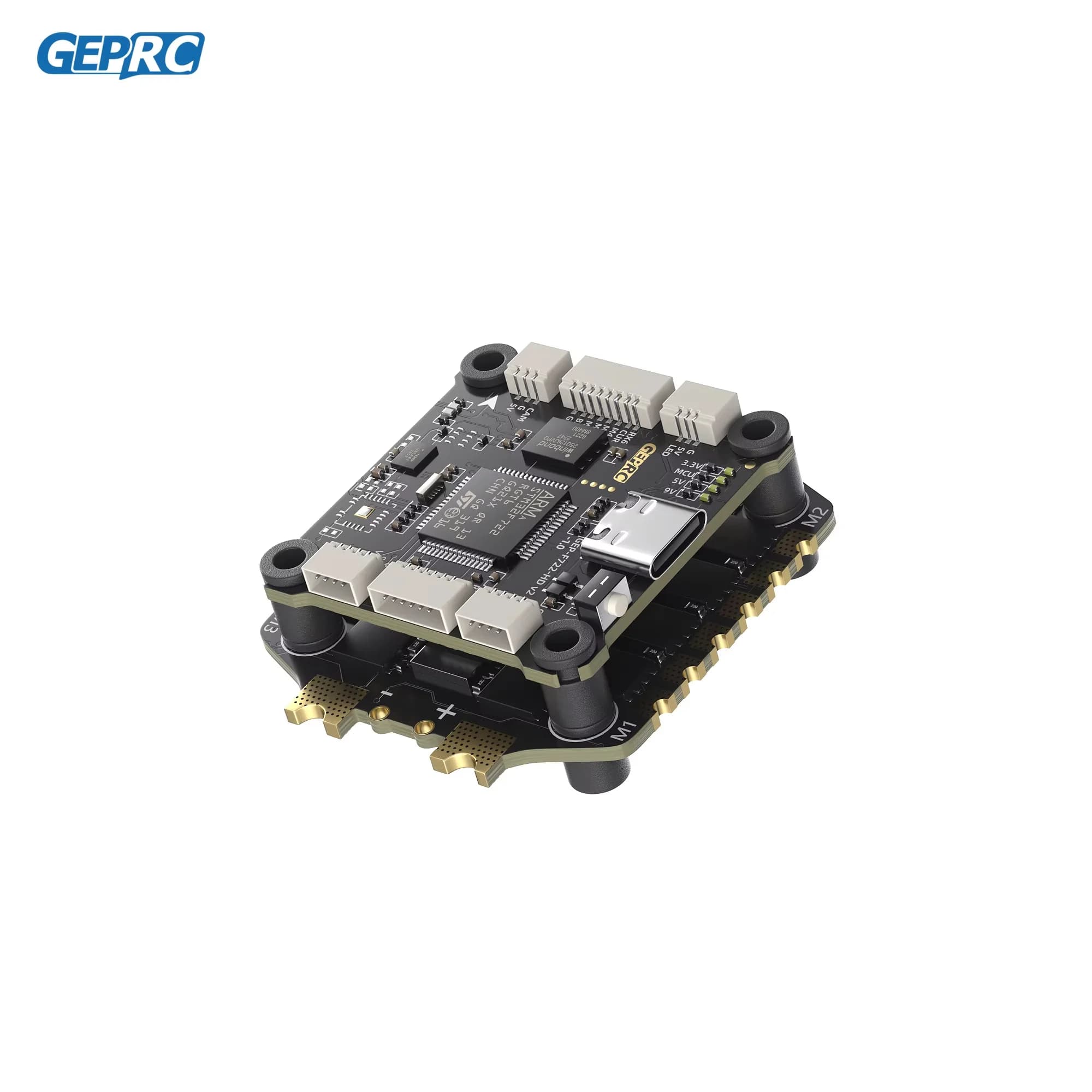

GEPRC TAKER F722 BLS 60A 65A 80A V2 STACK 4IN1 ESC Контроллер полета Анализ данных Запись данных полета Plug Play Racing FPV Дрон
Description
Note: Contents vary by selected package and product specifications.
Features
Uses the mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M onboard black box storage
Integrated LC filter
Upgraded Type-C USB interface
Directly plugs into the D JI Air Unit
Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
Simple and efficient installation method with shock absorbers for stable gyroscope performance
Dual independent BECs: 9V@2.5A and 5V@3A
Specifications
| Option | Values |
|---|---|
| MCU |
|
| IMU |
|
| Air Unit Connection |
|
| Black Box |
|
| USB Interface |
|
| Barometer |
|
| OSD |
|
| BEC |
|
| Firmware Target |
|
| Dimension |
|
| Input Voltage |
|
| UART |
|
| Power Filter |
|
| Weight |
|
| Galvanometer |
|
| Continuous Current |
|
| Burst Current |
|
| Support Protocol |
|
| Size |
|
| Target |
|
| Ammeter |
|
| Continue Current |
|
Product Details
Note: Contents vary by selected package and product specifications.

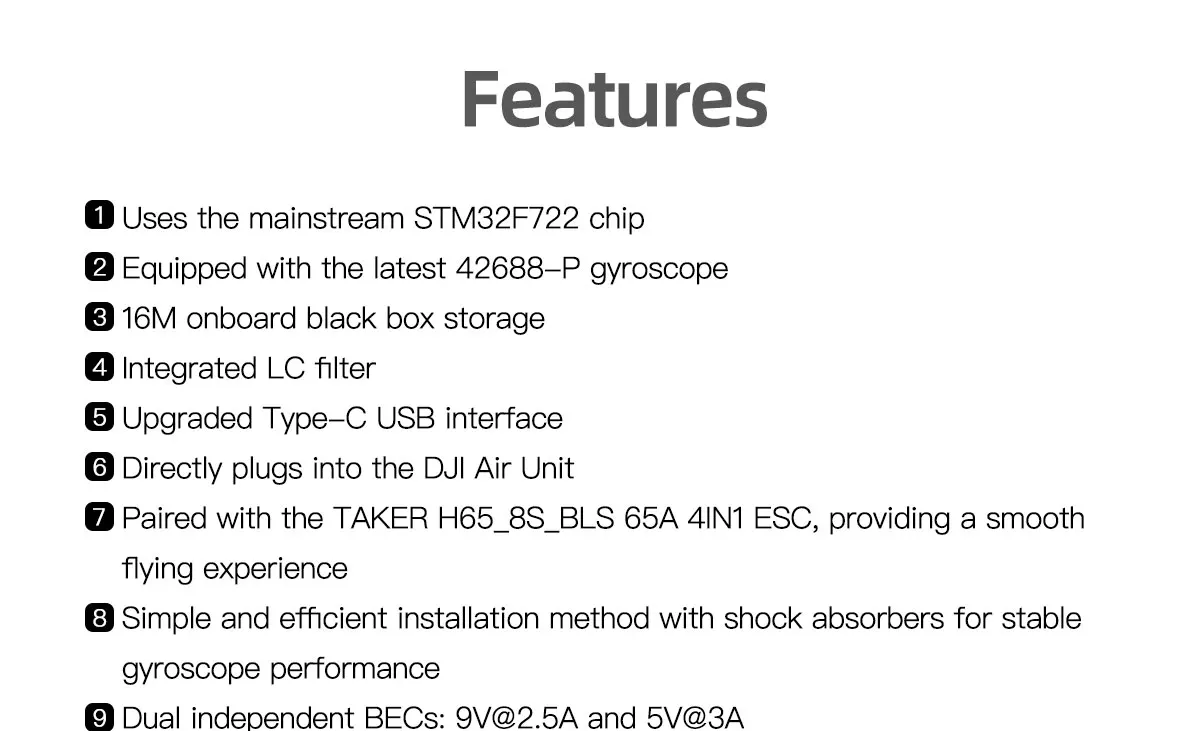

Features
Uses the mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M onboard black box storage
Integrated LC filter
Upgraded Type-C USB interface
Directly plugs into the D JI Air Unit
Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
Simple and efficient installation method with shock absorbers for stable gyroscope performance
Dual independent BECs: 9V@2.5A and 5V@3A

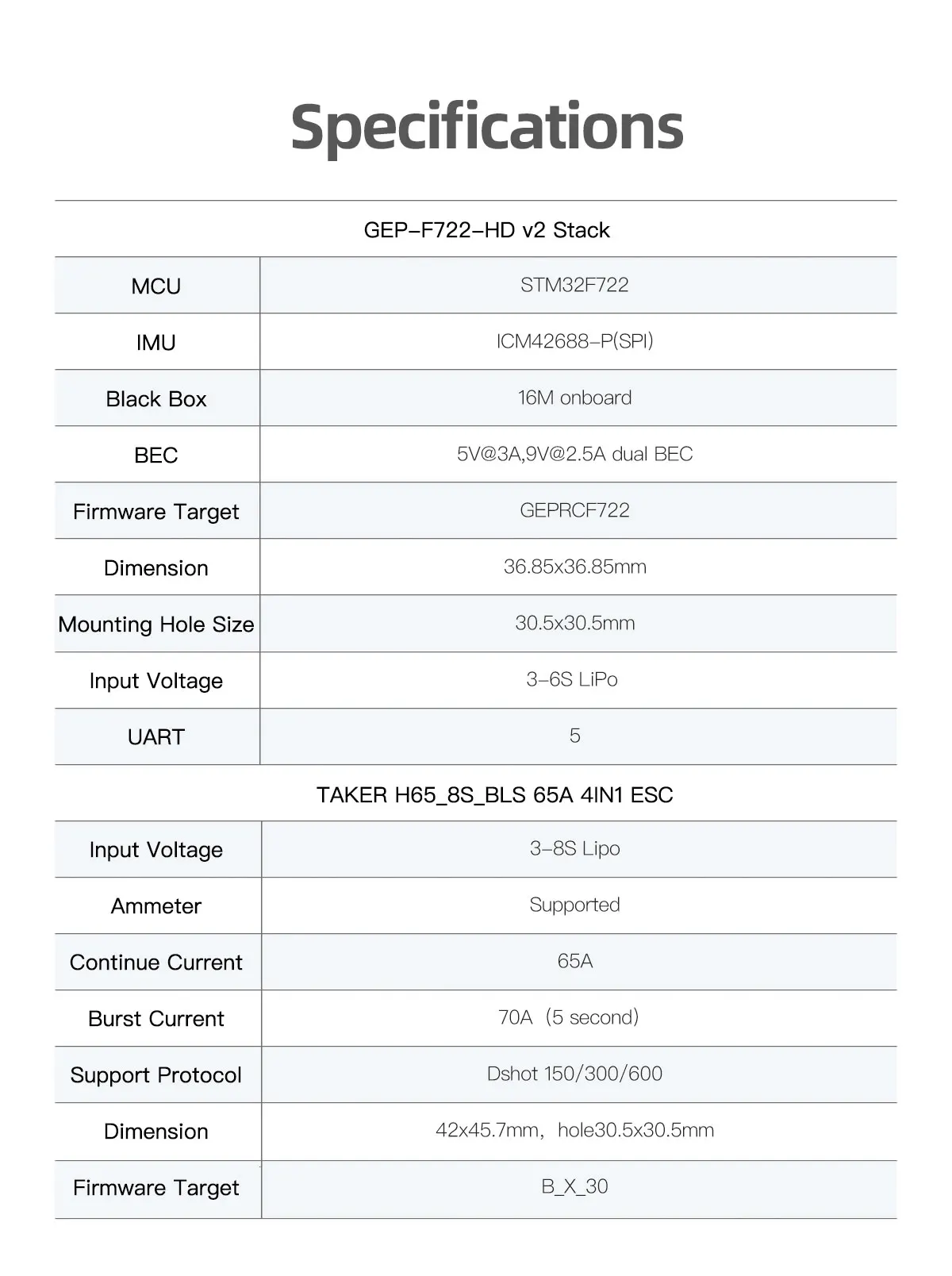

Specifications

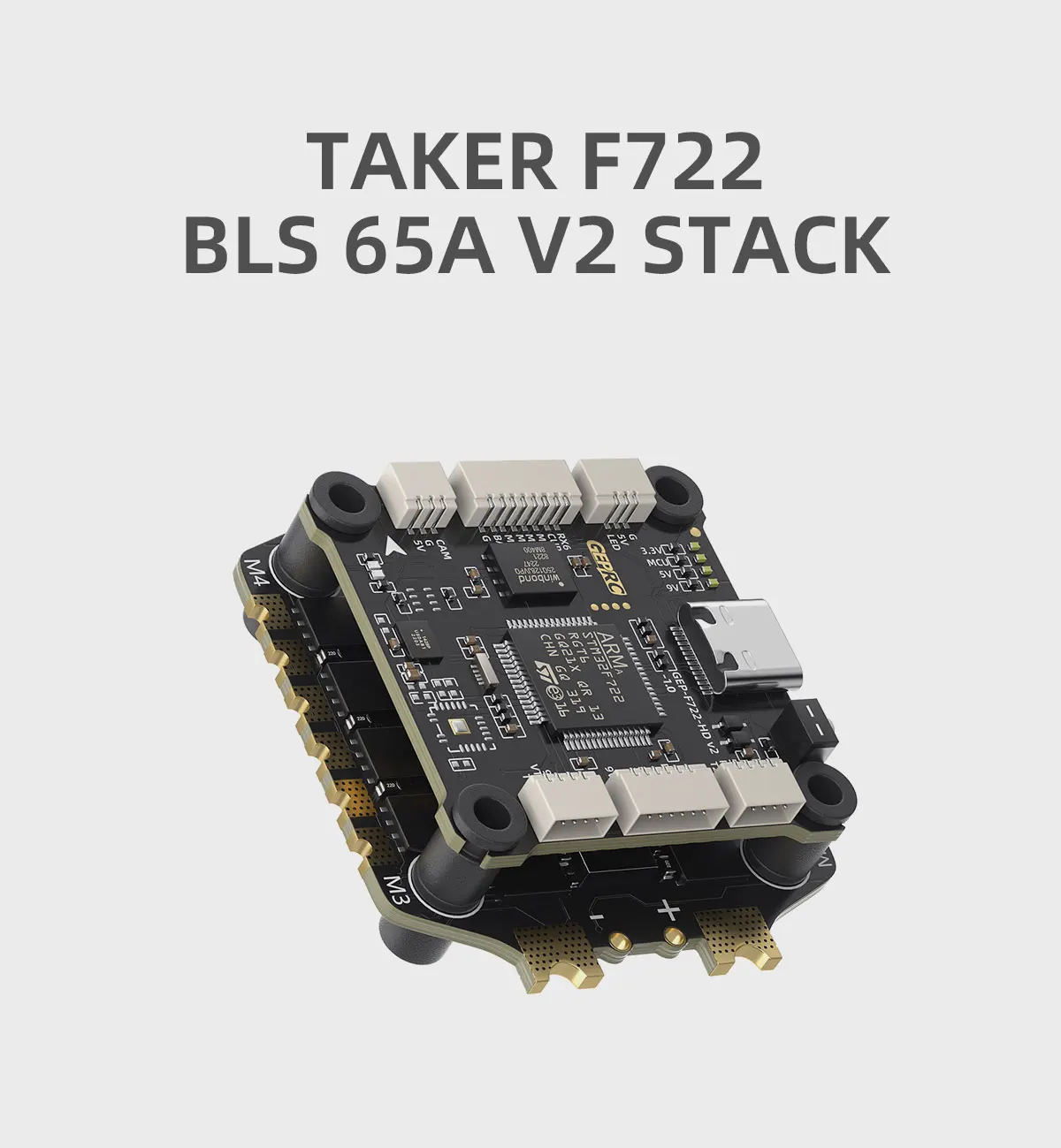

GEP-F722-HD v2 Flight Controller
MCU: STM32F722
IMU: ICM42688-P(SPI)
Air Unit Connection:Direct plugging into D JI Air Unit
Black Box: 16M onboard
USB Interface: Type-C
Barometer: supported
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722
Dimension: 36.85x36.85mm, mounting hole size 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage: 3-6S LiPo
UART: 5
Power Filter: Integrated LC filter
Weight: 8.1g

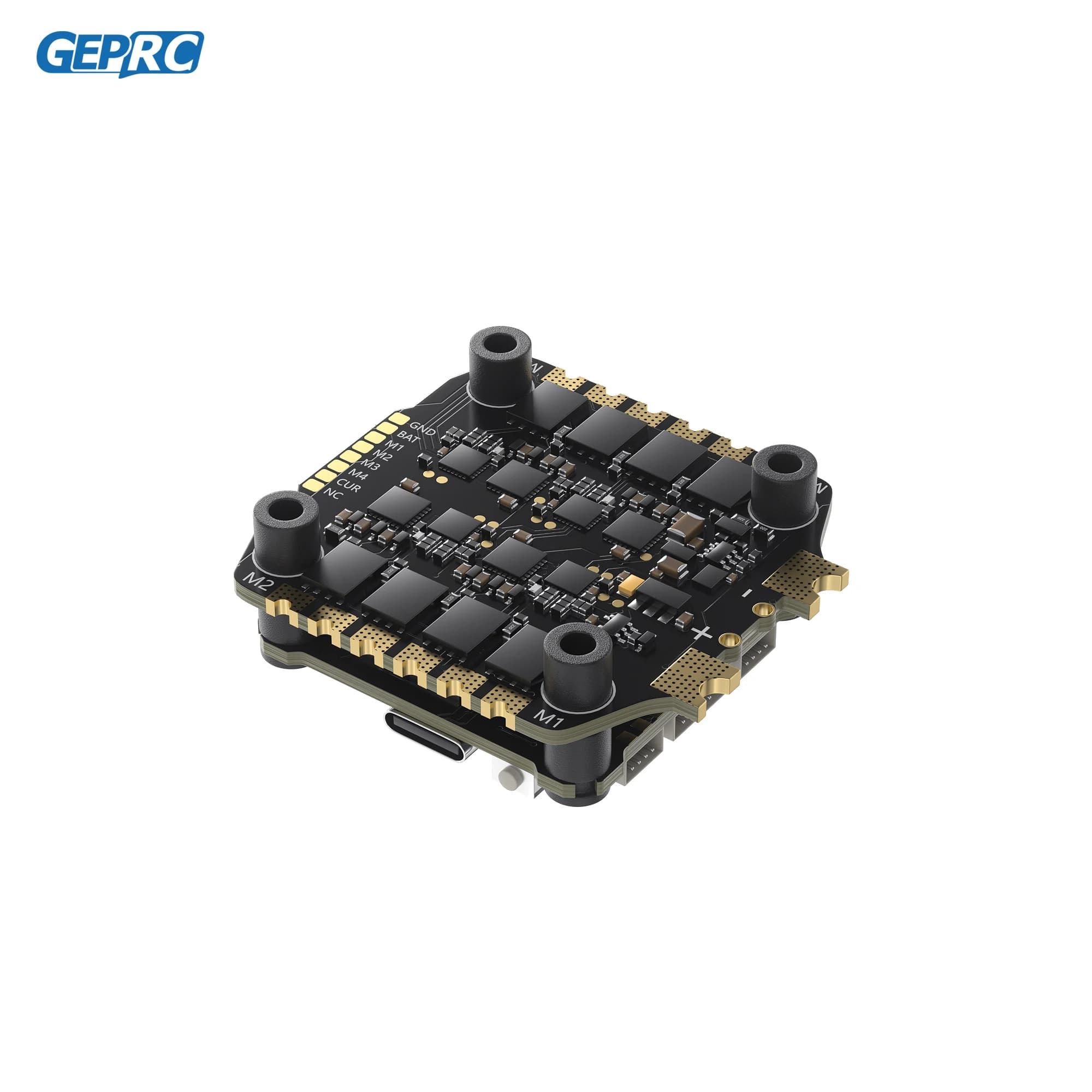

TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Galvanometer: Support
Continuous Current: 60A
Burst Current: 65A(5 second)
Support Protocol: Dshot 150/300/600
Size: 42x45.7mm,hole30.5x30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight:14.9g
Target: B_X_30
TAKER H65_8S_BLS 65A 4IN1 ESC
Input Voltage: 3-8S Lipo
Ammeter: Supported
Continuous Current：65A
Burst Current：70A（5 seconds）
Support Protocol: Dshot 150/300/600
Dimension：42x45.7mm,mounting hole size30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Firmware Target: B_X_30
TAKER H80_BLS 80A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current:80A
Burst Current:85A(5 second)
Support Protocol: Dshot 150/300/600
Size:56.3*61.1mm,hole30.5x30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 28.1g
Target: B_X_30

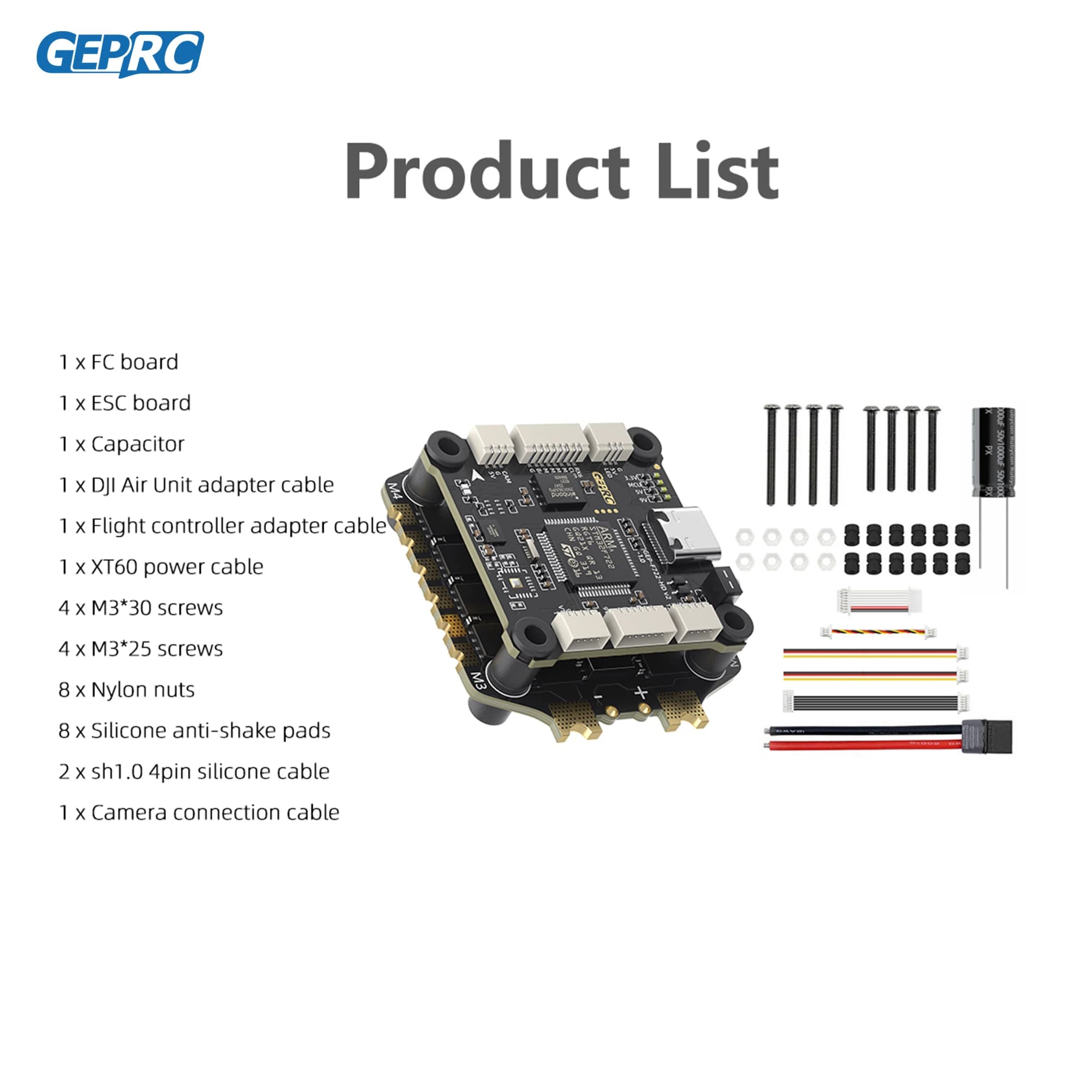

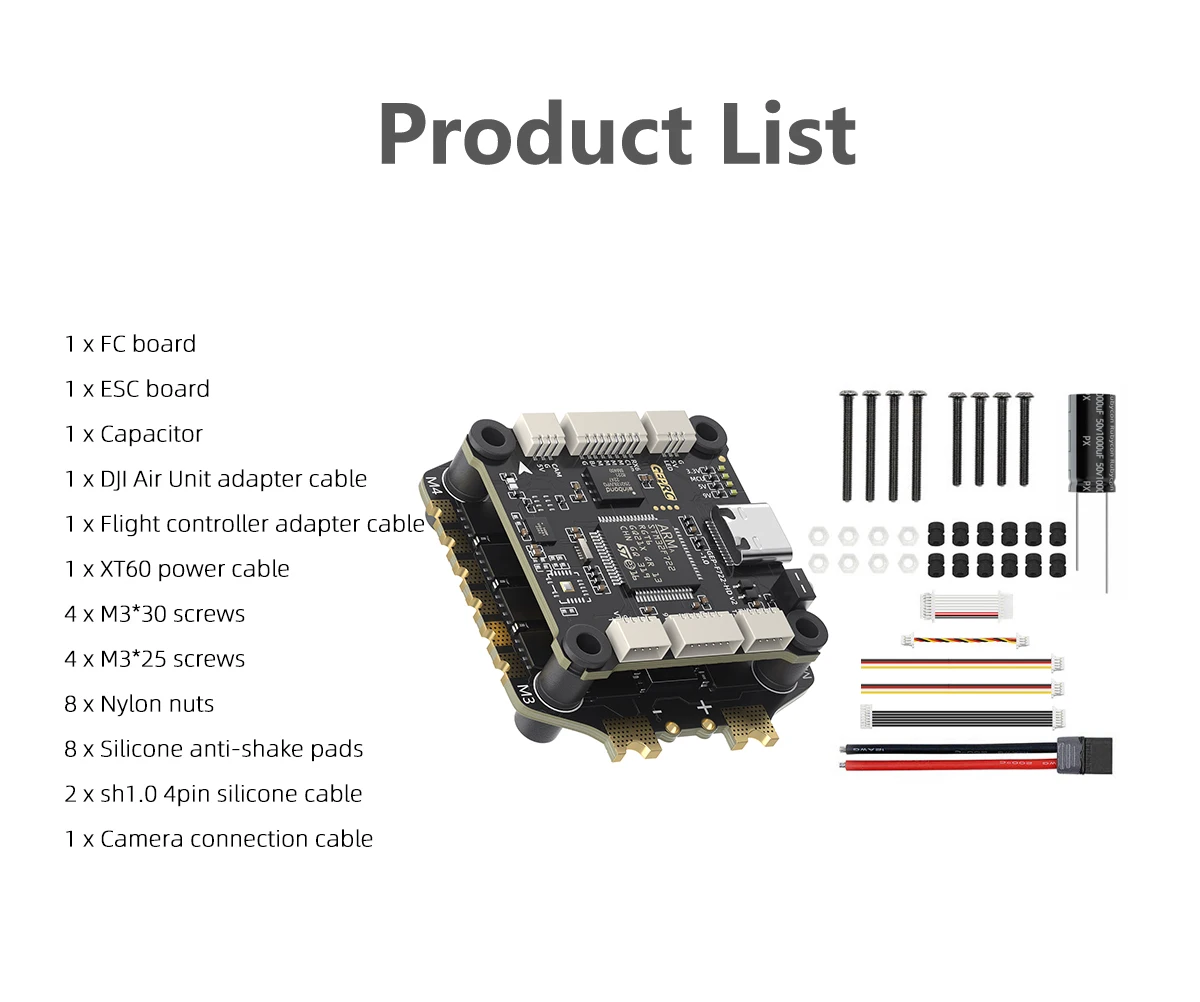

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x D JI Air Unit adapter cable
1 x Flight controller adapter cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
8 x Silicone anti-shake pads
2 x sh1.0 4pin silicone cable
1 x Camera connection cable
