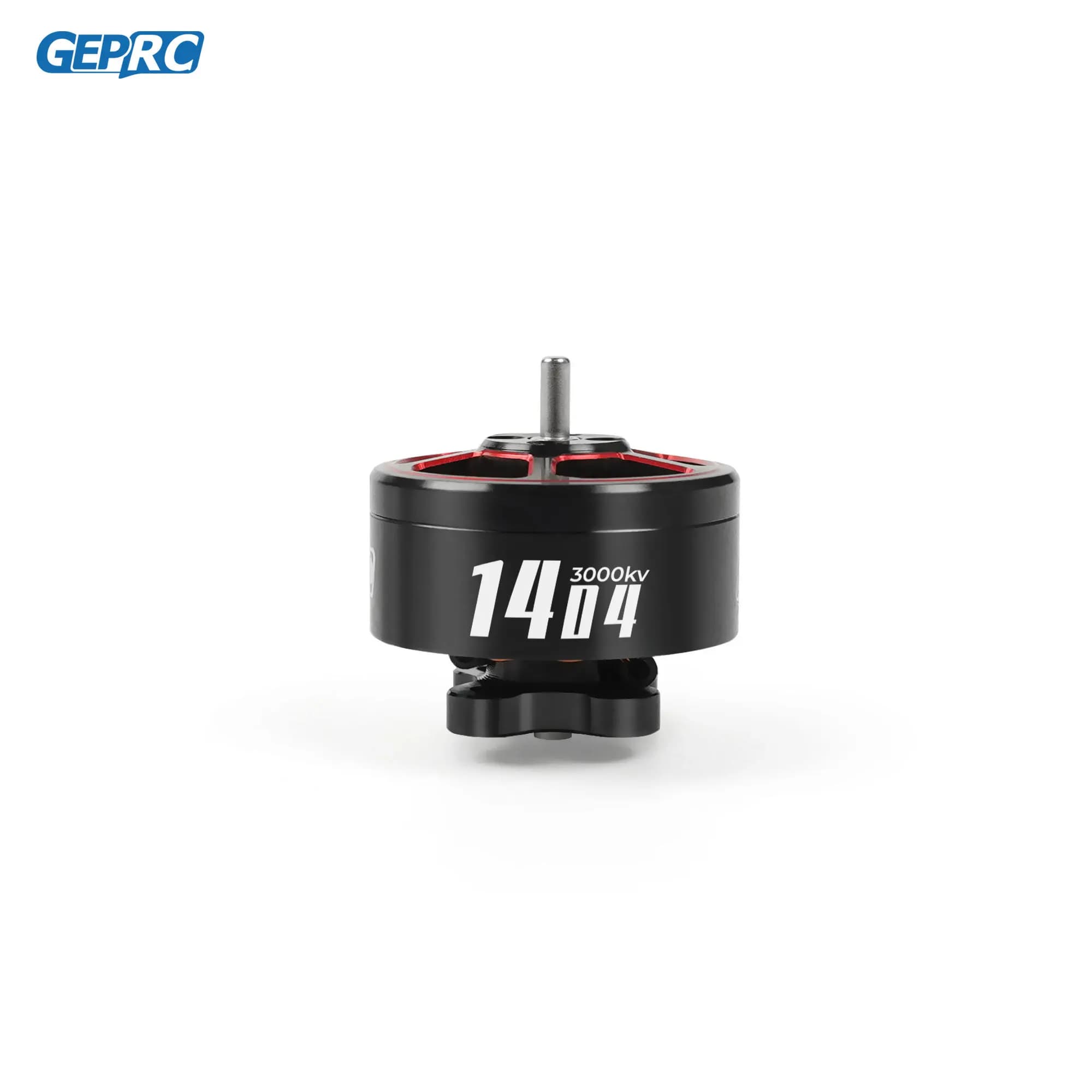

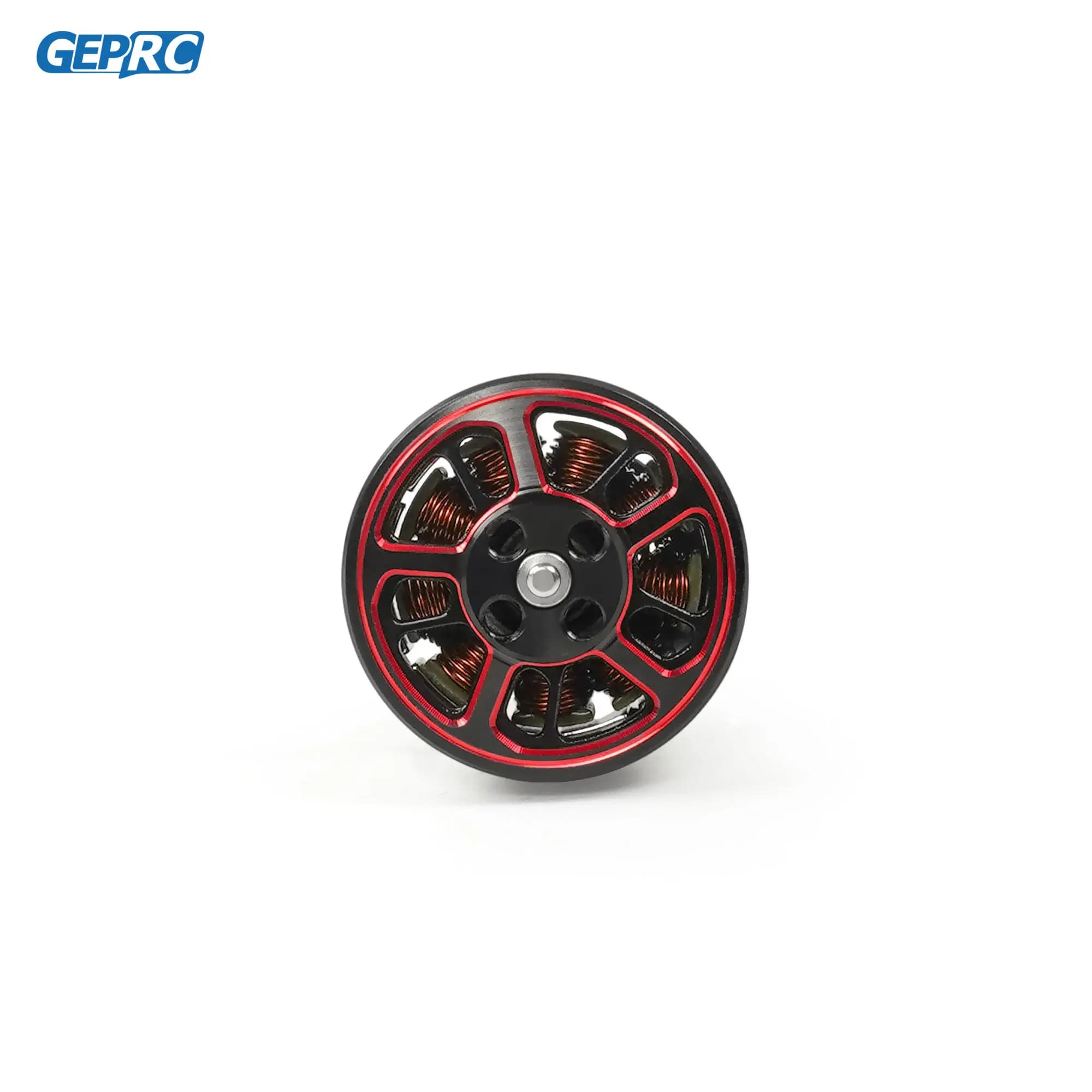

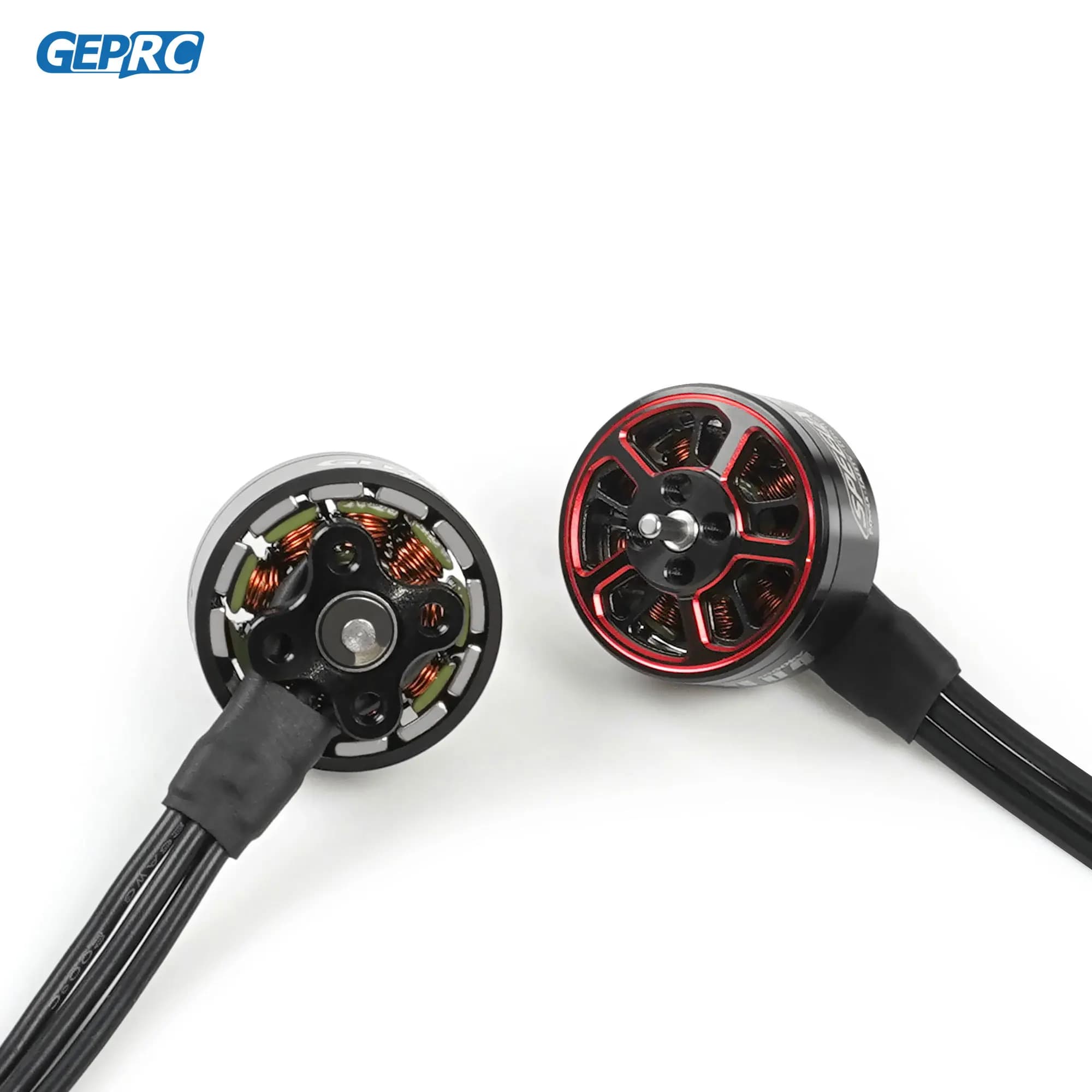

GEPRC SPEEDX2 1404 3000KV 3850KV 4600KV Motor Suitable for Tern-LR40 FPV Drones 2 4-inch RC FPV Quadcopter Freestyle Drone

Description

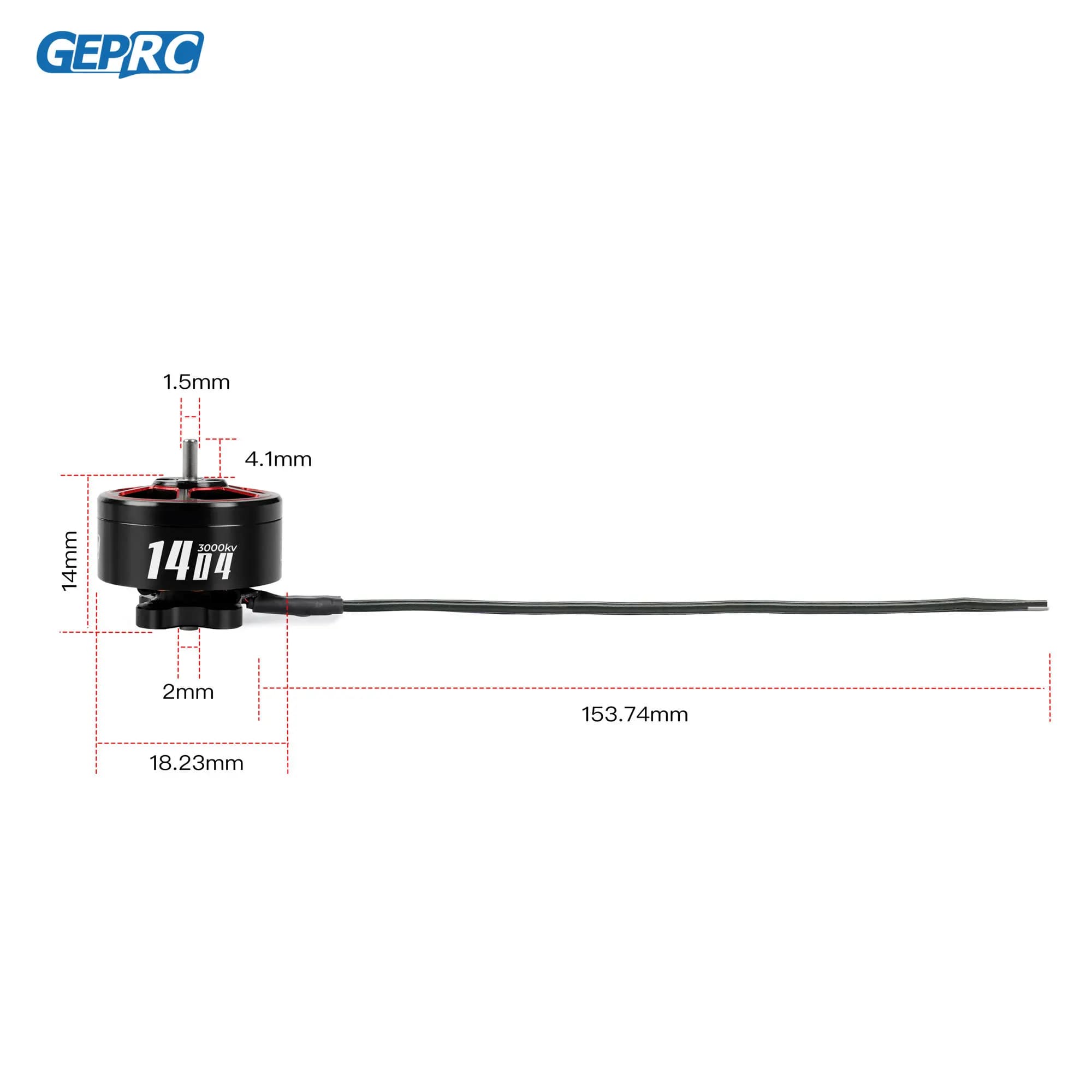

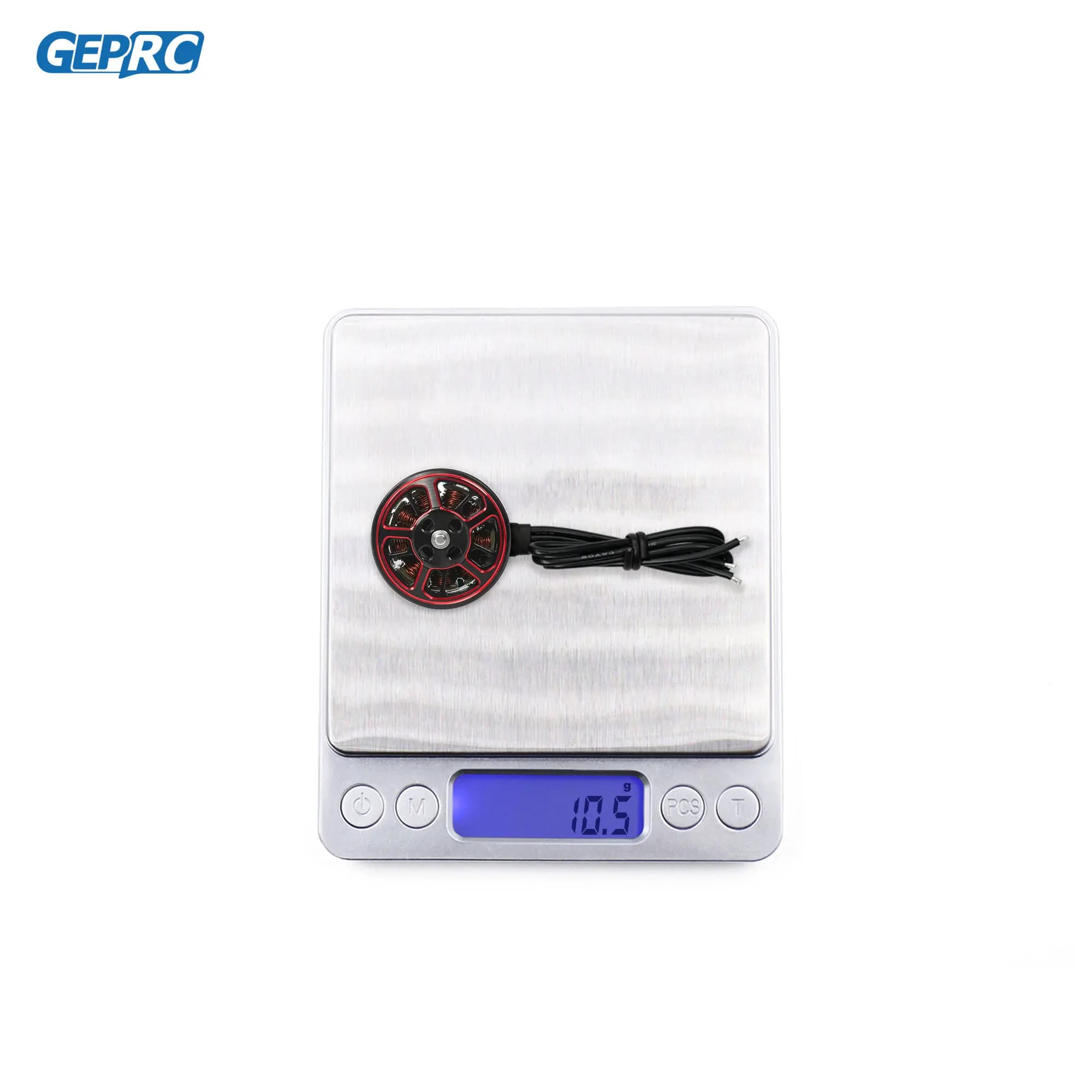

GEPRC SPEEDX2 1404 3000KV 3850KV 4600KV Motor Suitable for Tern-LR40 FPV Drones 2 4-inch RC FPV Quadcopter Freestyle Drone ============================================================ Specifications: Model: SPEEDX2 1404 3000KV Motor Max Watt: 160W Peak current: 10A/3″ Interphase resistance: 0.33Ω Magnet: N52H Bearing type: NSK/NMB Configuration: 9N12P Dimension: φ18.2mm*13.8mm Shaft Diameter: φ1.5mm Shaft Protruding Length: 4mm Mounting holes: 9mm*9mm（M2） Lead: 160mm/26AWG ESC: 12A/2-4S（7.4V-14.8V） Input Volts: 14.8V（4S LiPo) Winding: Single strand copper winding Weight: 10.5g (included wire) Suitable for: 3 inch - 4 inch lightweight models Model: SPEEDX2 1404 4600KV Motor Max Watt: 180W Peak current: 14.3A/3″ Interphase resistance: 0.19Ω Magnet: N52H Bearing type: NSK/NMB Configuration: 9N12P Dimension: φ18.2mm*13.8mm Shaft Diameter: φ1.5mm Shaft Protruding Length: 4mm Mounting holes: 9mm*9mm（M2） Lead: 160mm/26AWG ESC: 20A/2-4S（7.4V-14.8V） Input Volts: 11.1V - 14.8V（3S - 4S LiPo) Winding: Single strand copper winding Weight: 10.5g (included wire) Suitable for: 2 inch - 3 inch lightweight models Feature 1.Red with black color is obviously high-end. 2.Use bearings with excellent performance and strong anti-wear ability. 3.Lightweight silhouette, strong power. 4.Suitable for 2-inch-4-inch lightweight chassis. TECHNICAL SPECIFICATIONS • Model: SPEEDX2 1404 3000KV Motor • Model: SPEEDX2 1404 4600KV Motor • Dimension: φ18.2mm*13.8mm • Weight: 10.5g (included wire) AVAILABLE OPTIONS 3000KV 4600KV 3850KV PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $15.82 ————————————————————————————————————————
