Description
GEPRC GEP-LC75 V3 Frame Compatible with Crocodile75 V3 7.5 inch 342mm Drone Accessories FPV Freestyle RC Racing Drone Models ============================================================ Summary Summary GEP-LC75 V3 is a long range frame, which uses H-shaped structure design and adds protective side panels to the fuselage to protect the electronic control system from dust pollution. The arm is made of 6mm thick carbon fiber plate to improve flight stability. The fuselage structure optimizes the strength of the main stress points to ensure strong crashworthiness. Feature Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data. The fuselage adds protective side panels for a more technological appearance and to protect the electronic control system from sand and dust pollution. The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty. Perfect match for 7-inch or 7.5-inch propellers The Crocodile75 V3 frame has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight. Specification Model: GEP-LC75 V3 Size: 7.5 inch Wheelbase: 342mm Top plate: 2.5mm Bottom plate: 3.0mm Arm plate: 6.0mm FC mounting hole: 30.5mm*30.5mm VTX mounting hole:20mm*20mm / 25.5mm*25.5mm Motor mounting hole: 16mm*16mm / 19mm*19mm Camera mounting hole: 19mm / 20mm Recommended propeller size: 7-7.5inch Weight: 266g Includes Carbon plate list: 1 x GEP-LC75 V3 top plate 1 x GEP-LC75 V3 bottom plate 4 x GEP-LC75 V3 arms plate 1 x GEP-LC75 V3 front splint plate 1 x GEP-LC75 V3 front splint plate Accessories: 1 x Header printed parts 1 x Tail printed parts 1 x GP camera base 4 x Motor damping pad 1 x Nylon front side plate (Pair) 1 x Nylon Rear side plate (Pair)(O3 version) 1 x Nylon Rear side plate (Pair) (universal version) 1 x XT60EW-M plug 2 x Rubber elastic anti-slip straps 20*250mm 4 x Motor wire hub 60mm*10mm Screw kits: 4 x M3*5*30 mesh aluminum columns 4 x M3*5*21.5 mesh aluminum columns 10 x M3 Countersunk head Gaskets – wine red 6 x M3 pressed Rivet nuts 8 x M3*8 shock absorbing balls 10 x countersunk hexagon socket screws M3*8 4 x countersunk hexagon socket screws M3*12 4 x Hexagon socket screws with semicircular head M3*8 16 x Hexagon socket screws with semi-round head M3*11 8 x semi-round head hexagon socket screws M3*16 4 x countersunk hexagon socket screws M3*16 4 x Hexagon socket screws with semi-round head M3*25 6 x M3 aluminum alloy hexagonal lock nuts 2 x Hexagon socket screws with half round head M2*6 4 x round head hex socket screws with pad M2*4 4 x O3 Air Unit Silicone gasket 6 x Cup-head hex socket screws M1.6*12 4 x Hexagon socket screws with half round head M2*23 4 x Self-tightening nuts M2 4 x Nylon columns M2*5 4 x Hexagon socket screws with half round head _ Black Nickel plated M2*7 4 x M2 Nylon nuts 8 x Hexagon socket screws with semicircular head M3*6 4 x black mesh M3*13 aluminum columns TECHNICAL SPECIFICATIONS • Model: GEP-LC75 V3 • Size: 7.5 inch • Weight: 266g AVAILABLE OPTIONS GEP-LC75 V3 China Mainland PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $130.28 ————————————————————————————————————————
Product Details
Summary
Summary

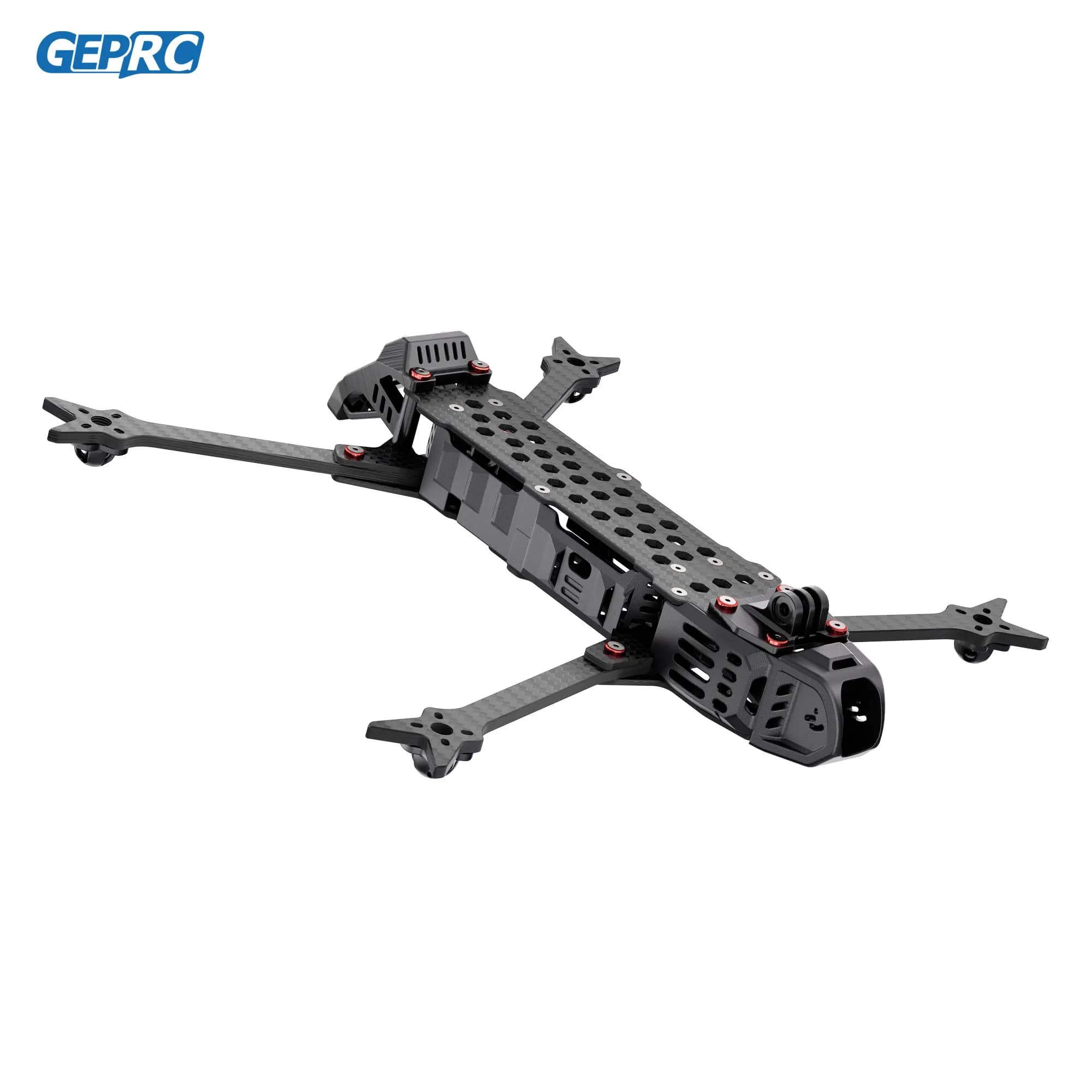

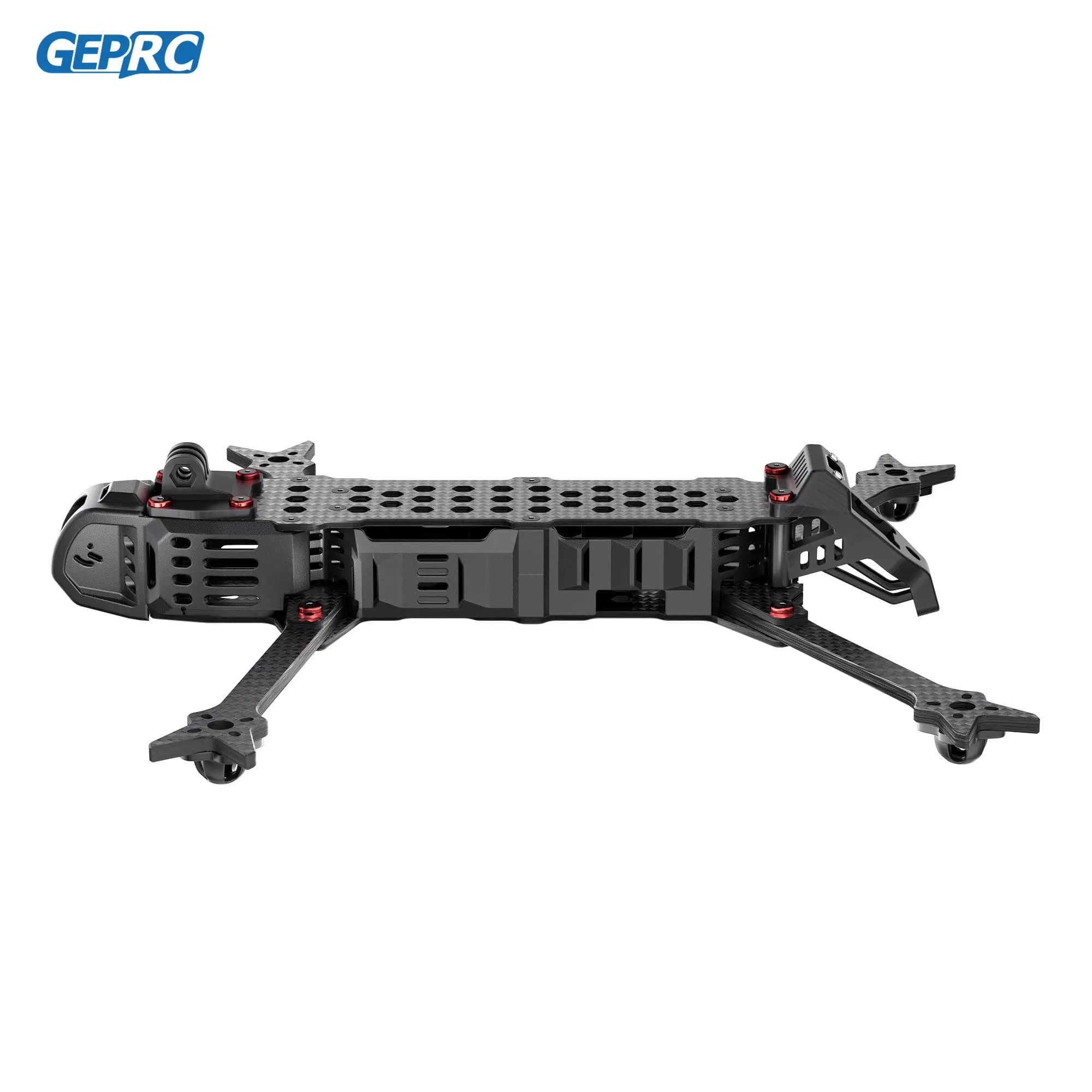

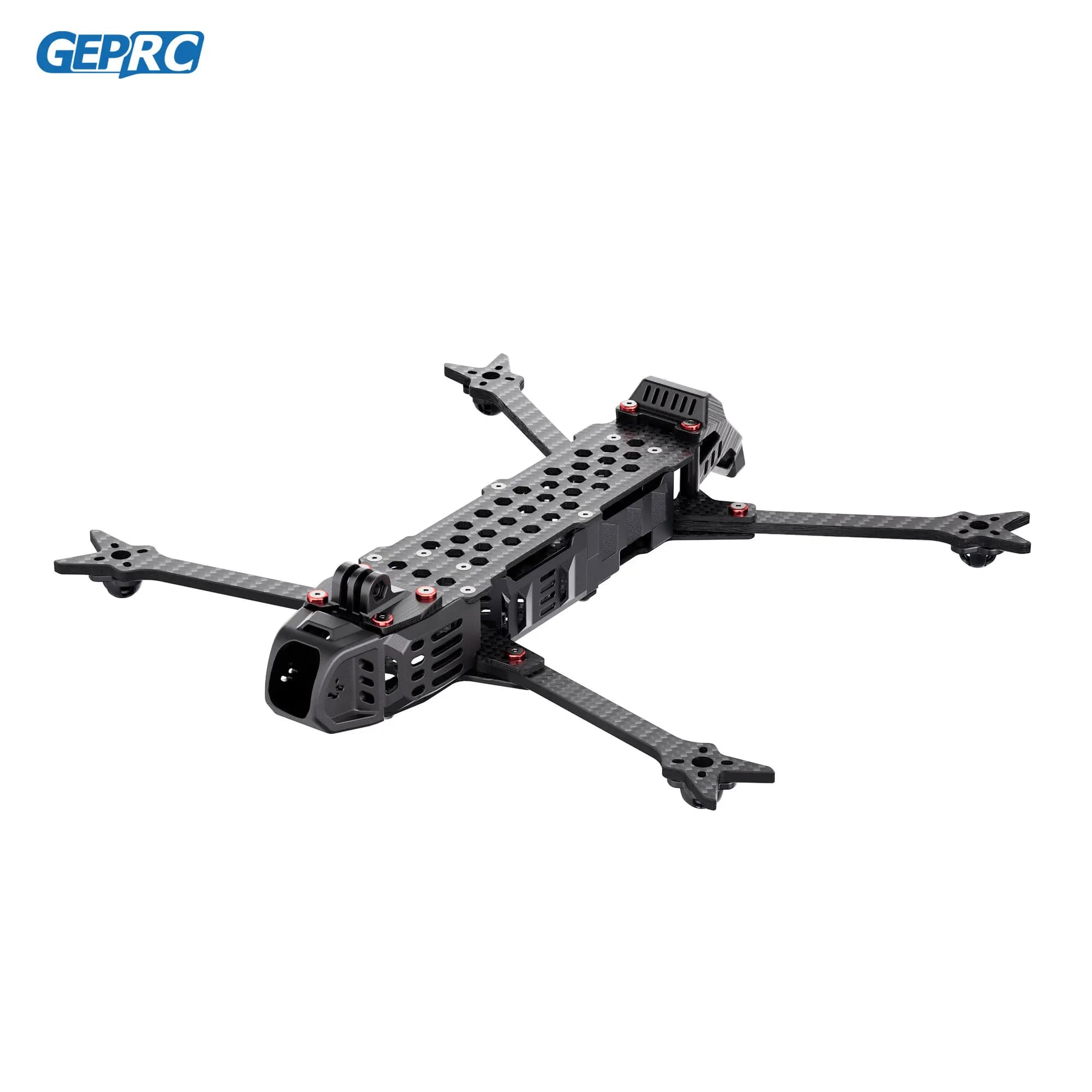

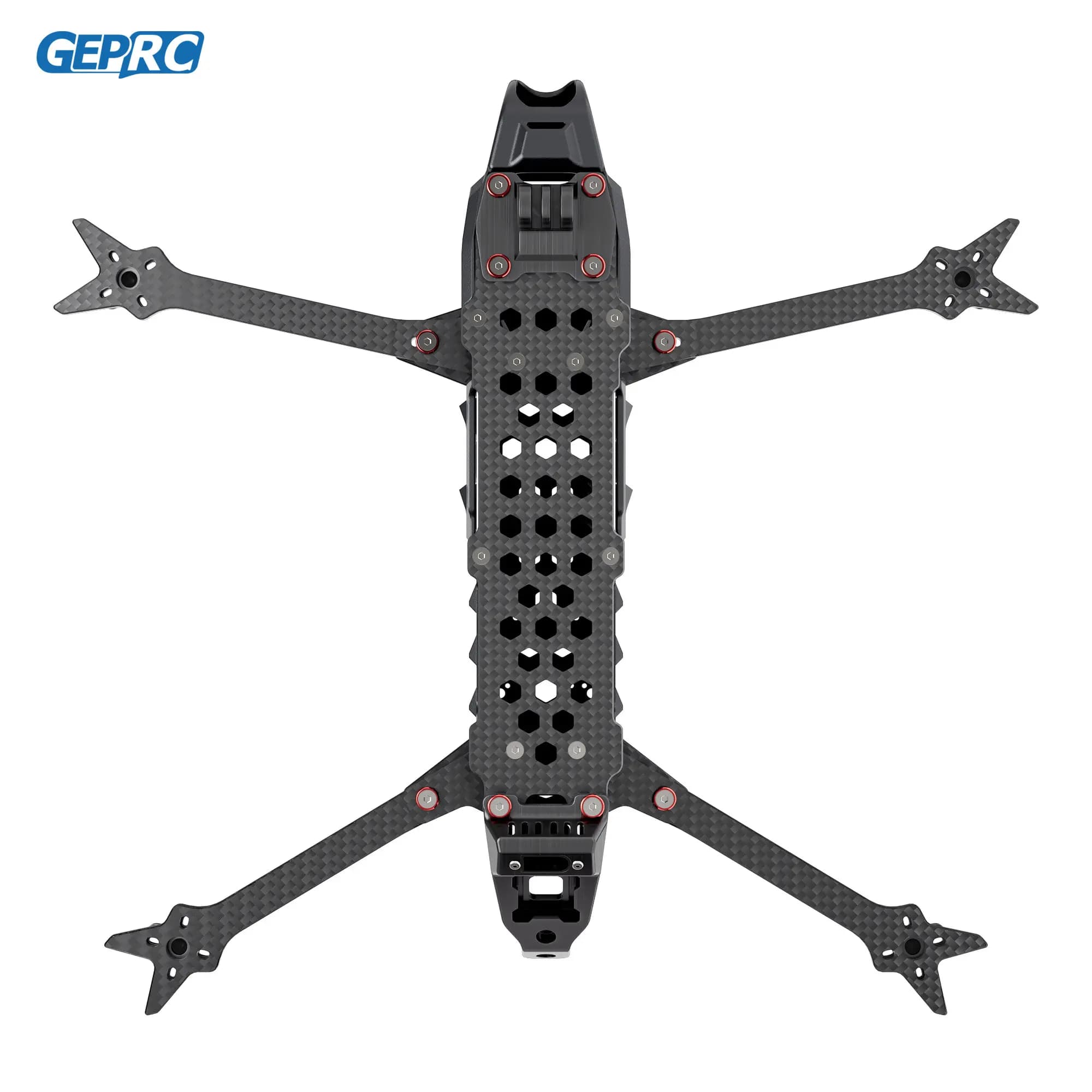

GEP-LC75 V3 is a long range frame, which uses H-shaped structure design and adds protective side panels to the fuselage to protect the electronic control system from dust pollution. The arm is made of 6mm thick carbon fiber plate to improve flight stability. The fuselage structure optimizes the strength of the main stress points to ensure strong crashworthiness.
Feature
Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
The fuselage adds protective side panels for a more technological appearance and to protect the electronic control system from sand and dust pollution.

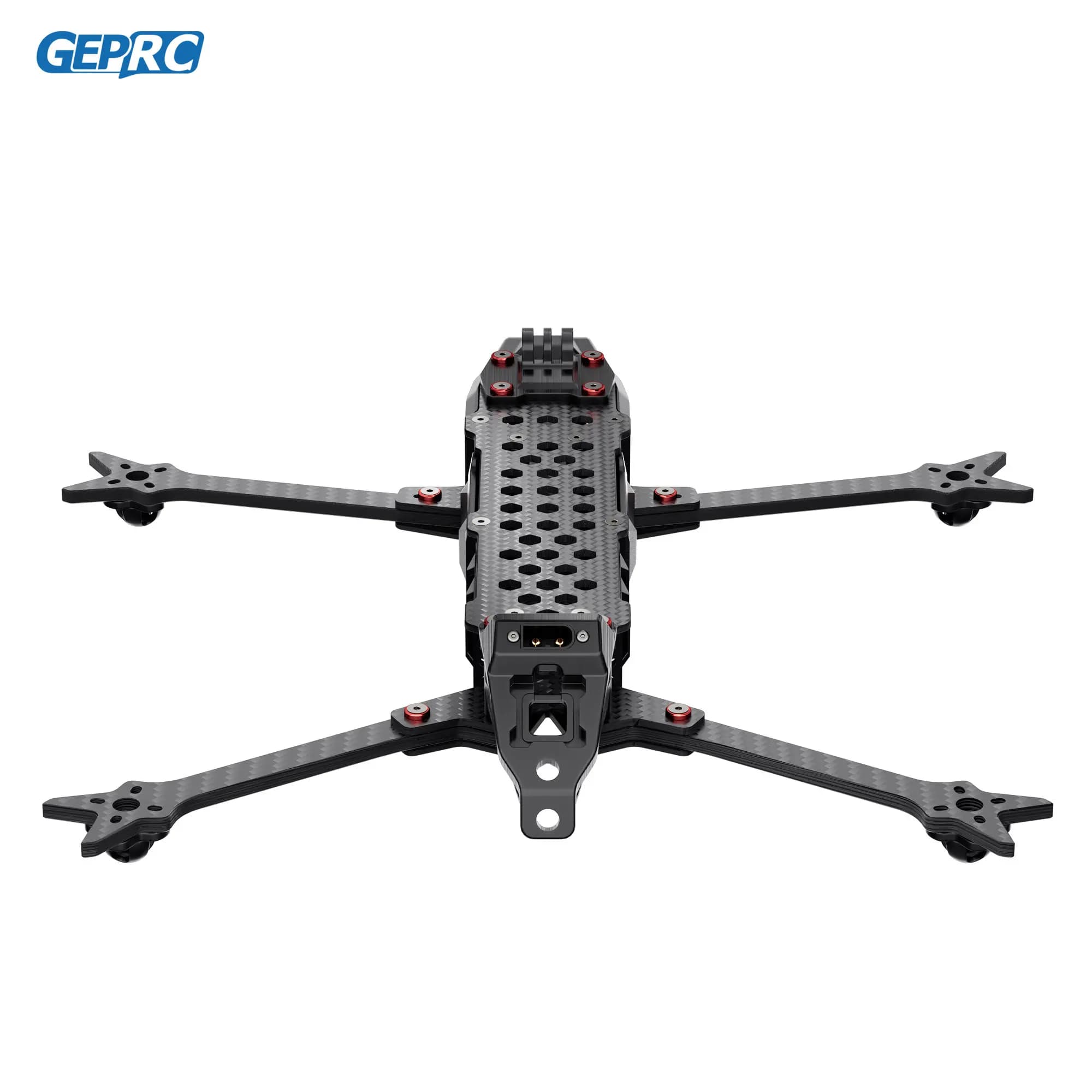

The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
Perfect match for 7-inch or 7.5-inch propellers
The Crocodile75 V3 frame has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
Specification
Model: GEP-LC75 V3
Size: 7.5 inch
Wheelbase: 342mm
Top plate: 2.5mm
Bottom plate: 3.0mm
Arm plate: 6.0mm
FC mounting hole: 30.5mm*30.5mm
VTX mounting hole:20mm*20mm / 25.5mm*25.5mm
Motor mounting hole: 16mm*16mm / 19mm*19mm
Camera mounting hole: 19mm / 20mm
Recommended propeller size: 7-7.5inch
Weight: 266g
Includes
Carbon plate list:
1 x GEP-LC75 V3 top plate
1 x GEP-LC75 V3 bottom plate
4 x GEP-LC75 V3 arms plate
1 x GEP-LC75 V3 front splint plate
1 x GEP-LC75 V3 front splint plate
Accessories:
1 x Header printed parts
1 x Tail printed parts
1 x GP camera base
4 x Motor damping pad
1 x Nylon front side plate (Pair)
1 x Nylon Rear side plate (Pair)(O3 version)
1 x Nylon Rear side plate (Pair) (universal version)
1 x XT60EW-M plug
2 x Rubber elastic anti-slip straps 20*250mm
4 x Motor wire hub 60mm*10mm
Screw kits:
4 x M3*5*30 mesh aluminum columns
4 x M3*5*21.5 mesh aluminum columns
10 x M3 Countersunk head Gaskets – wine red
6 x M3 pressed Rivet nuts
8 x M3*8 shock absorbing balls
10 x countersunk hexagon socket screws M3*8
4 x countersunk hexagon socket screws M3*12
4 x Hexagon socket screws with semicircular head M3*8
16 x Hexagon socket screws with semi-round head M3*11
8 x semi-round head hexagon socket screws M3*16
4 x countersunk hexagon socket screws M3*16
4 x Hexagon socket screws with semi-round head M3*25
6 x M3 aluminum alloy hexagonal lock nuts
2 x Hexagon socket screws with half round head M2*6
4 x round head hex socket screws with pad M2*4
4 x O3 Air Unit Silicone gasket
6 x Cup-head hex socket screws M1.6*12
4 x Hexagon socket screws with half round head M2*23
4 x Self-tightening nuts M2
4 x Nylon columns M2*5
4 x Hexagon socket screws with half round head _ Black Nickel plated M2*7
4 x M2 Nylon nuts
8 x Hexagon socket screws with semicircular head M3*6
4 x black mesh M3*13 aluminum columns
