GEPRC ELRS Nano 915M PA500 Receiver Suiable PA Chip 500mW 25Hz 200HzDIY RC FPV Quadcopter Longrange Freestyle Drone Parts
Description
GEPRC ELRS Nano 915M PA500 Receiver Suiable PA Chip 500mW 25Hz 200HzDIY RC FPV Quadcopter Longrange Freestyle Drone Parts ============================================================ Summary The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability. The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector. Feature Compact size of 13x23x5.5mm Weighing only 1.9g WIFI firmware upgrade ELRS open-source project, long-range remote control Maximum refresh rate of 200Hz Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW Equipped with an sh1.0 connector for easy installation Adopts an aluminum alloy CNC shell to optimize heat dissipation Specifications Model: GEPRC ELRS Nano 915M PA500 receiver Dimension: 13x23x5.5mm Weight: 1.9g (RX only) Chips: ESP8285, SX1276 Crystal Oscillator: TCXO Frequency Band: 915MHz FCC /868MHz EU Refresh Rate: 25Hz-200Hz Operating Voltage: 5V Antenna Connector: ipex1 Telemetry Power: 500mW Firmware: GEPRC Nano 915M PA500 RX Includes 1 x ELRS Nano 915M PA500 receiver 1 x Antenna 1 x Heat shrink tube 1 x 4pin silicone cable 1 x User manual TECHNICAL SPECIFICATIONS • Dimension: 13x23x5.5mm • Weight: 1.9g (RX only) • Firmware: GEPRC Nano 915M PA500 RX AVAILABLE OPTIONS 915M PA500 long T 868M PA500 long T China Mainland PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $23.48 ————————————————————————————————————————
Product Details
Summary

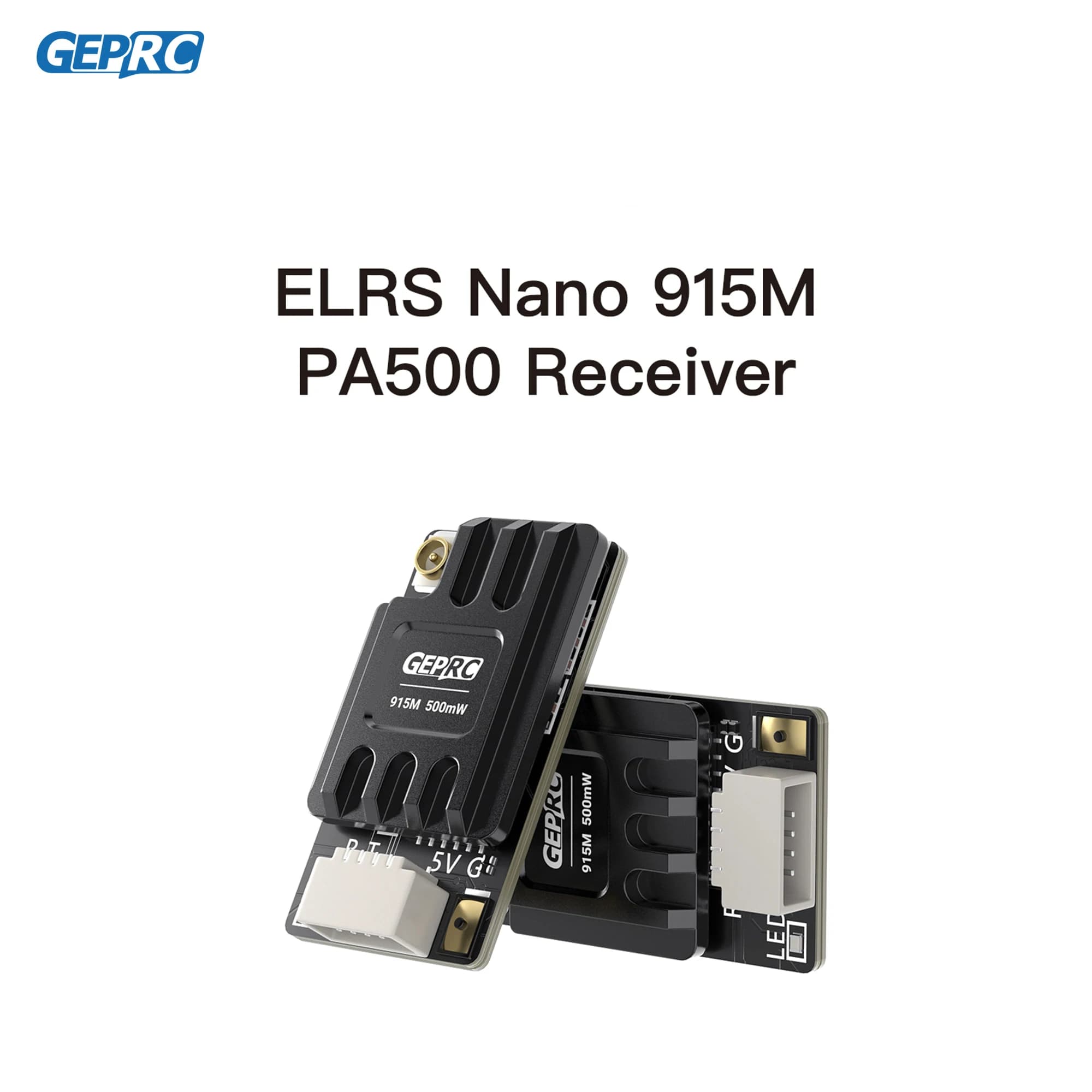

The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.
The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.
Feature
Compact size of 13x23x5.5mm
Weighing only 1.9g
WIFI firmware upgrade
ELRS open-source project, long-range remote control
Maximum refresh rate of 200Hz
Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations
Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW

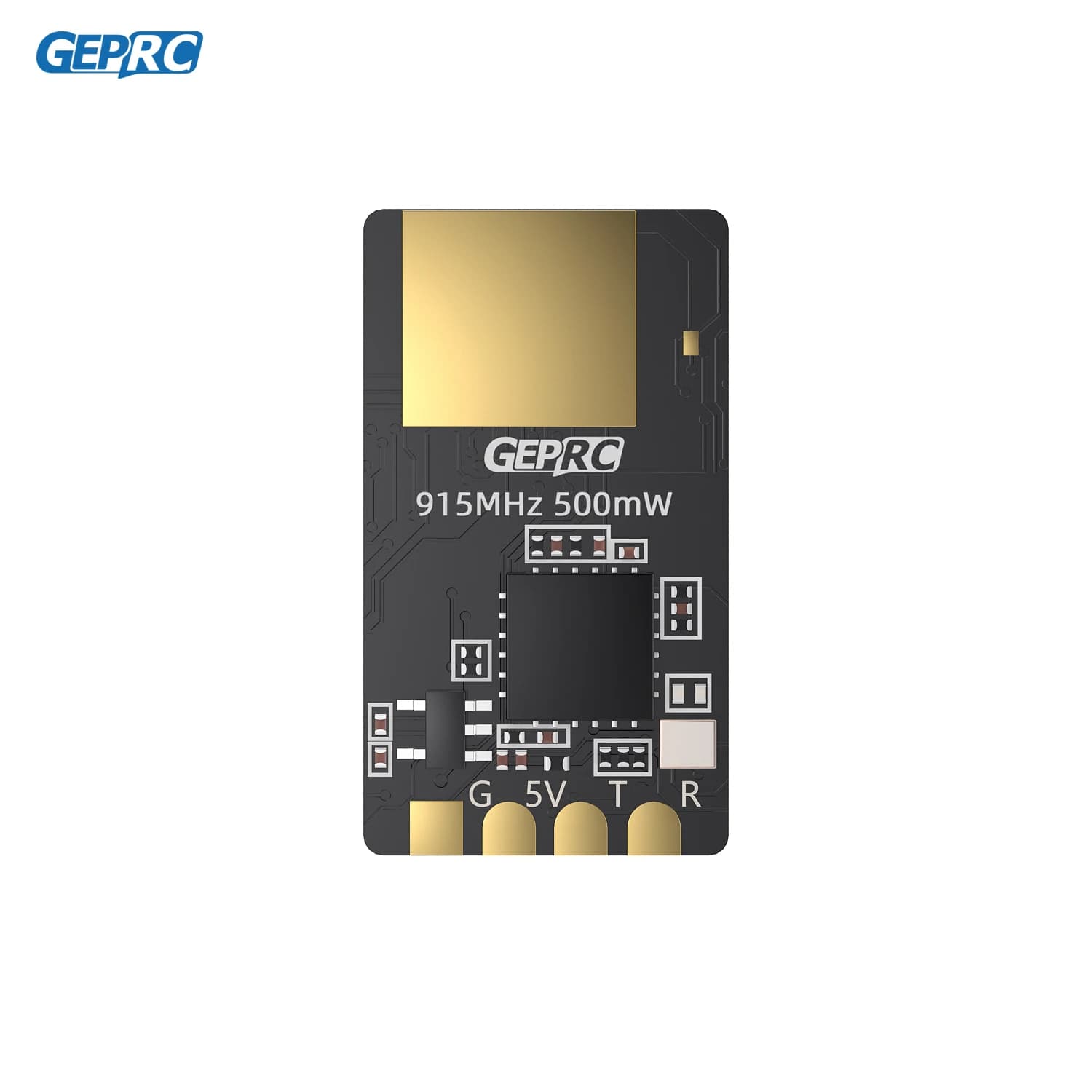

Equipped with an sh1.0 connector for easy installation

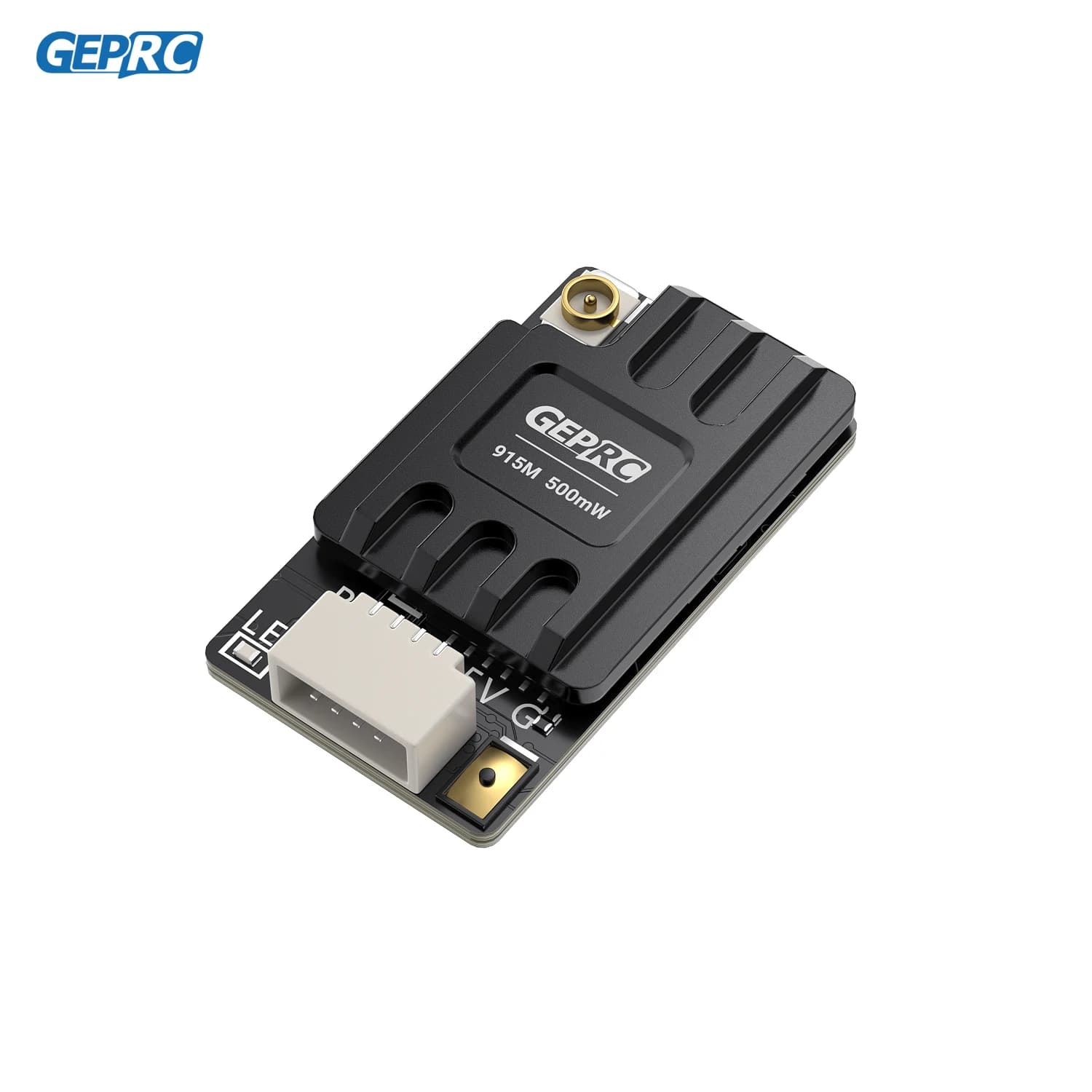

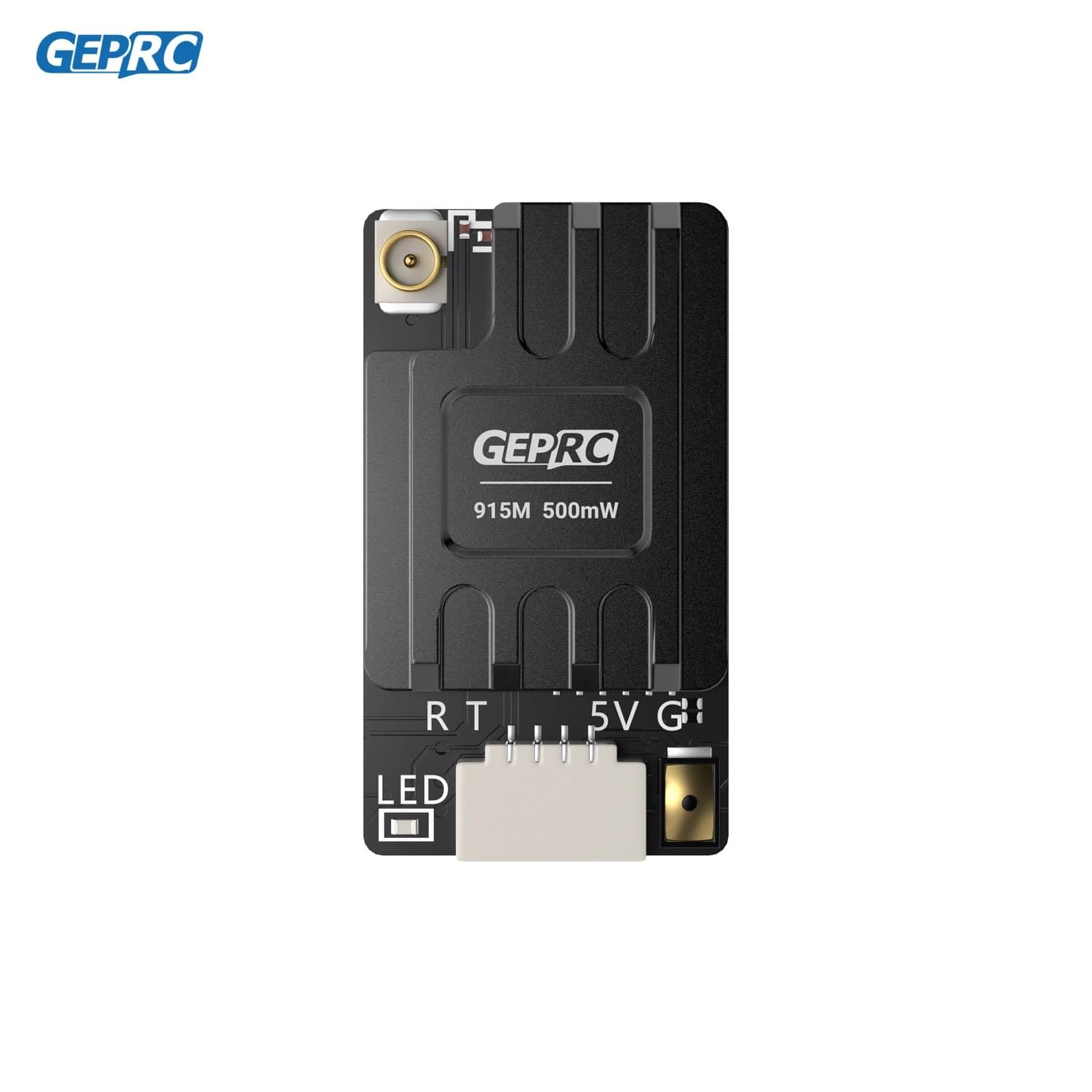

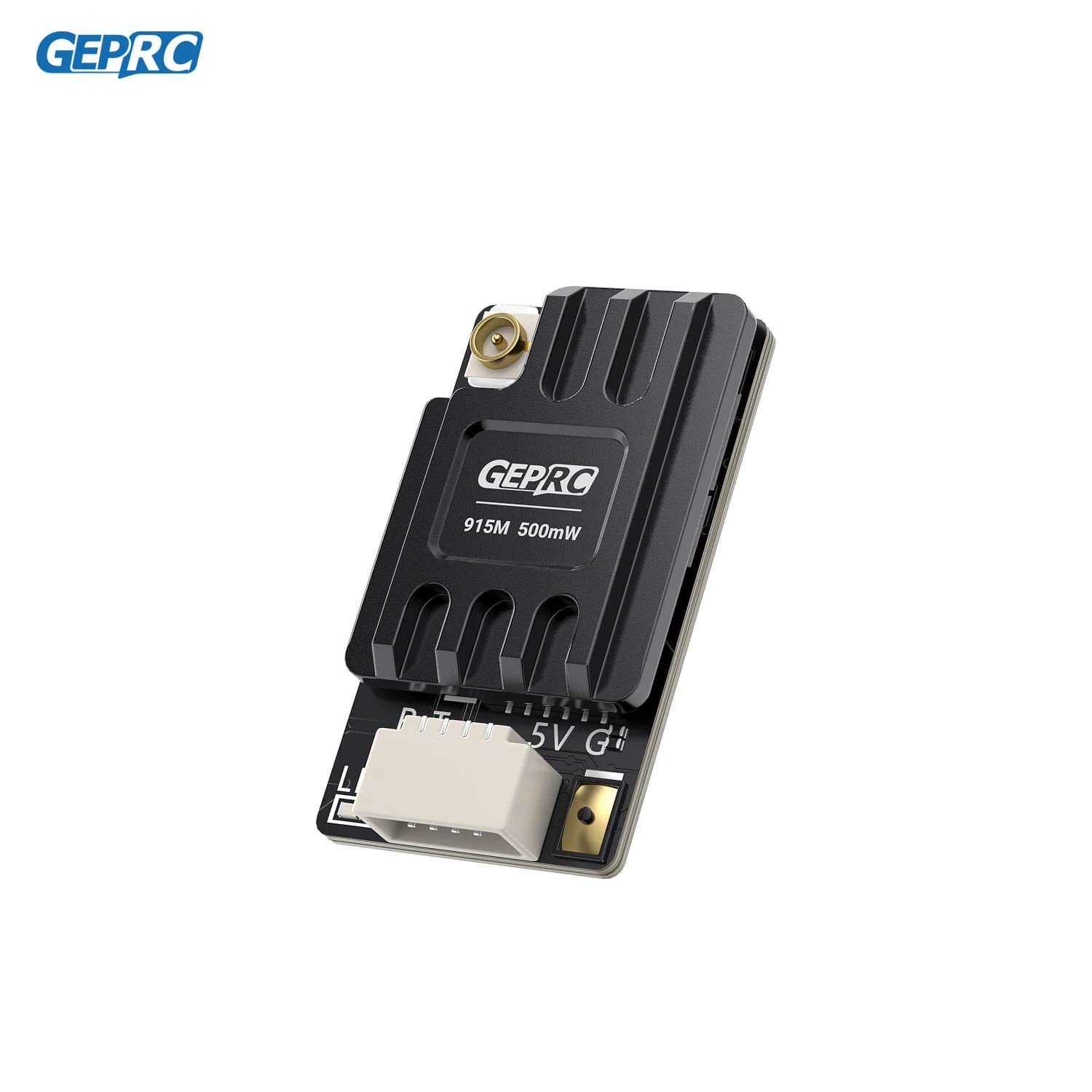

Adopts an aluminum alloy CNC shell to optimize heat dissipation
Specifications
Model: GEPRC ELRS Nano 915M PA500 receiver
Dimension: 13x23x5.5mm
Weight: 1.9g (RX only)
Chips: ESP8285, SX1276
Crystal Oscillator: TCXO
Frequency Band: 915MHz FCC /868MHz EU
Refresh Rate: 25Hz-200Hz
Operating Voltage: 5V
Antenna Connector: ipex1
Telemetry Power: 500mW
Firmware: GEPRC Nano 915M PA500 RX
Includes
1 x ELRS Nano 915M PA500 receiver
1 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
