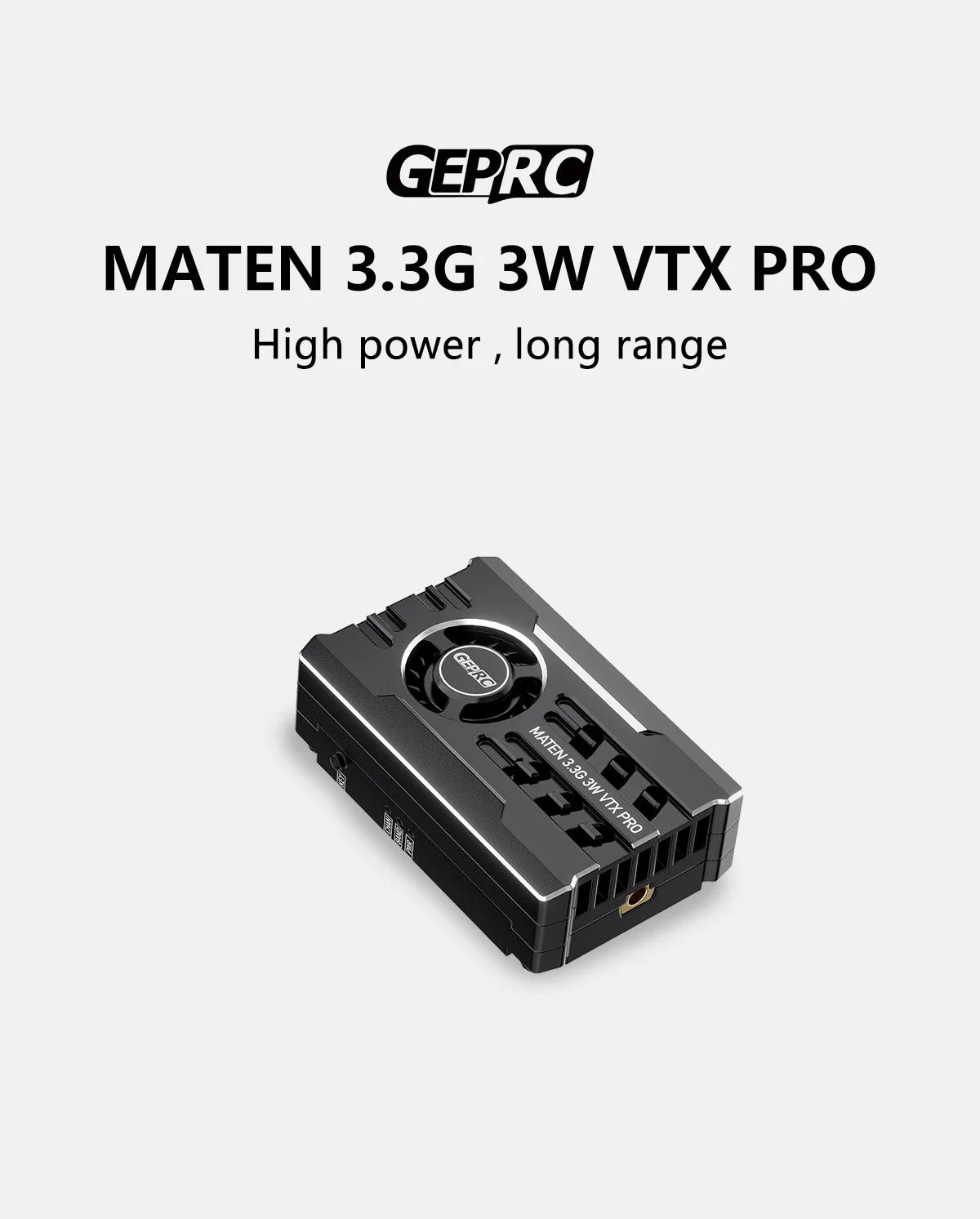

GEPRC MATEN 3.3G 3W VTX PRO Antenna Input Voltage for 40 Channels Long Range Flight DIY RC FPV Quadcopter Freestyle Drone Parts

Description

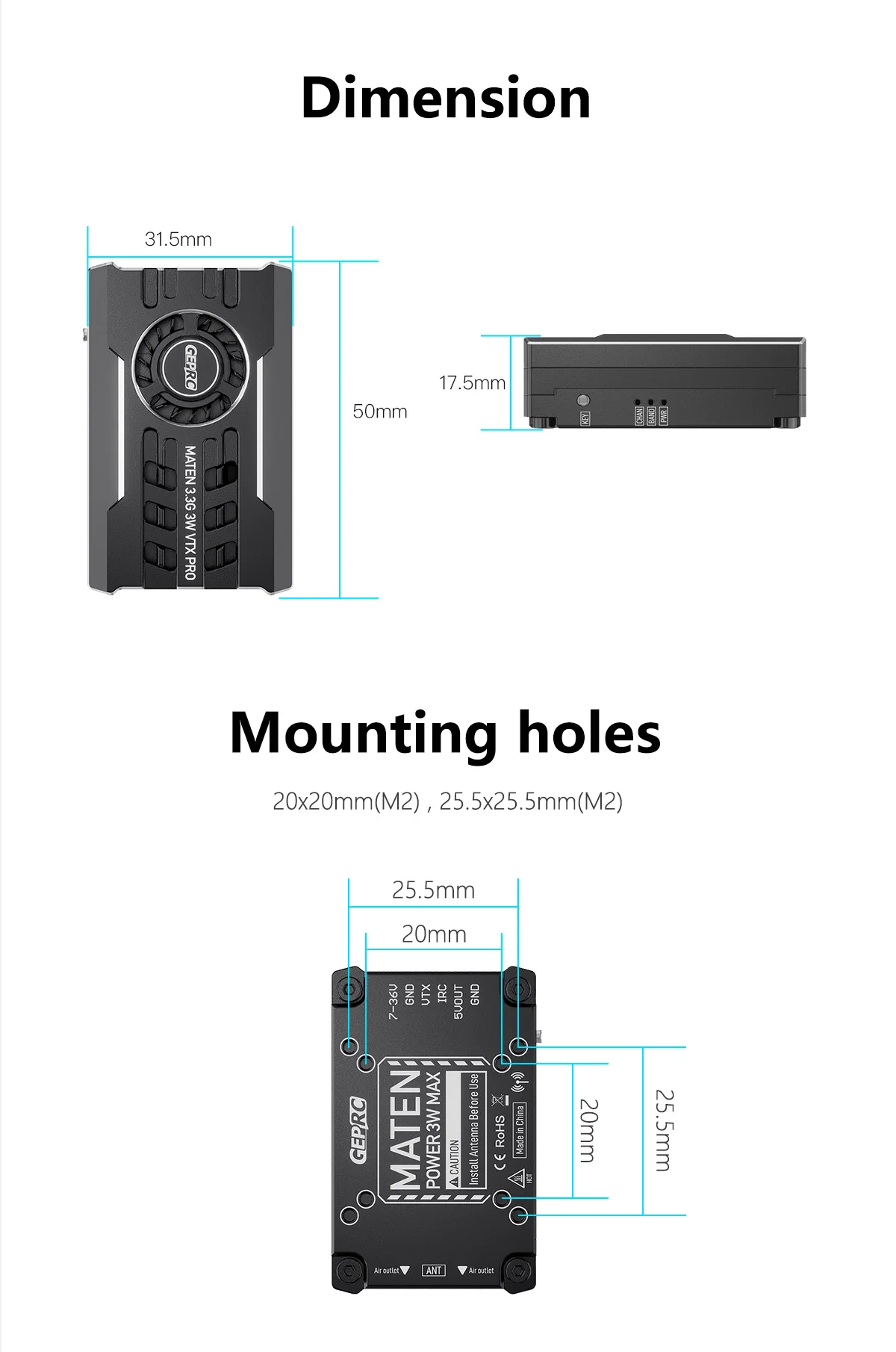

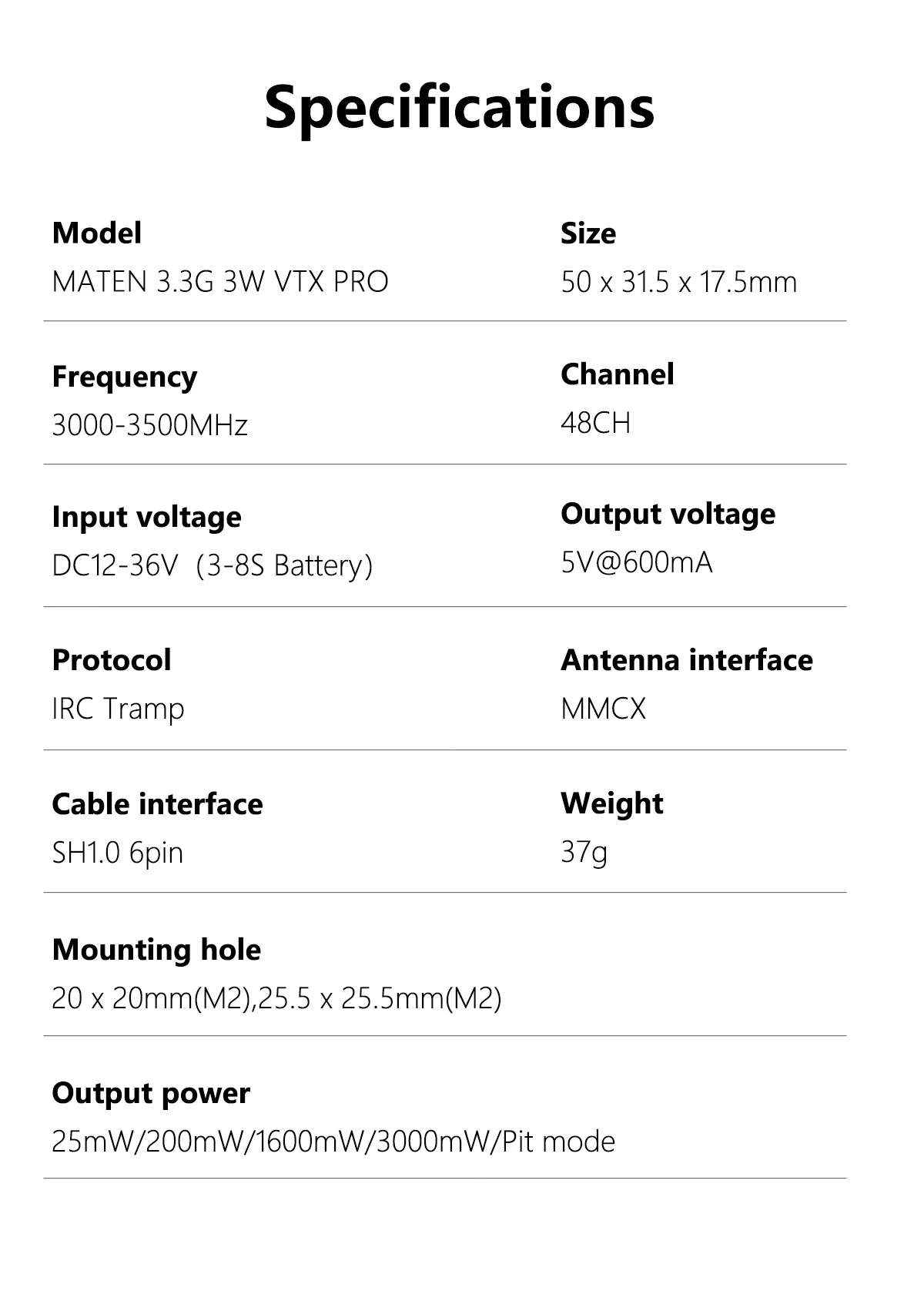

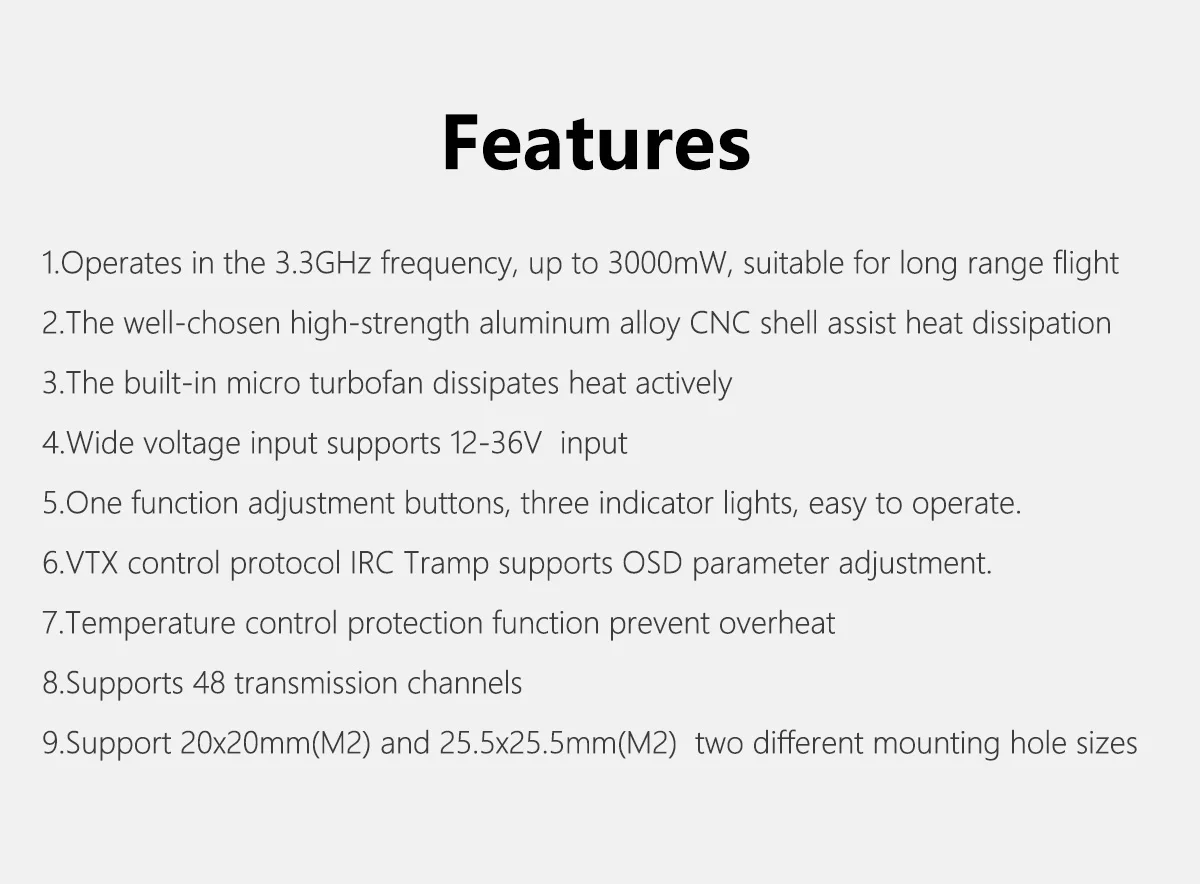

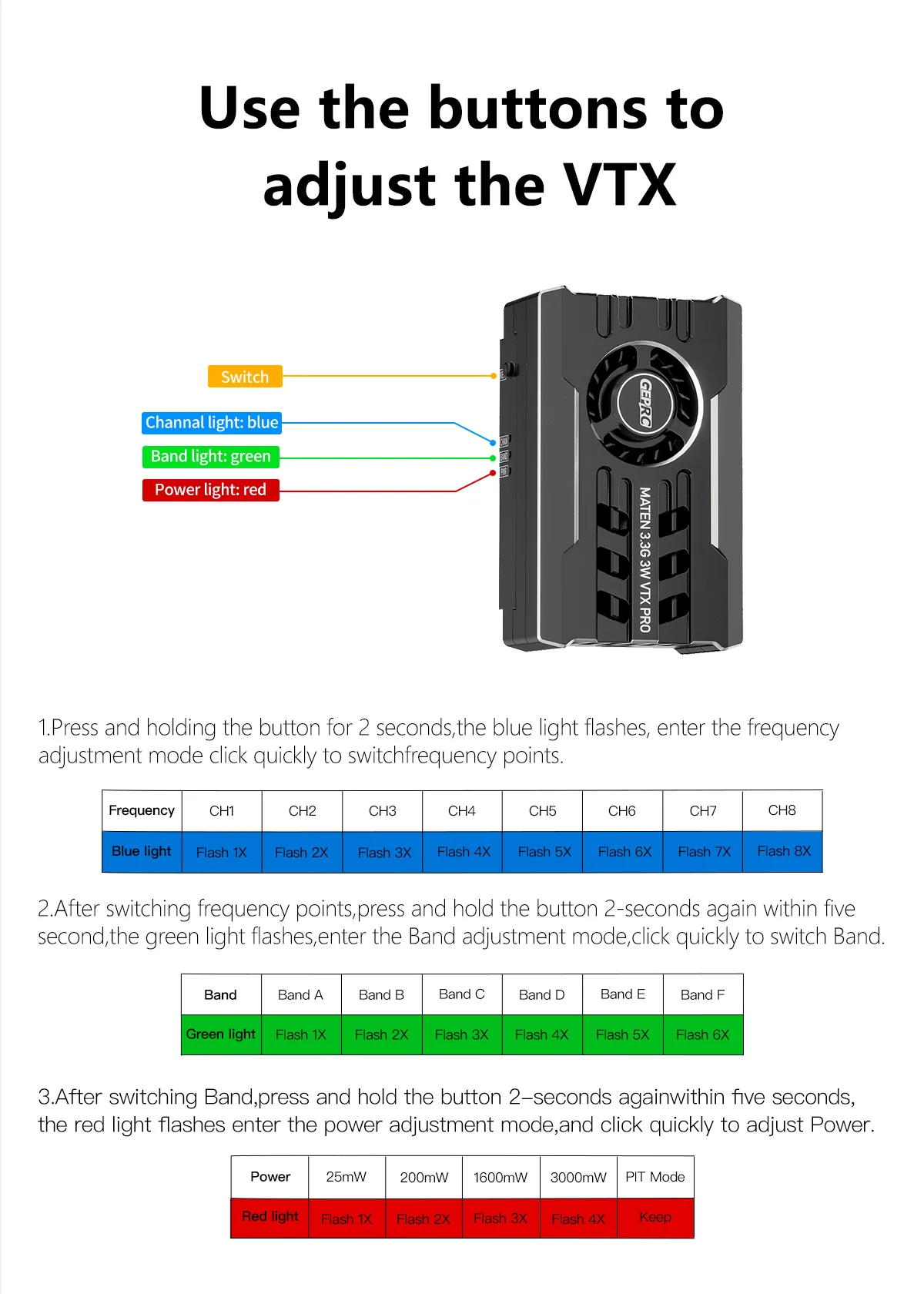

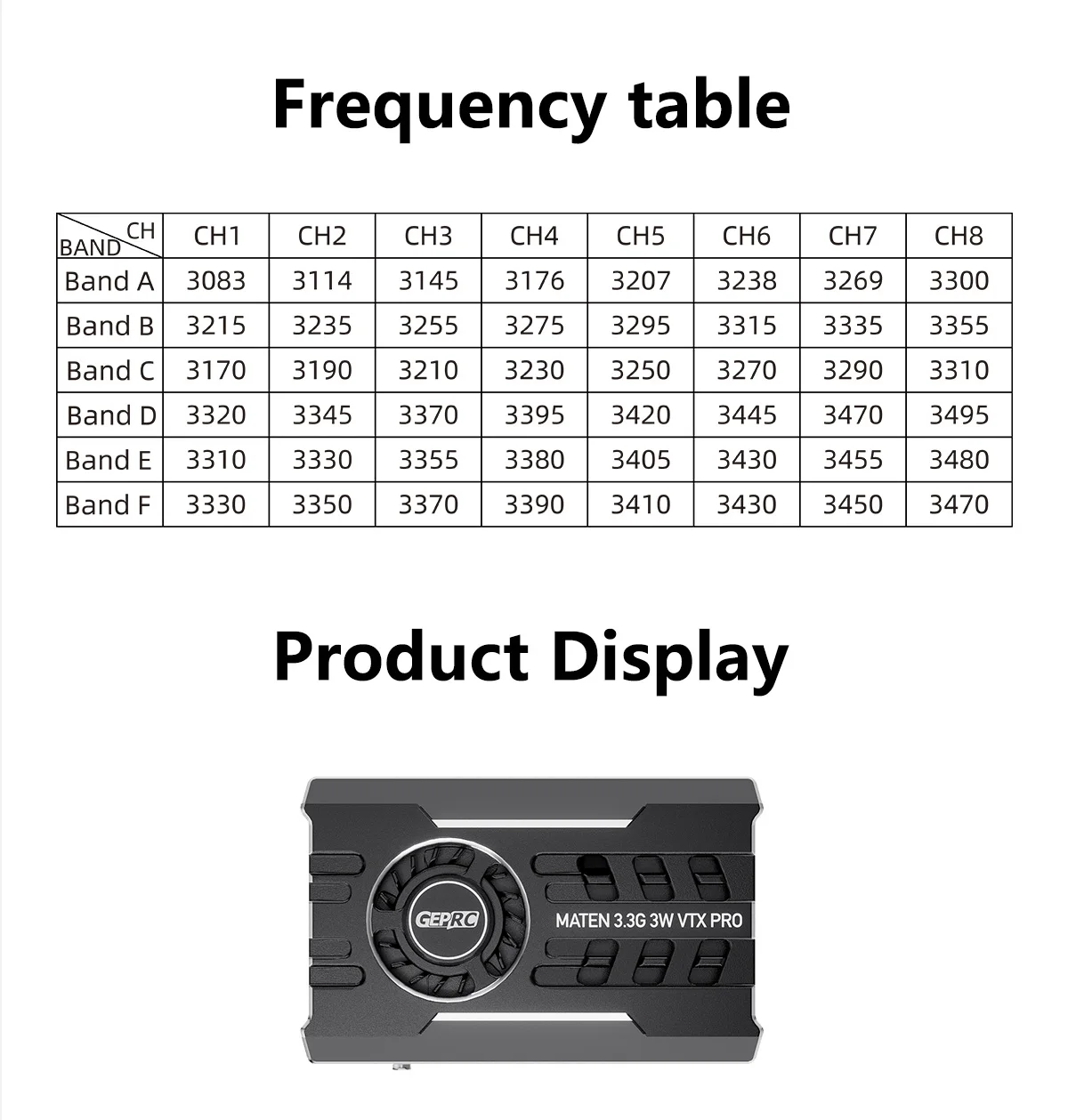

GEPRC MATEN 3.3G 3W VTX PRO Antenna Input Voltage for 40 Channels Long Range Flight DIY RC FPV Quadcopter Freestyle Drone Parts ============================================================ Feature: 1.Operates in the 3.3GHz frequency, up to 3000mW, suitable for long range flight 2.The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation 3.The built-in micro turbofan dissipates heat actively 4.Wide voltage input supports 12-36V input 5.One function adjustment buttons, three indicator lights, easy to operate. 6.VTX control protocol IRC Tramp supports OSD parameter adjustment. 7.Temperature control protection function prevent overheat 8.Supports 40 transmission channels 9.Support 20x20mm(M2) and 25.5x25.5mm(M2) two different mounting hole sizes 10. Supports enter frequency directly in the configurator. Specification: Model：GEPRC MATEN 5.8G 3W VTX PRO Size：50x31.5x17.5mm Output power：25mW/200mW/1600mW/3000mW/Pit mode Frequency：3000-3500MHz Channel：48CH Enter Frequency Directly：Support Frequency Bands: A:3083，3114，3145，3176，3207，3238，3269，3300 B:3215，3235，3255，3275，3295，3315，3335，3355 C:3170，3190，3210，3230，3250，3270，3290，3310 D:3320，3345，3370，3395，3420，3445，3470，3495 E:3310，3330，3355，3380，3405，3430，3455，3480 F:3330，3350，3370，3390，3410，3430，3450，3470 Input voltage：DC12-36V（3-8S Battery） Output voltage：5V@600mA Protocol：IRC Tramp Antenna interface：MMCX Cable interface：SH1.0 6pin Weight：37g Notes: 1. Installing antenna before use. 2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions. 3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX. Includes: 1 x MATEN 3.3G 3W VTX PRO 1 x MMCX to SMA connector 1 x sh1.0 6P Connecting cable 1 x User manual MATEN 3.3G 3W VTX PRO --------------------------------GEPRC SOMA 3.3G Antenna-------------------------- Summary: The GEPRC SOMA 3.3G antenna adopts an integrated molded enclosure to prevent signal instability from deformation of the RF PCB due to external forces. With an average gain of up to 4.85 dBi and a low SWR of 1.44, the antenna delivers impressive video transmission distances when paired with a 3.3G VTX. Feature: 1. The molded enclosure shields the PCB board, enhancing overall reliability. 2. Provides up to 4.85 dBi gain and a low SWR of 1.44. 3. Premium SMA connectors offer lower impedance and better transmission efficiency. 4. Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards. Specification: Model：GEPRC SOMA 3.3G antenna Center Frequency：3.3GHz Bandwidth: 3.0GHz~3.5GHz Polarization: RHCP Gain: 4.85dbi Axial Ratio: ≤3 SWR：≤1.44 Radiation Efficiency: 85% Cross polarization suppression: -25dB Length: 170mm Antenna Design: FPC+PCB Antenna Weight: 22g Enclosure Material: ABS Connector Type: SMA Notes: The product does not include the VTX, only the antenna Includes: 1*SOMA 3.3G antenna TECHNICAL SPECIFICATIONS • Model：GEPRC MATEN 5.8G 3W VTX PRO • Model：GEPRC SOMA 3.3G antenna • Size：50x31.5x17.5mm • Weight：37g • Length: 170mm • Frequency：3000-3500MHz • Channel：48CH • Protocol：IRC Tramp • Gain: 4.85dbi AVAILABLE OPTIONS Antenna VTX China Mainland PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $17.14 ————————————————————————————————————————
