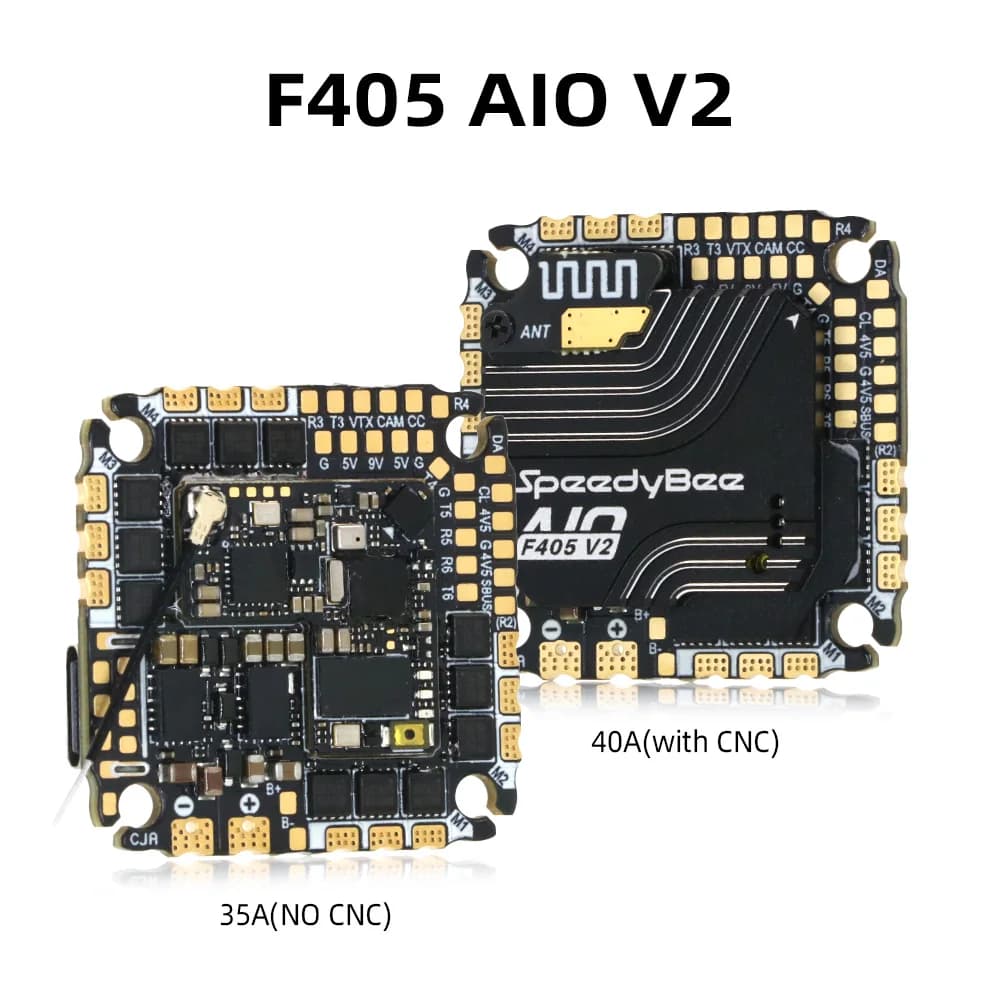

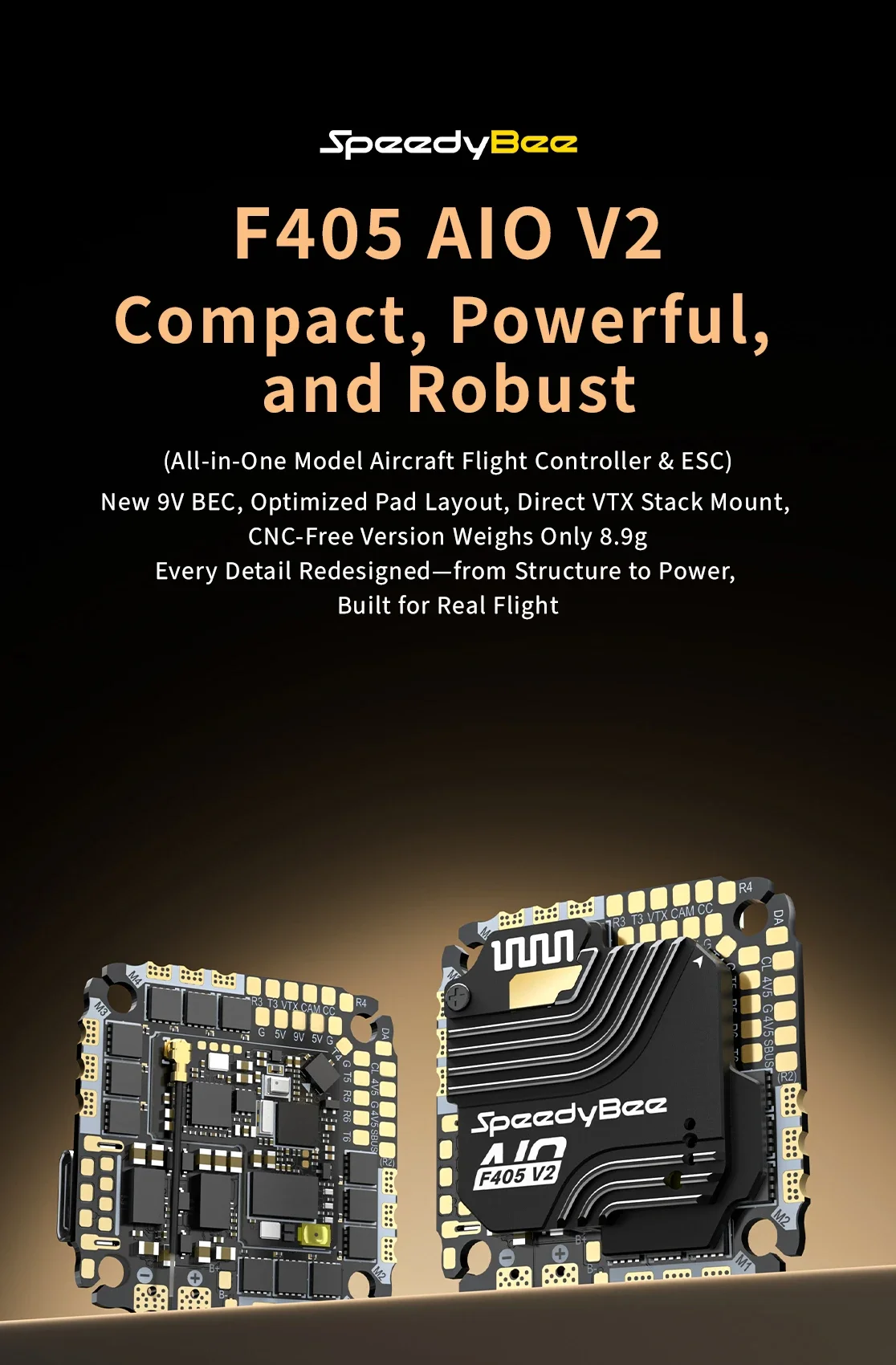

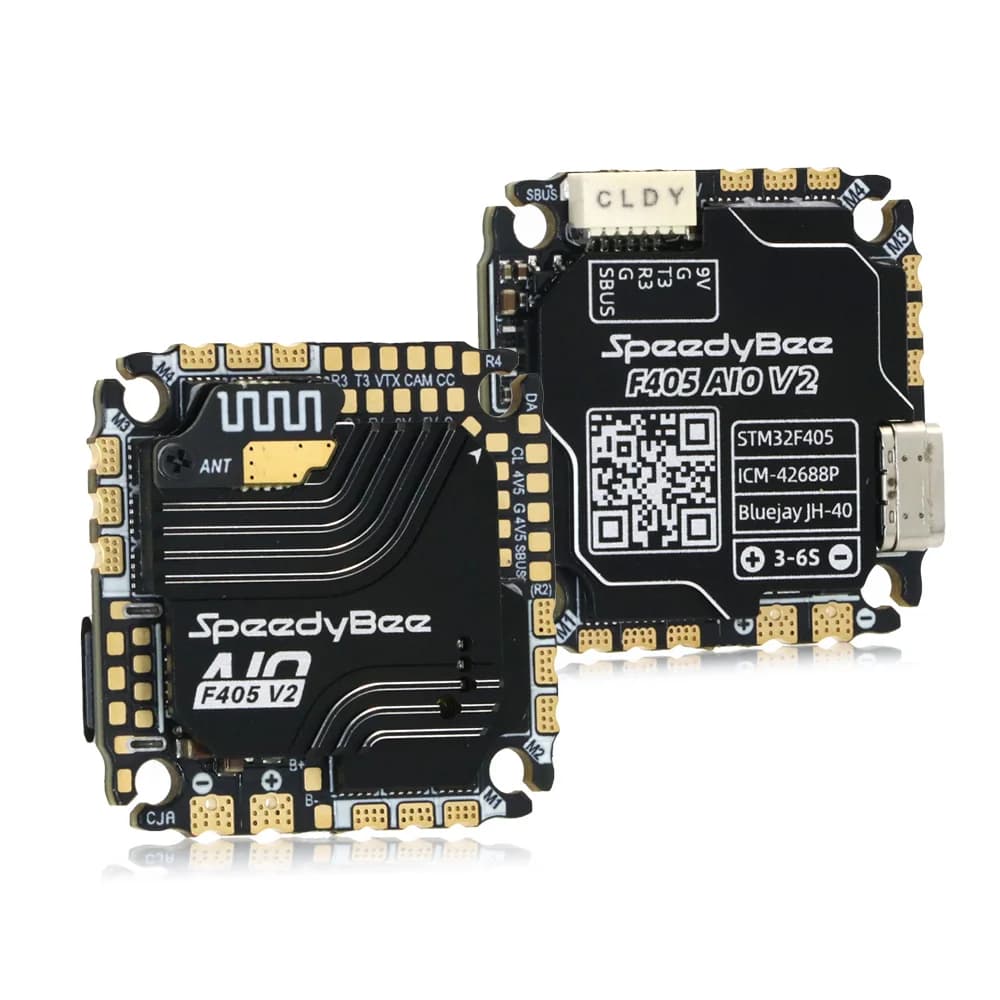

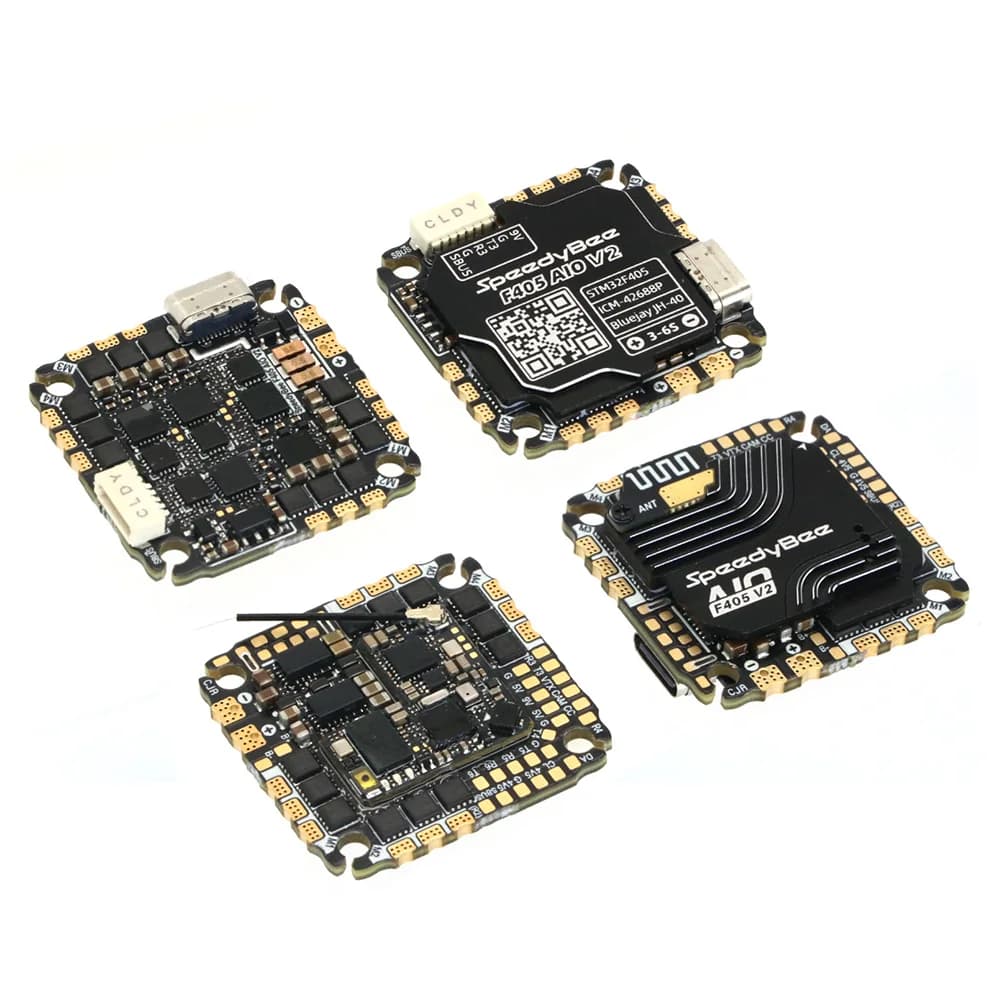

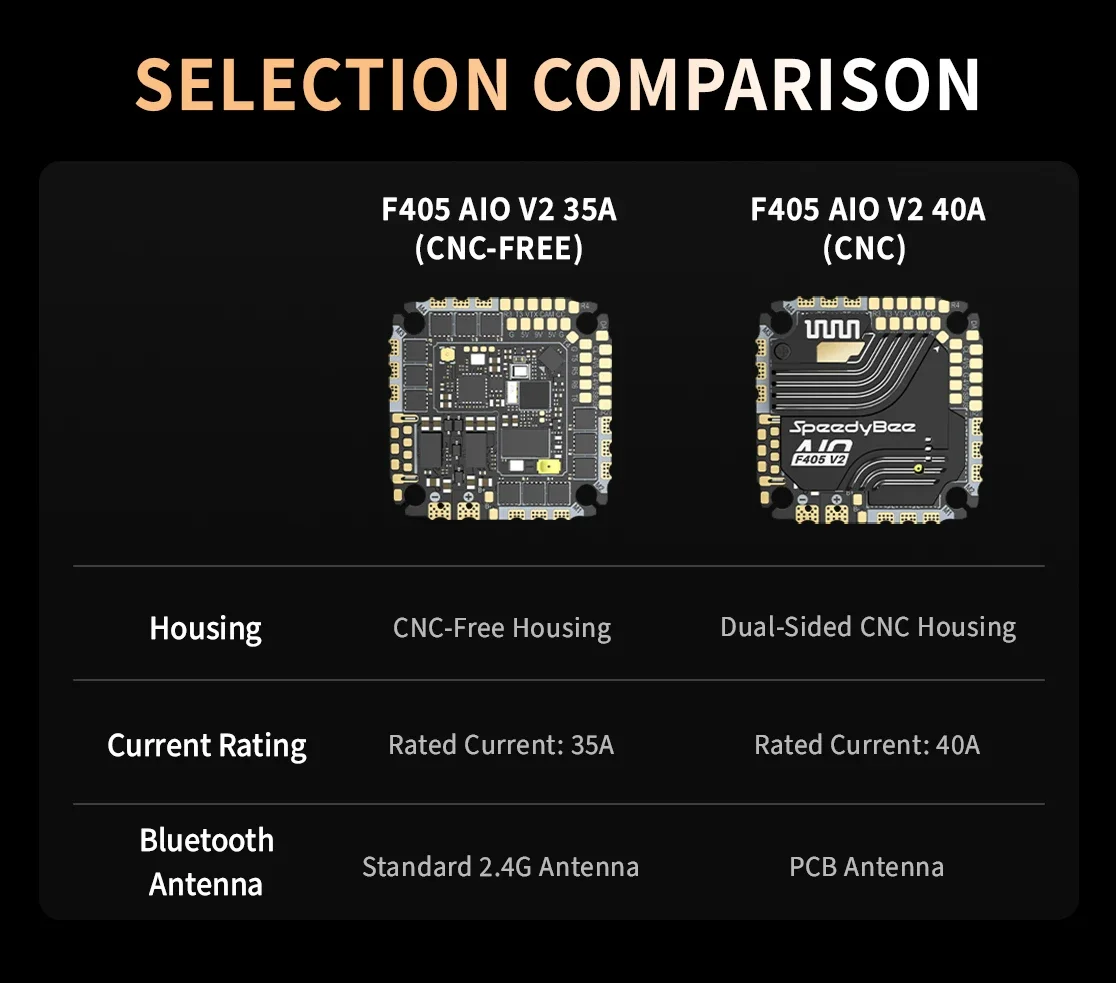

SpeedyBee F405 AIO V2 35A without CNC / 40A with CNC 25.5x25.5 3-6S Flight Control and ESC Integrated for Aircraft

Description

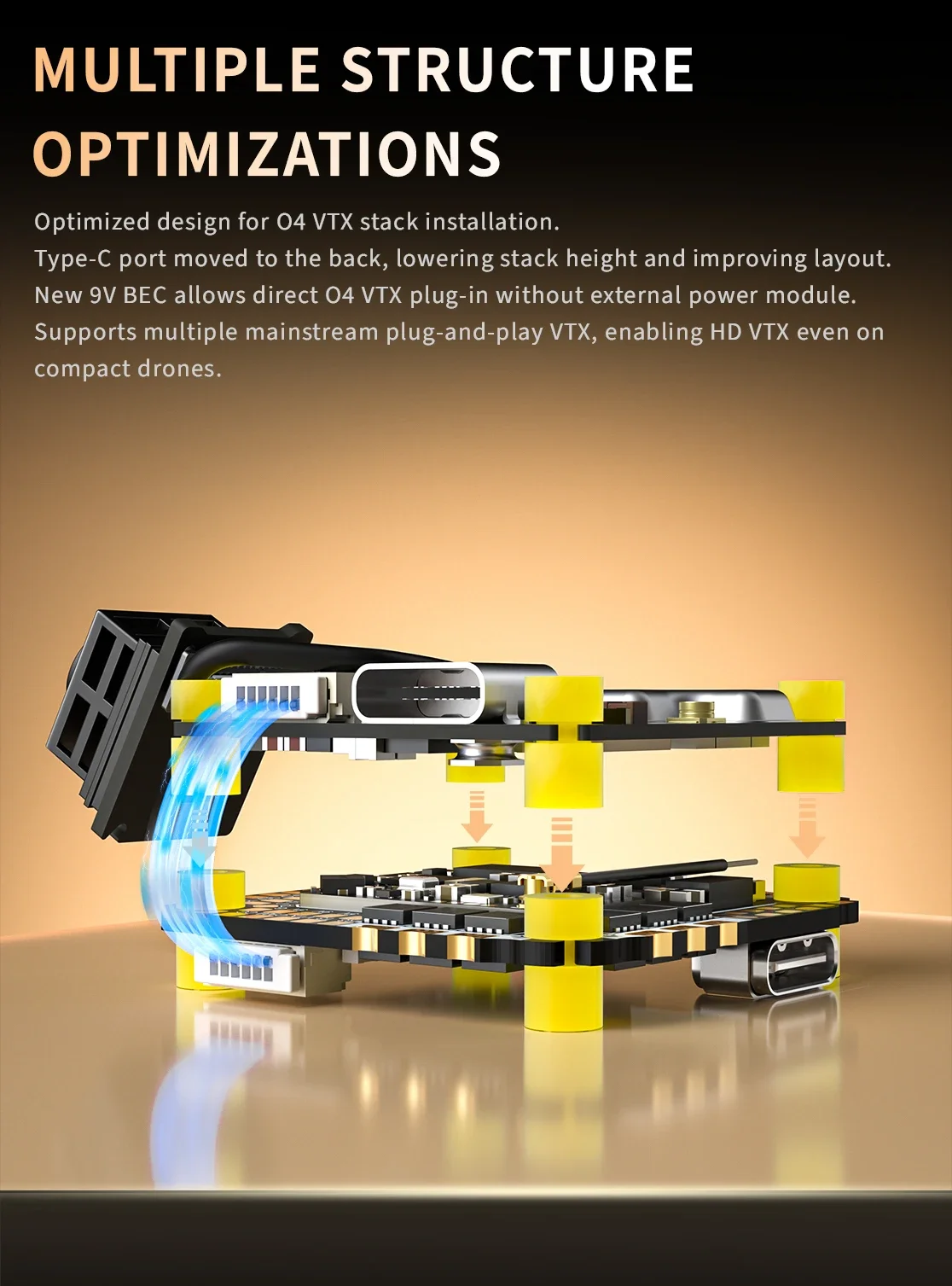

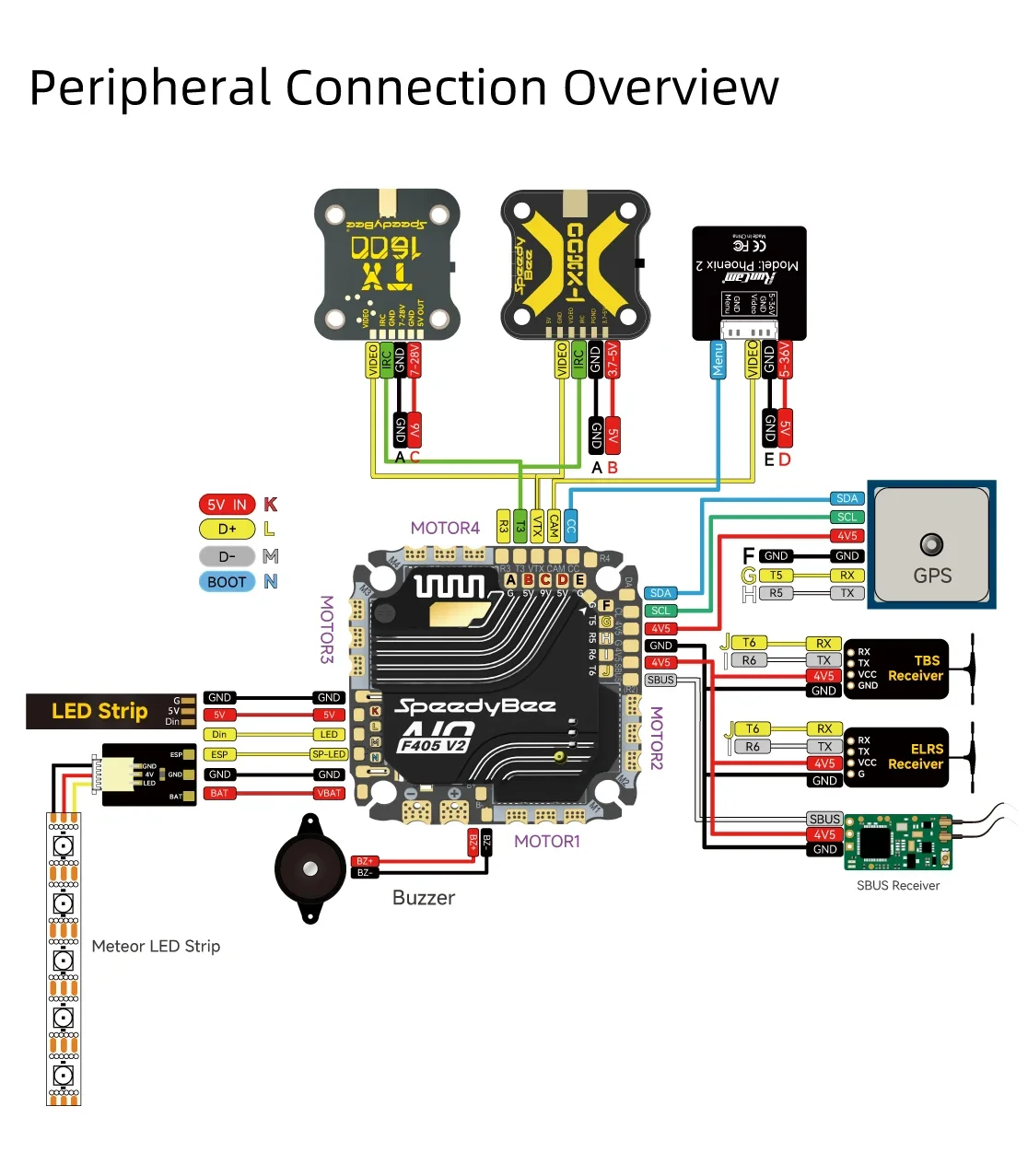

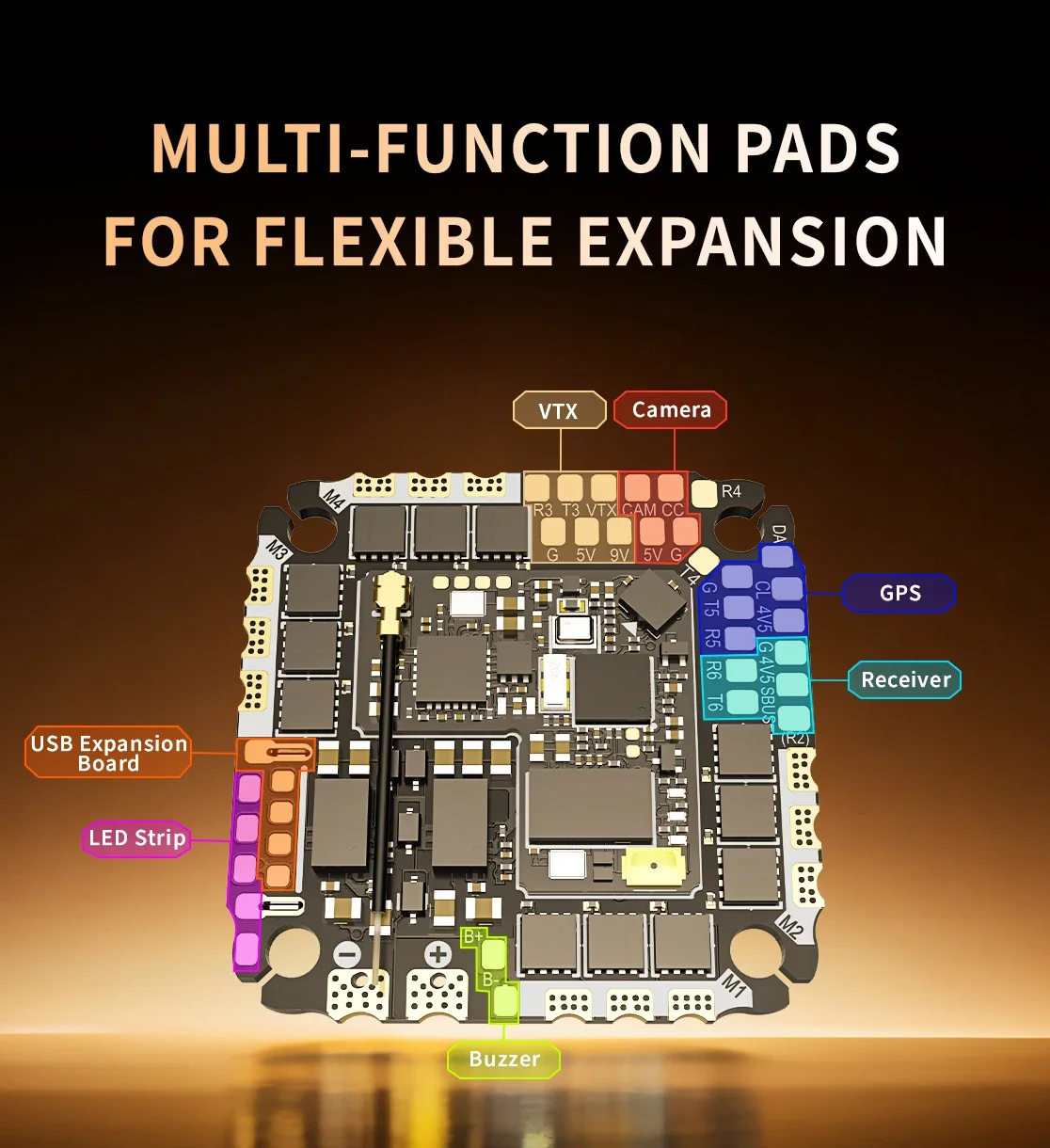

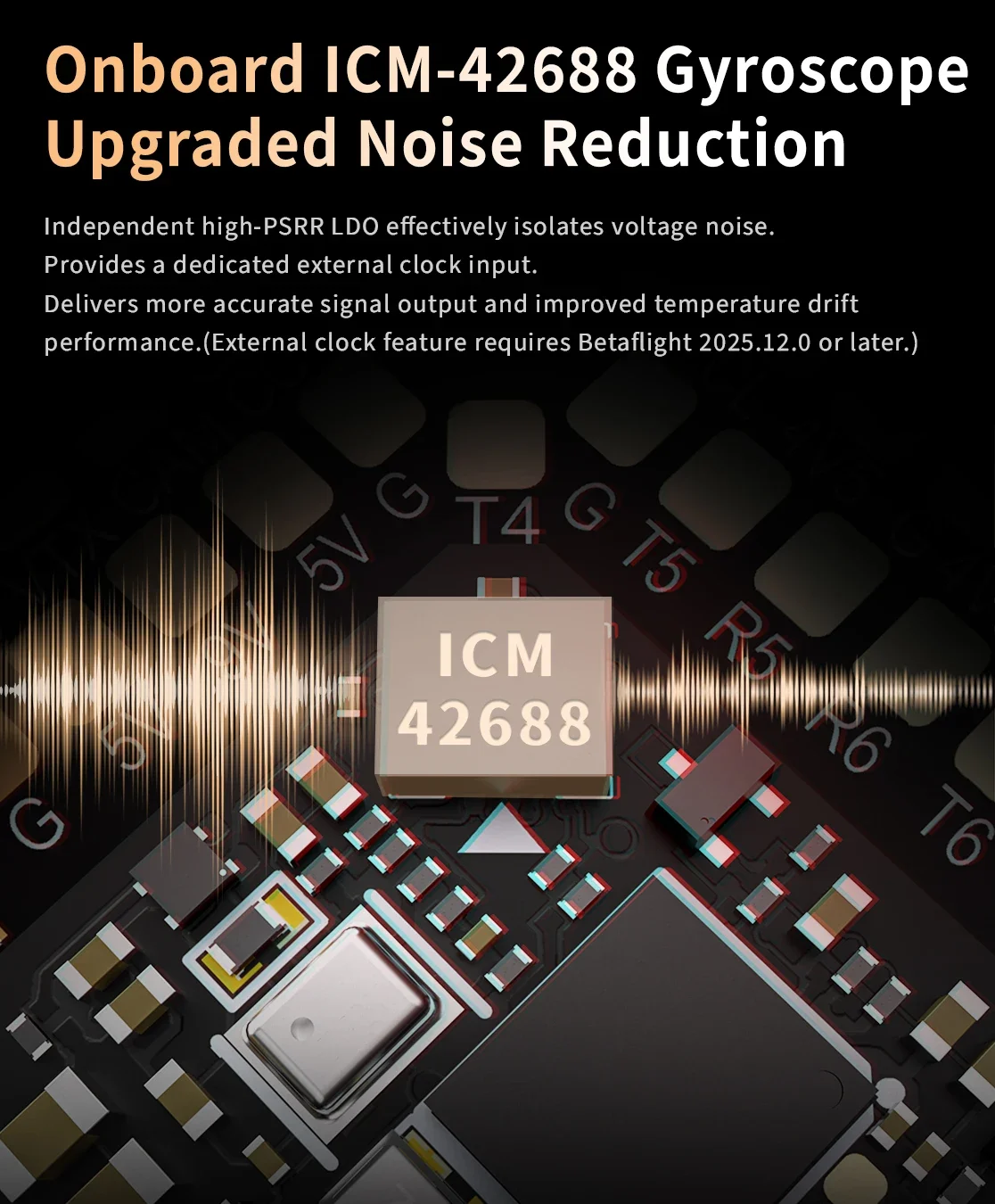

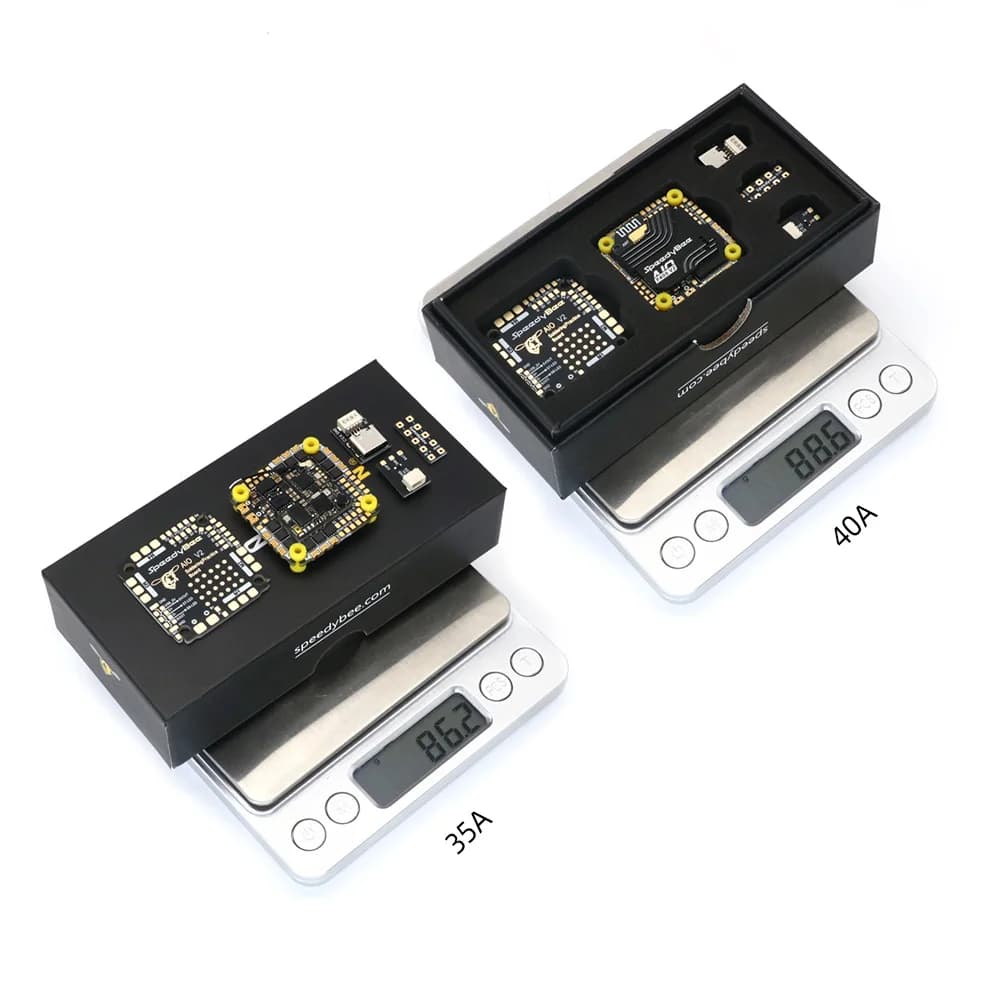

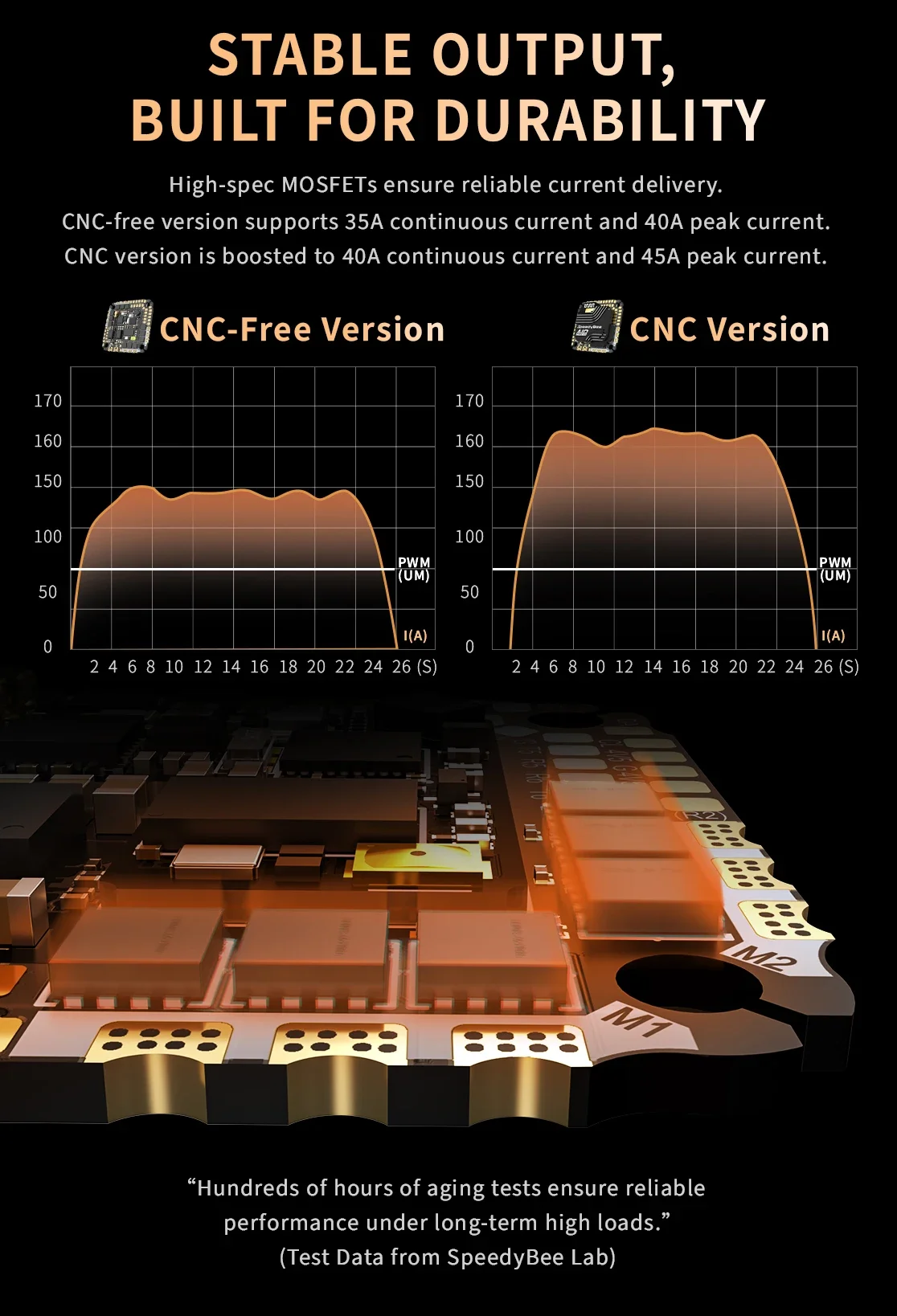

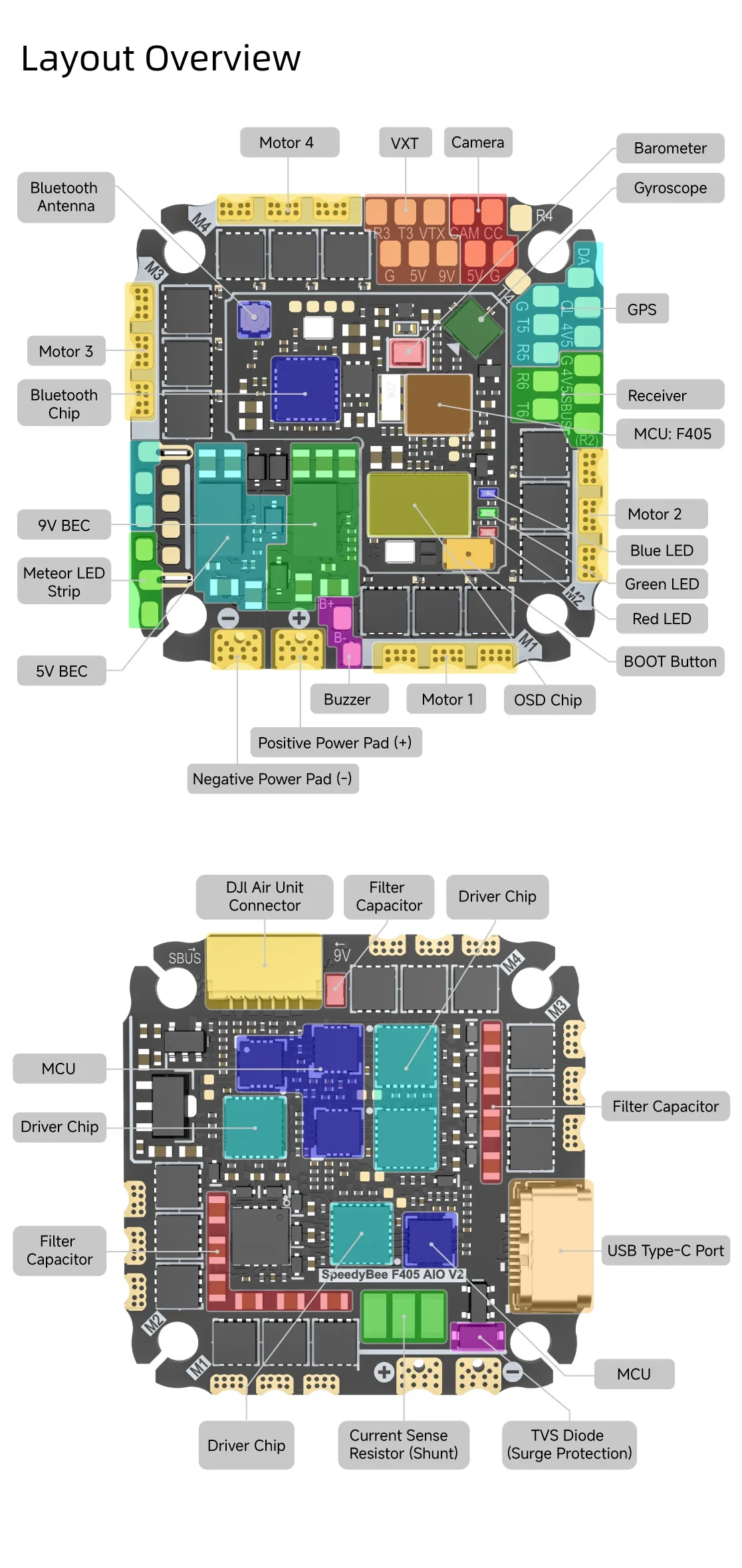

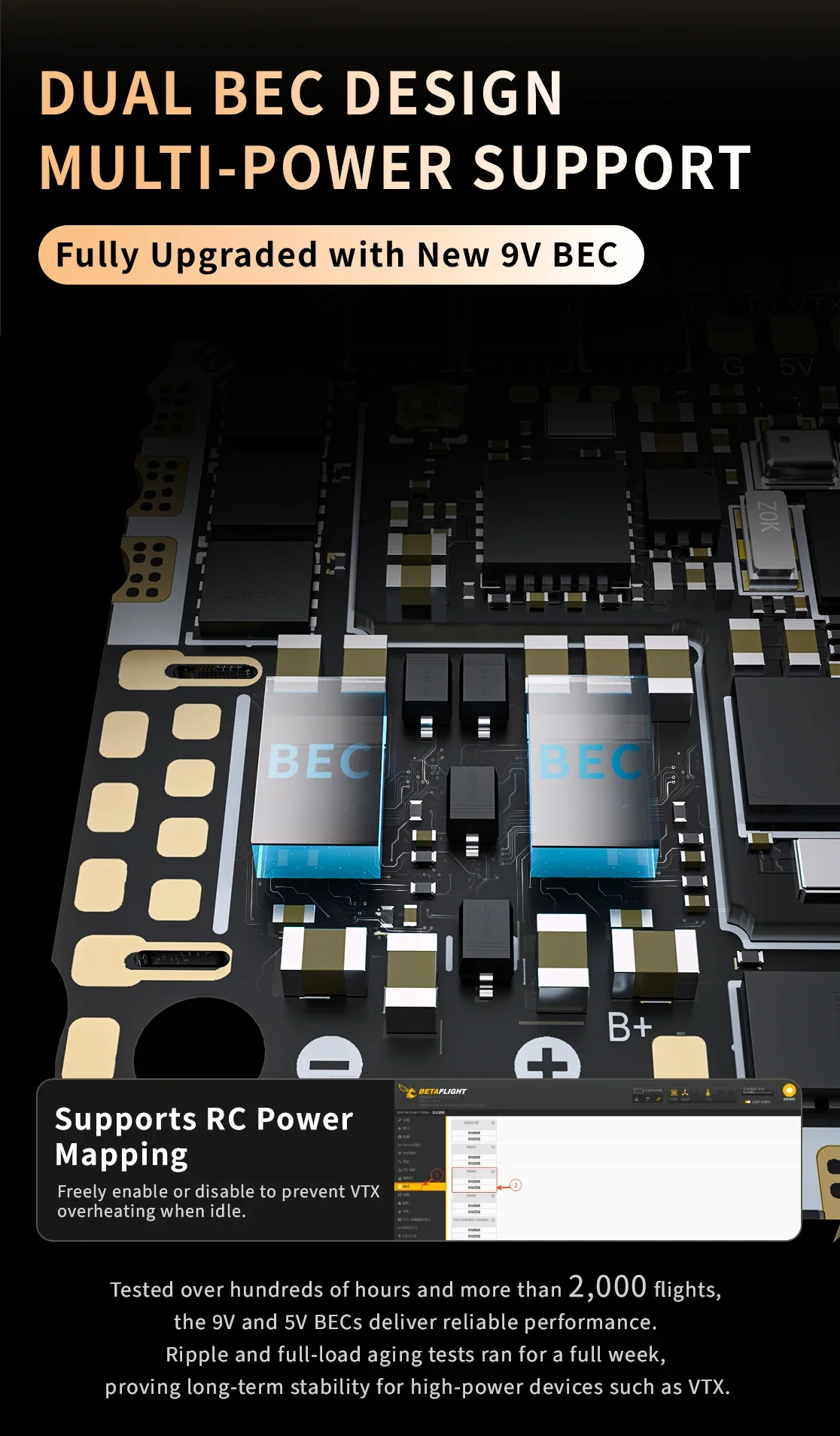

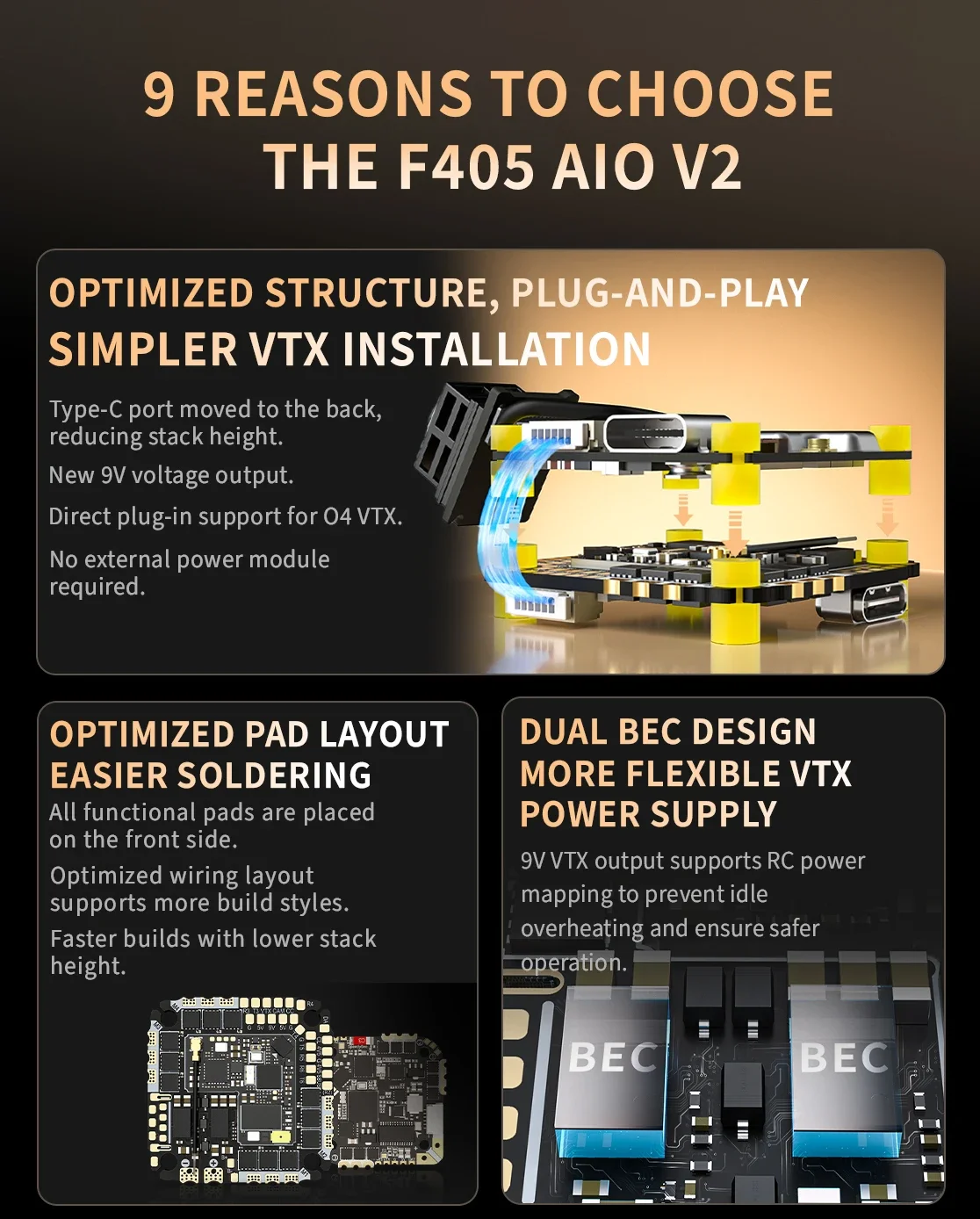

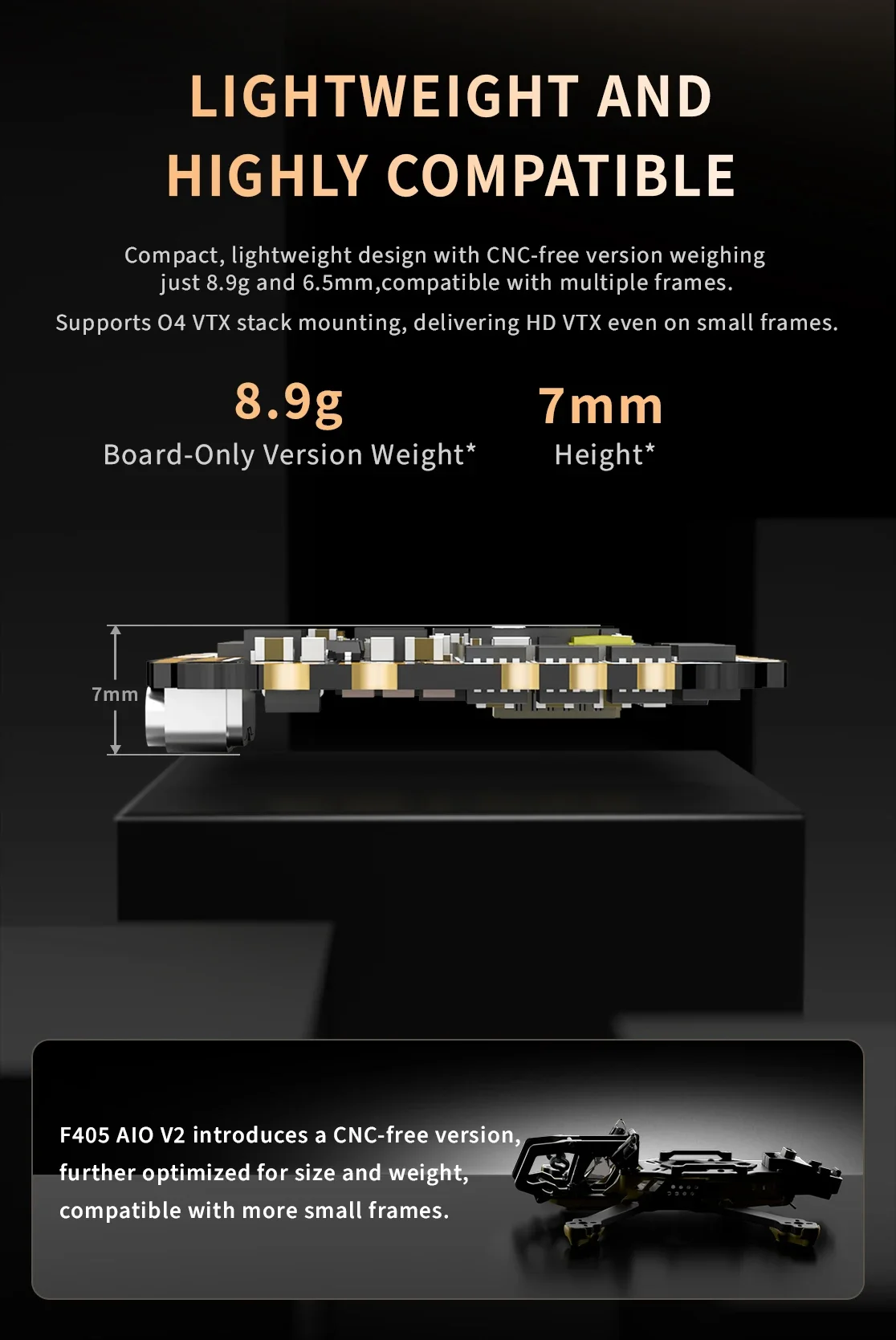

SpeedyBee F405 AIO V2 35A without CNC / 40A with CNC 25.5x25.5 3-6S Flight Control and ESC Integrated for Aircraft ============================================================ SpeedyBee F405 AIO V2 35A without CNC / 40A with CNC 25.5x25.5 3-6S Flight Control and ESC Integrated for Aircraft Features: 1. Integrated Flight Control and Electronic Speed Controller for Model Aircraft 2. Onboard ICM-42688 gyroscope, no CNC version reduced to 8.9g,Small sized racks can also be easily assembled 3. 4 sets of UART serial ports+SBUS+12C+TYPE-C expansion+buzzer+BOOT, GPS,magnetometer, LED can all be easily connected 4. No need to connect to a computer or data cable, supports one click wireless same device upgrade, the system automatically enters DFU mode without manual operation 5. Multiple optimized designs, O4 image transmission can be directly installed 6. Dual BEC Design: optimized pad layout,Both 9V BEC and 5V BEC exhibit excellent performance 7. Built-in physical buttons and virtual DFU buttons, and firmware upgrades do not require disassembly, APP One click access to DFU, firmware upgrade more portable 8. Only supports DSHOT600/300, other protocols may cause serious errors 9. Support meteor light strip function,Easily create cool lighting effects, personalize your flying experience(it can also automatically enter DFU when the flight control firmware is abnormal) 10. Support remote control mapping for power control,Can be freely enable /close, effectively avoid damage to image transmission due to overheating during no-load operation Description: The F405 AIO V2 all functional solder pads are concentrated on the same side,the solder pad area has increased by 30% compared to F745 A1O, making soldering easier andthe operation more convenient,has launched a CNC free version to further optimize its volume and weight, meeting more requirements for small rack adaptation. F405 AIO V2 Specifications: Product Name: SpeedyBee F405 A1O V2 Main control chip: STM32F405 Gyroscope: ICM-42688P USB interface type: Type-C Barometer: SPA06-003 OSD: Support Bluetooth BLE: Supports Wireless Flight Control Firmware Update: Supports DJlAir Unit connection methods: 6PIN socket direct insertion and soldering Black box storage: 8MB Betaflight CC solder pads: support Input voltage: 3S-6S lipo battery 4V5 output: 1A 5V BEC output: 1.5A 9V BEC output: 1.5A MOTOR: M1-M4 UART serial port: Four sets of fully functional serial ports (UART3, UART4, UART5, UART6+SBUS [R2]) Electric tuning test input: none I2C: Support LED pads: support Beehive pad: Support BOOT key: Support RSSI pad: None SmartPort: not supported Supported flight control firmware types: betaflgiht Firmware Target Name: SPEEDYBEEF405AIOV2 Installation hole position: 25.5mm x 25.5mm, 2mm aperture Size: Standard version: 33x33x7mm; CNC version: 33x33x8mm Weight: Standard version: 8.99; CNC version: 12.8g ESC Specifications: Product Name: SpeedyBee F405 AIO V2 Input voltage: 3-6S Nominal current: Standard version: 35A single channel, 140A four channel; CNC version: 40A single channel, 160A four channel Peak current: Standard version: 40A V, 160A quad; CNC version: 45A single channel, 180A four channel ESC protocol: only supports DSHOT600/300, other protocols may cause serious errors. Output voltage: VBAT battery voltage (used to power the flight control) Ammeter: Supports (Scale=88, Offset=0) ESC firmware: Factory firmware Bluejay JH-40 48Khz Package contents: 1 * F405 AIO V2 1 * Welding practice board 4 * M2 7.7mm shock-absorbing silicone sleeve 4 * M2 8.4mm shock-absorbing silicone sleeve 1 * DJI Sky End Connection Cable [SH1.0 6pin * 80mm] 1* BEC 1 * Type-C extension module 1* Type-C extension module 4-pin * 80mm ribbon cable 1 * User Guide 2 * Transparent heat shrink tubing 1 * Meteor light strip BEC connection cable view 80MM 1 * Power Expansion Board 4 * fixing screw M2 * 20mm 4 * fixing screw M2 * 12 mm 1 * 35V 470UF electrolytic capacitor 1 * Electric customer heat shrink tubing
