SpeedyBee F405 WING APP ArduPilot INAV 2-6S Контроллер полета для радиоуправляемого мультироторного самолета-дрона с фиксированным крылом в наличии
Description
Specifications Product Name SpeedyBee F405 WING FC board MCU STM32F405,168MHz,1MB Flash IMU(Gyro&Accelerometer) ICM-42688-P Barometer SPL006-001 OSD Chip AT7456E Blackbox MicroSD Card Slot UART 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) I2C 1x Used for magnetometer, digital airspeed sensor ADC 4x (VBAT, Current, RSSI, Analog AirSpeed) PWM 12x (11+1“LED”pad) ELRS/CRSF receiver Supported,connected to UART1 SBUS Built in inverter for SBUS input (UART2-RX) LED 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB RSSI Supported,Named as RS . Supported FC Firmware INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING Product Name SpeedyBee F405 WING PDB board Input voltage range 7~36V (2~6S LiPo) Battery Voltage Sensor Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot) Battery Current Sensor 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot) TVS Protective diode Yes FC BEC output Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip VTX BEC output Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera. Servo BEC output Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos. Product Name SpeedyBee F405 WING Wireless board Wireless Configuration (long press BOOT button for 6 seconds to switch modes) BLE mode, connect to Speedybee APP Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) 4x WS2812 LED strip connectors, adjustable colors and flashing modes 4x WS2812 LED strip connectors, adjustable colors and flashing modes On-board battery level indicator 4x RGB indicator LED for battery level display by number of lights
Specifications
Product Name

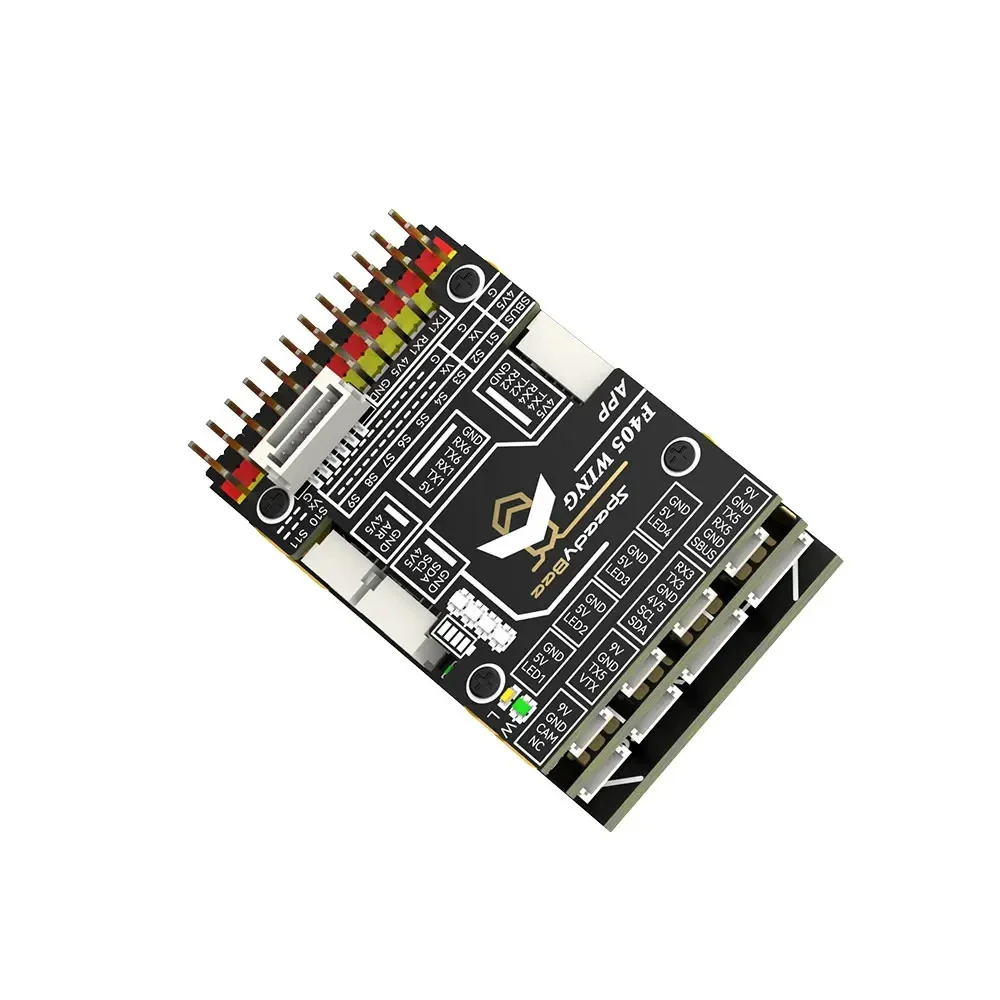

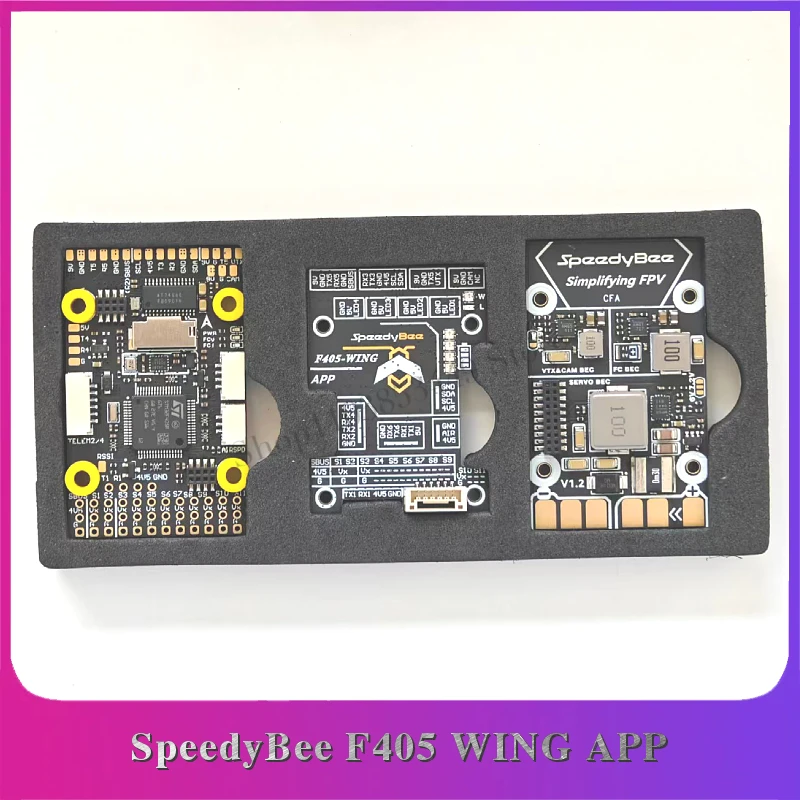

SpeedyBee F405 WING FC board
MCU
STM32F405,168MHz,1MB Flash
IMU(Gyro&Accelerometer)
ICM-42688-P
Barometer
SPL006-001
OSD Chip
AT7456E
Blackbox
MicroSD Card Slot

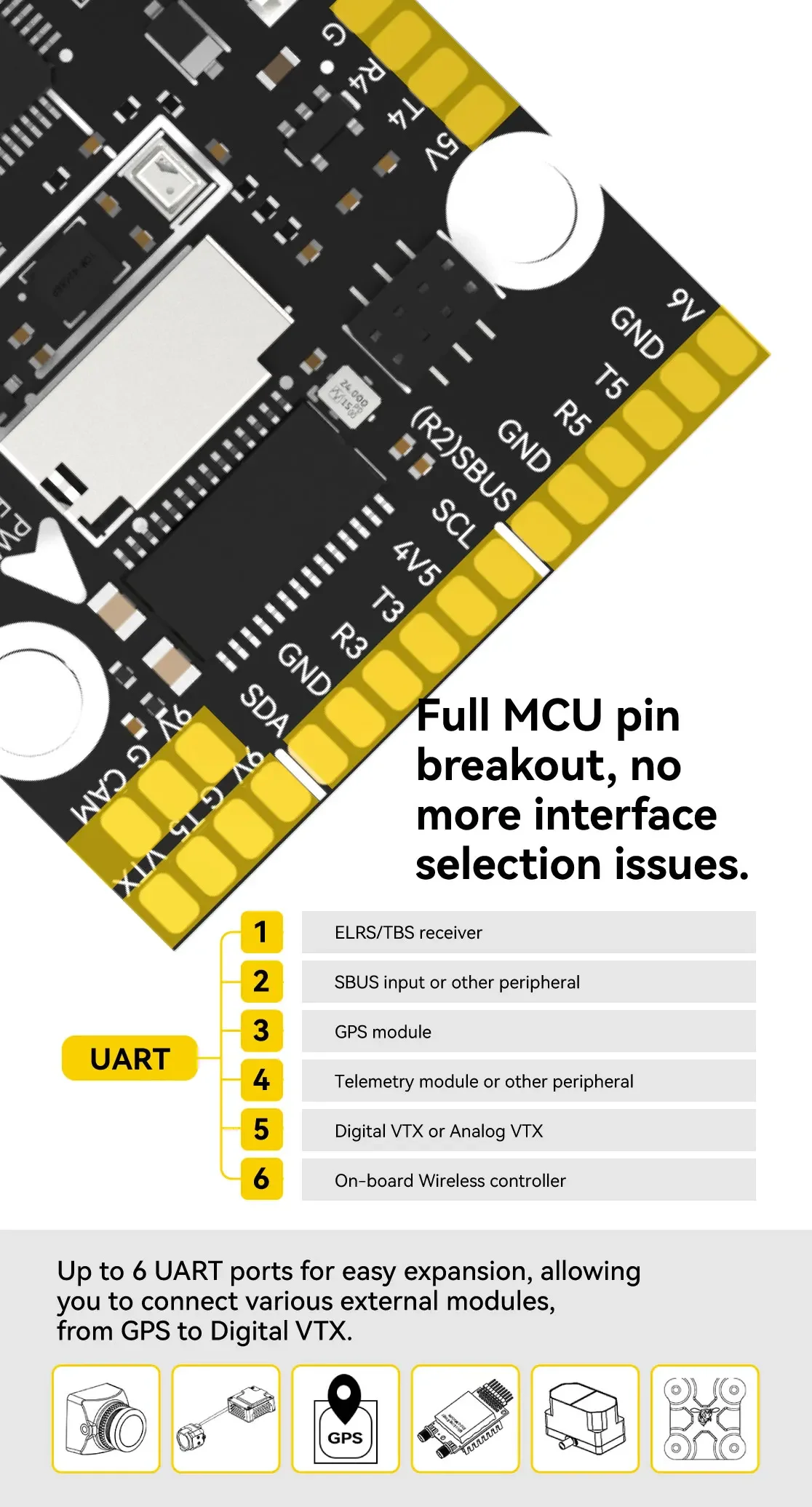

UART
6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
I2C
1x Used for magnetometer, digital airspeed sensor
ADC
4x (VBAT, Current, RSSI, Analog AirSpeed)

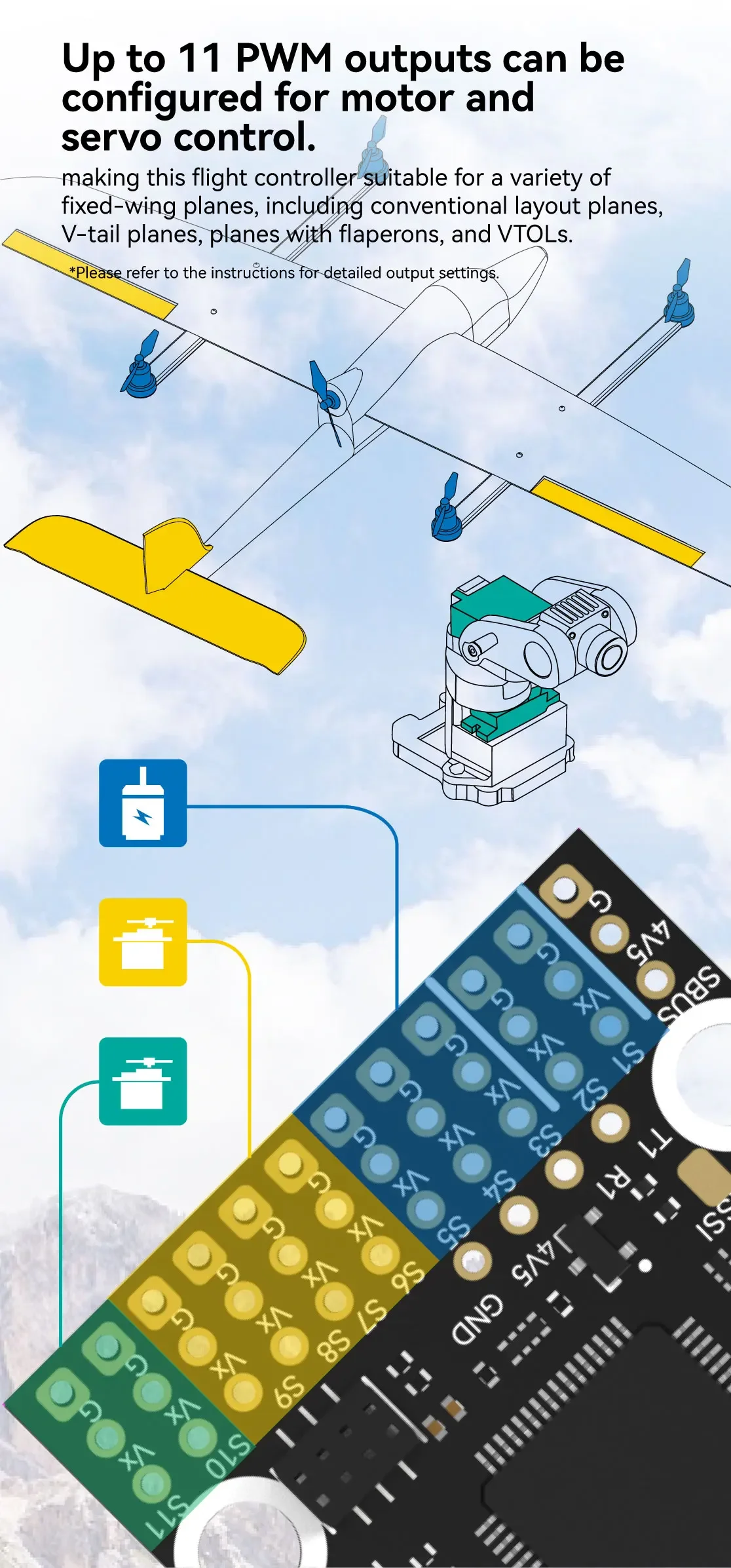

PWM
12x (11+1“LED”pad)

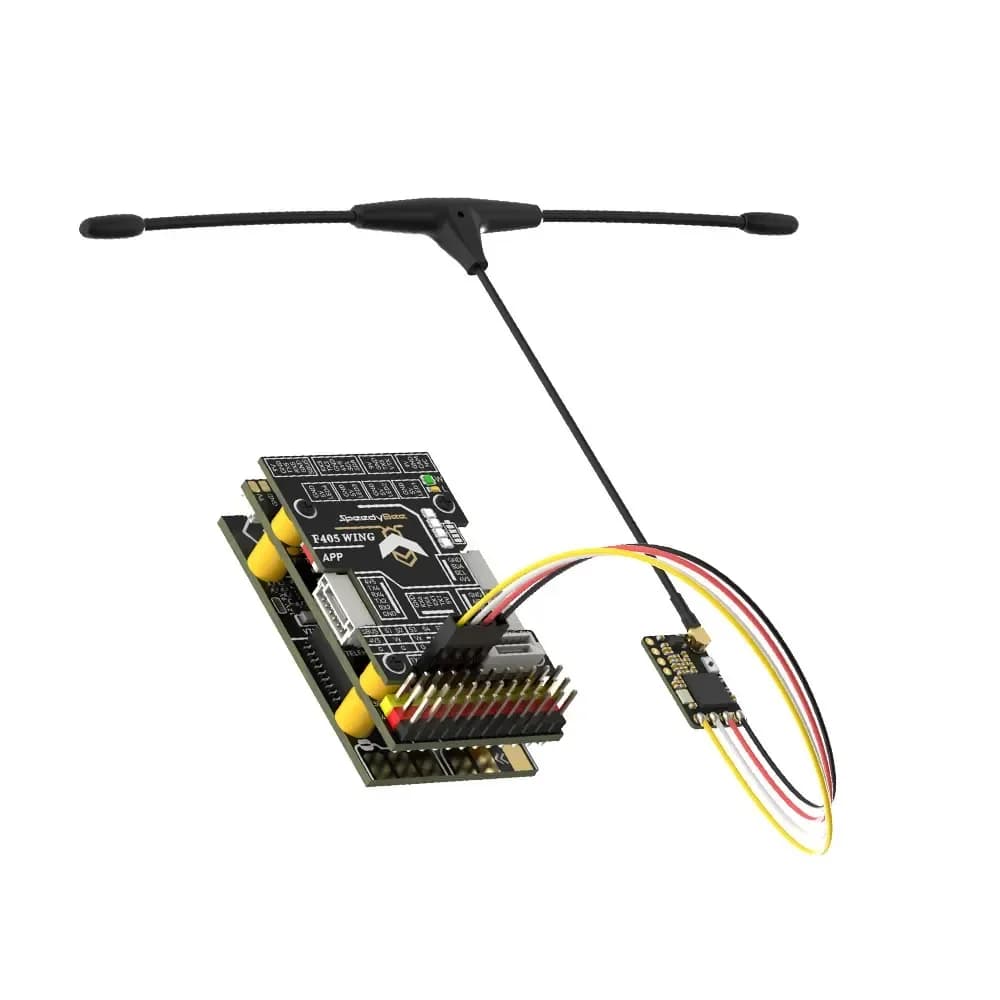

ELRS/CRSF receiver
Supported,connected to UART1
SBUS
Built in inverter for SBUS input (UART2-RX)
LED
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
RSSI
Supported,Named as RS .
Supported FC Firmware
INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING

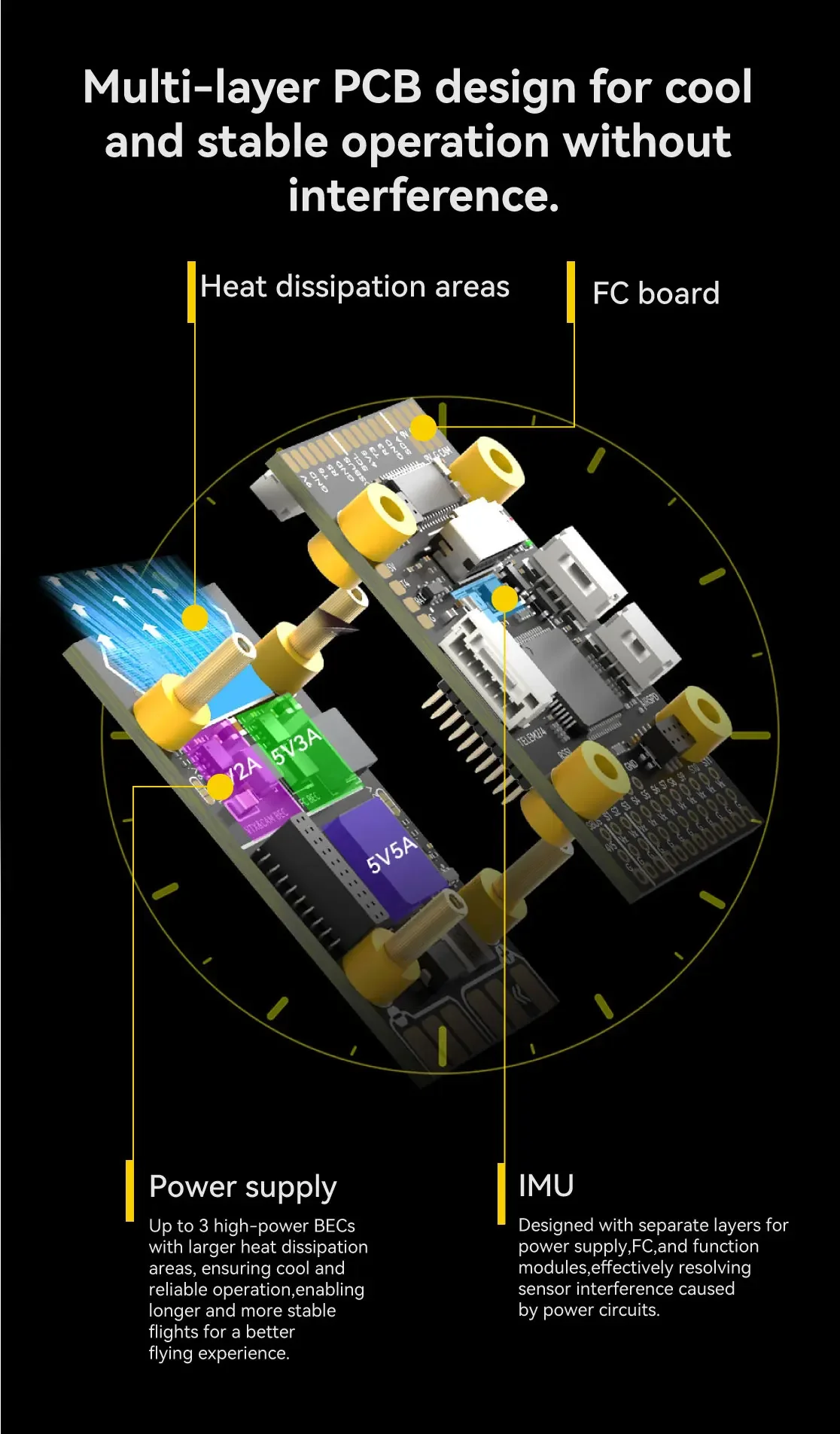

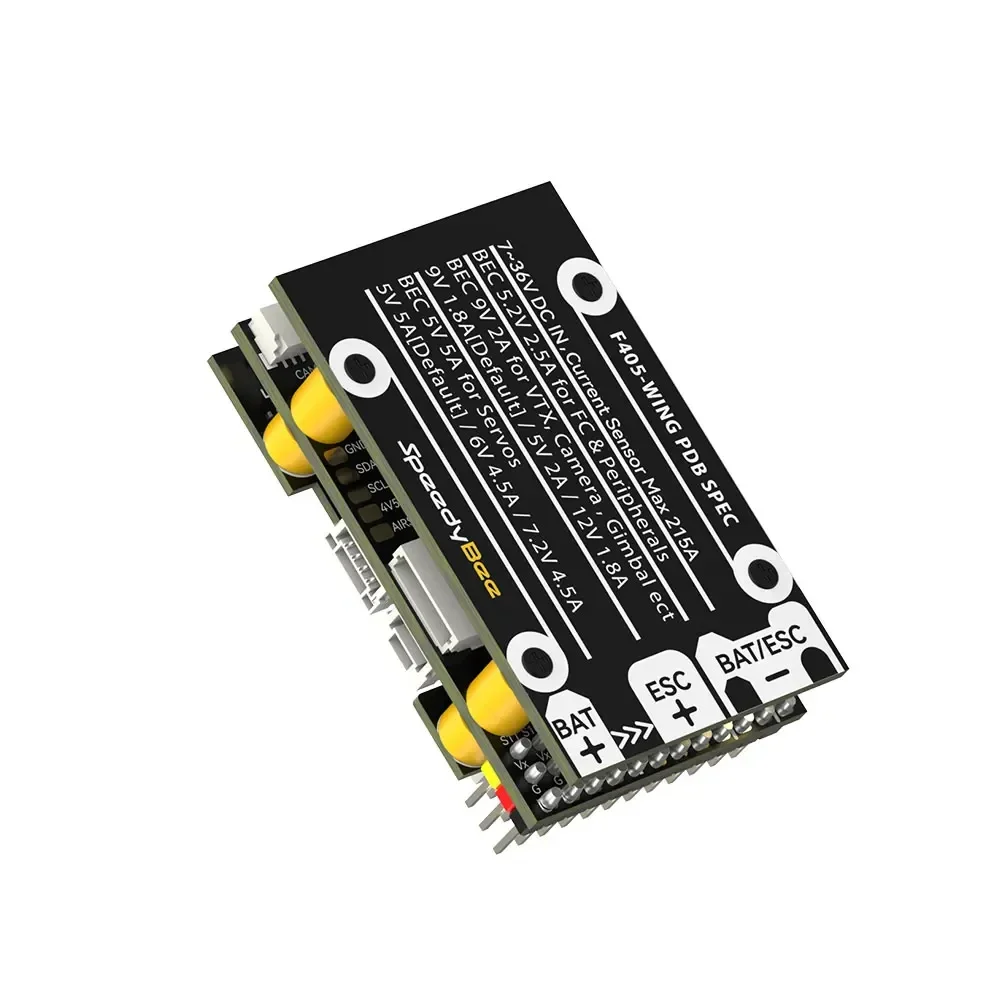

SpeedyBee F405 WING PDB board
Input voltage range
7~36V (2~6S LiPo)
Battery Voltage Sensor
Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
Battery Current Sensor
90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
TVS Protective diode
Yes
FC BEC output
Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
VTX BEC output
Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
Servo BEC output
Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
SpeedyBee F405 WING Wireless board
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
BLE mode, connect to Speedybee APP
Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)
4x WS2812 LED strip connectors, adjustable colors and flashing modes

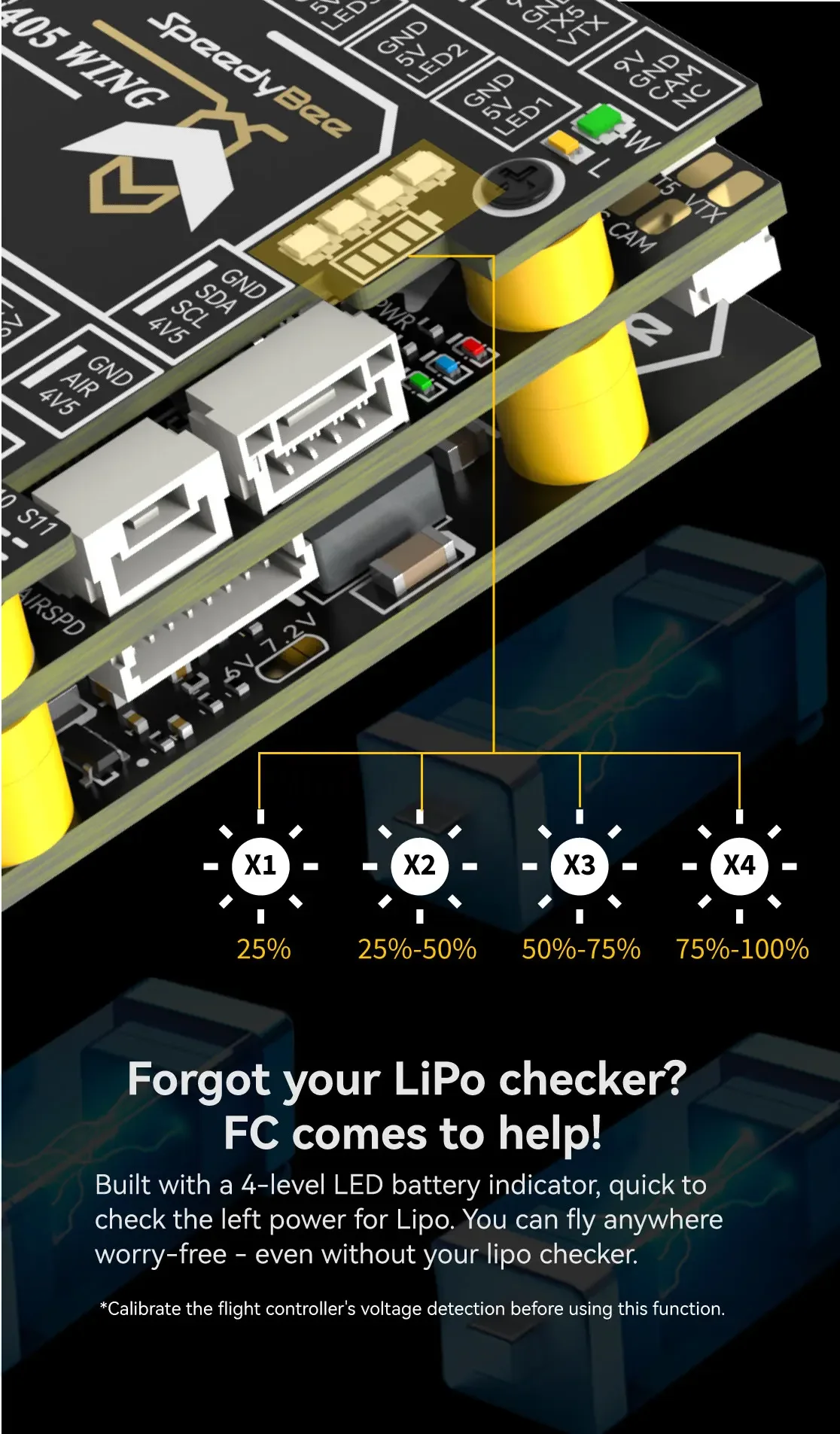

On-board battery level indicator
4x RGB indicator LED for battery level display by number of lights
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Category |
|
| Wholesale Price |
|
Product Details
Product Name | SpeedyBee F405 WING FC board |
MCU | STM32F405,168MHz,1MB Flash |
IMU(Gyro&Accelerometer) | ICM-42688-P |
Barometer | SPL006-001 |
OSD Chip | AT7456E |
Blackbox | MicroSD Card Slot |
UART | 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) |
I2C | 1x Used for magnetometer, digital airspeed sensor |
ADC | 4x (VBAT, Current, RSSI, Analog AirSpeed) |
PWM | 12x (11+1“LED”pad) |
ELRS/CRSF receiver | Supported,connected to UART1 |
SBUS | Built in inverter for SBUS input (UART2-RX) |
LED | 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB |
RSSI | Supported,Named as RS . |
Supported FC Firmware | INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING |
Product Name | SpeedyBee F405 WING PDB board |
Input voltage range | 7~36V (2~6S LiPo) |
Battery Voltage Sensor | Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot) |
Battery Current Sensor | 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot) |
TVS Protective diode | Yes |
FC BEC output | Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip |
VTX BEC output | Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera. |
Servo BEC output | Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos. |
Product Name | SpeedyBee F405 WING Wireless board |
Wireless Configuration (long press BOOT button for 6 seconds to switch modes) | BLE mode, connect to Speedybee APP |
Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. | |
Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner | |
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) | 4x WS2812 LED strip connectors, adjustable colors and flashing modes |
4x WS2812 LED strip connectors, adjustable colors and flashing modes | |
On-board battery level indicator | 4x RGB indicator LED for battery level display by number of lights |
